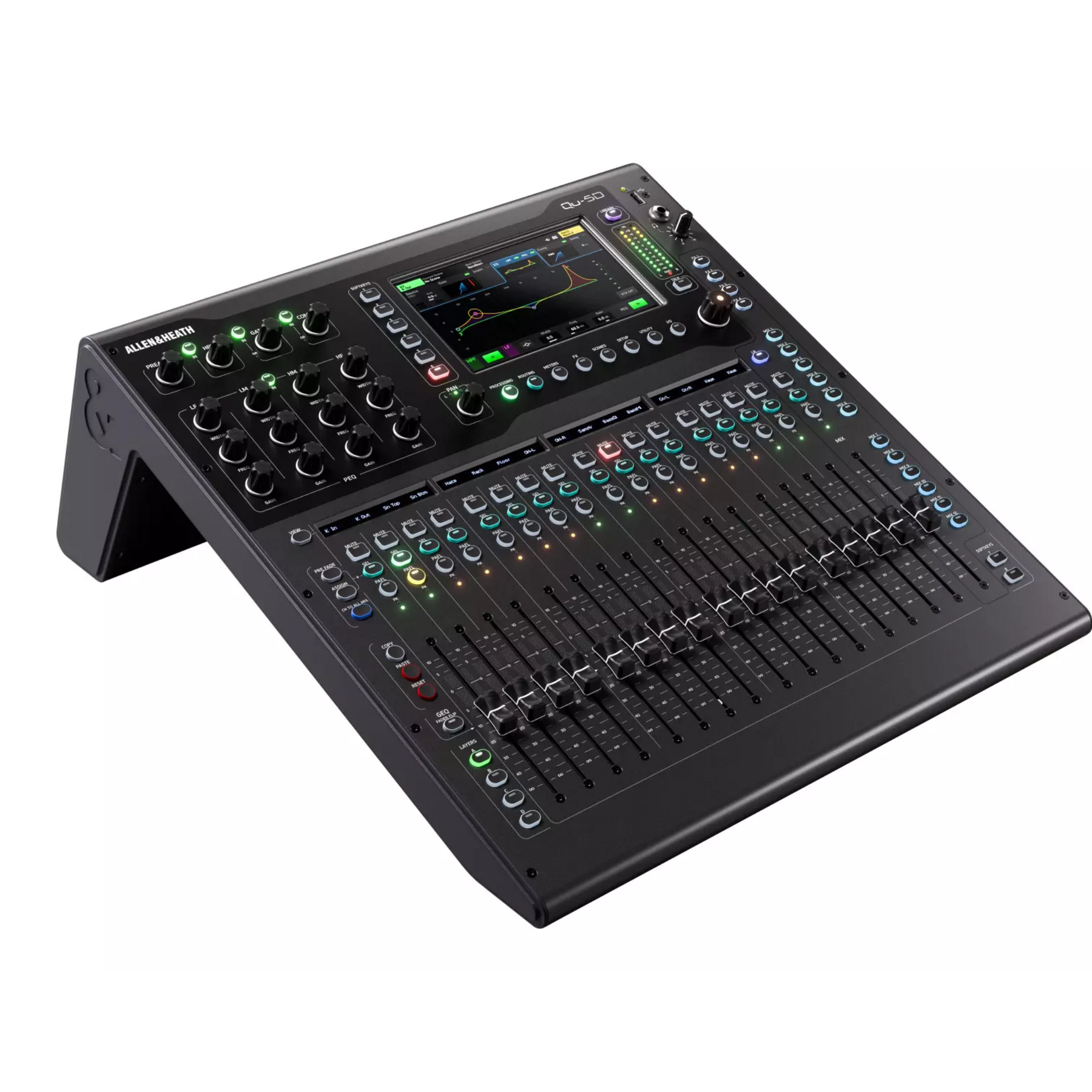

Overview of Allen & Heath Qu-5D 36-Channel / 12-Bus Digital Mixer with 16+1 Motorized Faders
Qu-5 takes the ever-popular Qu-16 form factor and adds Allen & Heath's powerful XCVI processing, new FX engines and Everything I/O connectivity. There's also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.
In addition, the Qu-5D variant features a built-in 16x16 48/96 kHz Dante port for interoperability with other Dante enabled equipment.
Both the Qu-5 and Qu-5D are rack-mountable, 32 channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.
Specifications
Processing & FX
• 96kHz XCVI Core
• 6 Multi-FX Engines with dedicated Stereo Returns
• DEEP Processing Ready
Mix Architecture
• 38x Inputs to Mix (32x Mono/Linkable, 3x Stereo)
• 12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
• 4 Mono/Linkable Matrix
• Stereo Main LR Output
I/O
• 16 XLR/Jack 'Combi' Mic/Line Input Sockets
• 2 Stereo Line Input Sockets (each 2x TRS)
• 12 XLR Output Sockets
• 1 XLR Talkback Socket
• 2 TRS Output Sockets
• 1 AES3 Stereo Digital Output Socket
• 128128 Intelligent SLink Port for Everything I/O expansion and system connections
• 1616 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-5D only)
• Stereo Headphone Output
Control

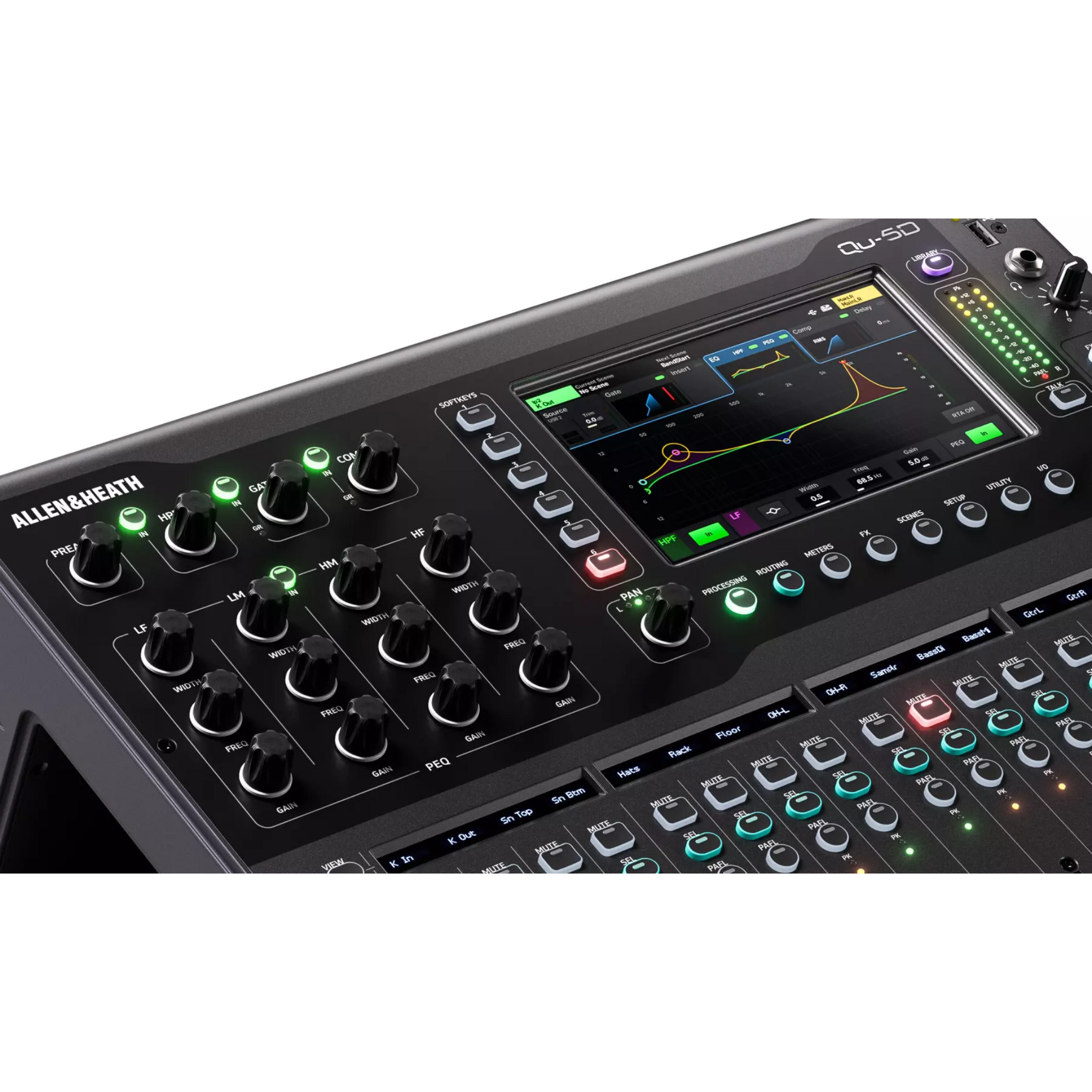

• 7" Capacitive Touchscreen
• 17 100mm Motorised Faders
• 4 Channel Strip Layers
• Remote control via free apps - Windows/MacOS/iOS/Android
• 8 SoftKeys
• Configurable single/dual Footswitch Connection
Recording & Playback
• USB-A For stereo audio record/playback and data transfer
• USB-C Audio interface for multichannel record/playback (32x32)
• SD Card Slot for multichannel audio recording or playback (16x16@96kHz, 32x32@48kHz)
Misc
• 19" Rack Mountable (optional kit available) (Qu-5 & Qu-5D only)
• 12V Lamp Socket
• Configurable Chromatic Channel Meter LED's
• Dimensions (D x W x H): 476 x 440.4 x 213.1mm (18.7 x 17.3 x 8.4")
• Weight: 10 kg (22 lbs)
