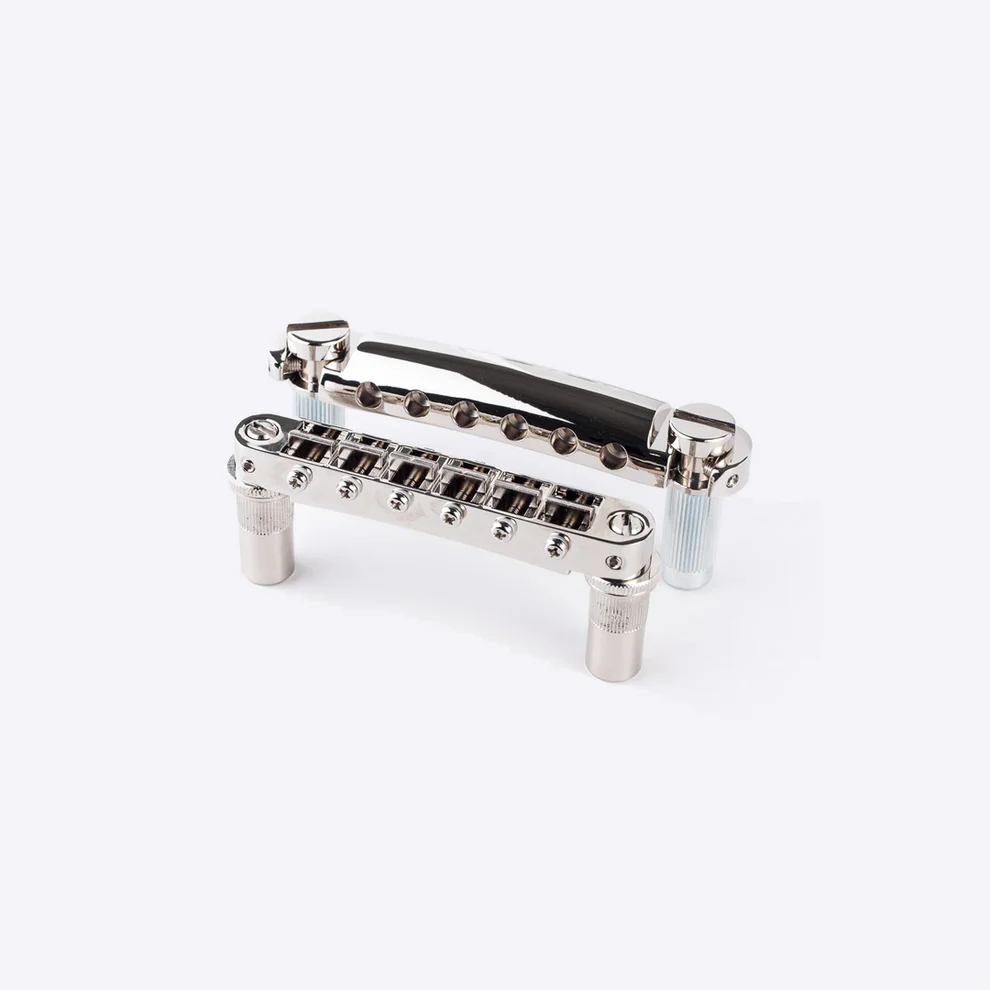

Allparts GB-0529-001 TonePros LPM02-N Metric Tuneomatic/Tailpiece set, large post, Nickel
GB-0529-001
Regular price$188.30
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Allparts
- Shipping Calculated at checkout, most in stock products ship same day
The TonePros System II Bridge and Tailpiece components come as a package set, ready to install on your guitar. The package includes:
- 1. TonePros Patent Issued System II Pre-Notched Bridge with matching threaded adjustment posts.
- 2. TonePros Patent Issued System II Tailpiece with matching threaded adjustment studs.
- 3. Allen style adjustment tool for use with both bridge and tailpiece.
The LPM02 includes the TonePros T3BT Bridge and T1Z Tailpiece. These matched bridge and tailpiece are metric thread and fit most overseas guitars without modification.
Specifications:
- Bridge Post Thread: 8mm x 1.25 Metric
- Bridge Post to Post Spacing: 74mm
- Saddle Notch: Pre-Notched Saddles
- Saddle Material: Zamak
- Bridge Material: Zamak
- Bridge Post/Thumbwheel Material: Brass
- Radius: 12 inch
- Bridge String Spread: Approx. 10.4mm
- Tailpiece Stud Thread: 8mm x 1.25 Metric
- Tailpiece Stud to Stud Spacing: 3.22 inches/ 82mm
- Tailpiece Material: Zamak
- Stud Material: Brass
