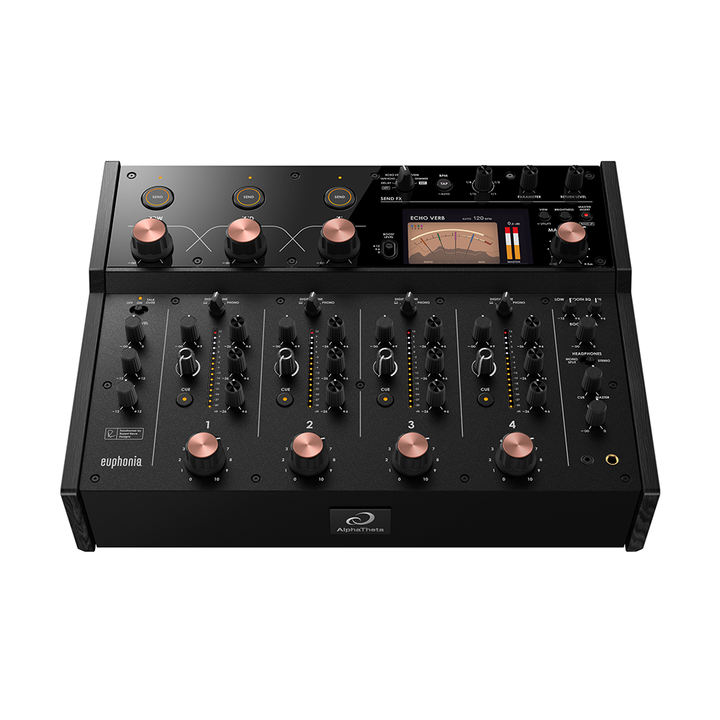

Pioneer DJ AlphaTheta Euphonia Professional 4-Channel Rotary Mixer

A professional 4-channel rotary mixer that creates an amazingly natural and smooth mixing experience. The euphonia builds on 30 years of audio technology and innovation while paying homage to rotary mixers, which are known for their unique sound quality and playability to enable deep musical immersion. This is the first mixer to bear the AlphaTheta name and it’s the company’s first-ever rotary unit. Click on the button below for more information.

Features:

• Euphoric sound with digital clarity and analog polish from Rupert Neve Designs transformer
• A specially developed rotary fader makes you feel at one with the music
• Energy Visualizer for understanding overall sound at first glance
• Next-generation 3Band Master Isolator that transforms sensibility into sound at your will
• Built-in Send FX to bring depth and space to the music
• Design that embodies a new era of rotary mixer

Euphoric sound with digital clarity and analog polish from Rupert Neve Designs transformer.
The euphonia produces a euphoric sound with the clarity of digital and the richness of analog unlike any DJ mixer. To deliver a clearer sound quality that accurately reproduces the expression of the music, the euphonia uses high-quality 32-bit A/D and D/A converters as well as 96 kHz/64-bit floating point mixing processing operations in the digital signal processor (DSP), utilizing the digital signal processing technology AlphaTheta has developed over many years. All sound coming out of the euphonia passes through a transformer circuit co-designed by AlphaTheta and Rupert Neve Designs, the legendary makers of outstanding analog audio circuitry and mixing desks revered by artists and sound engineers around the world. This transformer circuit, tuned specifically for the euphonia, adds harmonics to the music and creates a glossy and energetic sound that’s smoother for mixing . Low frequencies such as kicks and bass are more stable and punchier. Mid frequencies like vocals and instruments have more presence and gloss, and high frequencies such as hi-hats sound silky and natural. The transformer breaks down the barrier between vintage live and modern electric sounds, making mixing easier and surprisingly natural, as if recordings in different styles were originally one piece of music.

Specially developed rotary fader makes you feel at one with the music.
To enhance euphonia’s intuitive mixing experience, the unit is loaded with rotary faders that feature a brand-new carefully developed design to help give DJs a deeper connection.  Elastomer is applied to the outer circumference of each knob to ensure a high level of vibration absorption and a comfortable and reliable grip. The uniquely developed mechanism for the faders also benefits from optimum weighting. DJs will notice a difference in the feel of the knobs when turned at different speeds, as a higher load is applied when DJs turn knobs slowly for delicate fine-tuning and a lower load level is applied when DJs turn a knob quickly to instantly reach the desired volume level. Additionally, the euphonia’s fader volume curves are optimized through extensive DJ feedback, to deliver smooth and natural mixing without equalizing to allow DJs to concentrate on volume control.

Energy Visualizer for understanding overall sound at first glance.
Get an instant visual grasp of the status of the mix and balance of track volume levels through euphonia’s Energy Visualizer. Conventional Volume Unit (VU) meters only have 1 needle meter, making it difficult for DJs to grasp multiple channel levels at the same time. The euphonia's uniquely developed Mix Level Meter features a needle meter for each channel to allow DJs to visually check the levels for all channels and mix smoothly while maintaining the groove. DJs can also keep an eye on the balance of the Master output by viewing the Spectrum Analyzer which helps to keep mixes sounding consistent and smooth, even in a long set, by allowing DJs to “watch” the euphonia’s output and adjust it to create the desired sound.

SPECIFICATIONS:

TERMINALS

Inputs
- DIGITAL IN × 4 (coaxial)
- LINE × 4 (RCA)
- PHONO × 4 (RCA)
- MIC x 1 (XLR & 1/4" TRS jack)

Outputs
- MASTER × 1 (XLR)
- BOOTH × 1 (1/4" TRS jack)
- REC × 1 (RCA)
- PHONES × 2 (1/4" stereo phone jack, 3.5 mm stereo mini jack)

USB
- USB Type-C × 1

Others
- SEND × 2 (1/4" TS jack)
- RETURN × 2 (1/4" TS jack)

Frequency Response
- 20 Hz － 40 kHz (LINE)

S/N Ratio
- 107 dB (USB, DIGITAL IN)
- 88 dB (PHONO)
- 105 dB (LINE)
- 79 dB (MIC)

Power Requirements
- AC 110 V － 240 V, 50 Hz / 60 Hz

Power Consumption
- 43 W

Max. External Dimensions (W x D x H)
- 429.2 × 331.0 × 119.9 mm / 16.90" × 13.03" x 4.72"

Main unit weight
- 9.5 kg / 20.94 lbs.

Accessories
- Power cord
- Quick start guide
- Precautions for use

Compatible Software
- rekordbox
- Serato DJ Pro
