Alto - TX312 700 Watt 12" Powered Full Range Speaker - USED
210000162078
Payment plans from Affirm, learn more
- ALTO
- Shipping Calculated at checkout, most in stock products ship same day
Used and recently traded in ALTO TX312,.. Powered 700 watt 1x12' full range PA speaker. Fully tested and in excellent cosmetic condition and perfect working order.
The Alto TX312, a 700-watt powered speaker perfect for a variety of live sound situations. With the TX3 Series, Alto Professional has created a family of powered loudspeakers suitable for your most demanding gigs, night after night. Utilizing much of the technology of the acclaimed TS3 series, the new TX3 Series delivers the power and clarity you need to sound your best.
The TX312 features a bi-amplified 2-way design, with a long-excursion woofer and a 1-inch titanium compression driver in a precision horn. The horn design of the TX3 Series improves high-frequency performance and produces a very precise 90 degree H x 60 degree V radiation pattern - ideal for optimal audience coverage.
The TX312 is housed in a rugged, lightweight, easily transportable cabinet. The trapezoidal shape enables either upright or wedge monitor positioning and the full-sized steel grille gives complete driver protection. These speakers are built for continuous heavy-duty use. Add to that a full complement of inputs/outputs and mounting options and it's easy to see that the TX312 plays an indispensable role in your performance.
Features
• 700 Watts peak (350 Watts continuous) Class D power
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your investment
• 12-inch (305 mm) LF driver, 2-inch (51 mm) voice coil
• 1-inch (25.4 mm) titanium HF compression driver
• Lightweight, portable design for main or wedge monitor operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume control
• Integrated analog limiter and overload protection circuitry
• Contour switch with low- and high-frequency +3dB boost
• Ground-lift switch removes unwanted hum or buzz
• Designed and tuned in the USA
Technical Specifications
System Type: 2-way active ported loudspeaker
Drivers
Low-Frequency: 12.0" (305 mm) driver, 2.0" (51 mm) voice coil
High-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
Amplifier: 700 watts (peak), 350 watts (continuous), Class D power
Horn Coverage: 90 degree horizontal x 60 degree vertical (nominal)
Frequency Response: 75 Hz - 20 kHz (-3 dB)
Crossover Frequency: 2.5 kHz
Max SPL: 118 dB @ 1 m
Equalization: Contour switch with low- and high-frequency +3 dB boost

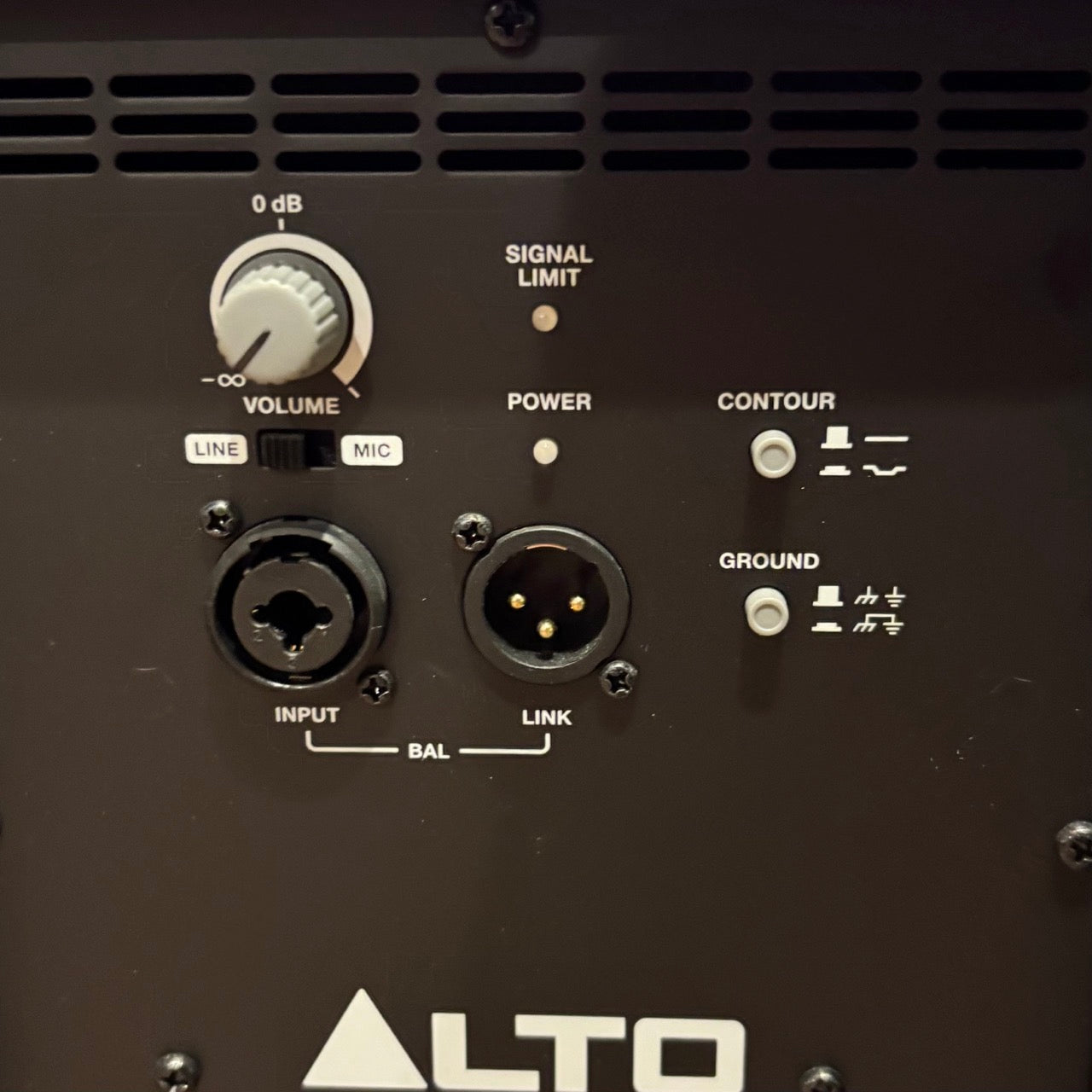

Connectors,....
(1) XLR/TRS 1/4" (6.35 mm) balanced input (Line/Mic)
(1) XLR output (Link)
(1) IEC power cable input
Controls: Power switch, volume control knob, contour switch, ground-lift switch
Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power,...
Connection: IEC
Voltage: 100120 V~, or 220240 V~; 50/60 Hz
Fuse: 100120V T6.3AL AC250V or 220240V T3.15AL AC250V
Consumption: 350 W
Protection: Thermal, overload analog limiter/compressor
Enclosure: Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation: Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth): 23.7" x 15.0" x 13.5" / 602 x 381 x 343 mm
Weight: 29.3 lb / 13.3 kg

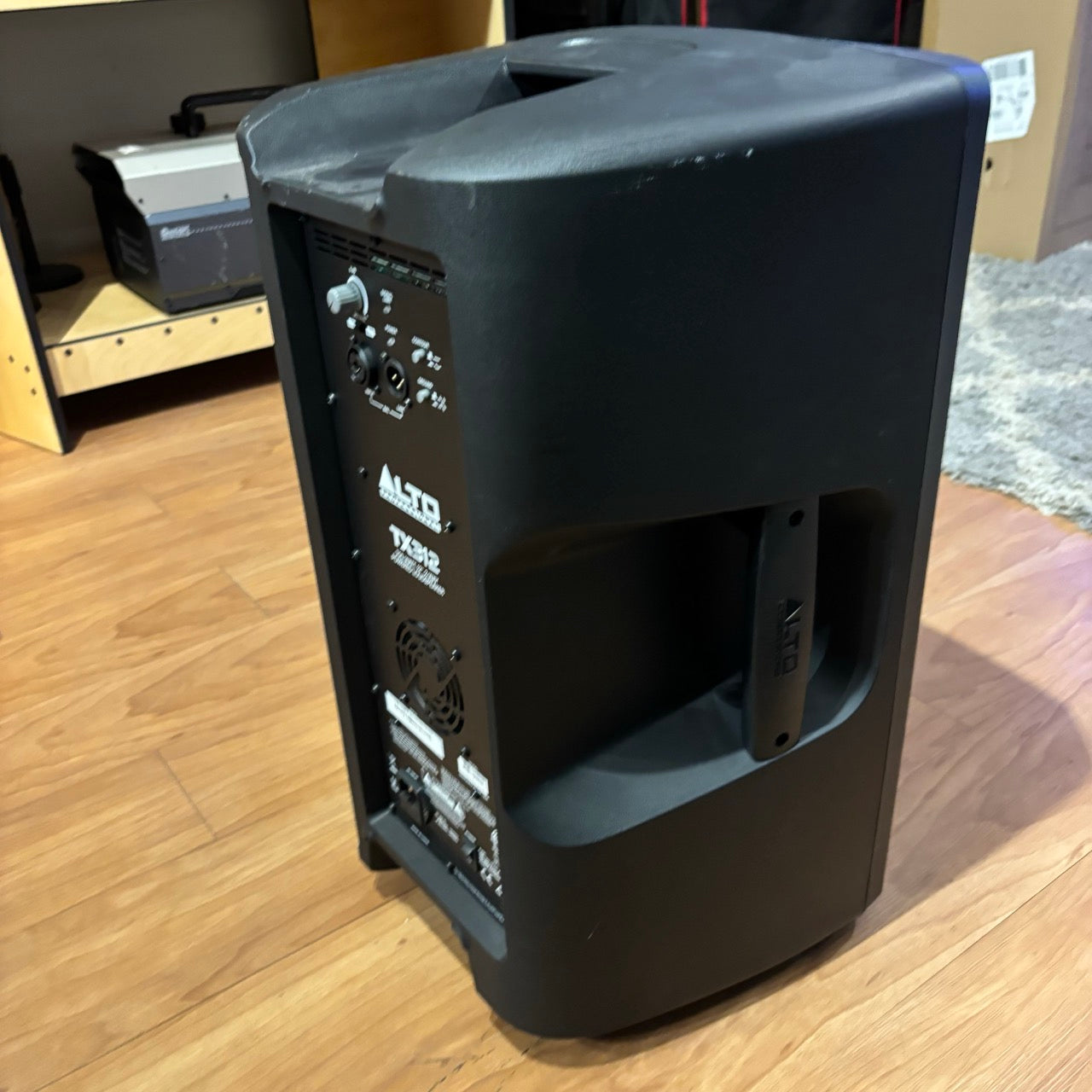

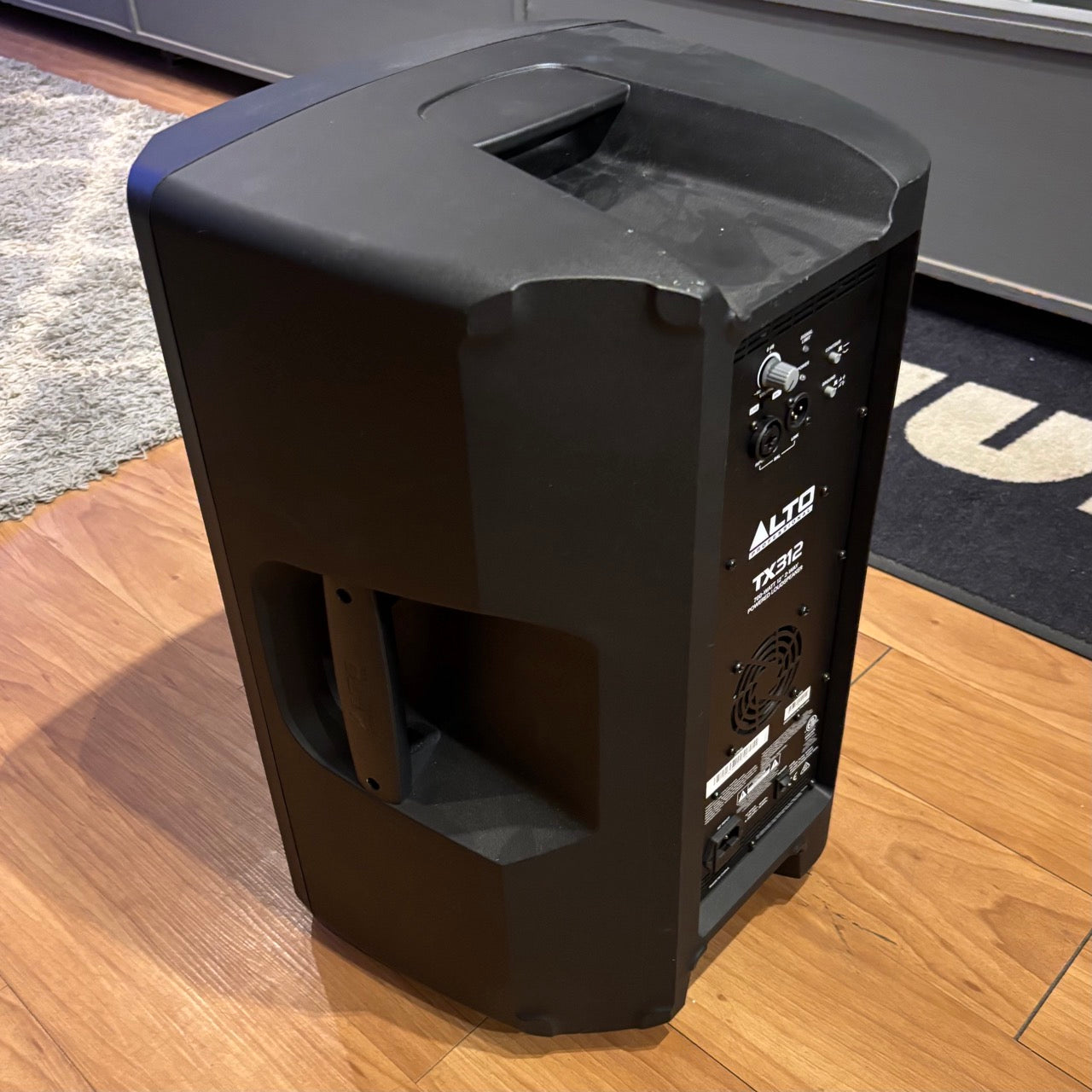

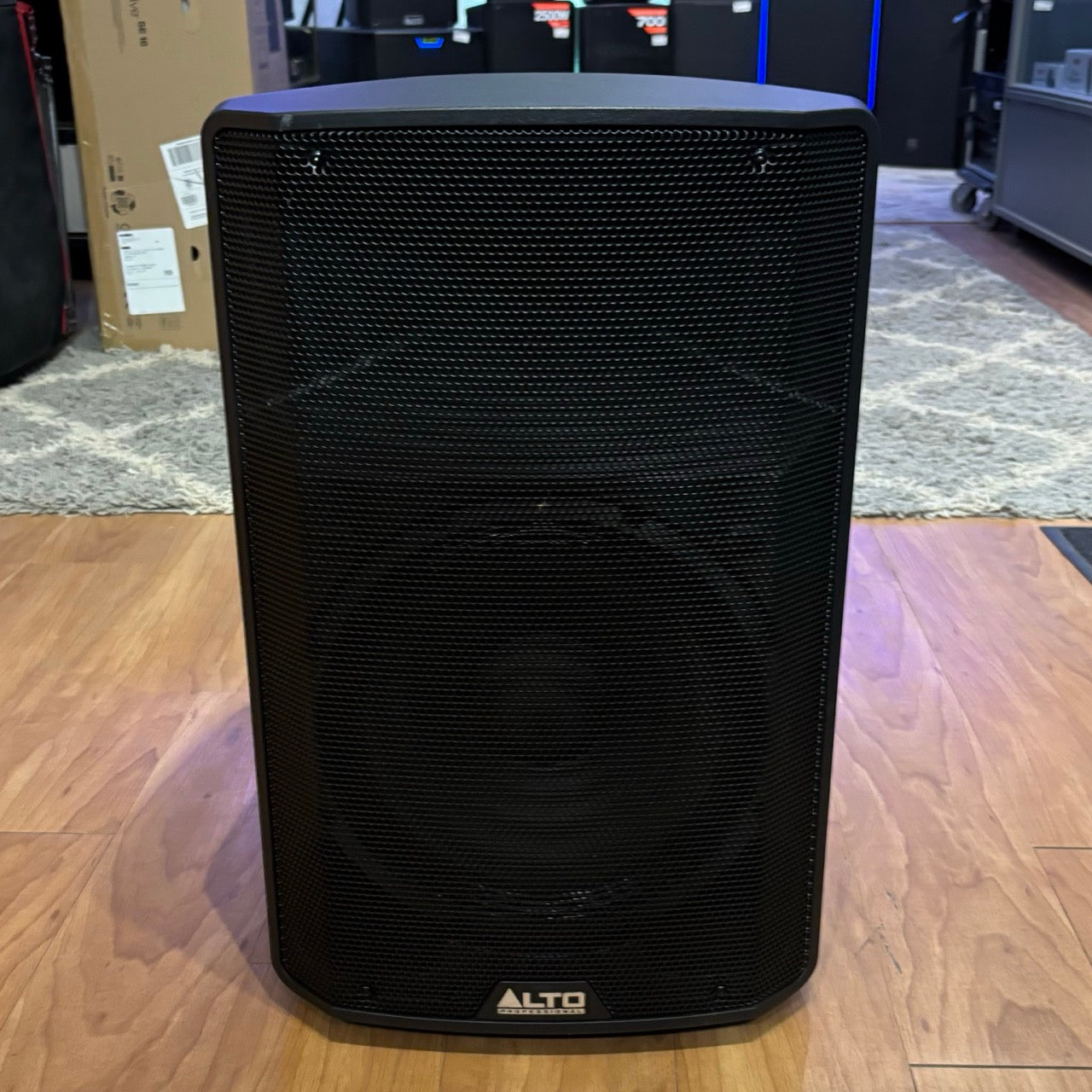

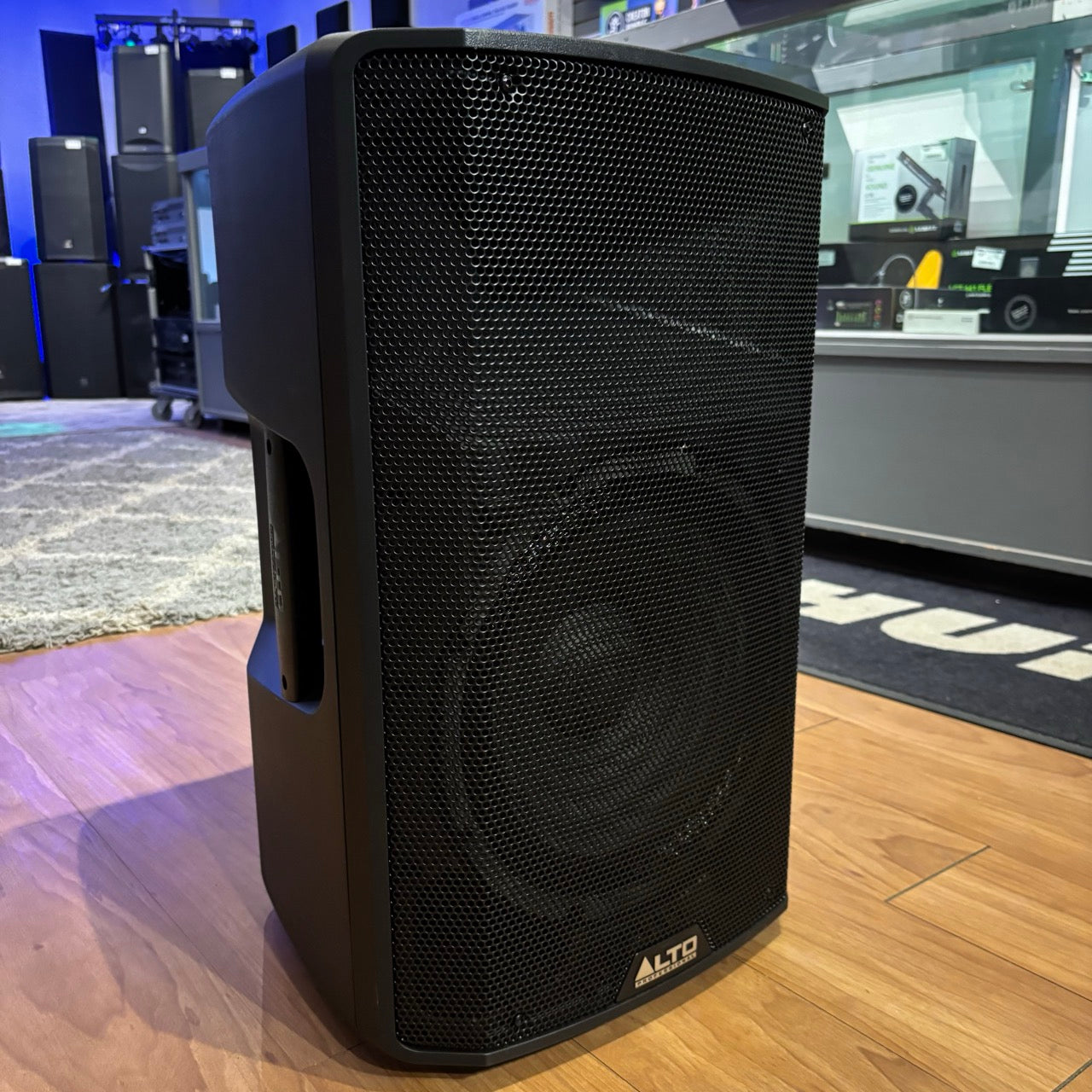

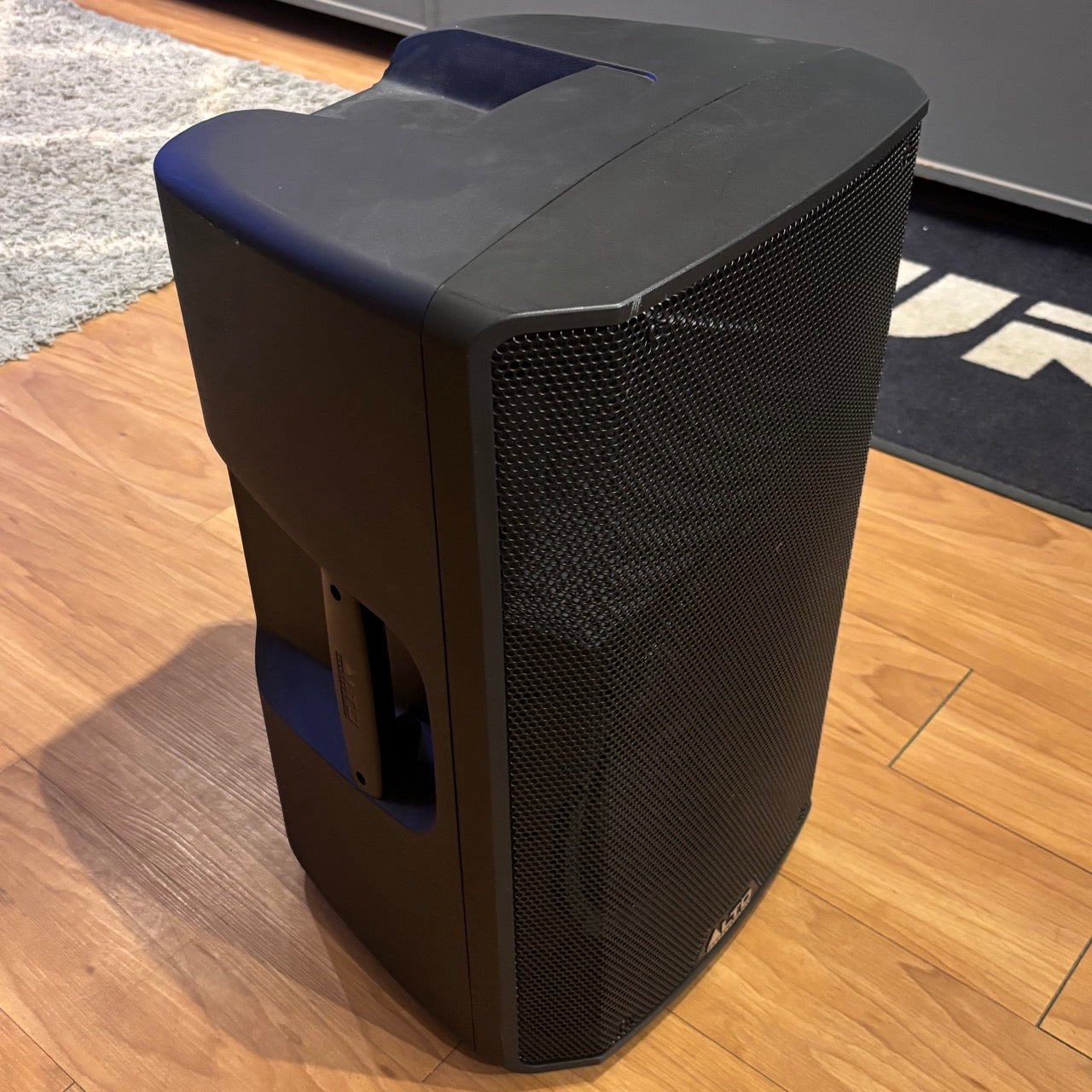

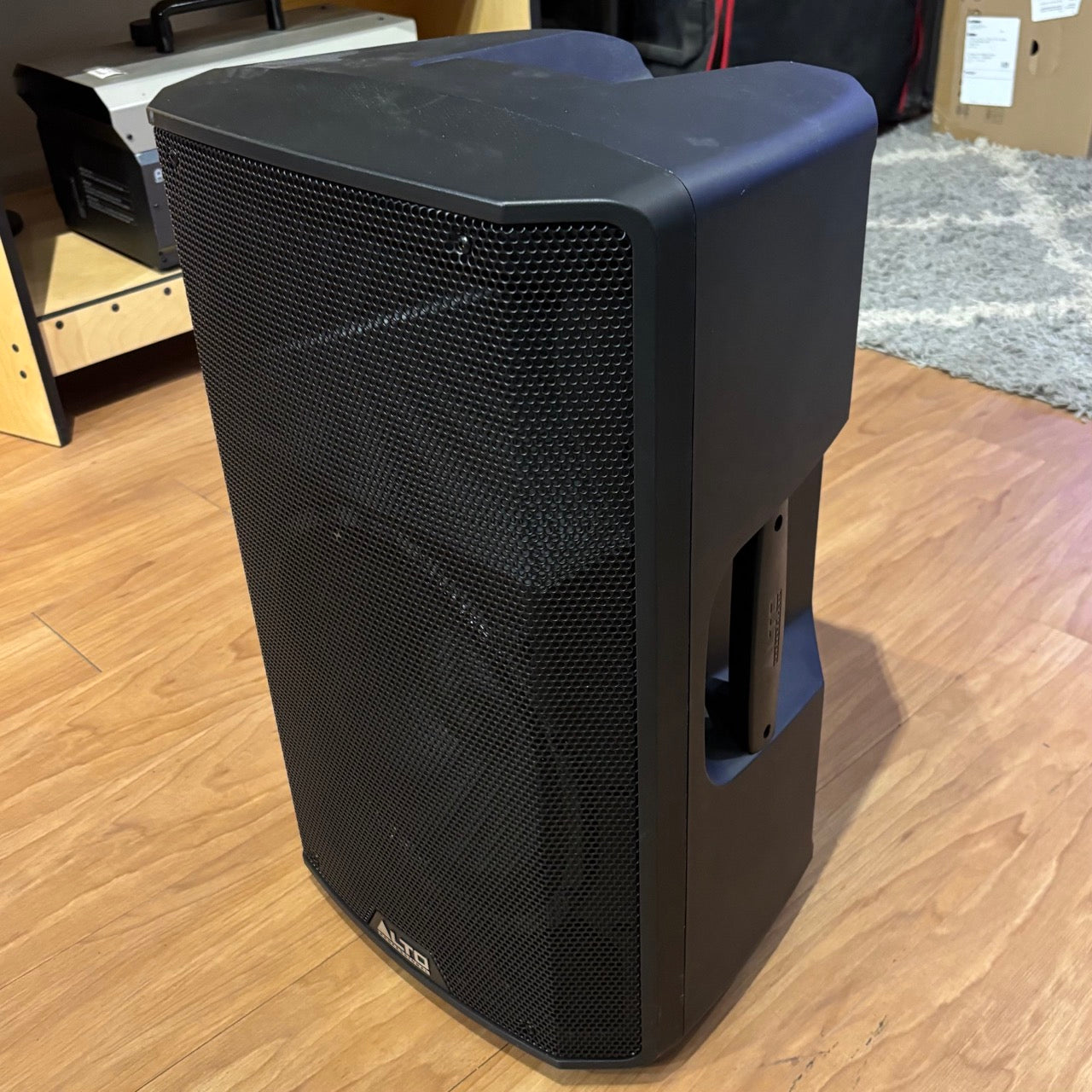

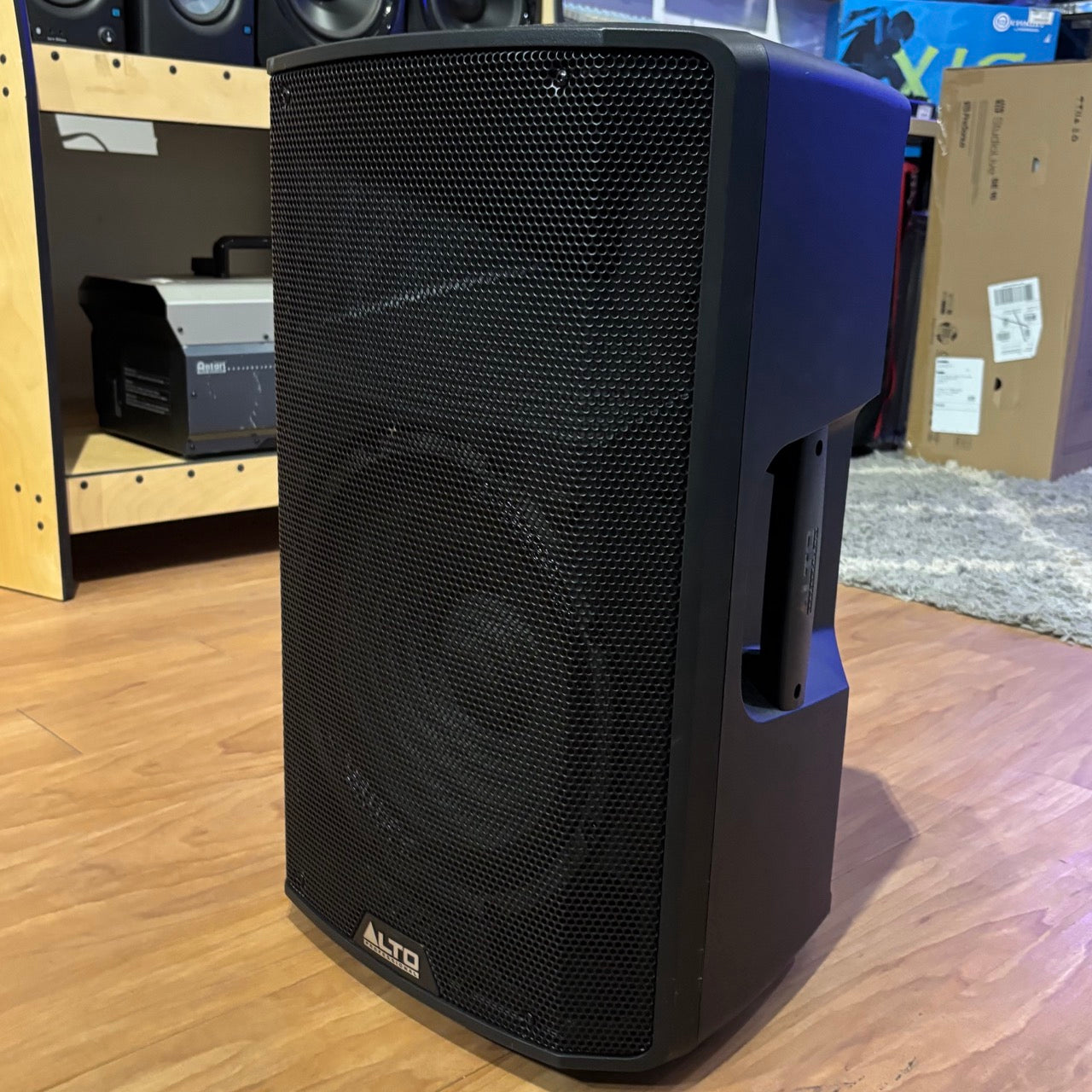

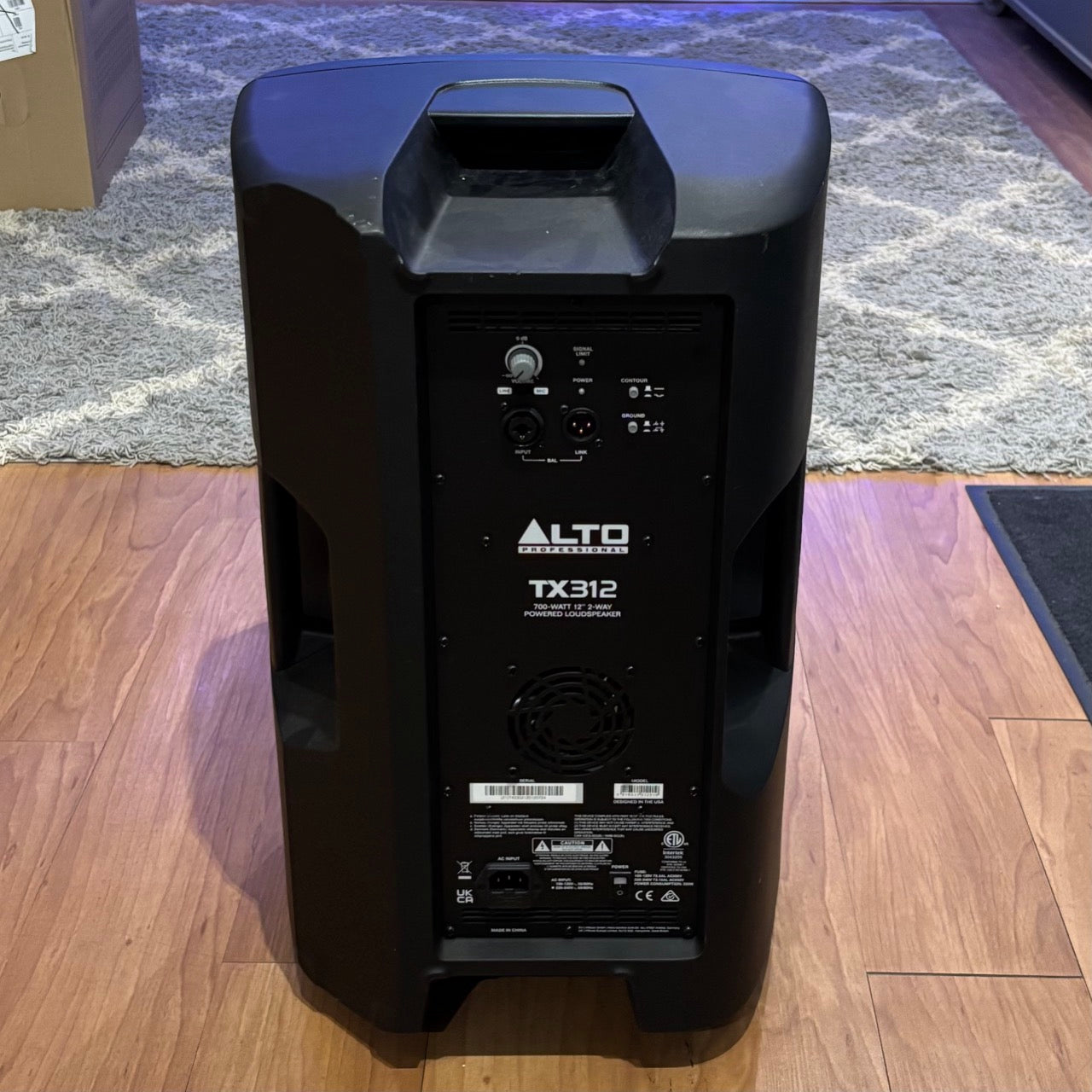

Special Note: Special Note: This item is previously owned. Please see pictures for reference and feel free to contact us with any specific questions. Used products come with a 14 day trial period from the date of delivery. Consignment products come with a 7 day trial period from the date of delivery. All used and consignment sales are otherwise final.
