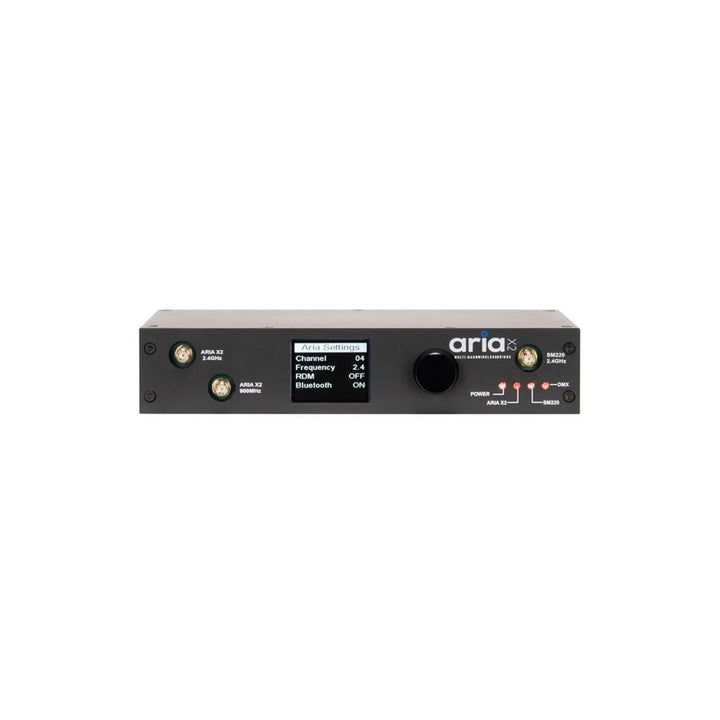

ADJ Aria X2 Bridge Interface
ARIA-X2-BRIDGE
Regular price$854.98
Available to Order
Available from supplier ADJ — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
The single universe, indoor Aria X2 Bridge, the future of wireless lighting management, is here to transform your experience with unparalleled control, efficiency and ease. This comprehensive system harnesses cutting-edge technology to offer you a solution that adapts to your needs and provides a harmonious lighting experience, whether on show site or in the shop. In addition to transmitting the Aria X2 serial protocol, Aria X2 Bridge is also compatible with ADJ WiFLY, Elation eFly, Magmatic MagFly and Acclaim Aria.
• 900Mhz., 2.4 GHz WiFi and Bluetooth
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
• Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
• SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
DMX
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
RF Characteristics
Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates
Connectors
Antenna: 5G JT SMA
DMX: 5-pin XLR Input and Output
DC: 2.5mm/5.5mm Barrel connector
Outdoor Locking Power Input and Output
Power
AC100-240V 50/60Hz
Power Consumption: 2W
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical
IP20 Aluminum/Metal enclosure

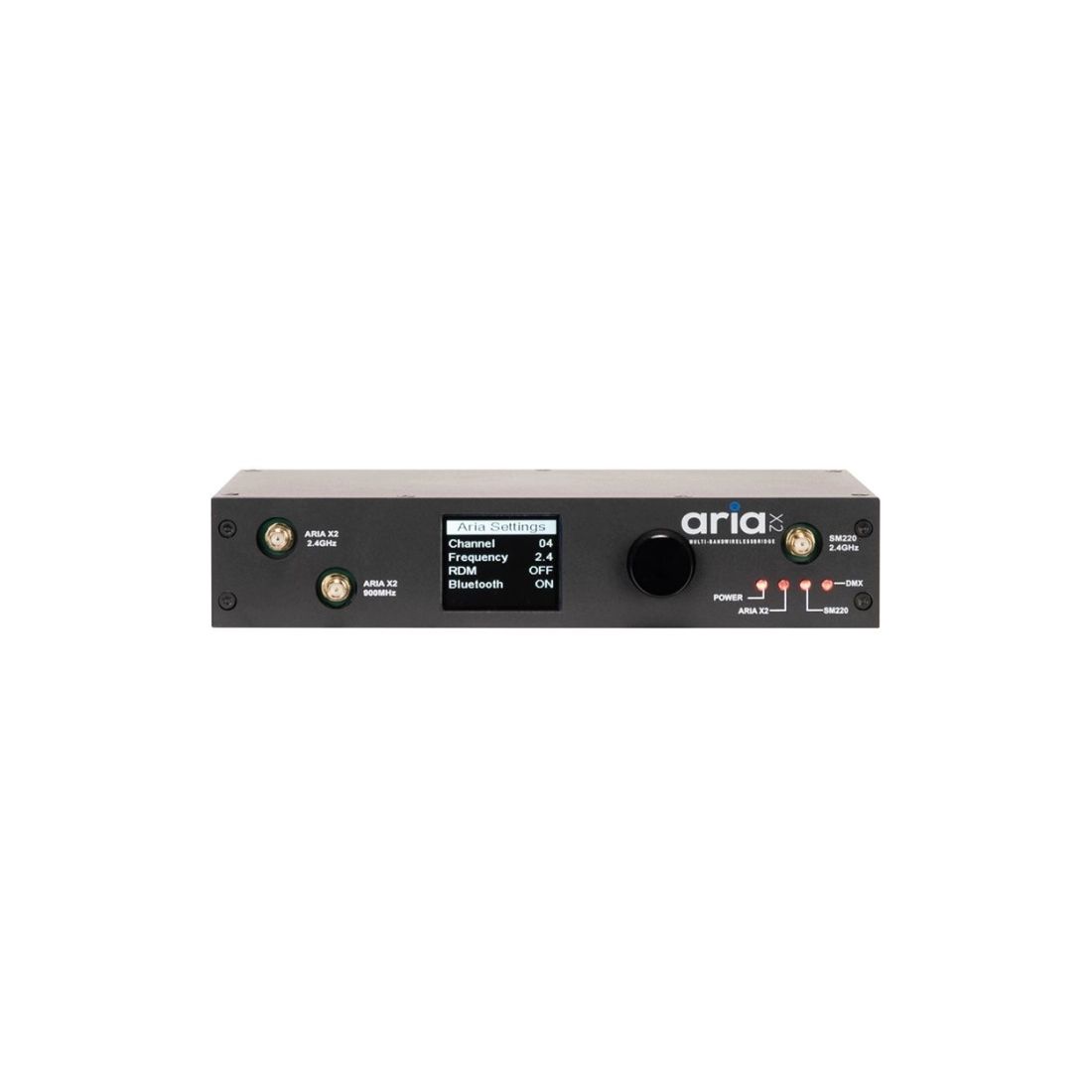

Front panel digital screen and rotary knob
M10 and M12 Threads
Safety Eyelet
Max ambient operating temp: 113°F (45°C)
Max operating humidity: 75%
Storage temperature: 77°F (25°C)
Rack and wall mount accessories
Features
• Single DMX Universe• 900Mhz., 2.4 GHz WiFi and Bluetooth
• Configuration via App (Coming Soon) or Front panel
• Wireless to DMX or DMX to Wireless
• Aria X2 to SM220 (eFly, WiFly, MagFly and Acclaim Aria)
• SM220 (eFly, WiFly, MagFly and Acclaim Aria) to Aria X2
Specifications
Supported ProtocolsDMX
Proprietary 802.15.4
Aria X2 Mesh Protocol
Bluetooth 5.2 (BLE)
Aria X2 Serial Protocol
RF Characteristics
Frequency range
2404-2480 MHz
863-870 MHz (EU)
902-928 MHz
Radio module: Aria X2
Interference mitigation
CSMA
Adaptive frequency hopping (on the roadmap)
OTA updates
Connectors
Antenna: 5G JT SMA

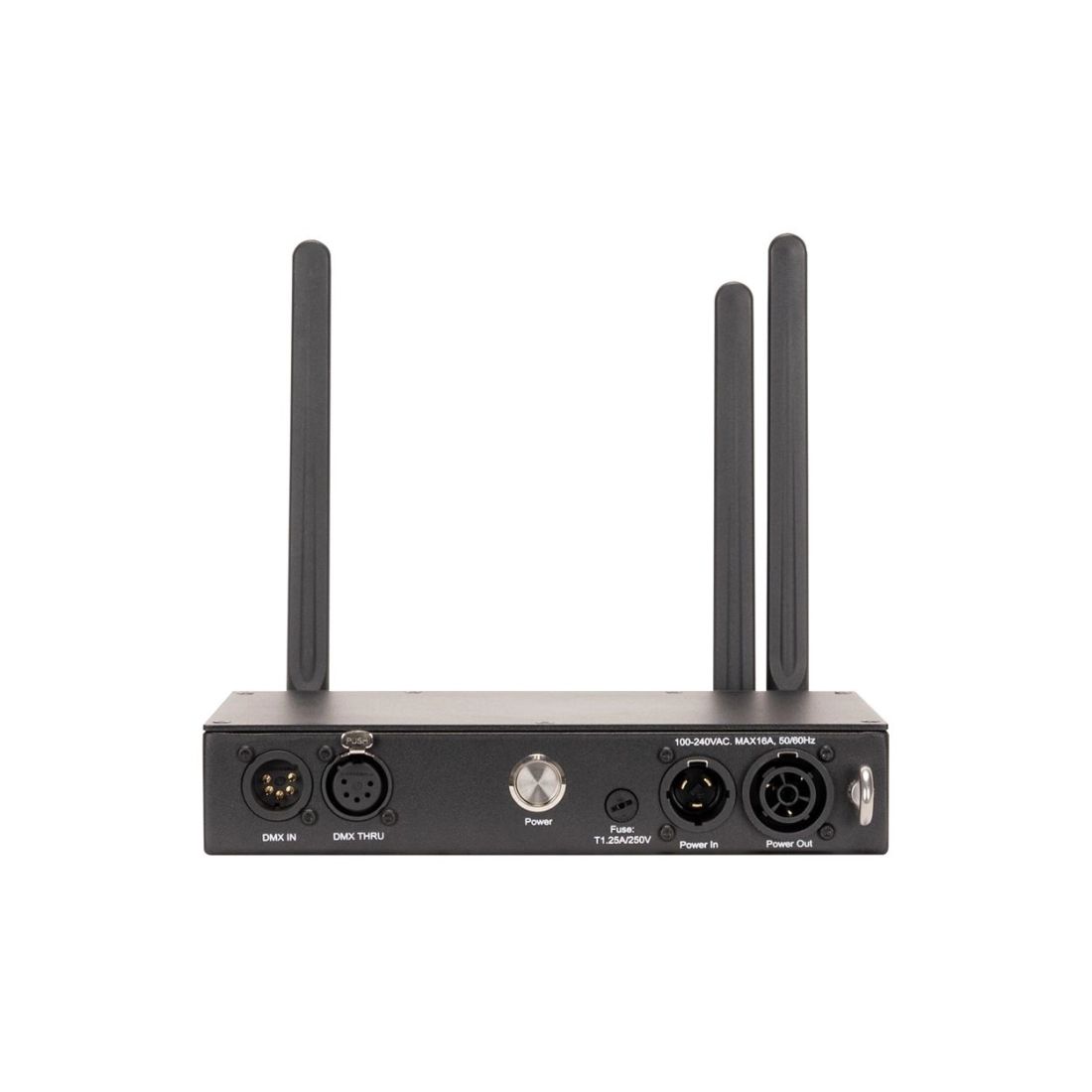

DMX: 5-pin XLR Input and Output
DC: 2.5mm/5.5mm Barrel connector
Outdoor Locking Power Input and Output
Power
AC100-240V 50/60Hz
Power Consumption: 2W
Power Fuse: T1.25A/250V. (5 x 20mm)
Physical
IP20 Aluminum/Metal enclosure
Front panel digital screen and rotary knob

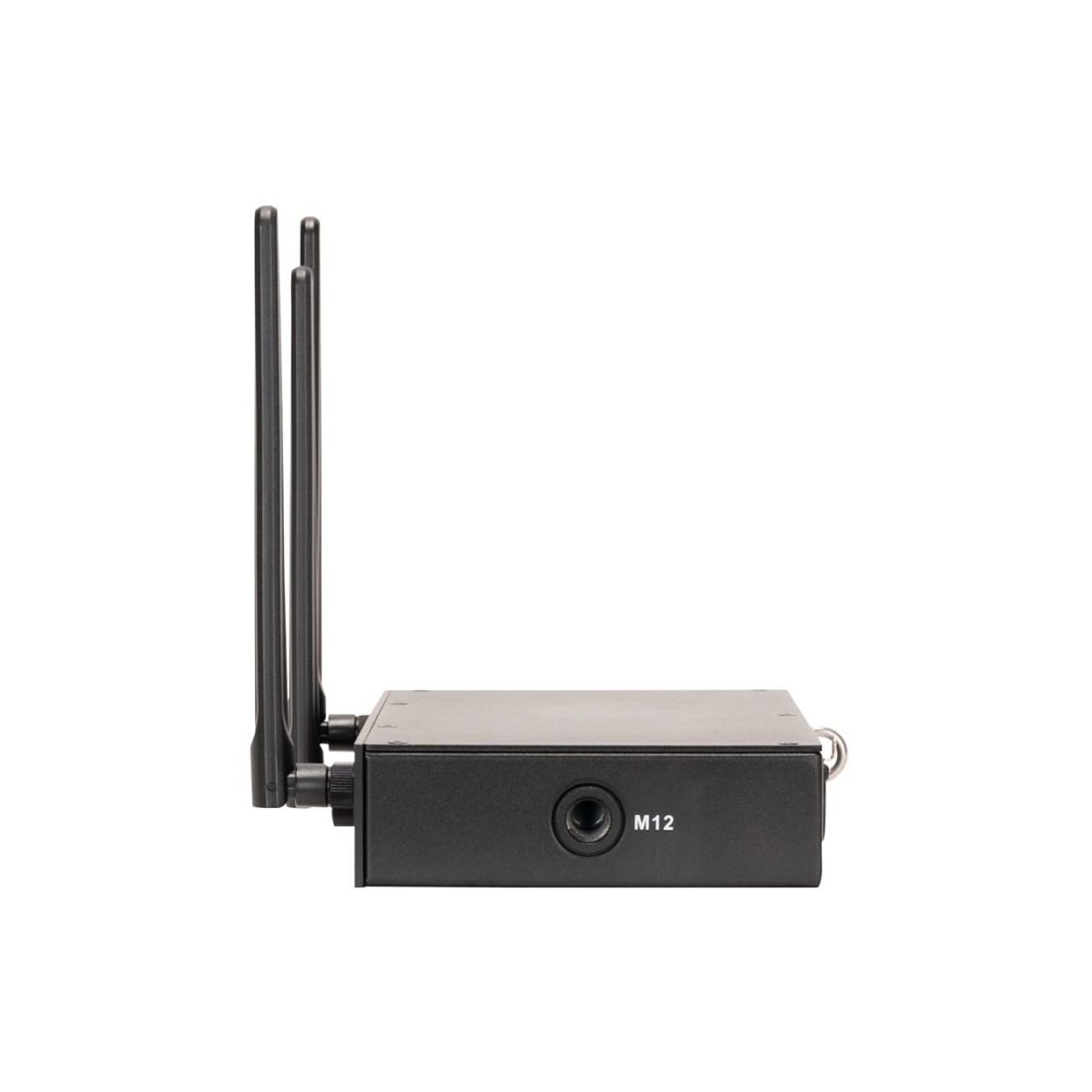

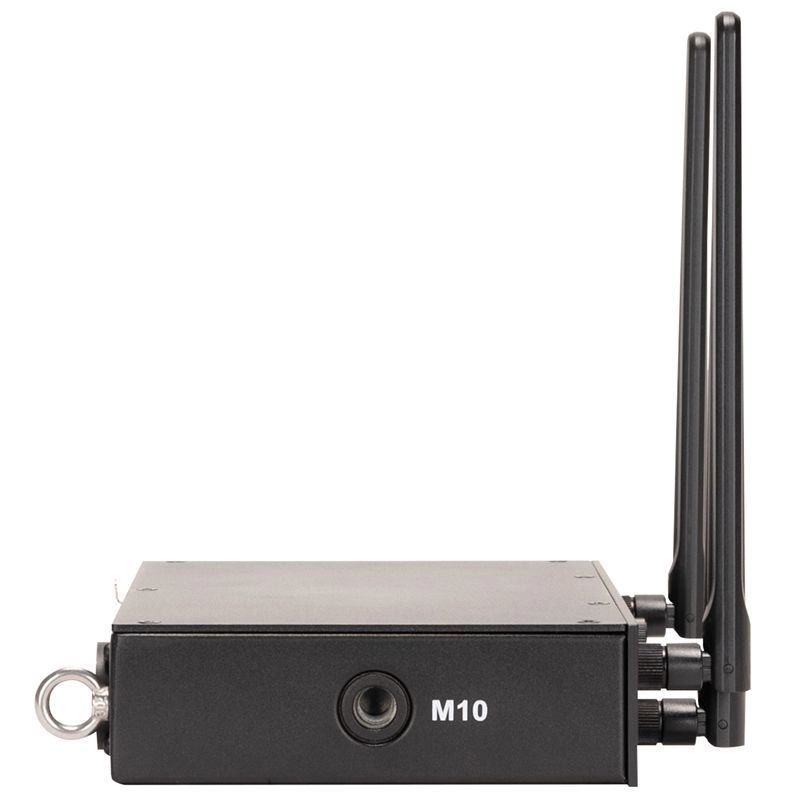

M10 and M12 Threads
Safety Eyelet
Max ambient operating temp: 113°F (45°C)
Max operating humidity: 75%
Storage temperature: 77°F (25°C)
Rack and wall mount accessories
