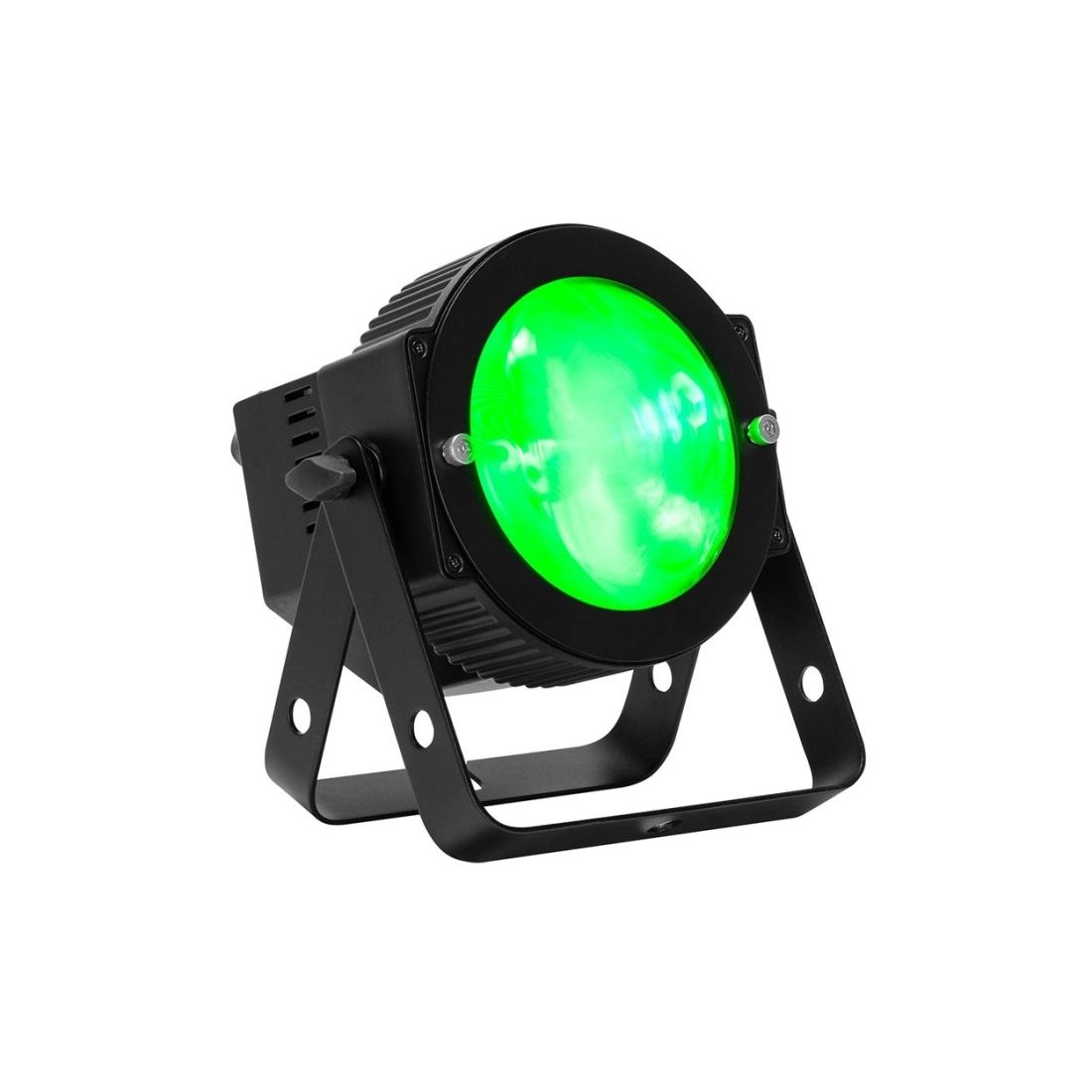

ADJ Lighting Dotz Par RGBL
DOTZ-PAR-RGBL
Regular price
$460.00
Sale price$399.98
Save $60.02
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
Drawing on the popularity of Chip On Board (C.O.B.) LED from the Dotz Par fixture, the ADJ Lighting Dotz Par RGBL uses the latest advancements in lighting technology with a RGBL (red, green, blue, lime) C.O.B. LED for a smooth, even field, high CRI output, advanced color mixing and tunable white color temperature control from 2700K to 6500K.
Light Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
20,000 Hours Rated Life
Photometric Data
CRI: TBA
CRI R9: TBA
Lumens: 1250
Effects
35° Beam Angle
Linear Color Temperature Control (2700K to 6500K)
Preset Color Temperatures
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control

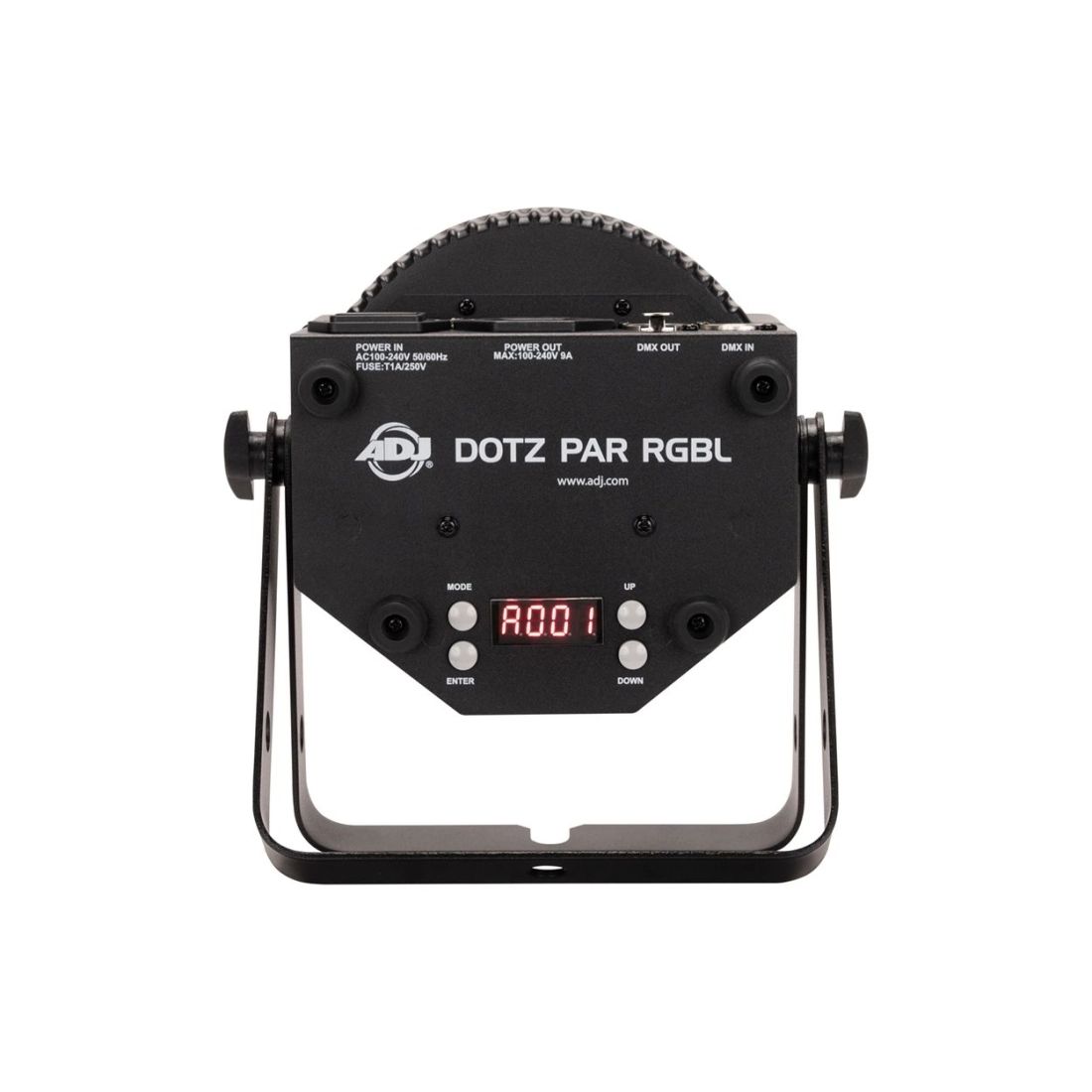

4-button, DMX digital display on rear panel
6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
1200Hz LED Refresh Rate
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
Construction/Connections
Plastic construction

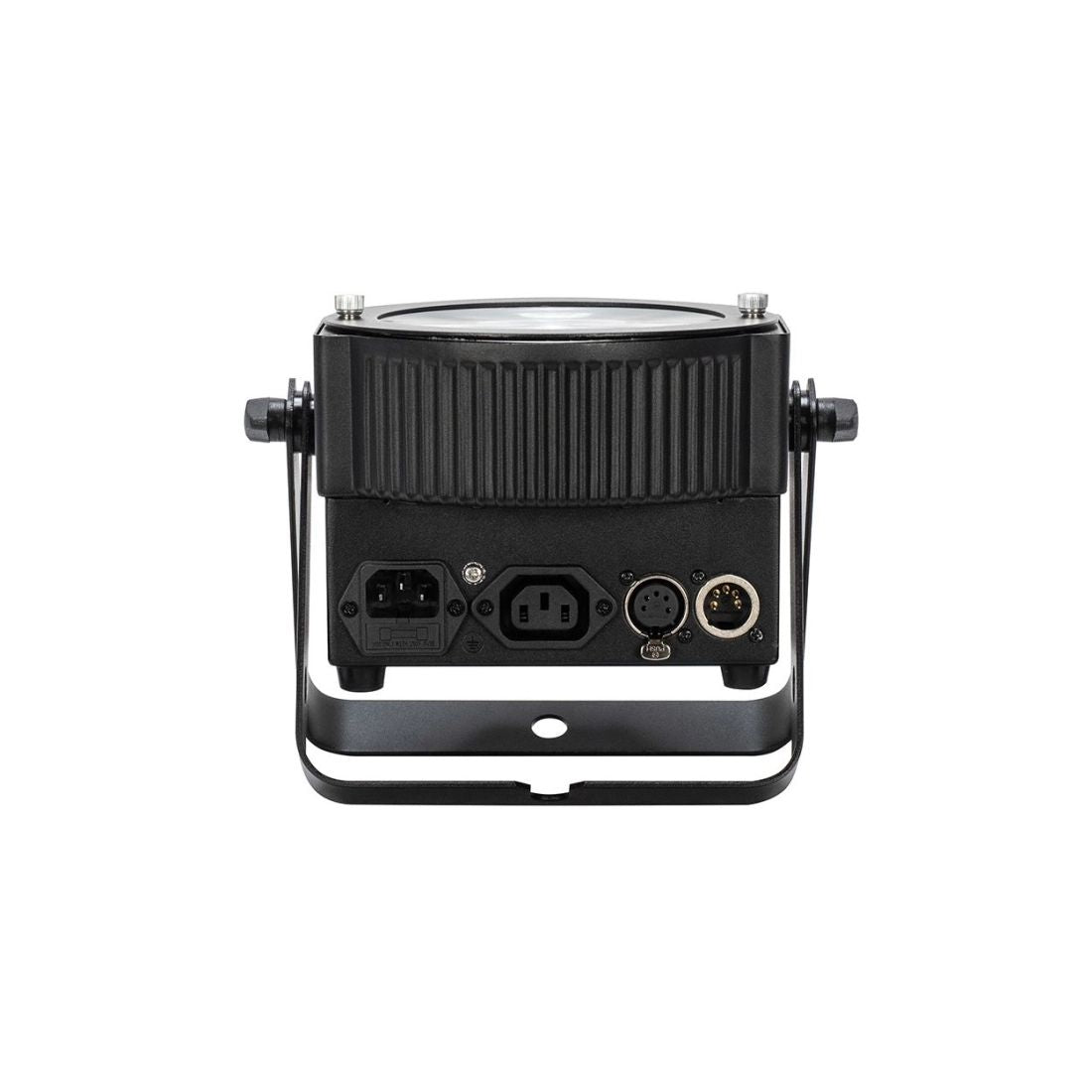

IEC Locking, In/Out Power connectors
Indoor 5-pin, XLR DMX, In/Out sockets
Scissor Yoke
Electrical/Thermal
Multi-voltage operation: AC 100-240V, 50/60Hz
Max Power LInk: 30 @120V., 57 @230V.
Max power consumption: 36W
Fuse protected: T1A/250V (5*20mm)
Specifications
SourceLight Source: 16x 3.5-Watt RGBL C.O.B. LED (4x Red, 4x Green, 4x Blue & 4x Lime)
20,000 Hours Rated Life
Photometric Data
CRI: TBA
CRI R9: TBA
Lumens: 1250
Effects
35° Beam Angle
Linear Color Temperature Control (2700K to 6500K)
Preset Color Temperatures
16-Bit Fine Color Control (Red, Green, Blue & Lime)
64 built-in Color Macros
Control
4-button, DMX digital display on rear panel
6 Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode, Sound Active Mode, Wireless RF and DMX Controlled
Supports RDM (Remote Device Management)
With Wired Digital Communication Network
6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre & Stage 2)
4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
1200Hz LED Refresh Rate
LED pulse and strobe effect
Electronic Dimming: 0 - 100%
Construction/Connections
Plastic construction
IEC Locking, In/Out Power connectors
Indoor 5-pin, XLR DMX, In/Out sockets
Scissor Yoke
Electrical/Thermal
Multi-voltage operation: AC 100-240V, 50/60Hz
Max Power LInk: 30 @120V., 57 @230V.
Max power consumption: 36W
Fuse protected: T1A/250V (5*20mm)
