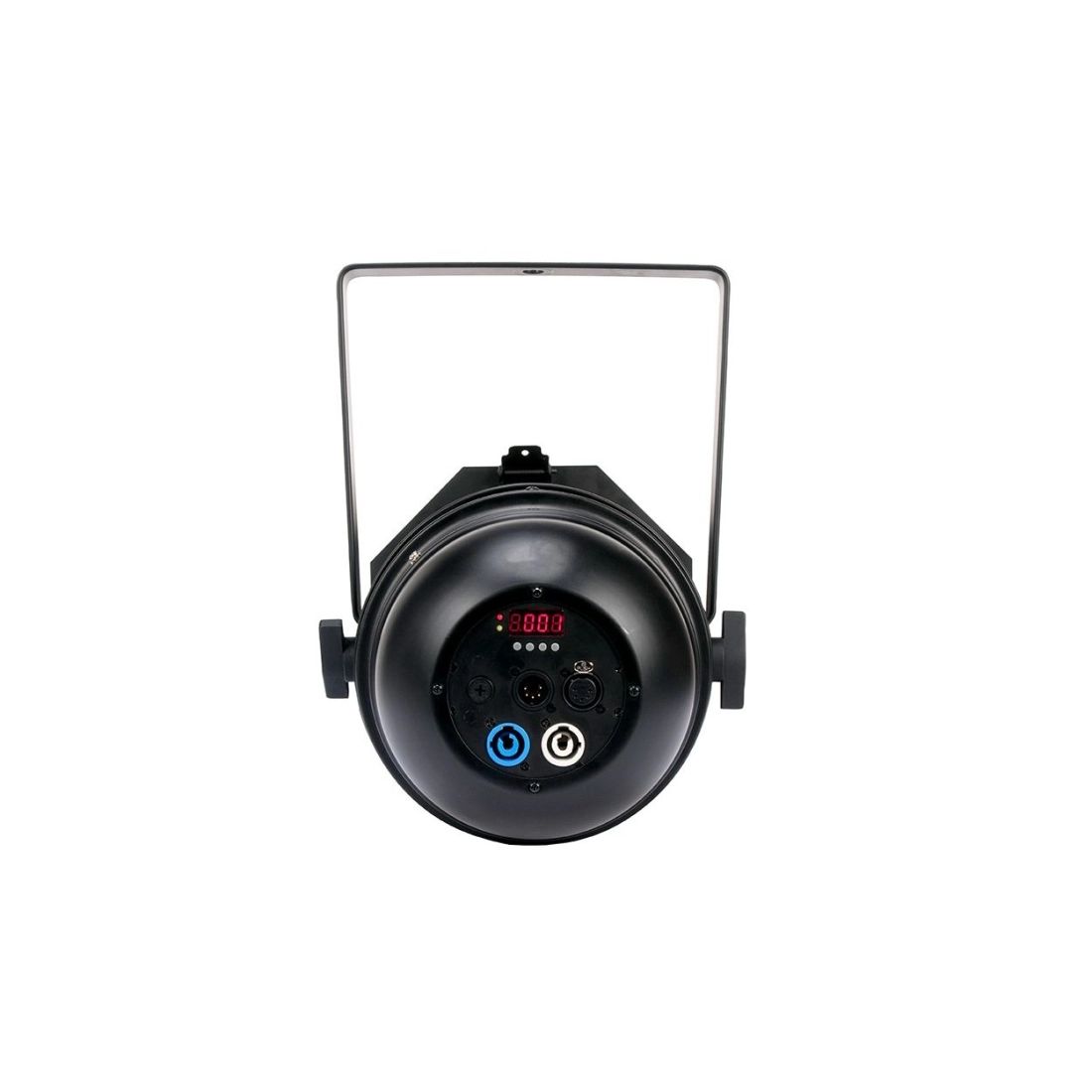

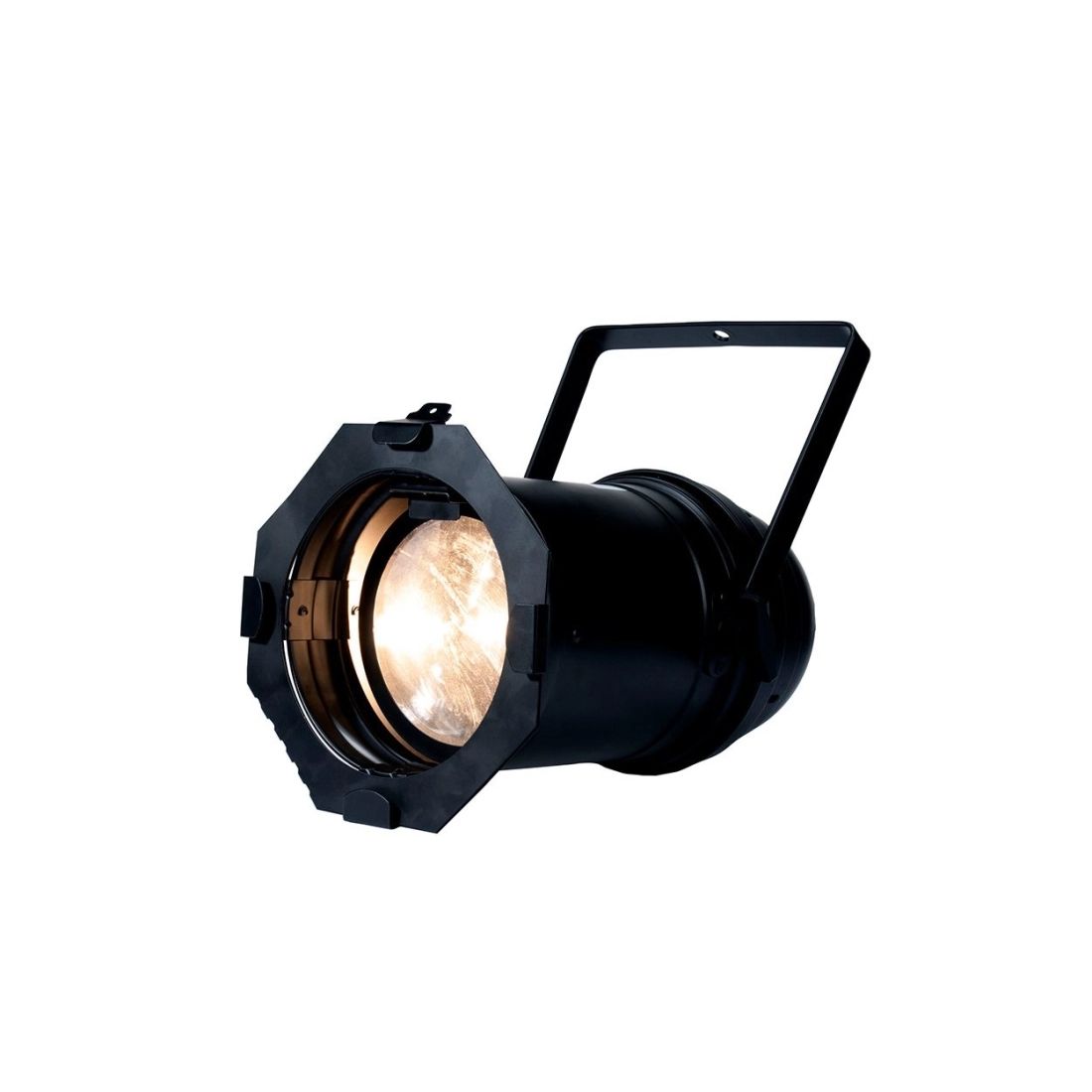

Overview of ADJ Par Z100 3K2 Lighting Fixture
The Par Z100 3K2 combines the aesthetic appeal of a traditional stage par can with the contemporary advantages of LED technology. It runs on a 100-Watt, 3000K Warm White C.O.B. LED engine boasting a CRI exceeding 90. With 5 manually adjustable zoom beam angles, along with DMX In/Out and locking power In/Out, the fixture facilitates the seamless connection of multiple units for permanent or temporary use.
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
100 Watt, 3000k Warm White C.O.B. LED (Chip On Board)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 9°, 15°, 20°, 25° or 30°
Zoom Ration: 3.3:1
Photometrics
5885 Lux (Zoomed In to 9° @ 5 meters)
767 Lux (Zoomed Out to 25° @ 5 meters)
CRI: 90
Connection
DMX: 5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections
Control
DMX-512
3 DMX control modes: (1, 3 & 4 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Electrical
Power Draw Total (@ Full On): 115W
Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
Fuse protected: 3A/250V
Ambient Temperature Range (For Use)
-4° ~ 113°F (-20°C ~ 45°C)
Storage Temperature Range
-22° ~ 113°F (-30°C ~ 45°C)
Features
• 4-button DMX menu display on rear panel• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 1.2KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
Specifications
Optical100 Watt, 3000k Warm White C.O.B. LED (Chip On Board)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 9°, 15°, 20°, 25° or 30°
Zoom Ration: 3.3:1
Photometrics
5885 Lux (Zoomed In to 9° @ 5 meters)
767 Lux (Zoomed Out to 25° @ 5 meters)
CRI: 90
Connection
DMX: 5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections
Control
DMX-512
3 DMX control modes: (1, 3 & 4 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Electrical
Power Draw Total (@ Full On): 115W
Power Consumption: 0.964A @ 120V/60Hz ; 0.5A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 15 fixtures @ 120V; 25 fixtures @ 230V
Fuse protected: 3A/250V
Ambient Temperature Range (For Use)
-4° ~ 113°F (-20°C ~ 45°C)
Storage Temperature Range
-22° ~ 113°F (-30°C ~ 45°C)
Music City Canada is an authorized reseller for ADJ products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
