ADJ Par Z150 RGBA Lighting Fixture
PAR-Z150-RGBA
Regular price
$1,010.00
Sale price$874.98
Save $135.02
Available to Order
Available from supplier ADJ — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day

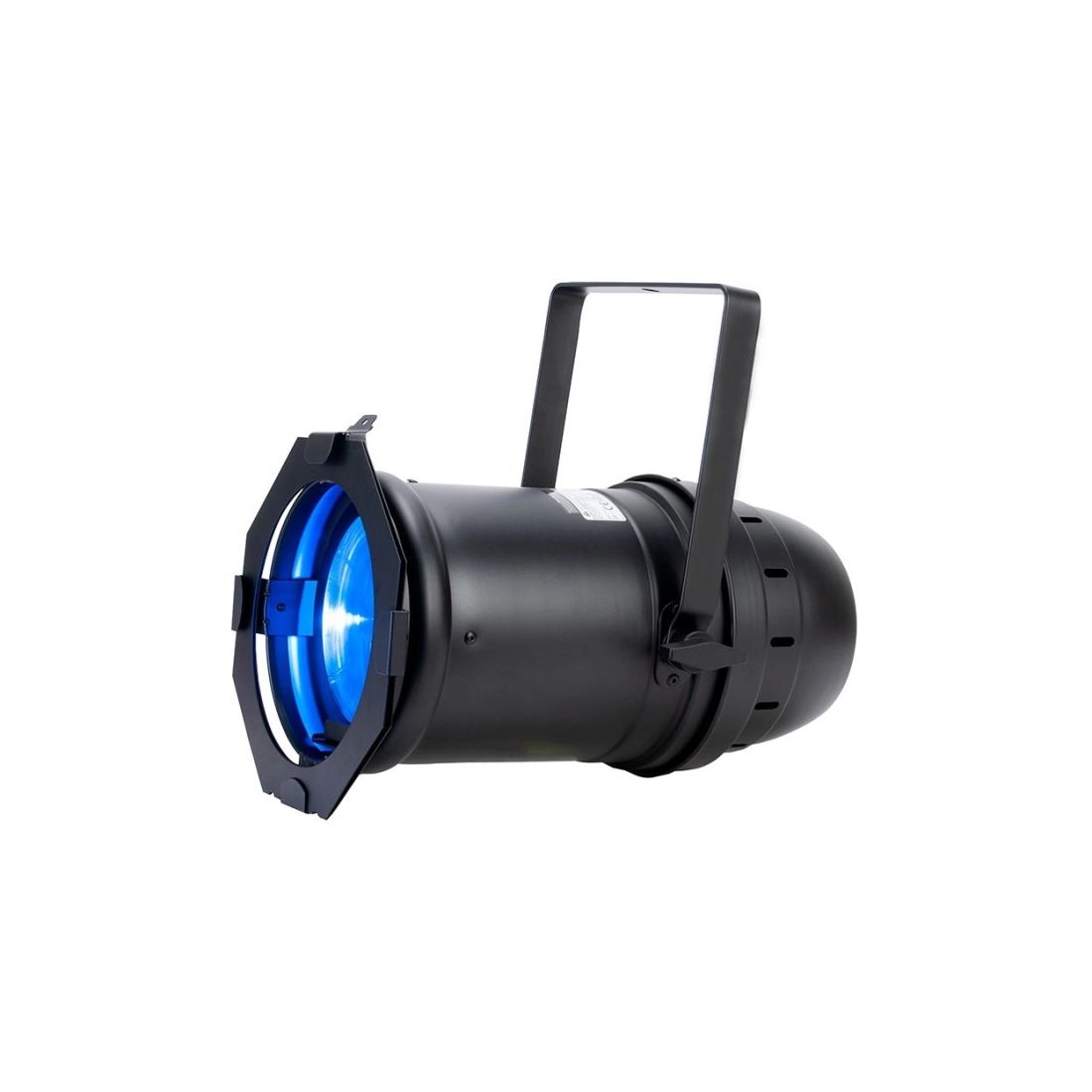

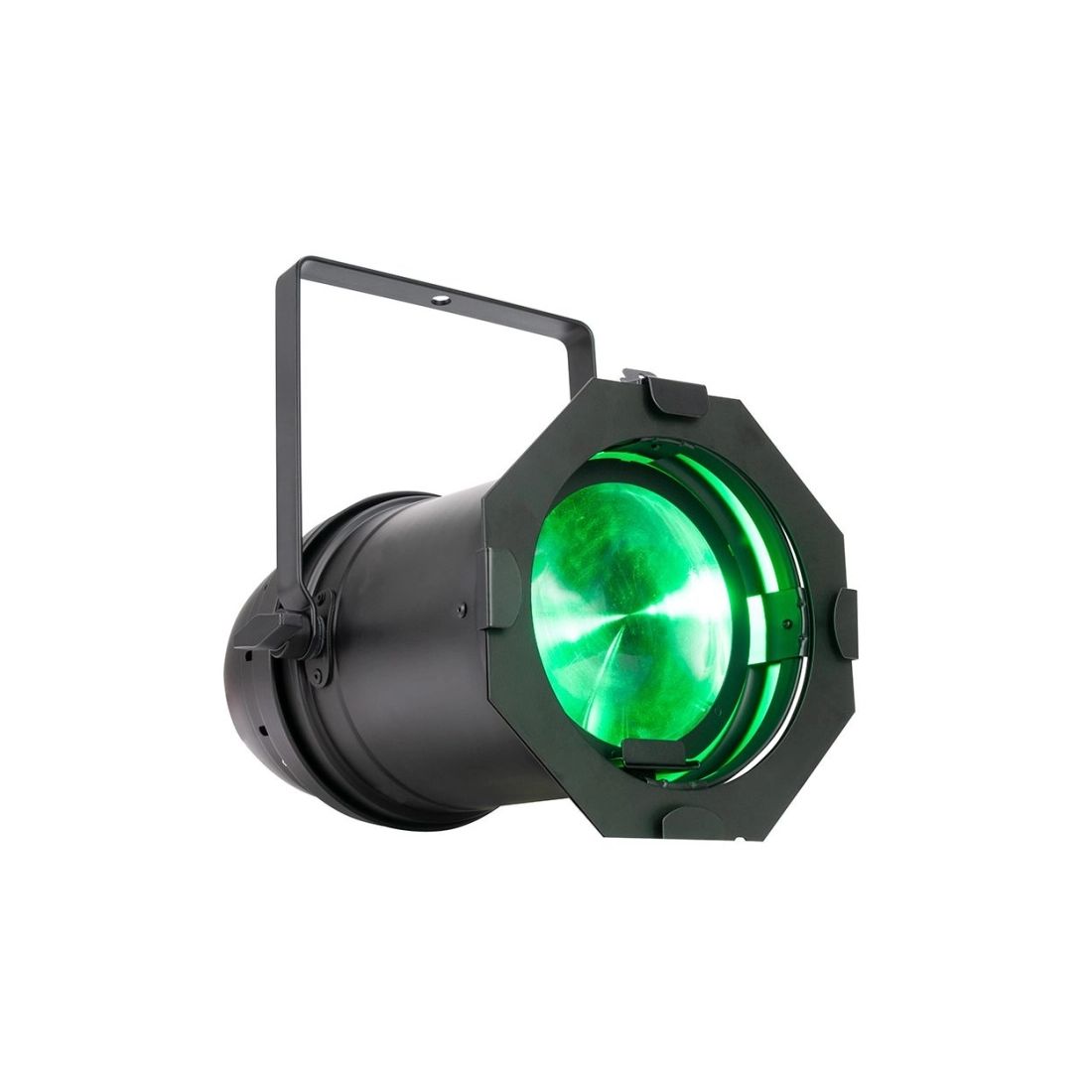

A modern twist on the classic halogen Par Can, the Par Z150 RGBA combines a potent 150-Watt C.O.B. LED light source with a traditional Par 64 enclosure. Offering a choice of beam angles and full color mixing, including white light with a color temperature of between 2300K and 9900K, it is ideal for washing both stages and dancefloors of all shapes and sizes.
• Color Temperature Presets (2300K ~ 9900K)

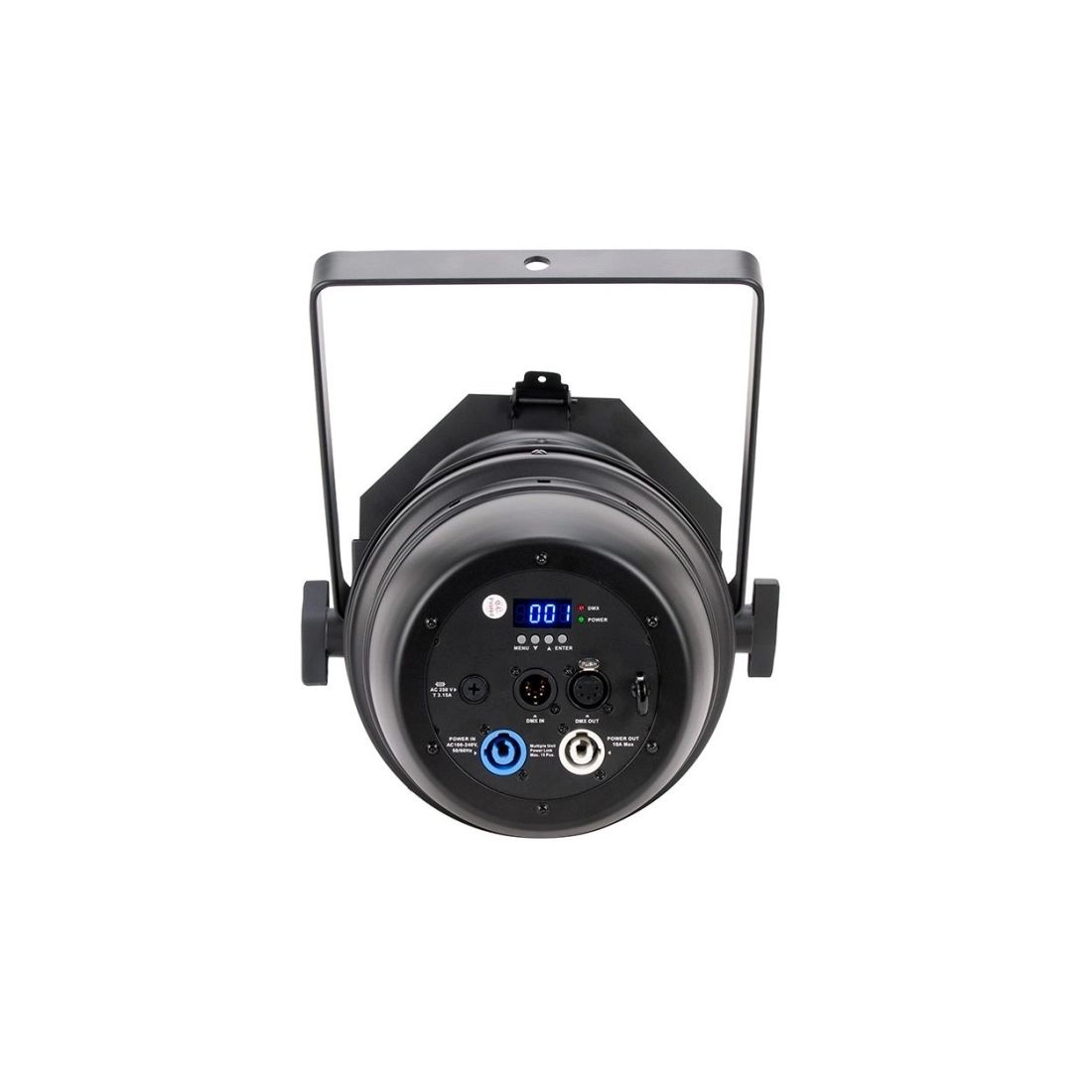

• 4-button DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• 64 Built-in Color Macros
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 3KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
• 4 Dim Curves
• On-board, color balance feature for each color (RGBL)
150 Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees
Zoom Ration: 3.3:1
Photometrics
1360 Lux (Zoomed In to 7°)
487 Lux (Zoomed Out to 25°)
CRI: 90
Connection
DMX: 5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections
Control
DMX-512
6 DMX control modes: (4/5/6/7/8/9/10/11 & 12 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Electrical
Power Draw Total (All LED's @ Full On): 157W
Power Consumption: 1.3A @ 120V/60Hz ; 0.7A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 10 fixtures @ 120V; 18 fixtures @ 230V
Fuse protected: 3A/250V
Ambient Temperature Range (For Use)
-4° ~ 113°F (-20°C ~ 45°C)
Storage Temperature Range
-22° ~ 113°F (-30°C ~ 45°C)
Features
• Linear white color temperature control (230K ~ 9900K)• Color Temperature Presets (2300K ~ 9900K)
• 4-button DMX menu display on rear panel
• OLED display
• Adjustable latch to manually change beam angle
• Includes gel frame for diffusion filters (Diffusion filter sold separately)
• 64 Built-in Color Macros
• Strobe Rate: 0.6Hz to 7.5Hz
• Refresh Rate: 3KHz
• Electronic Dimming: 0 - 100%
• 6 Dim Modes
• 4 Dim Curves
• On-board, color balance feature for each color (RGBL)
Specifications
Optical150 Watt Quad RGBA C.O.B. LED (Chip On Board - Red, Green, Blue & Amber)
Life expectancy: rated at 50,000 hrs.
Manual Zoom: 7, 11.5, 16, 20.5 or 25-degrees
Zoom Ration: 3.3:1
Photometrics
1360 Lux (Zoomed In to 7°)
487 Lux (Zoomed Out to 25°)
CRI: 90
Connection
DMX: 5-pin DMX In/Out
With Wired Digital Communication Network
Locking power In/Out connections
Control
DMX-512
6 DMX control modes: (4/5/6/7/8/9/10/11 & 12 Ch. modes)
RDM and RDM Net Compatible
Primary/Secondary, stand-alone mode
On-board manual control mode
Electrical
Power Draw Total (All LED's @ Full On): 157W
Power Consumption: 1.3A @ 120V/60Hz ; 0.7A @ 220V/50Hz
Multi-voltage operation: AC 100-240V, 50/60Hz
Daisy chain: 10 fixtures @ 120V; 18 fixtures @ 230V
Fuse protected: 3A/250V
Ambient Temperature Range (For Use)
-4° ~ 113°F (-20°C ~ 45°C)
Storage Temperature Range
-22° ~ 113°F (-30°C ~ 45°C)
