ADJ RDM XS8 Rack Mount
RDM-XS8
Regular price$379.98
Available to Order
Available from supplier ADJ — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day

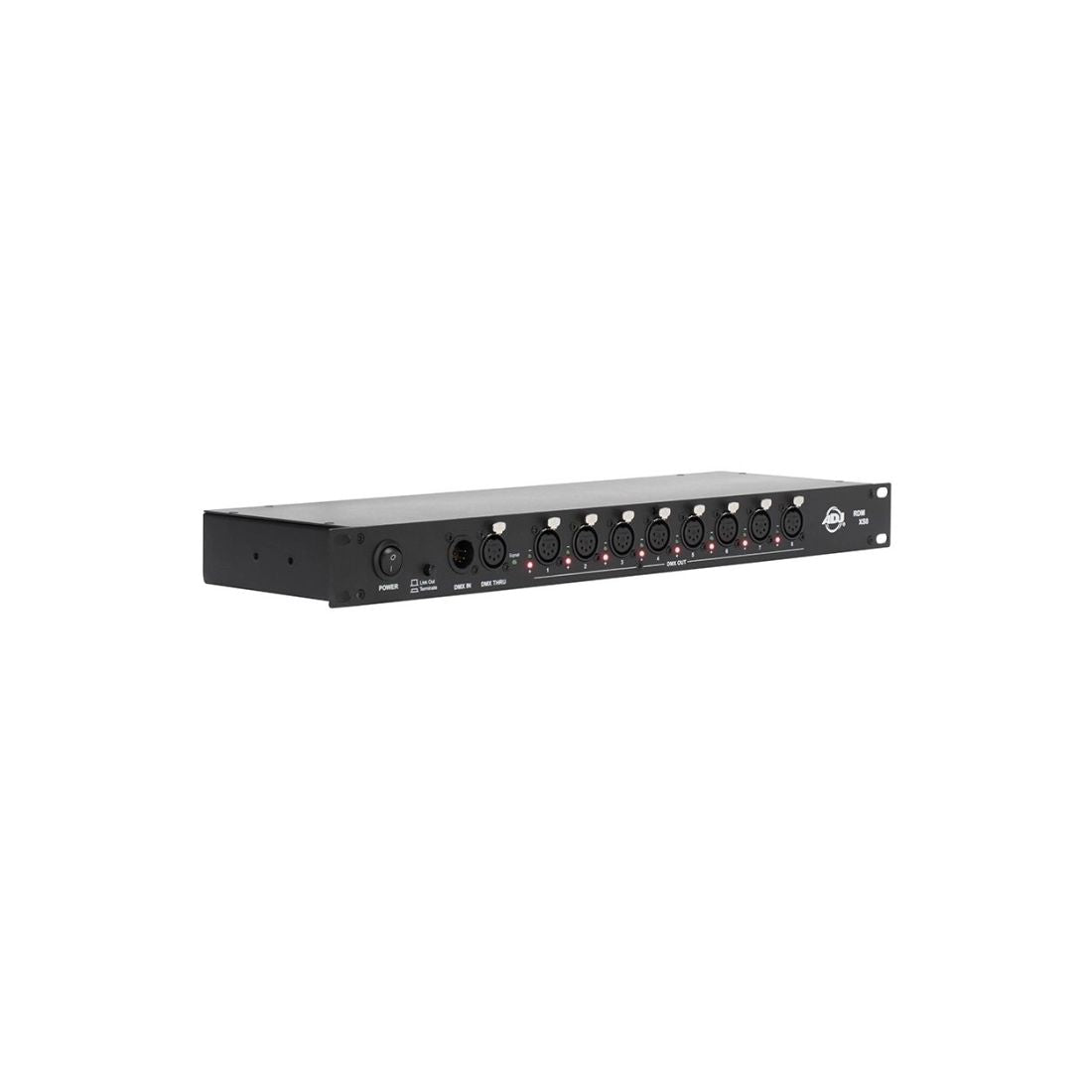

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.
DMX512
RDM
Physical
19" Rack Mount
1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru
8x Indoor 5pin XLR Outputs
Link Out Termination Switch
DMX / RDM Protocol Switch
Power
AC Input: 100-230V 50/60Hz
Power Consumption: 3.1W @ 120V and 3.3W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Humidity: 75%
Storage Temperature: 77°F (25°C)
Specifications
ProtocolsDMX512
RDM
Physical
19" Rack Mount
1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru
8x Indoor 5pin XLR Outputs
Link Out Termination Switch
DMX / RDM Protocol Switch
Power
AC Input: 100-230V 50/60Hz
Power Consumption: 3.1W @ 120V and 3.3W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Humidity: 75%
Storage Temperature: 77°F (25°C)
