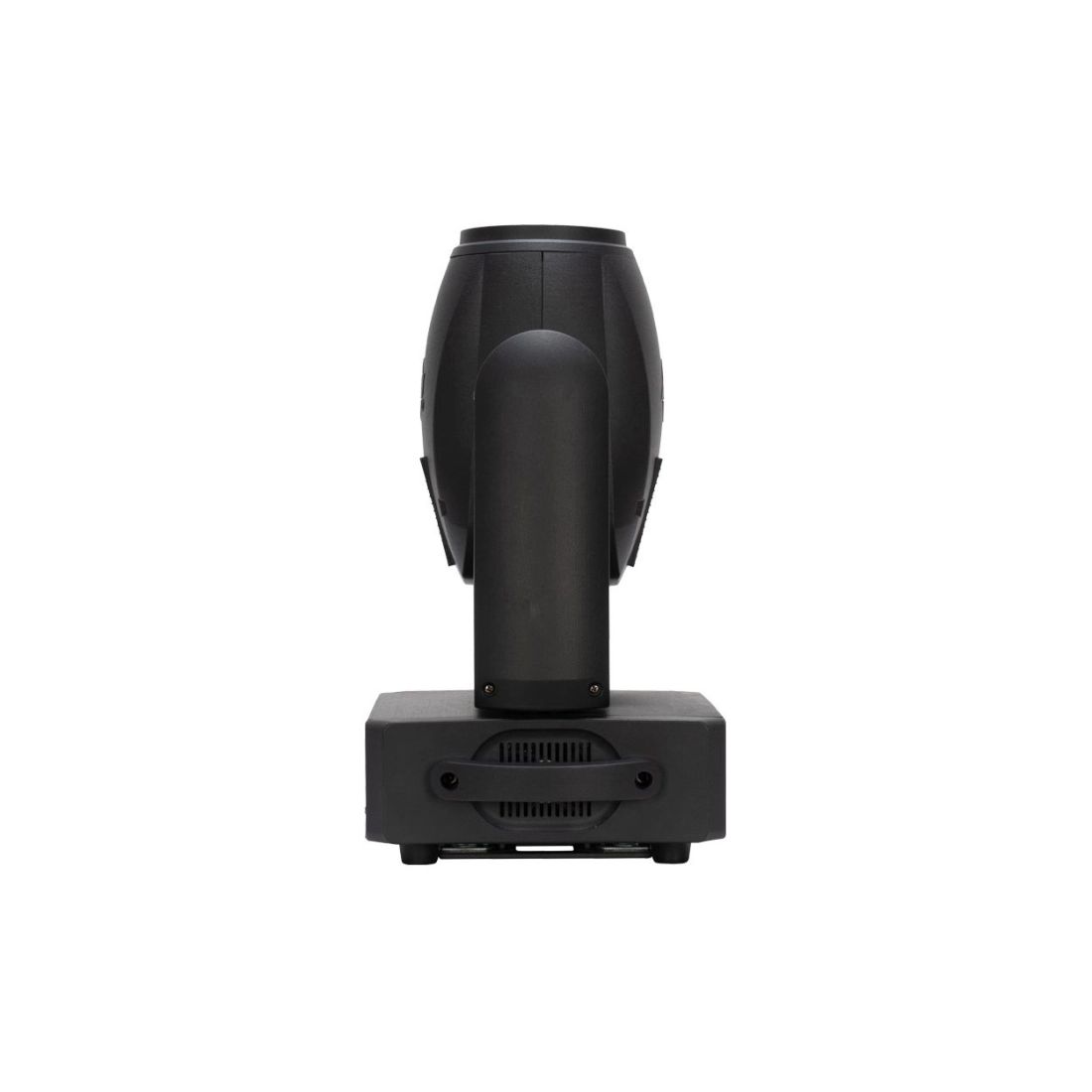

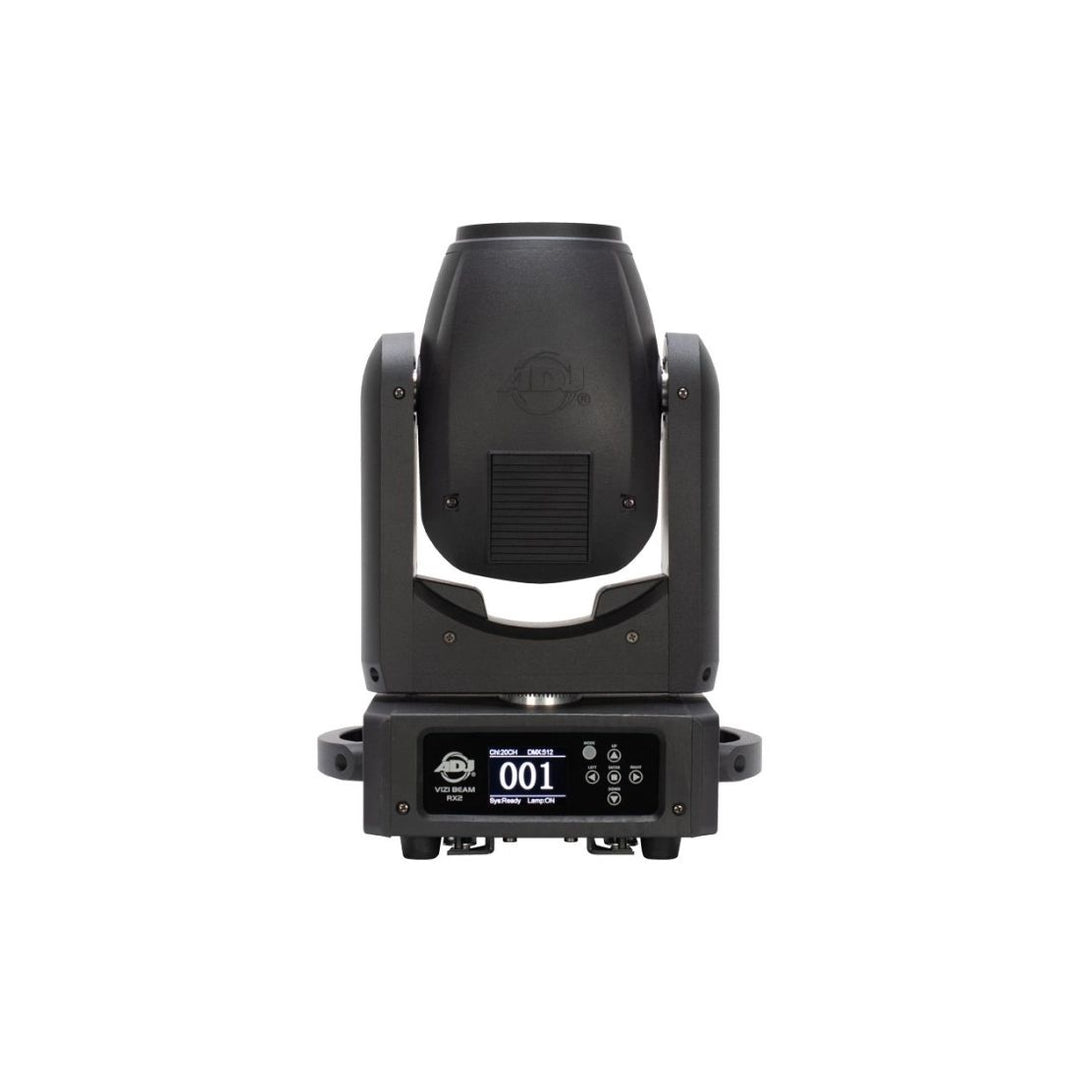

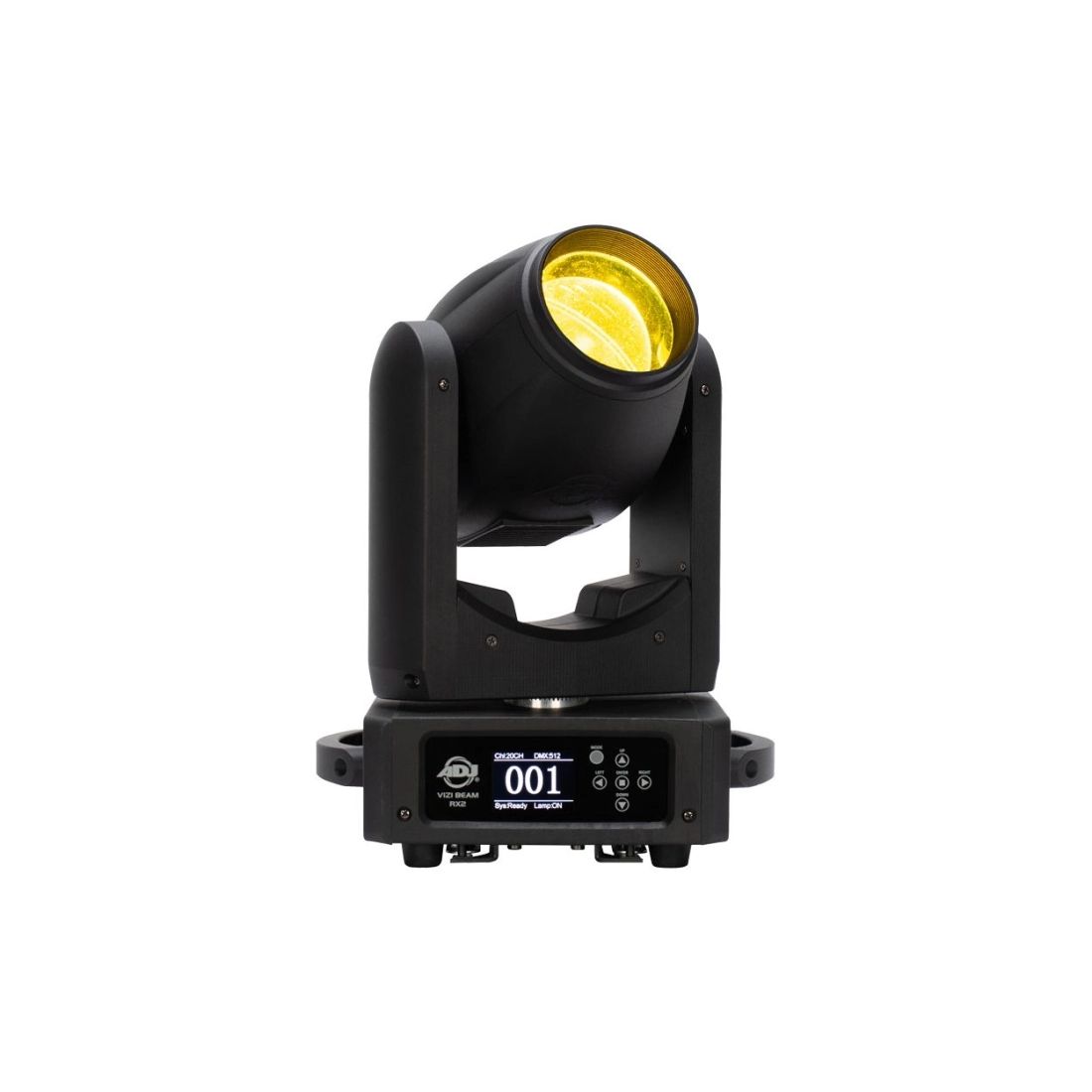

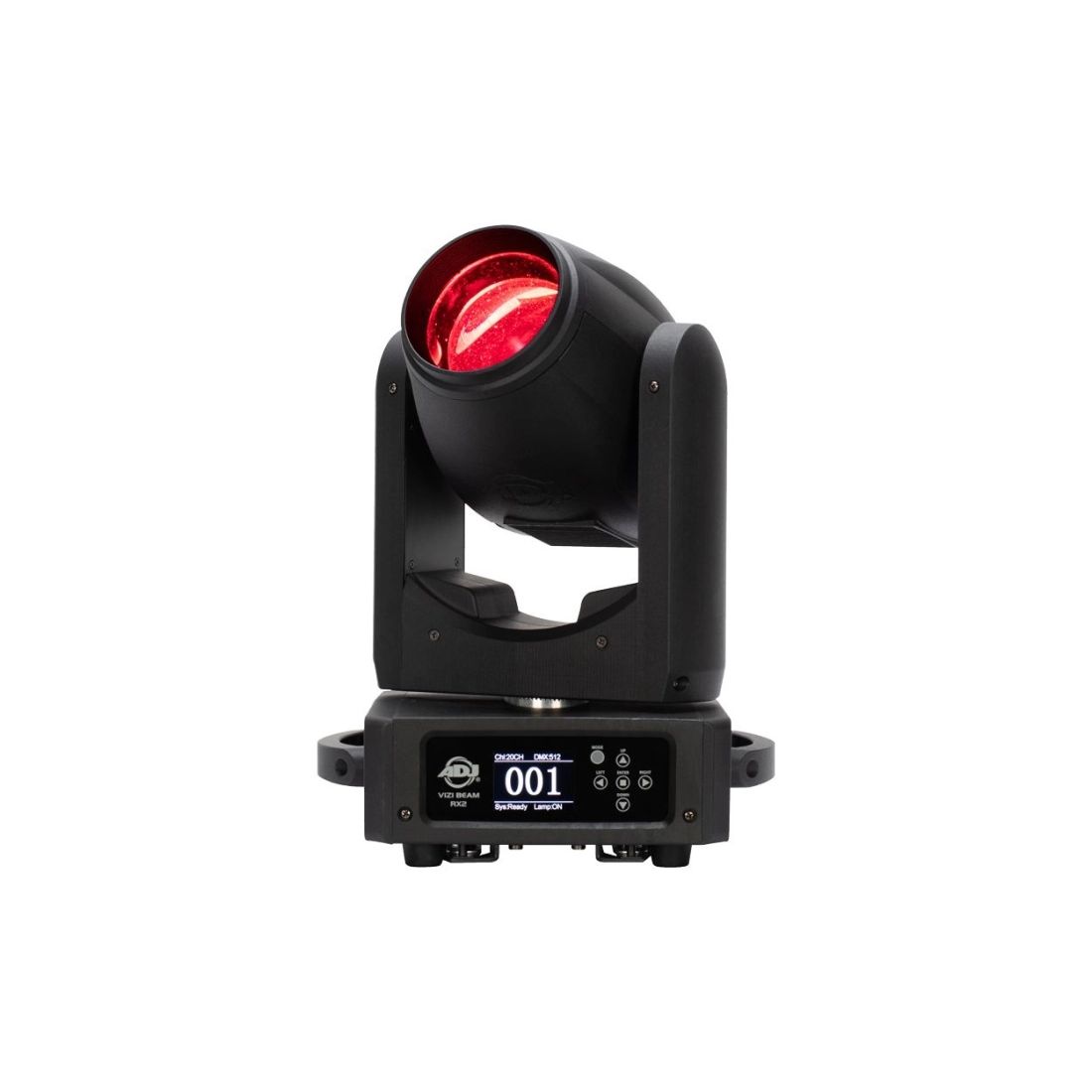

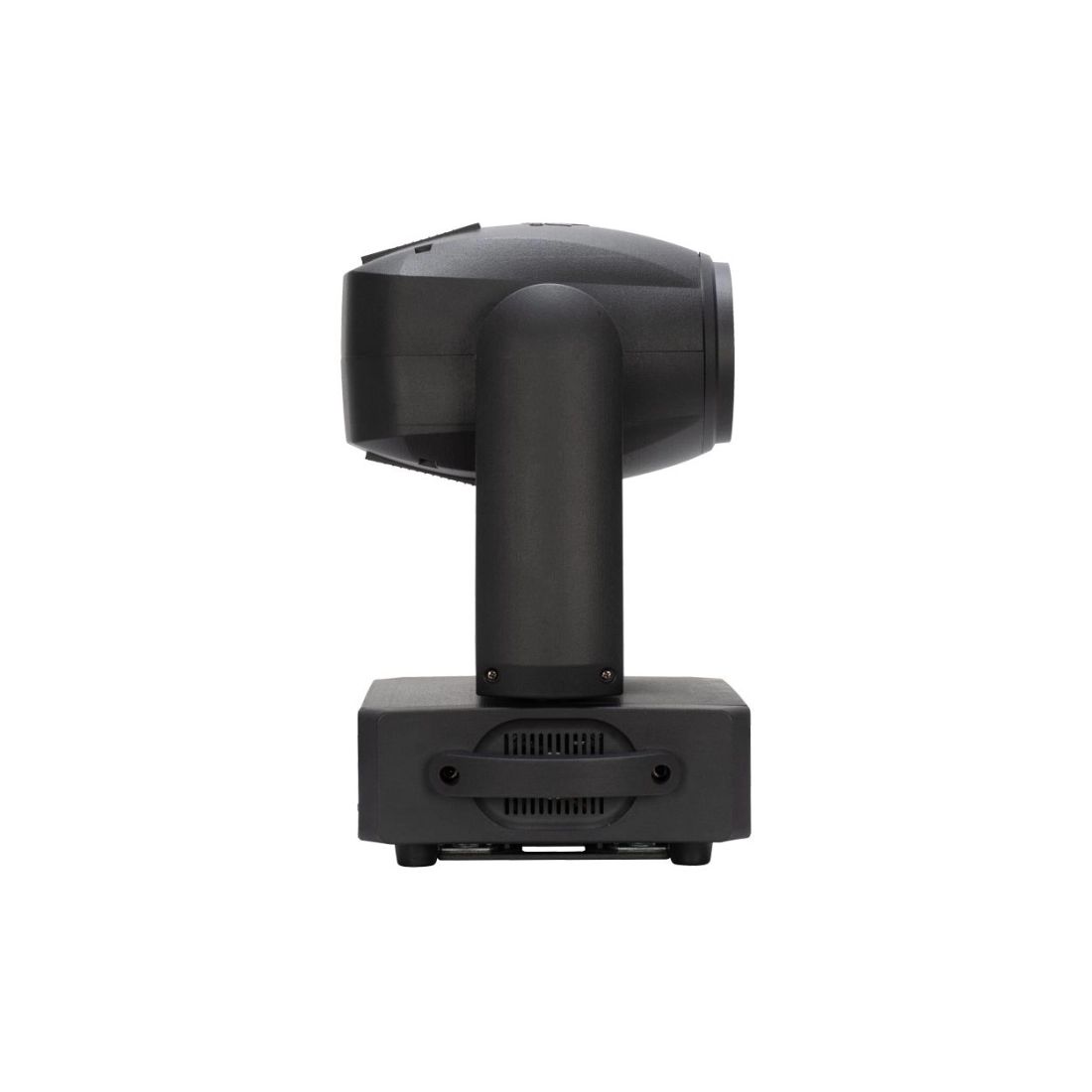

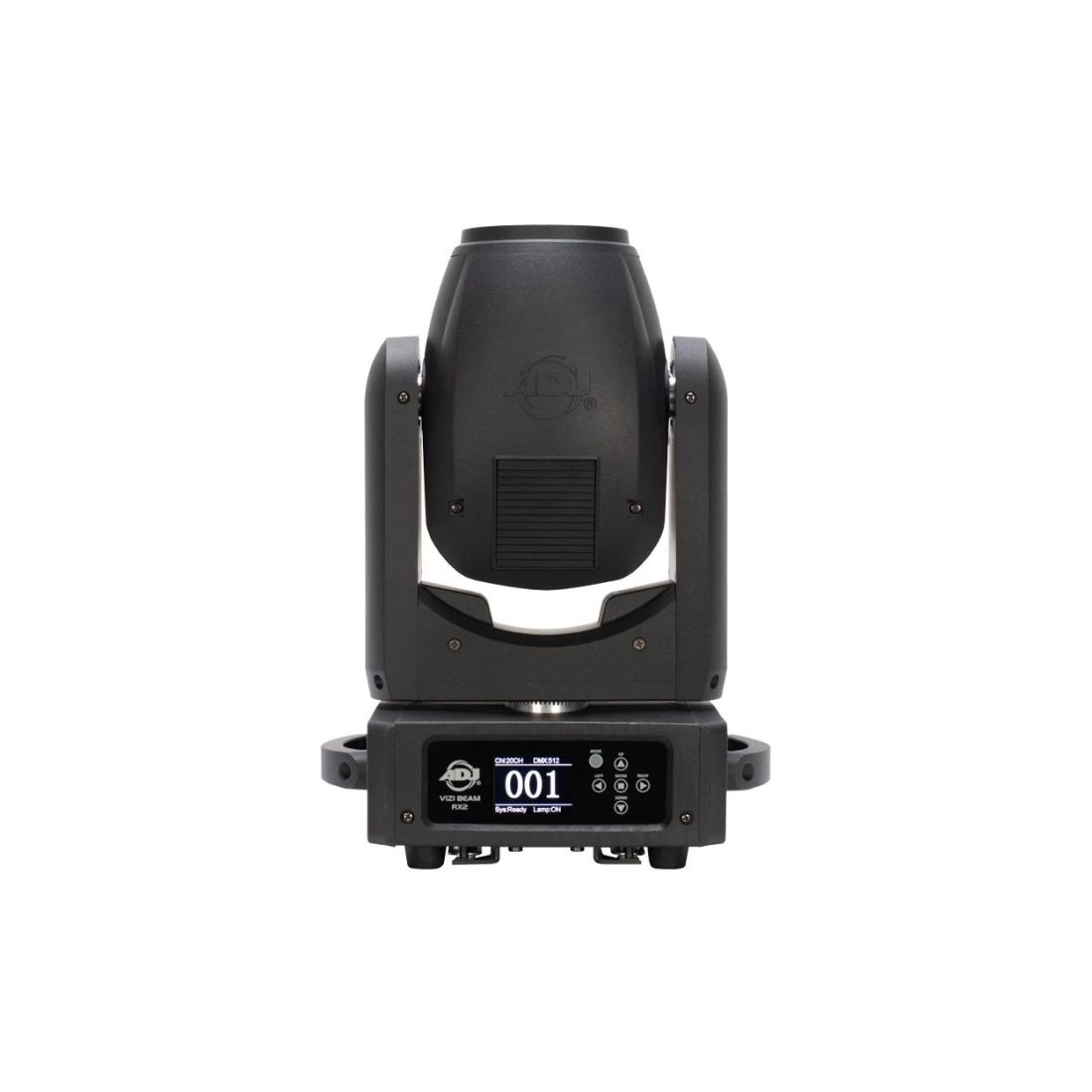

ADJ VIZI BEAM RX2 Moving Lighting Head
VIZI-BEAM-RX2
Regular price$1,719.98
Available to Order
Available from supplier ADJ — usually arrives to us within
7–9
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- ADJ
- Shipping Calculated at checkout, most in stock products ship same day
The ADJ Lighting Vizi Beam RX2 is a compact, high-performance moving head beam fixture that features a 100W Osram Sirius HRI discharge lamp, a razor-sharp 2-degree beam, two prism effects, and a host of high-performance features for the modern lighting professional.
• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled
OSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
Color temperature: 9000K (+/- 300K)
Color Wheel
14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
Indexable color wheel for split colors
GOBO Wheel
15 static GOBOs + open (3 GOBOs are beam reducers)
GOBO Shake Effect
Prism Wheels
2 Rotating prisms
16 facet circular and 4 facet linear prisms
Control
Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 12/16 Channels
Color LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
Pan/Tilt
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3 Phase, High Speed, Pan/Tilt motors

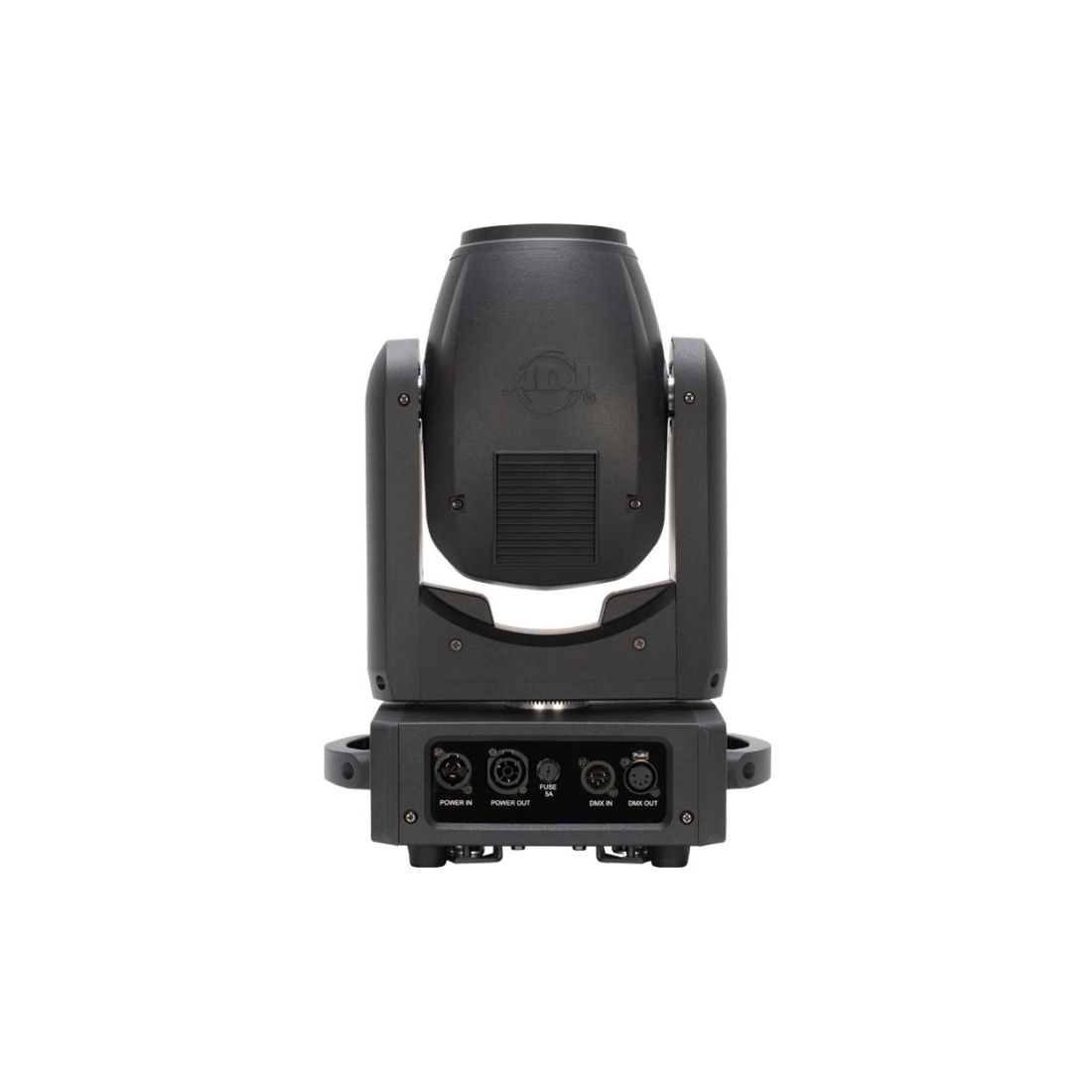

Connections
DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 168W (@120V), 157W (@230V)
Fuze Protected: 3.15A
Features
• On-Board Wireless DMX• Motorized Focus + 16-bit fine focus
• 2-degree beam angle
• Frost Filter to create wash effect
• High quality glass lens
• 2 Rotating prisms
• 0-100% smooth dimming
• Various strobe speeds
• OTA, wireless, firmware updates
• Fan cooled
Specifications
Light SourceOSRAM Sirius HRI 100W Discharge Lamp (6,000 hr.)
Color temperature: 9000K (+/- 300K)
Color Wheel
14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)
Indexable color wheel for split colors
GOBO Wheel
15 static GOBOs + open (3 GOBOs are beam reducers)
GOBO Shake Effect
Prism Wheels
2 Rotating prisms
16 facet circular and 4 facet linear prisms
Control
Protocols: DMX512 & RDM
Control Mode: DMX512 & Manual (On-board Controls)
2 DMX Channel Modes: 12/16 Channels
Color LCD display with 4-button function menu
0-100% smooth dimming
Various strobe speeds
With Wired Digital Communication Network
Pan/Tilt
Pan: 540 degrees (plus 16-bit fine pan)
Tilt: 270 degrees (plus 16-bit fine tilt)
3 Phase, High Speed, Pan/Tilt motors
Connections
DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)
Power Connections: Outdoor locking In/Out connections to daisy chain power
Electrical
Multi-voltage operation: 100-240V, 50/60Hz
Max power consumption: 168W (@120V), 157W (@230V)
Fuze Protected: 3.15A
