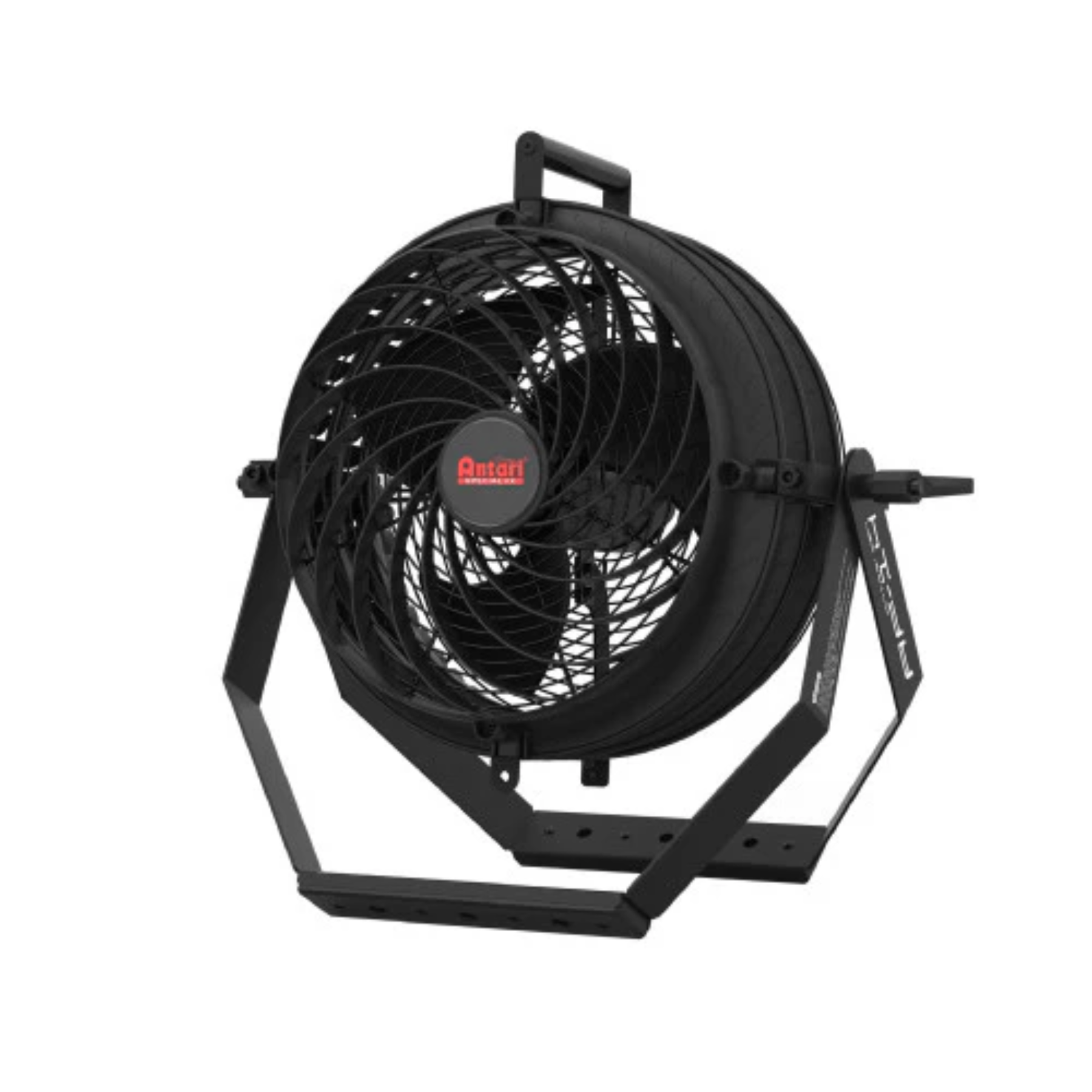

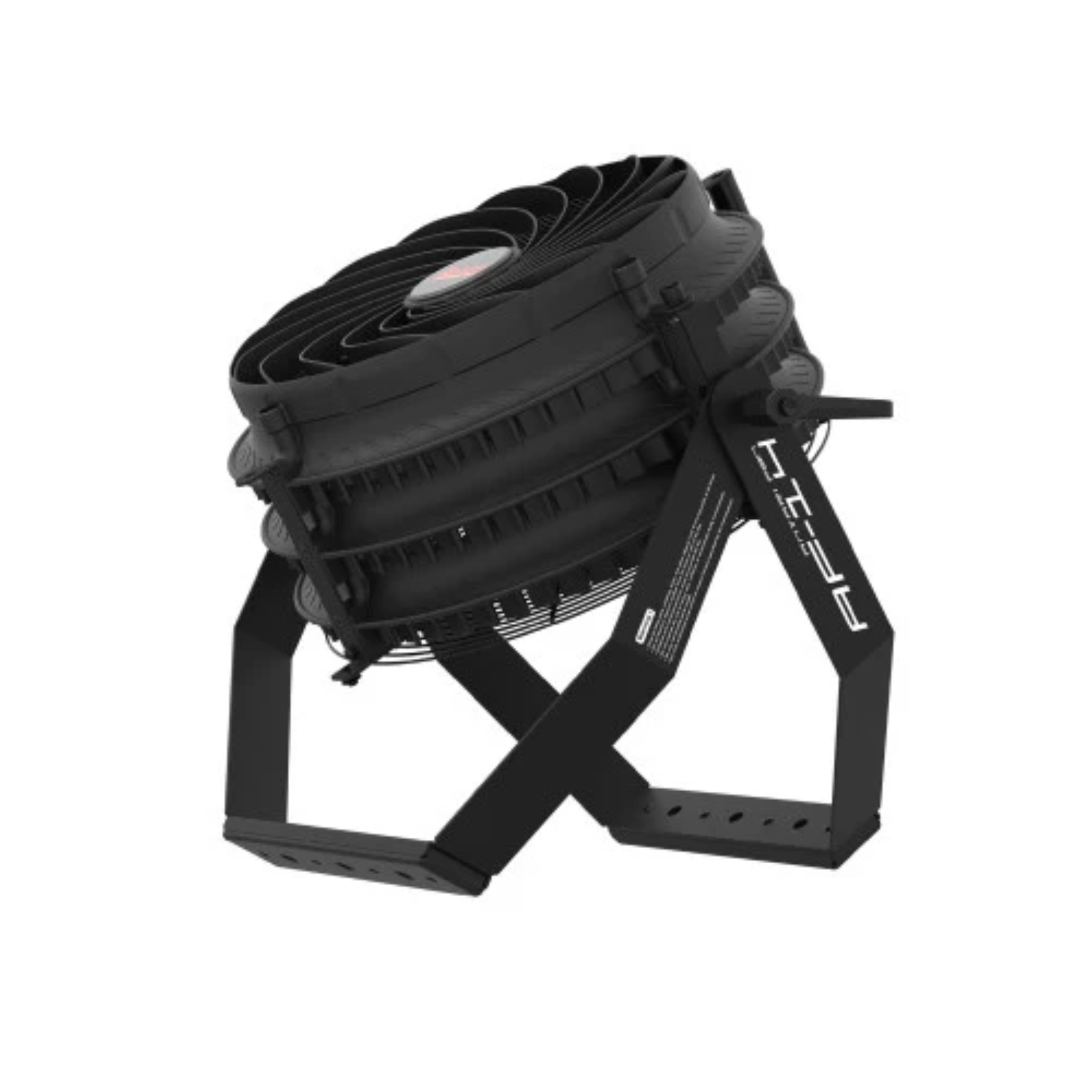

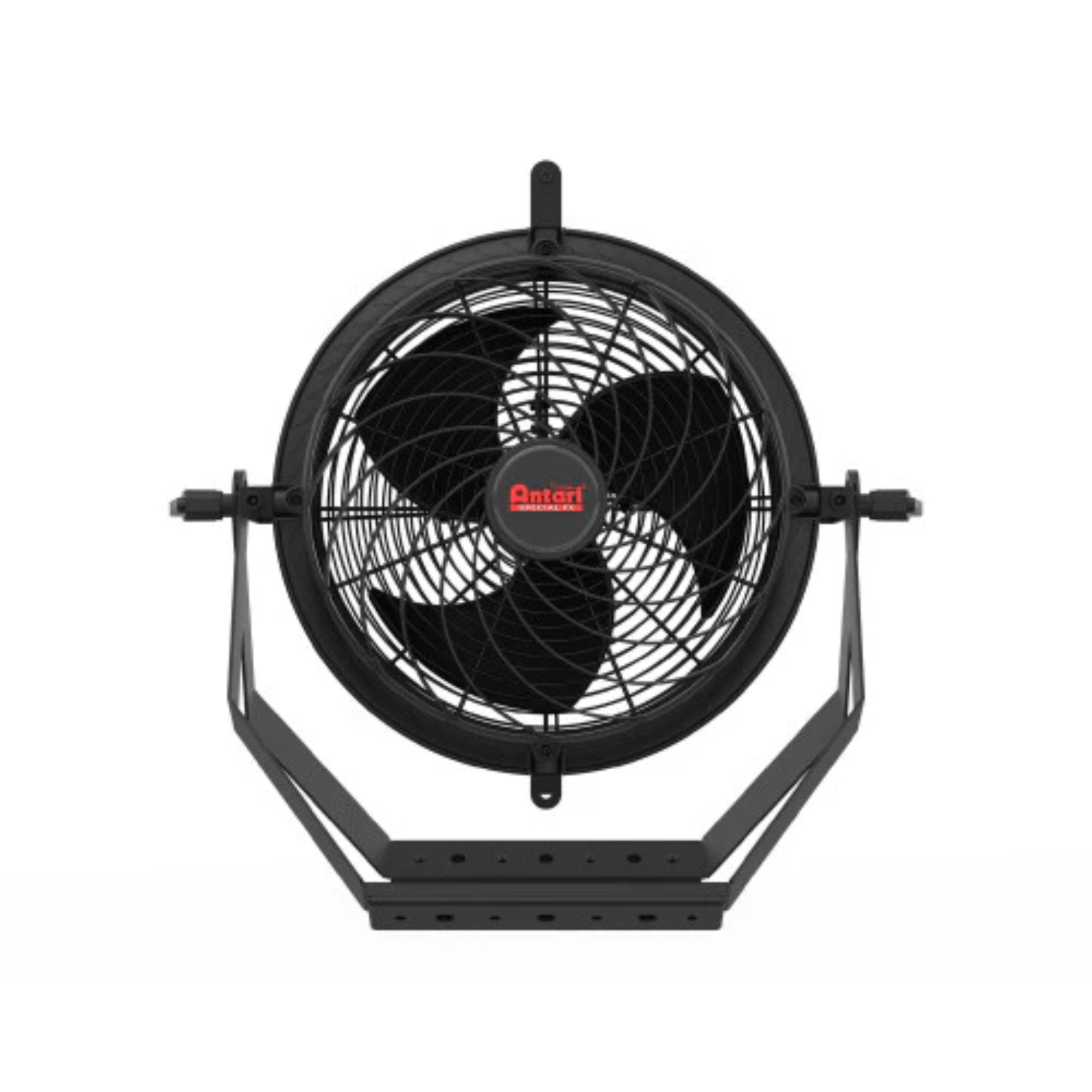

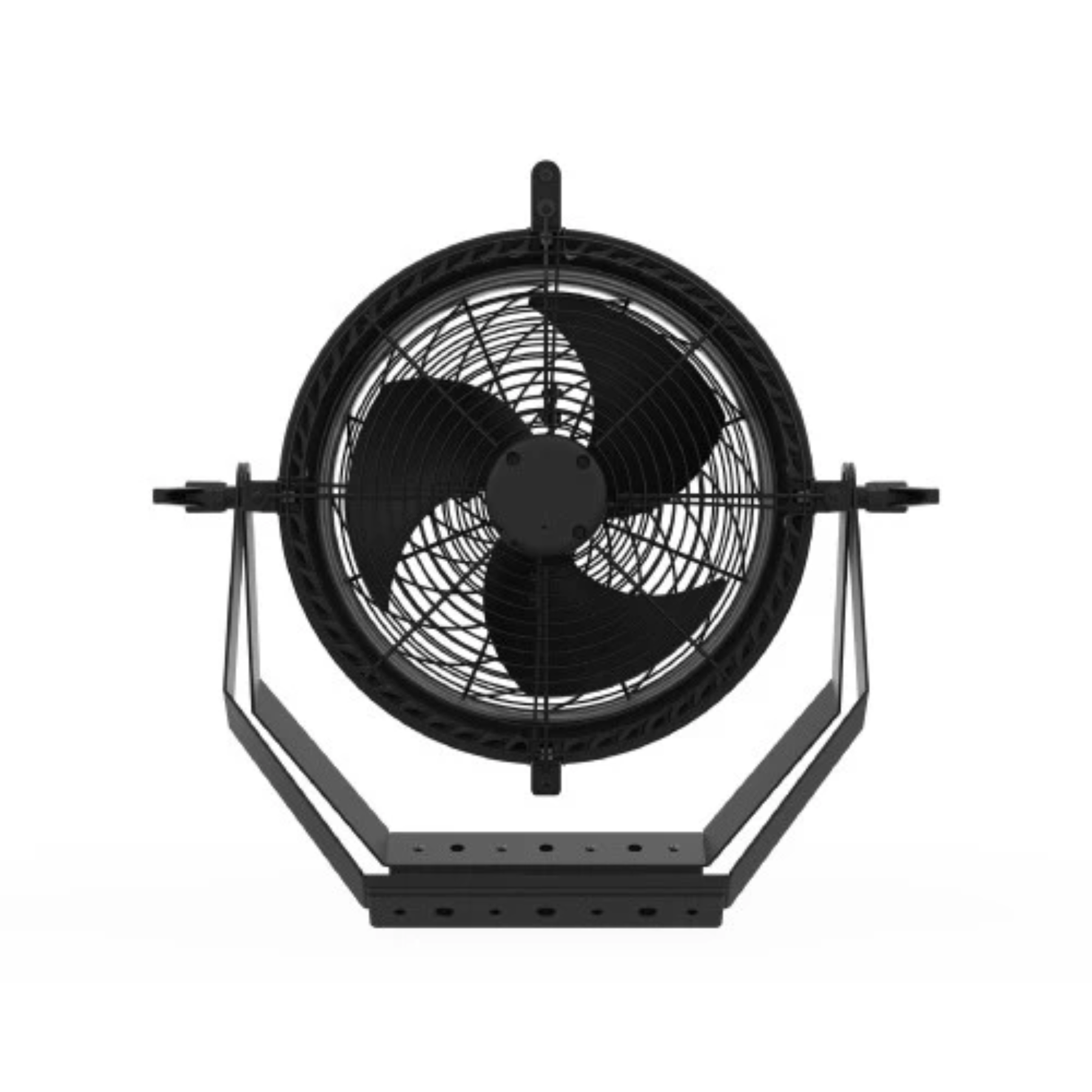

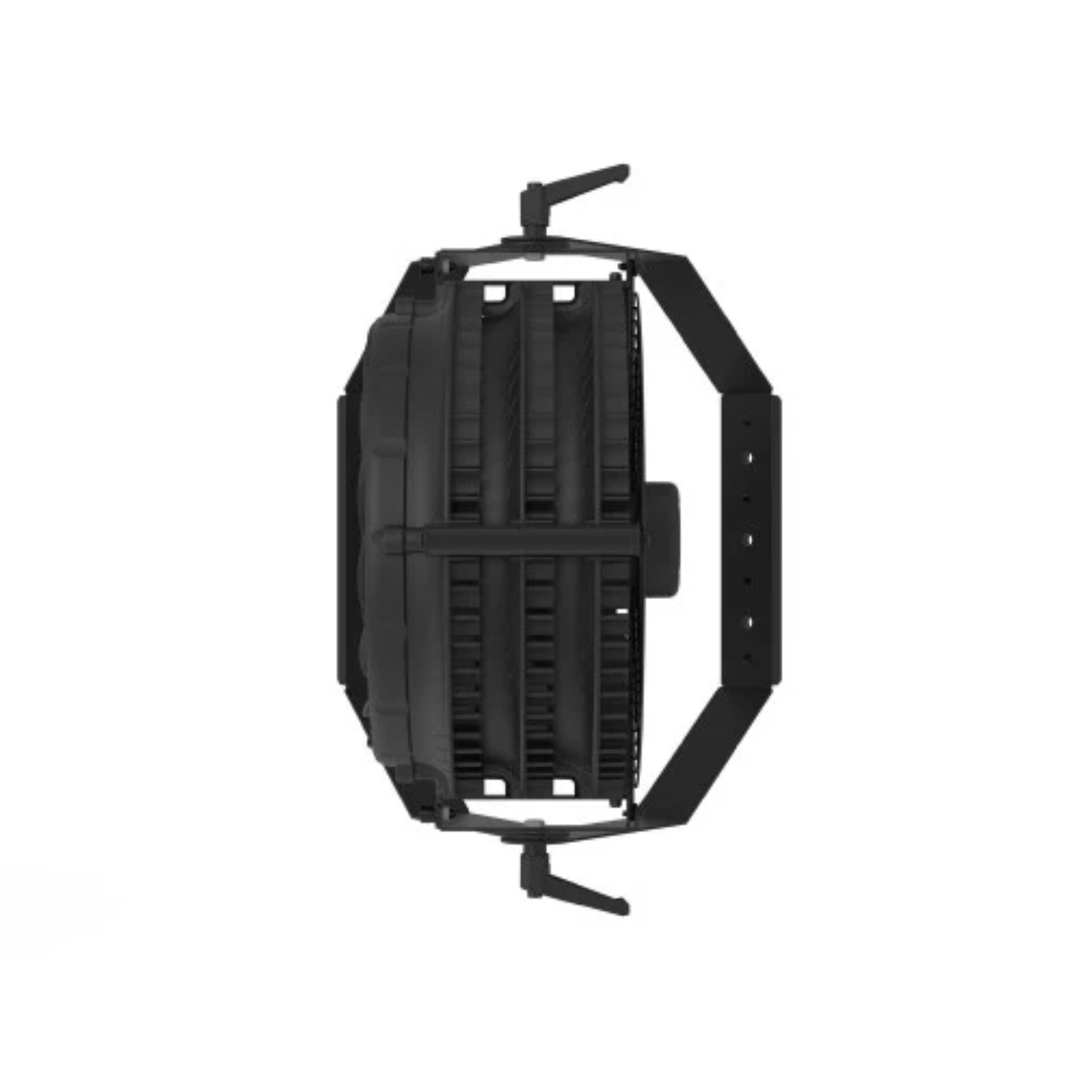

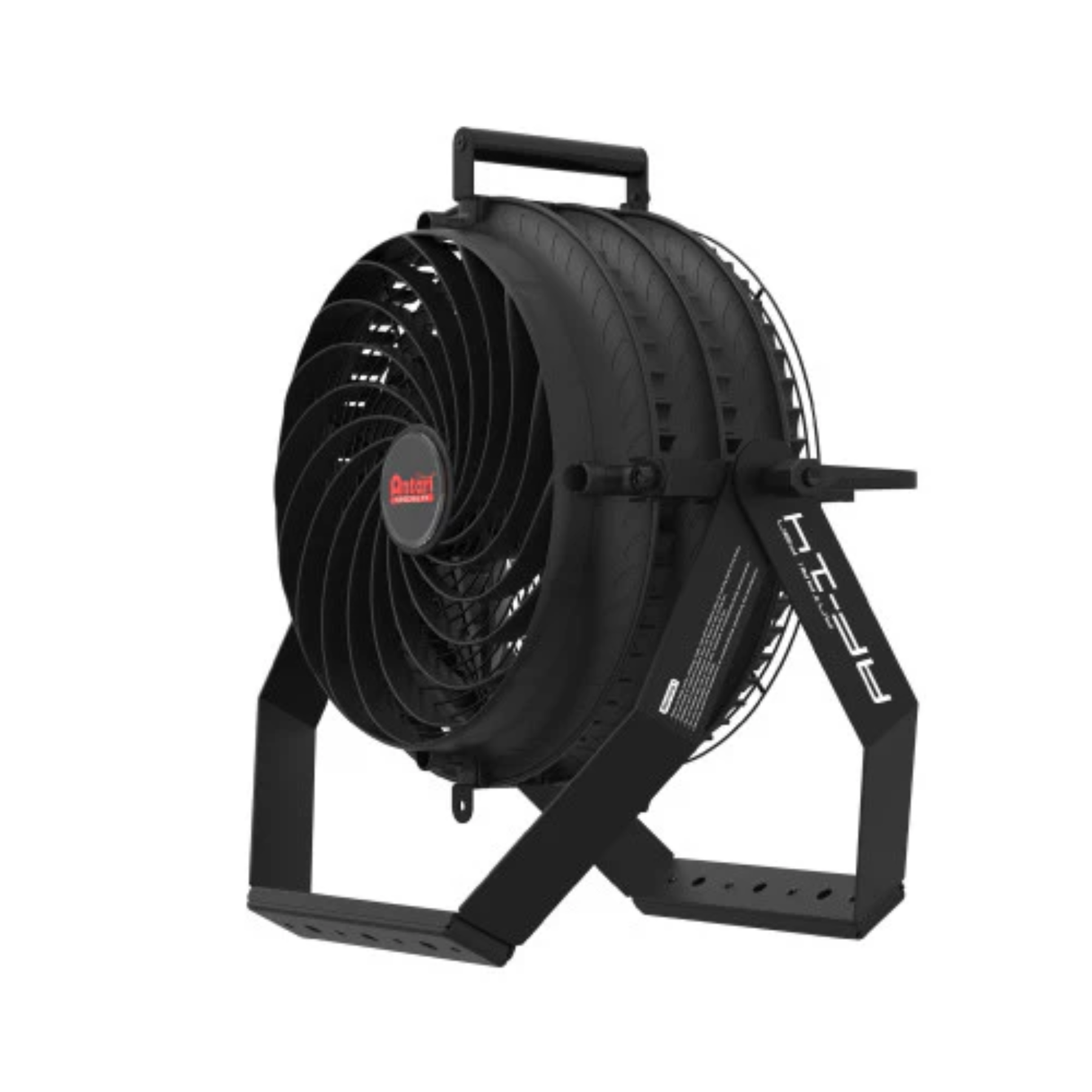

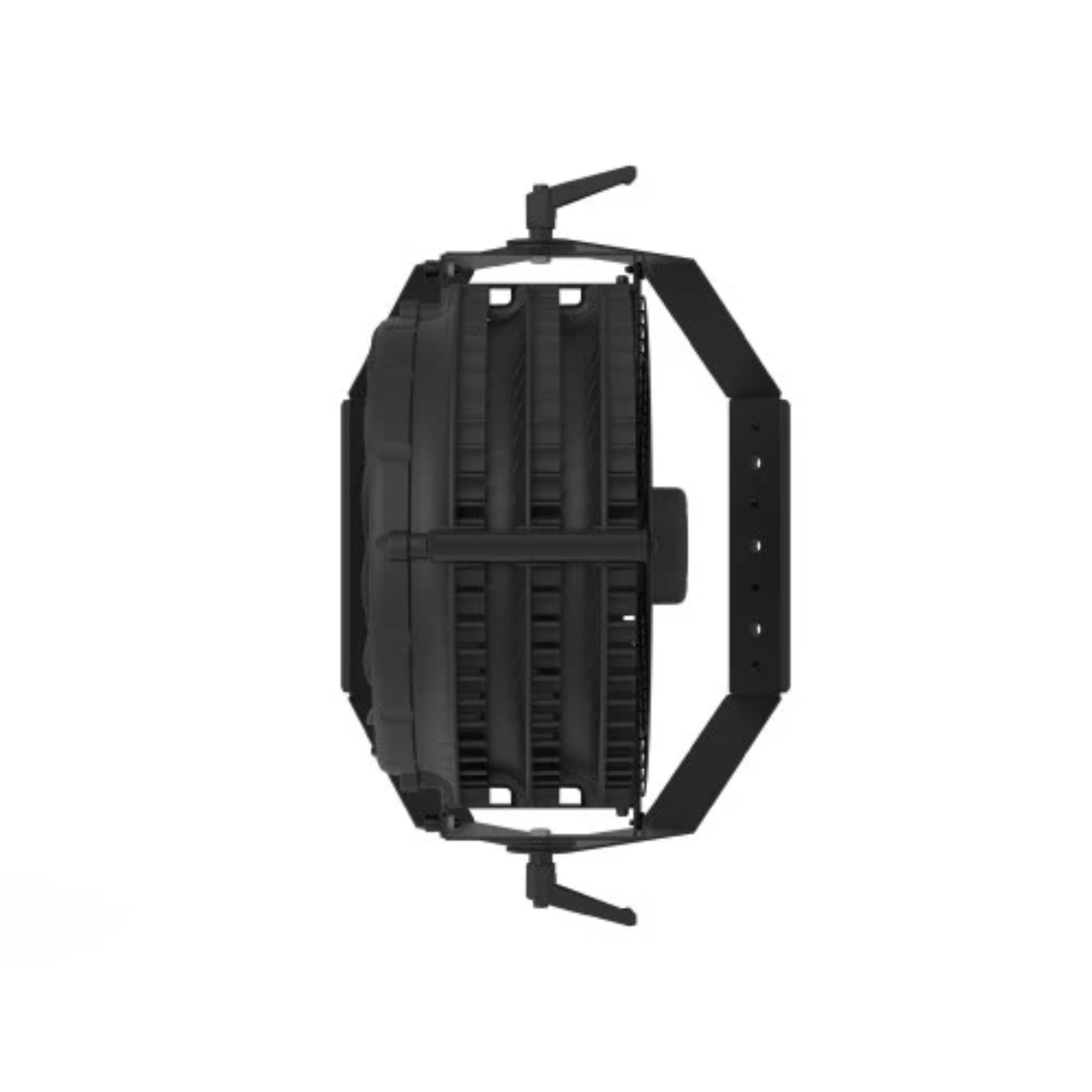

Antari AF-14CA-5PIN 14in Fan With 5-Pin DMX Controller

The Antari AF-14 is a high-velocity fan engineered for professional applications, combining power, precision, and long-term durability. Its IP-55 rated, splash-resistant construction makes it a reliable choice for demanding environments where moisture, dust, or outdoor conditions are a concern — a major advantage for touring, stage productions, and permanent installations.

Featuring a unique swirl-shaped front cover, the AF-14 maintains focused airflow while reducing turbulence and noise. The specially designed aerodynamic blades deliver optimal air distribution with minimal sound, ensuring smooth and quiet performance ideal for stage, studio, and installation use.

Built with robust materials for consistent reliability, the AF-14 operates with a simple plug-and-run setup or can be integrated with an optional control box for remote operation. Whether for fog dispersion or wind effects, the AF-14 provides efficient, quiet, and stable airflow that meets the needs of professional environments.

Features

• High-Velocity Airflow
• Swirl-Shaped Front Cover
• Low Noise Operation
• Robust Construction
• IP55 Rated Motor

Specifications:

Input Voltage: US Model: AC 100–120V, 50/60 Hz, 2A
Input Voltage: EU Model: AC 220–240V, 50/60 Hz, 1A

Rated Power: 120V: 190W
Rated Power: 240V: 145W

Ambient Temperature Range: 0°C–40°C (32°F–104°F)

Air Flow: 2648 CFM

Fan Speed: 1650 ± 40 RPM

Noise Level: 59.0 dB (Max Output)

Control Methods: Manual
Control Methods: Timer
Control Methods: DMX512
Control Methods: Wireless (Optional)
Control Methods: Wireless DMX (Optional)

DMX Channels: 1 Channel

Interface: SEETRONIC IP65 Connector (Power)
Interface: SEETRONIC IP65 XLR 5-Pin Connector (DMX)

Included Accessories: Dual Use Bracket
Included Accessories: AFC-1 Fan Control

Optional Accessories: WTR-110 Wireless Module
Optional Accessories: ES-W-DMX Wireless DMX

Dimensions: L432 × W656 × H623 mm
Dimensions: L17.00 × W25.83 × H24.53 in

Weight: 14.8 kg
Weight: 32.63 lbs
