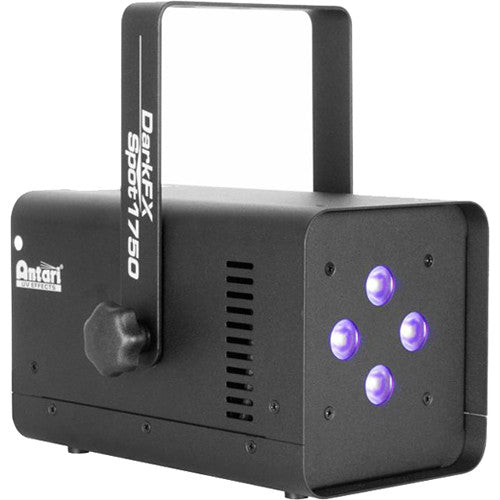

Antari DFX-S1750 UV LED Spot 4 x 16W 365nm 15°optics

The Antari DarkFX Spot 1750 is a powerful UV LED blacklight spot designed to deliver exceptional performance while maintaining low power consumption. With a peak wavelength of 365nm, this unit produces a remarkable radiant flux output of 19,080mW at full intensity, ensuring that UV-reactive materials, artwork, amusement park displays, and signage shine with vibrant colors while minimizing visible light interference. The DarkFX Spot 1750 features four 16W high-powered UV LEDs, which provide a wider 20-degree beam angle, making it suitable for larger areas or installations where broader coverage is desired.

This model is built with longevity and durability in mind, utilizing special optics that effectively prevent wear degradation from high UV exposure, ensuring consistent performance throughout its operational life. With a refresh rate of 600 Hz, the DarkFX Spot 1750 offers flicker-free operation, making it perfect for use in television and film productions where image quality is critical. The all-aluminum housing houses a user-friendly four-button LED control panel that allows for seamless programming of various operational modes, including DMX and Remote Device Management (RDM) capabilities.

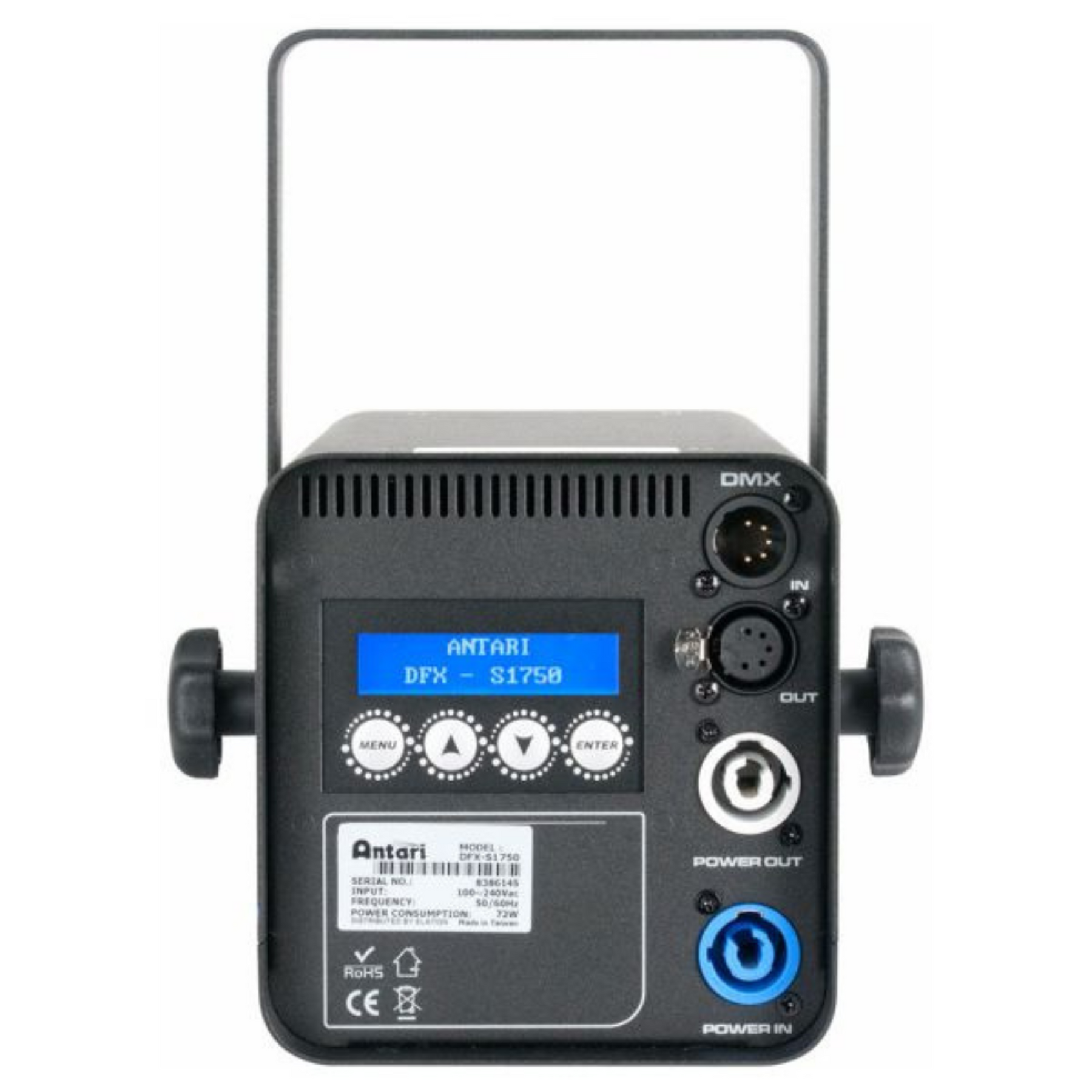

To enhance connectivity and versatility, the rear panel is equipped with inputs and outputs for 5-pin DMX and powerCON, enabling the daisy-chaining of multiple units for expansive lighting setups. The Antari DarkFX Spot 1750 comes with a removable and adjustable yoke bracket, providing flexible mounting options for various applications. Additionally, the included powerCON power cord ensures reliable power connectivity, supporting an input voltage range of AC100-240V at 50/60Hz, and operates at a rated power of 72W. With a projected lamp life of 20,000 hours (L70 at 25C), this blacklight spot offers a dependable solution for continuous use in any setting.

Specifications:

Input Voltage: AC100-240V, 50/60Hz

Rated Power: 72W

LED: 4 x 16W High Power UV LEDs

Refresh Rate: 600 Hz

Optics: 20 degrees

Radiant flux output: 19,080 mW

Project lamp life: 20,000 hours L70 at 25C

Peak wavelength: 365nm

Control Option: DMX512, Manual

DMX Channels: 1, 2

Operation: 2 x 16 Digit Display w/ 4 Buttons

Power Connection: Neutrik Powercon in/through

DMX Data Connection: 5-Pin XLR

Housing: Metal

Protection Rating: IP20, Indoor only

Dimensions: 9.2 x 7.6 x 9.7 inches

Dry Weight: 7 lbs
