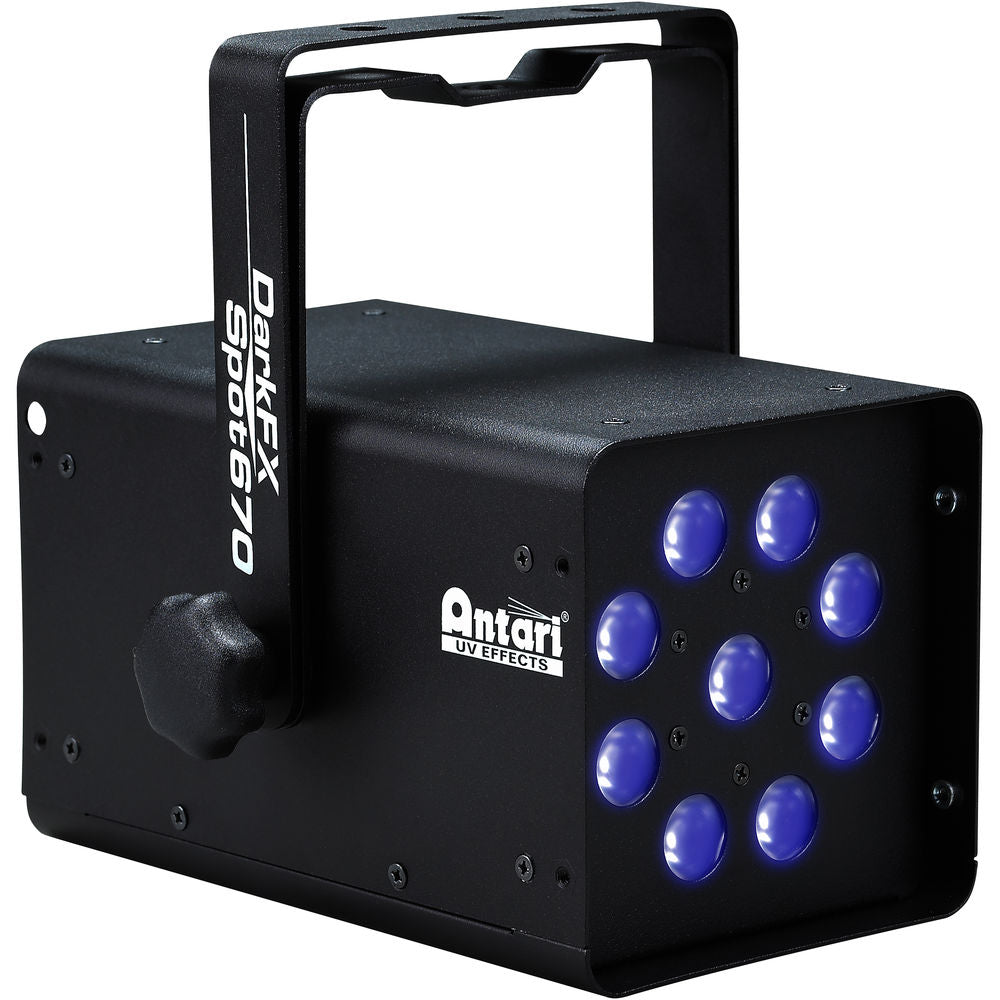

Antari DFX-S670-RDM UV LED Spot 9 X 3W 365nm 15°optics

The Antari DFX-S670-RDM Spot 670 is a professionally designed high-output, low-power-consumption UV LED spot that is capable to deliver a UV wavelength of 365nm and radiant flux output of 6760mW at full intensity that comes along with minimum visible light, this ensures that all UV reactive materials, amusement park displays, art, and signage comes reflecting with stunning bright and vivid colors.

The DarkFX Spot 670 is made utilizing nine 1.9W high-powered UV LEDs along with a 15° beam angle and special optics that are made for preventing wear degradation from high-UV exposure. The high refresh rate is for providing flicker-free performance for TV and film. The aluminum housing comes offering a four-button LED control panel intended for programming manually or with the use of DMX. The rear panel also is made including inputs and outputs for 5-pin DMX and powerCON, this allows for multiple units to be daisy-chained. The Antari DarkFX Spot 670 ships along with dual removable/adjustable yoke brackets designed for versatile mounting and deployment and a powerCON power cord.

Specifications:

Lamp: 9 x 1.9 W UV LEDs

Average Lamp Life: 20,000 Hours

Photometric Data:

• Optics: 15°
• Peak Wavelength: 365 nm
• Radiant Flux Output: 6760 mW

Control and Connectors:

• Manual, DMX512
• 4-Button Control Panel
• 5-pin DMX In/Out
• powerCON In/Out

IP Rating: IP20

Approvals: CE

Power Supply: 100 to 240 VAC, 50/60 Hz

Power Consumption (Maximum):

• 110 VAC: 19.1 W
• 220 VAC: 18.8 W

Dimensions (LxWxH): 8.1 x 4.9 x 4.9" / 20.5 x 12.5 x 12.5 cm

Weight: 5.8 lb / 2.6 kg
