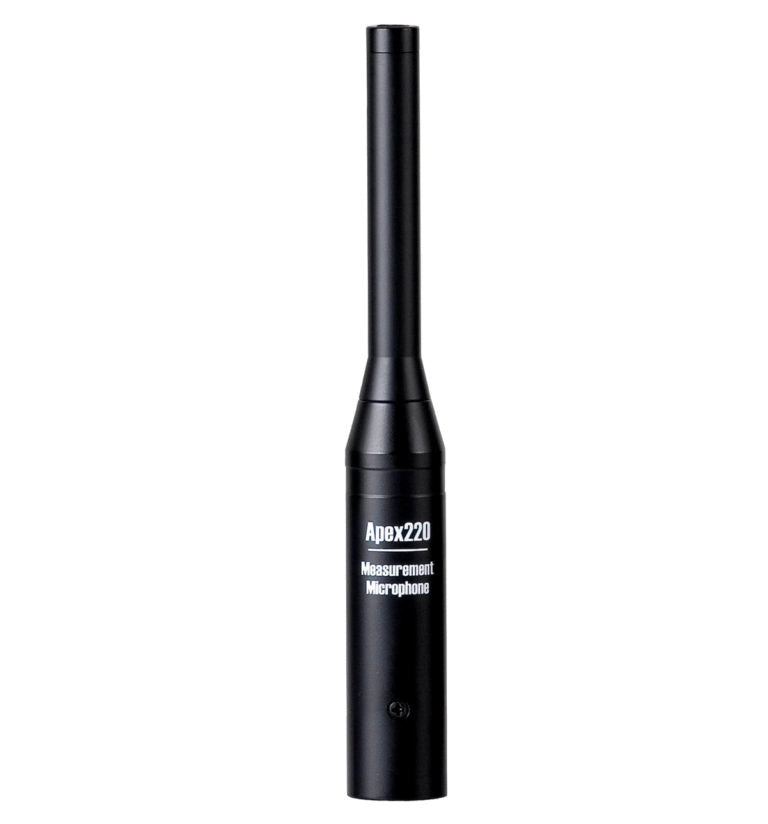

Apex 220 Omnidirectional Test / Reference Microphone
APEX220
Payment plans from Affirm, learn more
- Apex
- Shipping Calculated at checkout, most in stock products ship same day
The linear frequency response and omnidirectional polar pattern of the Apex220 allows you to carry out measurement and alignment tasks with ease and precision. It is the ideal measurement microphone for use with any real-time analyzer or other audio test equipment. The Apex220's rugged construction ensures years of reliability.
Note: A linear measurement microphone is, by design, meant to have a very flat frequency response and may not yield the best results when used as an audio source microphone for live or recording applications.
Features
• Omnidirectional condenser microphone
• Extremely linear frequency response
• Designed for use with real time analyzers, test equipment, audio analysis software
• Microphone clip included
Specs
Type: Test Microphone
Element: Back Elecret Condenser
Frequency Response: 20Hz - 20kHz
Sensitivity: -63dB
Impedance: < 250 Ω
Operating Voltage: 15 - 48 VDC
S/N: > 67dB
MPX SPL: 105dB
Connection: XLR-M
Dimensions: 3.75 x 0.38 in / 14.6 x 10 mm
Weight: 3.7 oz / 105 g
