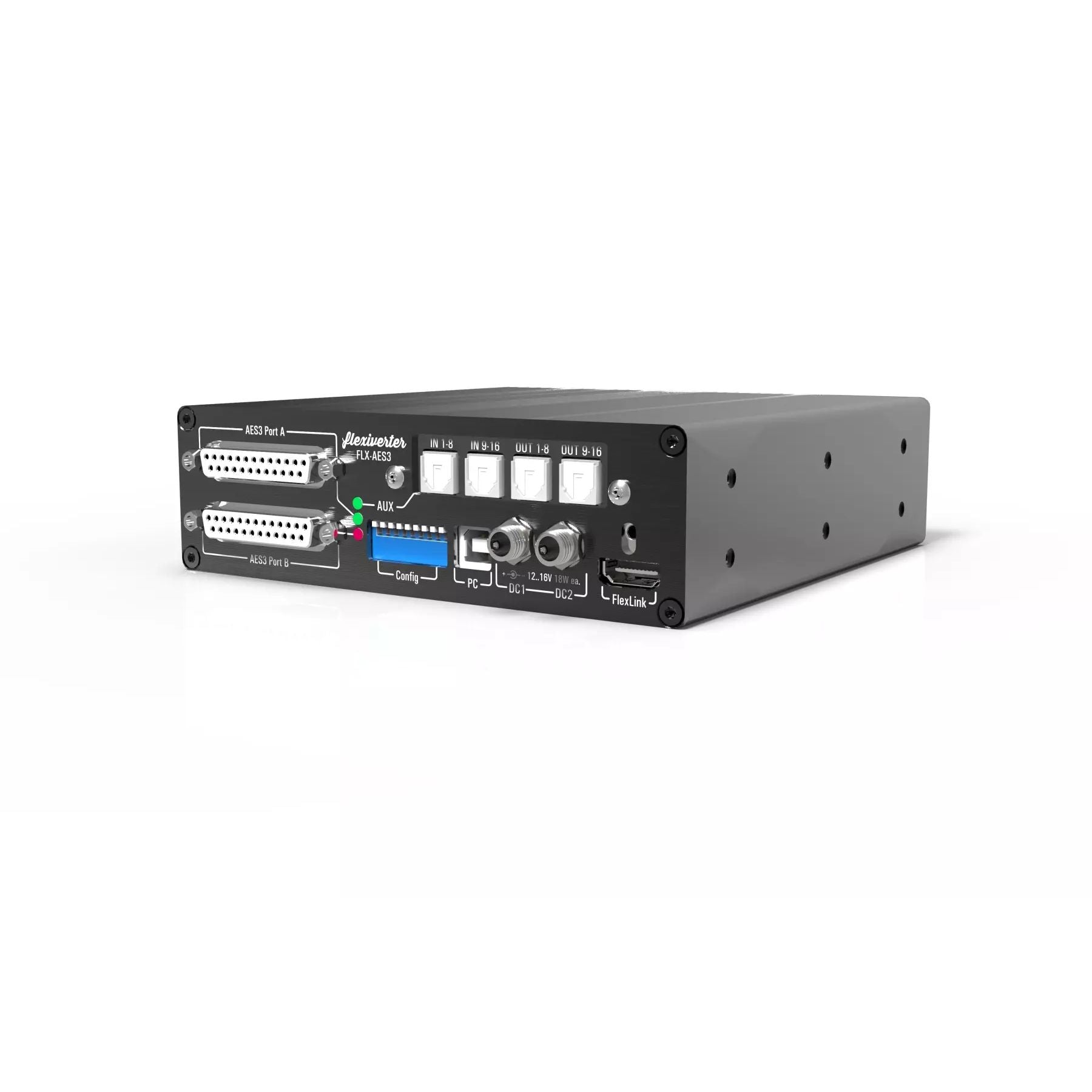

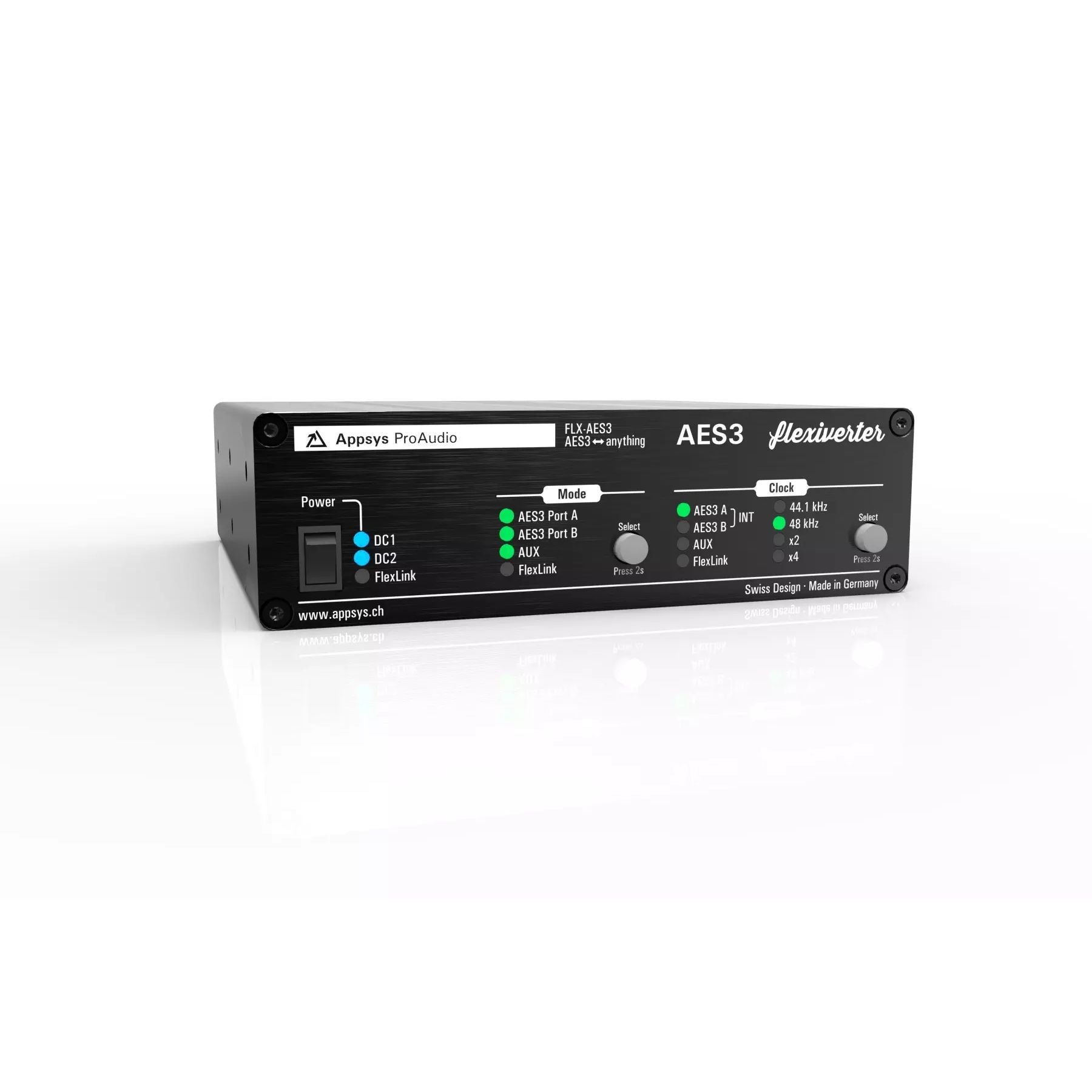

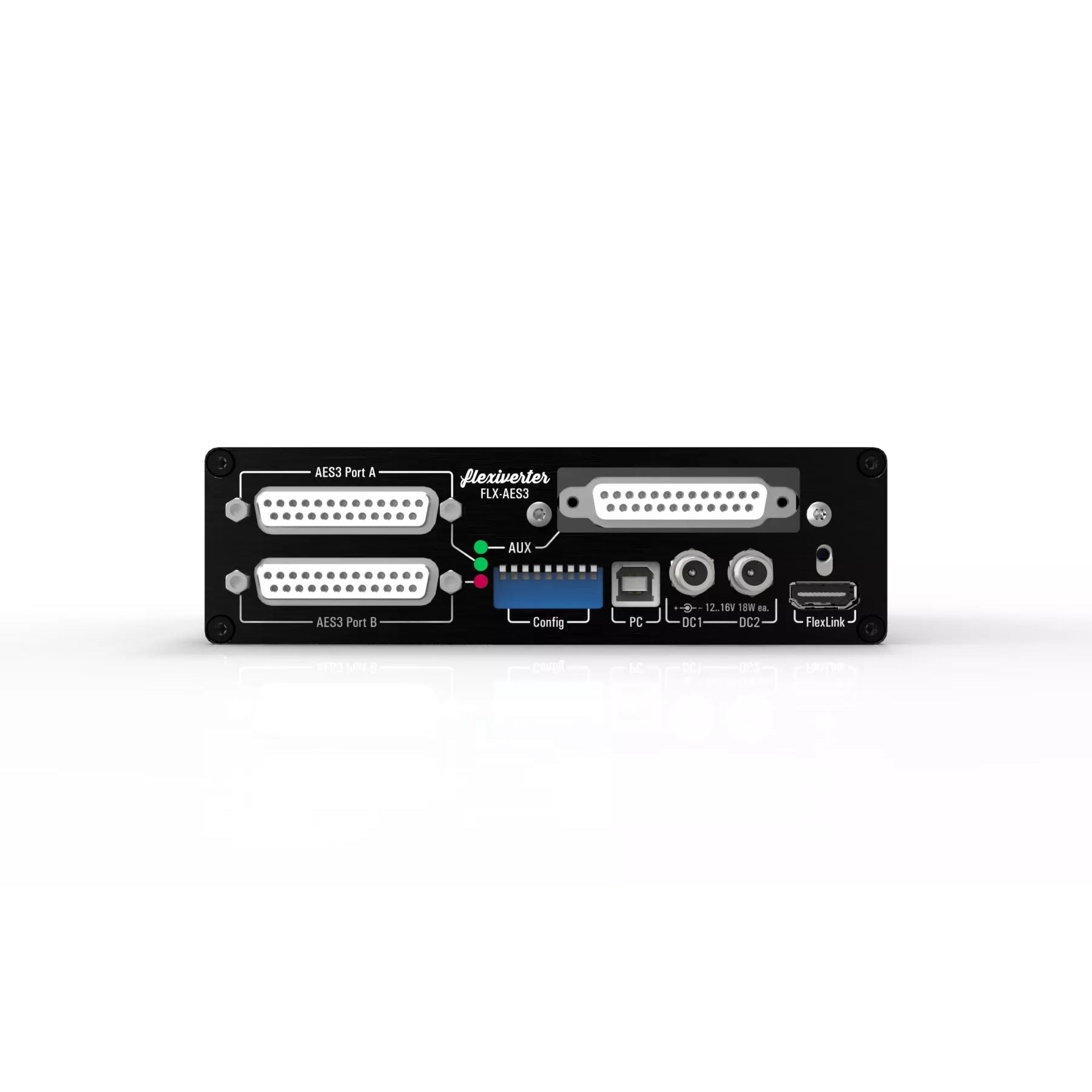

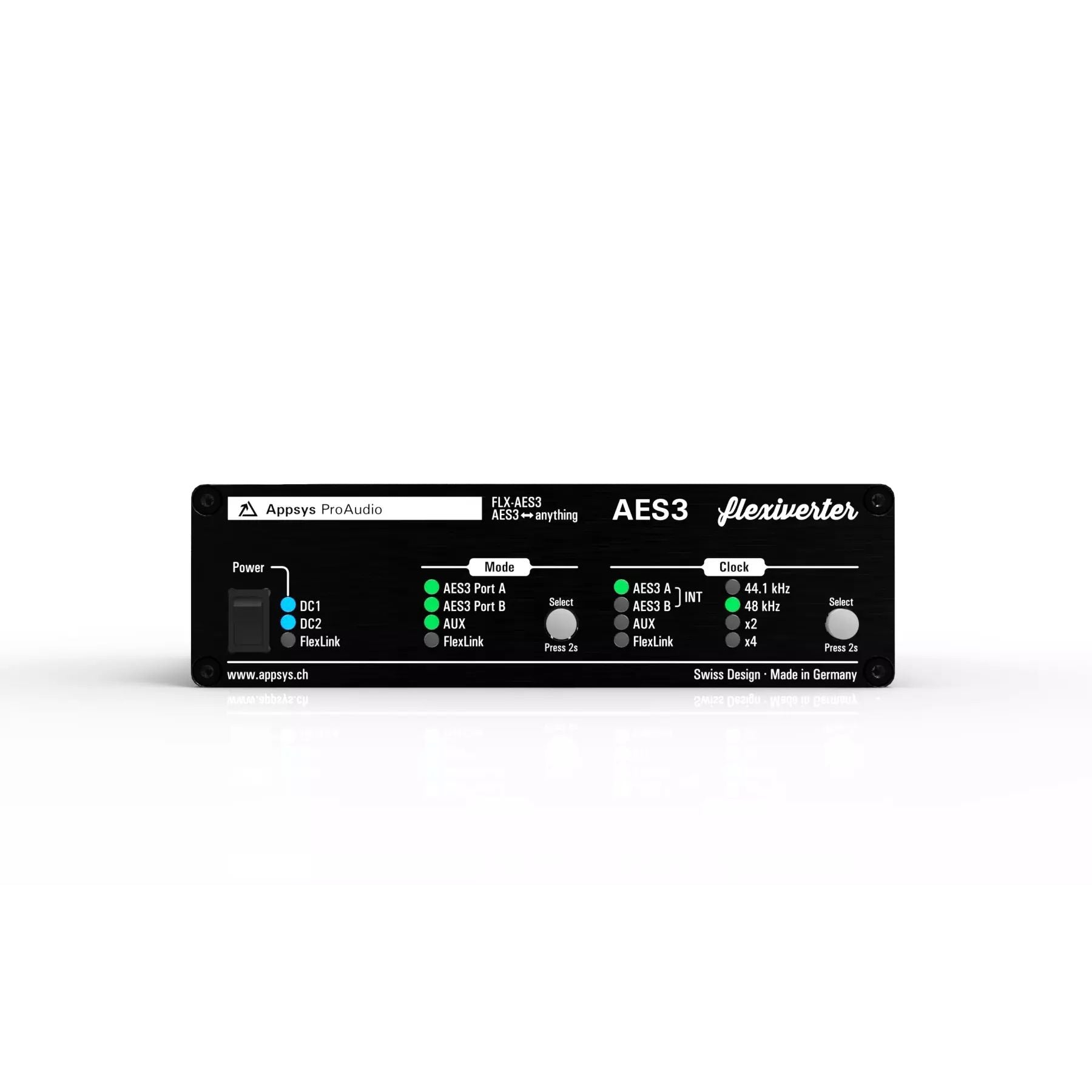

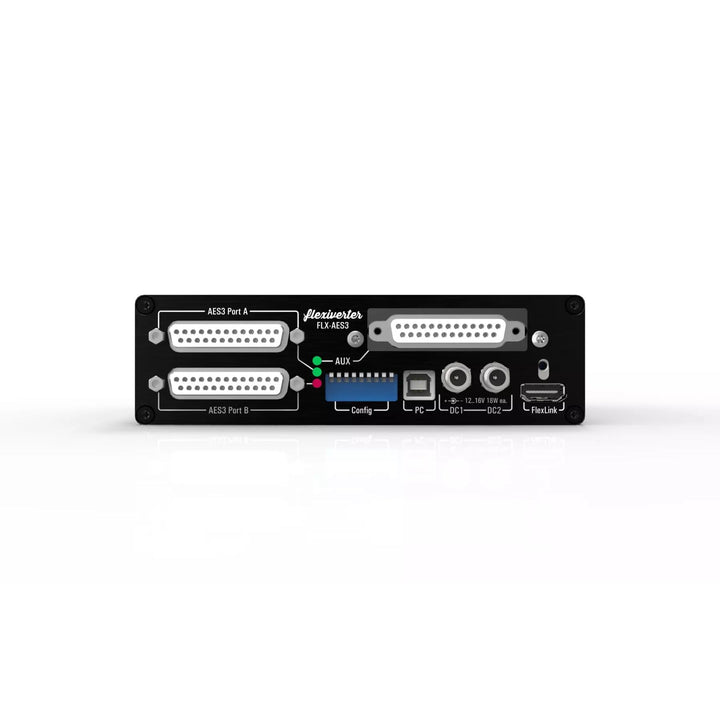

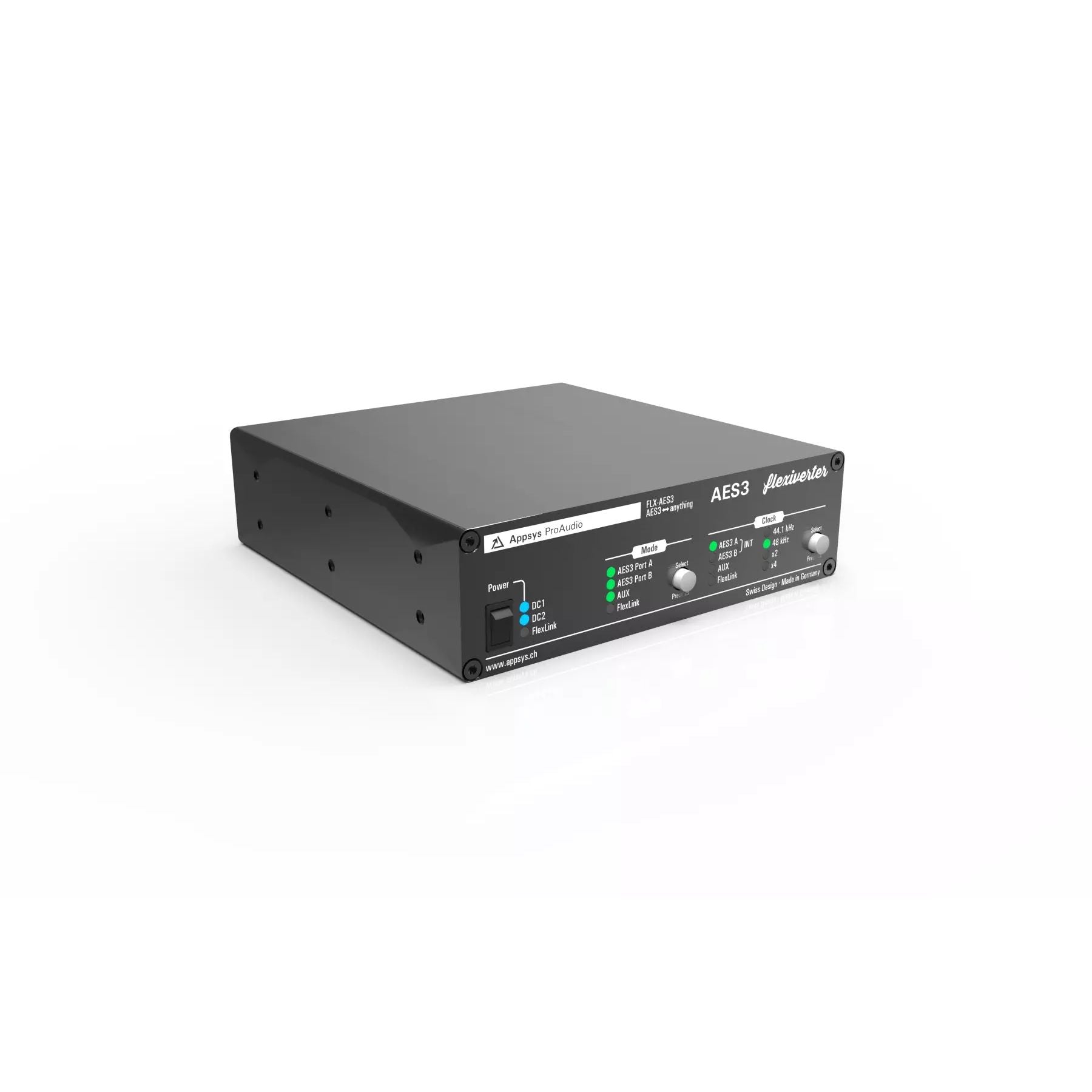

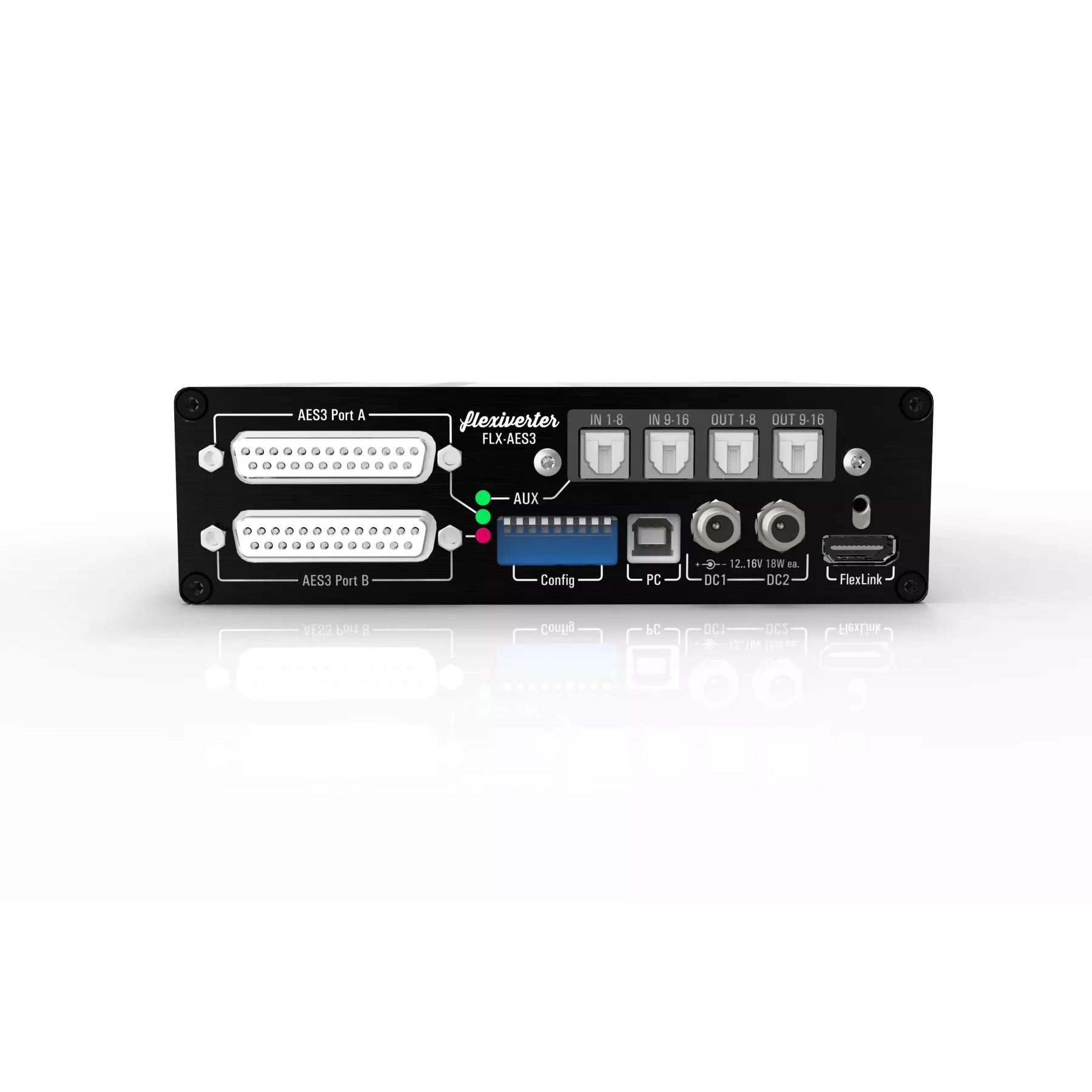

AppSys Flexiverter FLX-AES3 16x16 Channel Format Converter for AES/EBU
FLX-AES3
Regular price$1,365.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- AppSys
- Shipping Calculated at checkout, most in stock products ship same day
AES3 to anything. Anything to AES3.
The FLX-AES3 is a compact AES3-to-anything converter. It has 16x16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports arbitrary sample rates in the range from 44.1...192kHz
• DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Triple-redundant power supply
• Sample-rate conversion using the SRC-64
• Web- or telnet based Remote Control
The FLX-AES3 is a compact AES3-to-anything converter. It has 16x16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features
• 16x16 channels of AES/EBU, fully transformer isolated• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports arbitrary sample rates in the range from 44.1...192kHz
• DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Triple-redundant power supply
Features when connected to the MVR-64
• True channel-wise routing of all available channels (built-in plus AUX card)• Sample-rate conversion using the SRC-64
• Web- or telnet based Remote Control
