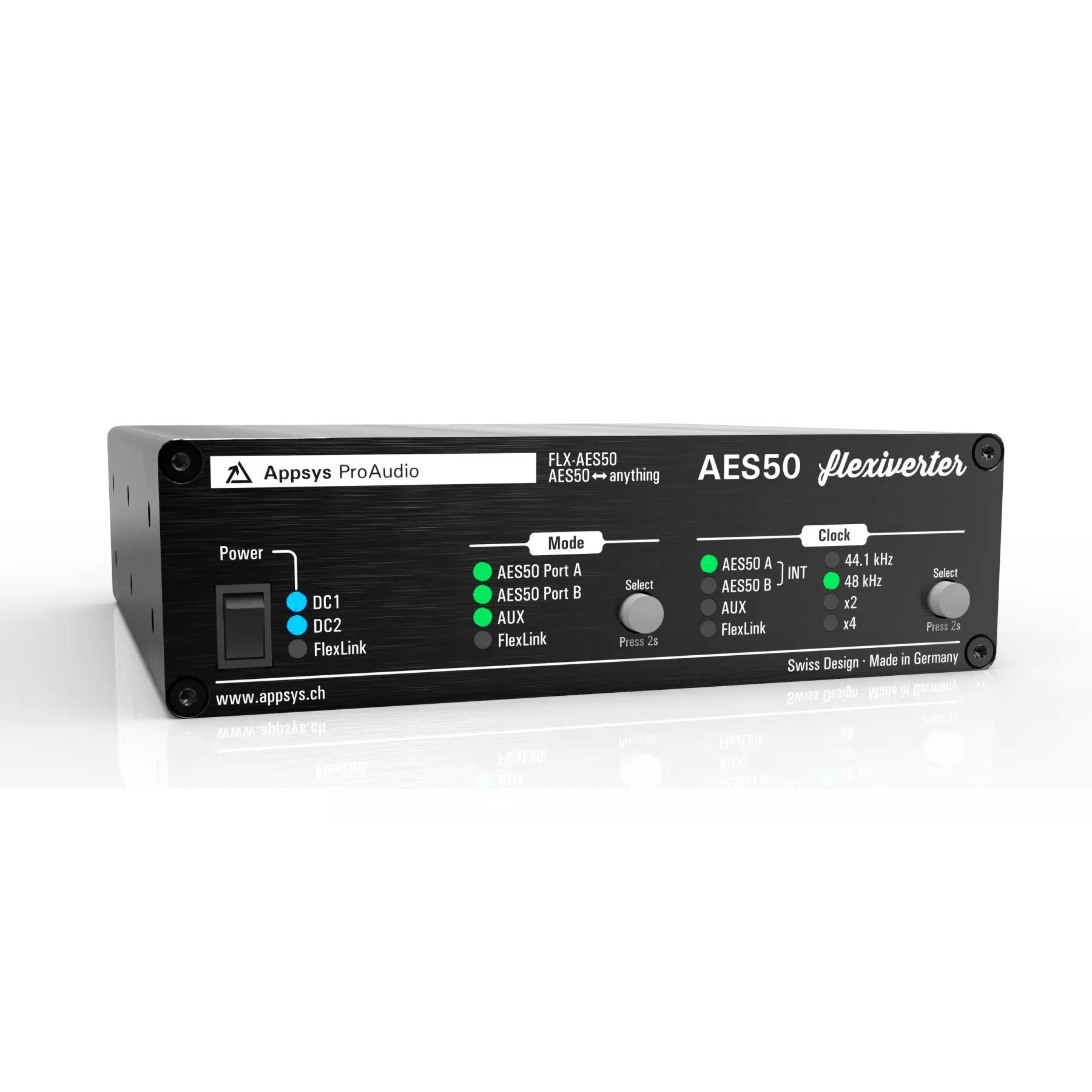

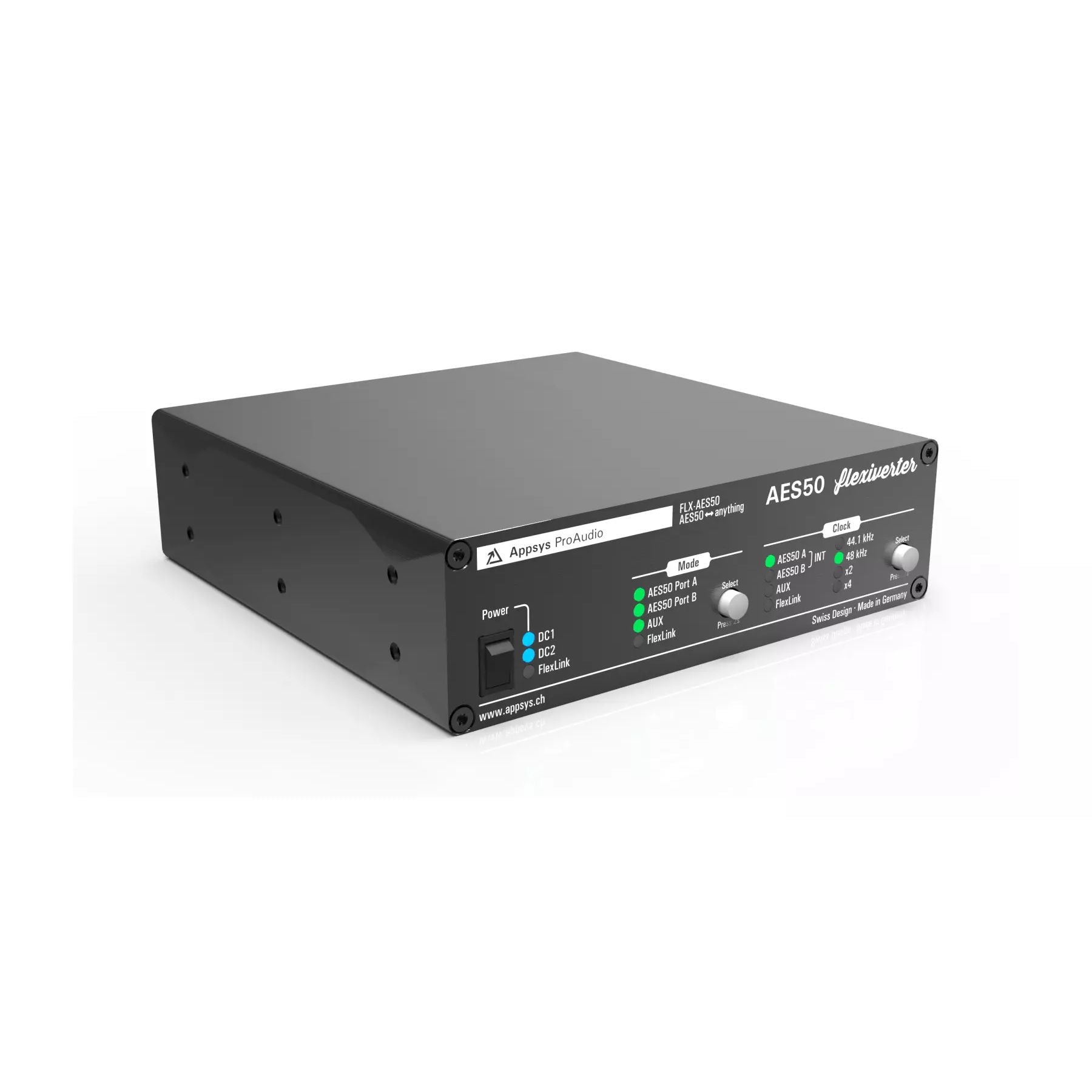

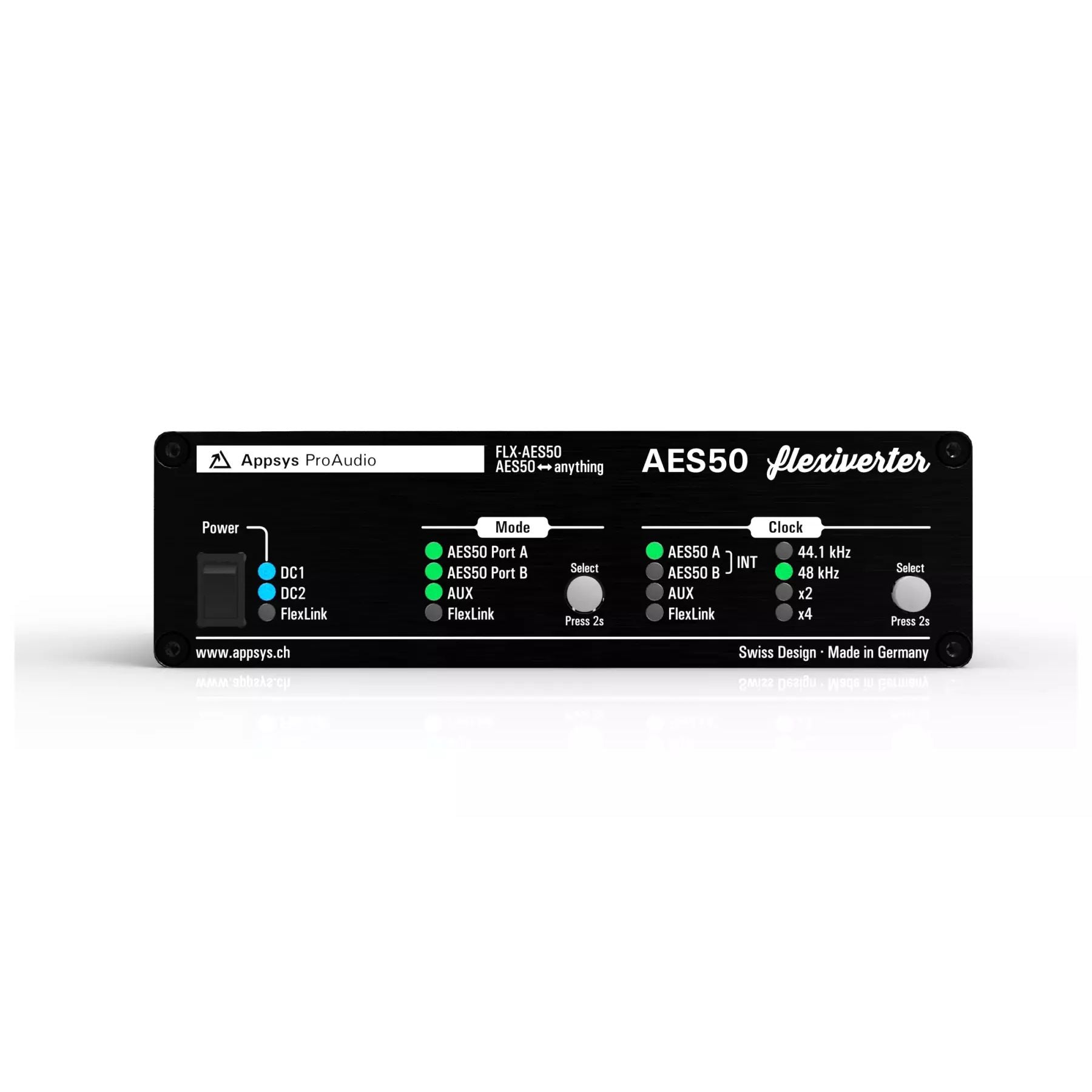

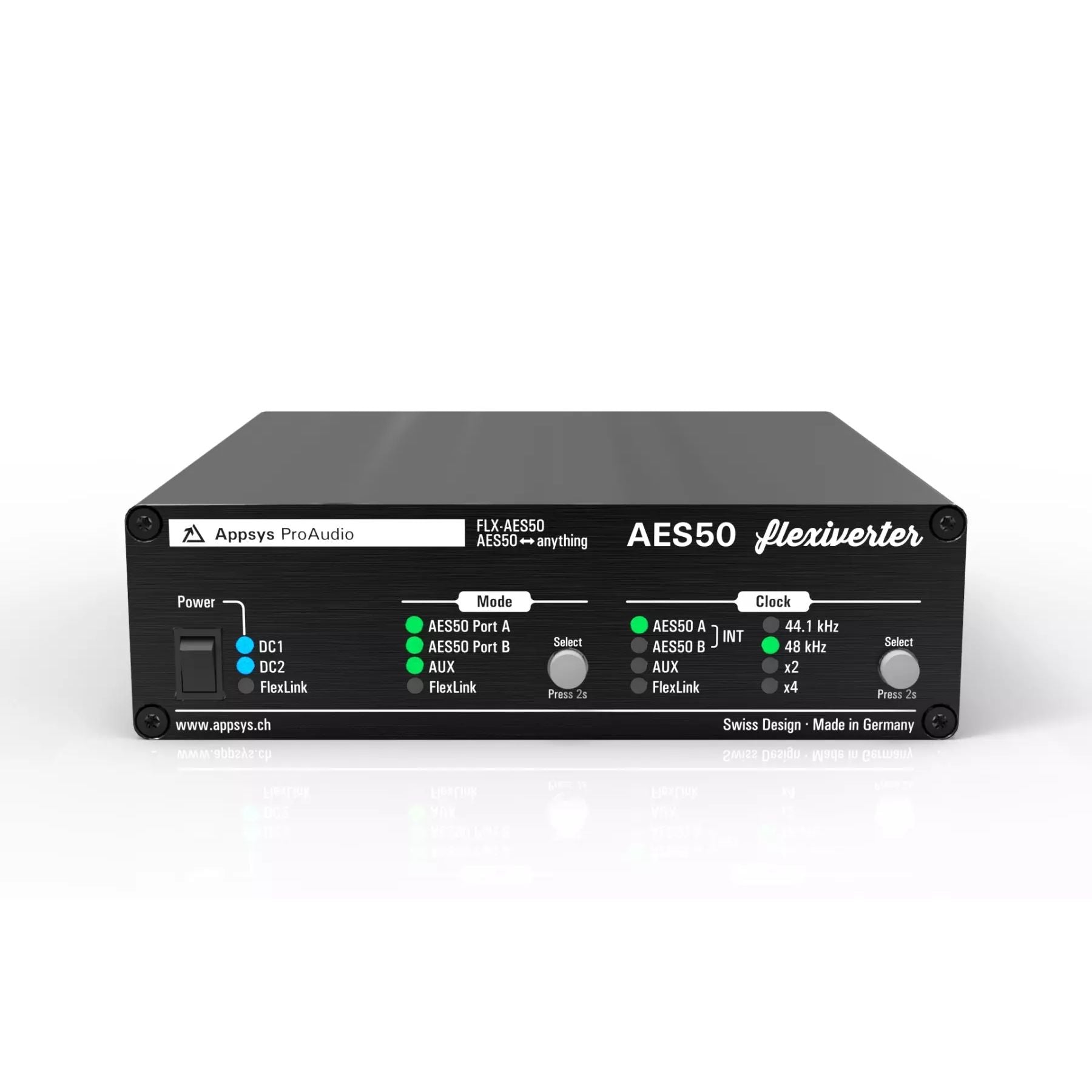

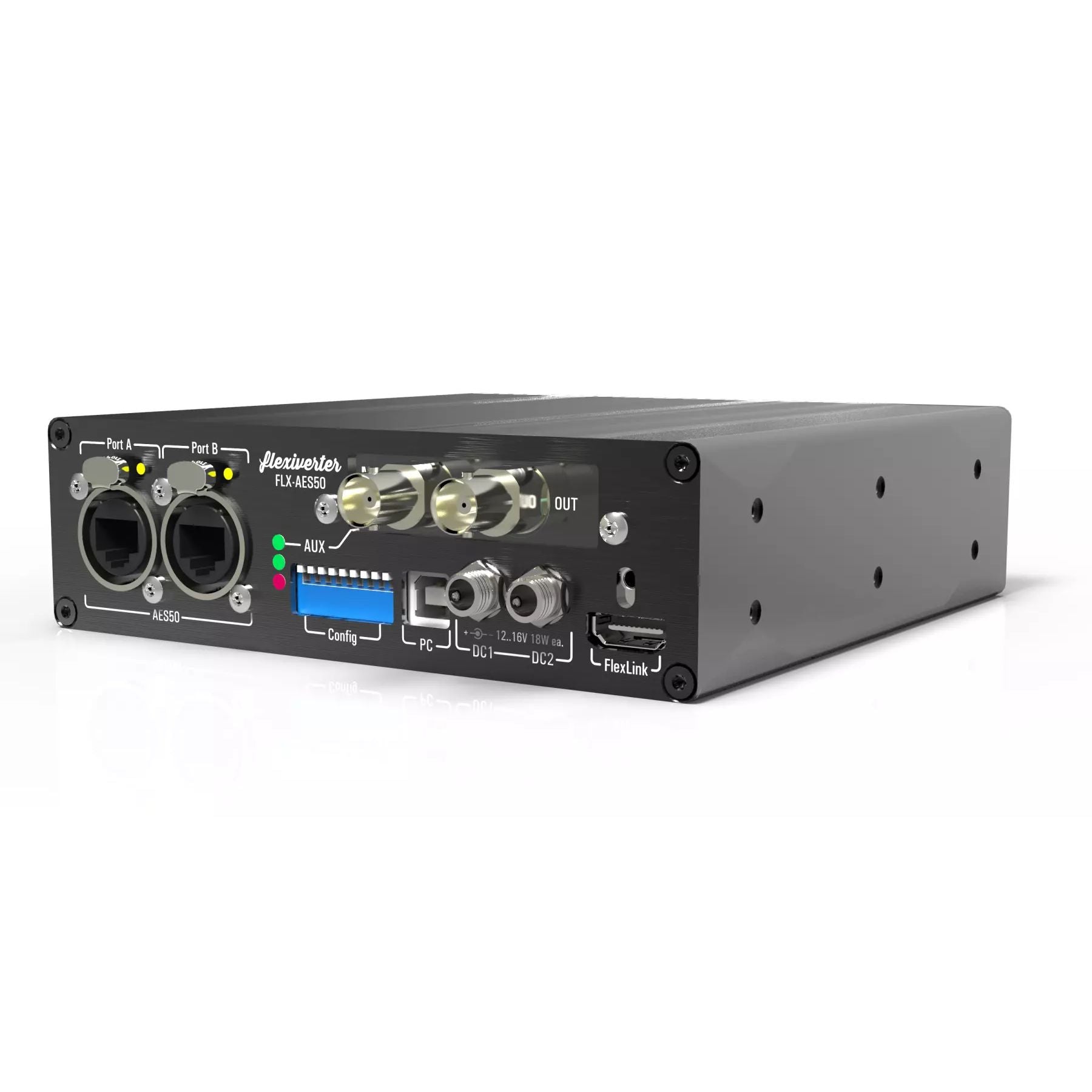

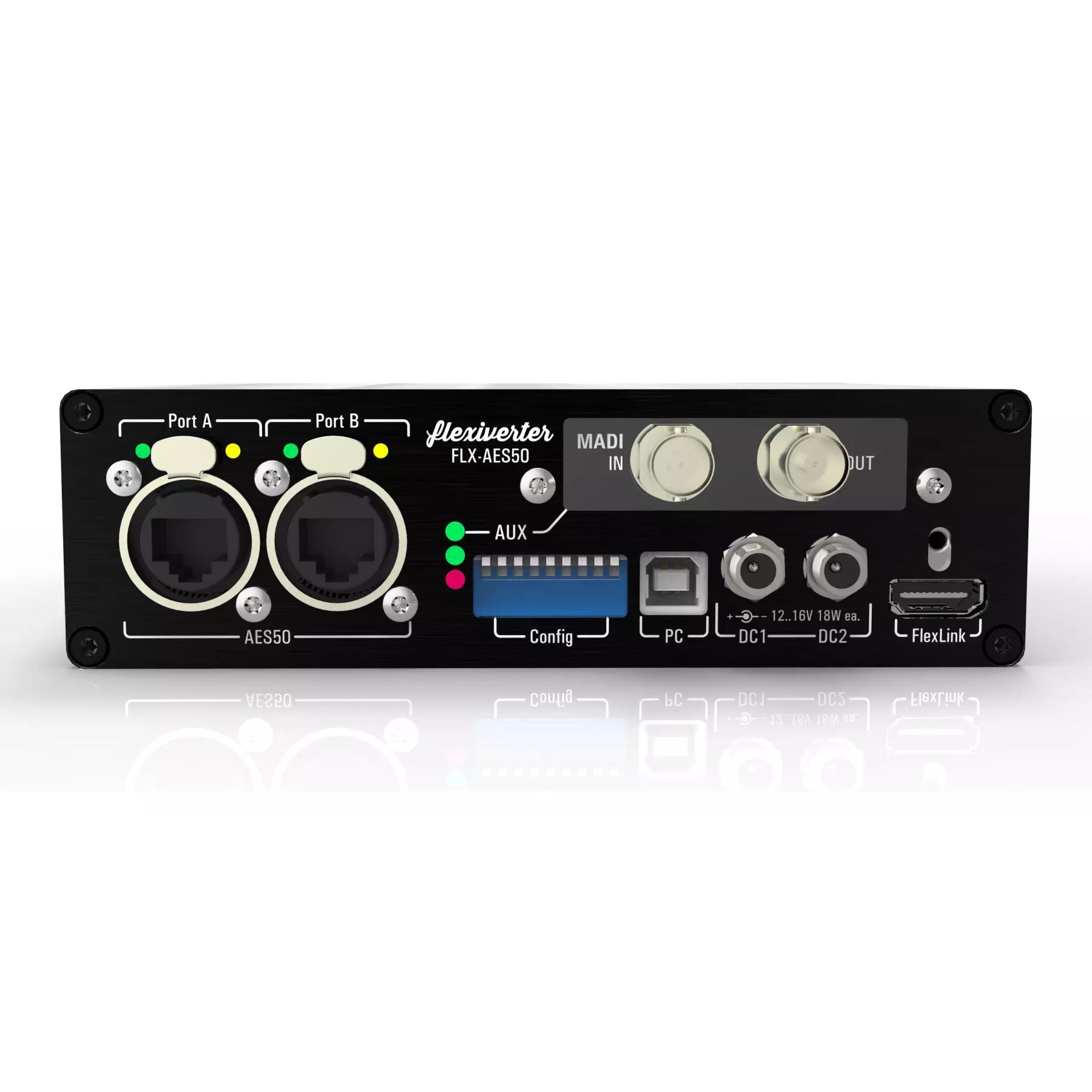

AppSys Flexiverter FLX-AES50 96x96 Channel Format Converter for AES50
FLX-AES50
Regular price$1,365.00
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- AppSys
- Shipping Calculated at checkout, most in stock products ship same day
AES50 to anything. Anything to AES50.
The FLX-AES50 is a compact AES50-to-anything converter. It has two ports (96x96 channels@48k, 48x48 channels@96k) of AES50 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports sample rates: 44.1/48/88.2/96kHz
• Forwarding of remote control (auxiliary) data between AES50 ports to split/merge audio while maintaining HA control
• AES50 Extender: AES50-over-fiber (with AUX-MADI-SFP card as DN9620 replacement) / AES50-over-Dante / AES50-over-anything with full headamp control. This works by passing control data as normal audio on ch57-64 to a peer FLX-AES50, or multiverter, using the media of your choice.
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Remote control via USB: web remote (no software required), or UART command line
• Triple-redundant power supply
The FLX-AES50 is a compact AES50-to-anything converter. It has two ports (96x96 channels@48k, 48x48 channels@96k) of AES50 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.
Features
• Two AES50 ports compatible to Behringer™ and MIDAS™ equipment• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports sample rates: 44.1/48/88.2/96kHz
• Forwarding of remote control (auxiliary) data between AES50 ports to split/merge audio while maintaining HA control
• AES50 Extender: AES50-over-fiber (with AUX-MADI-SFP card as DN9620 replacement) / AES50-over-Dante / AES50-over-anything with full headamp control. This works by passing control data as normal audio on ch57-64 to a peer FLX-AES50, or multiverter, using the media of your choice.
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power
• Remote control via USB: web remote (no software required), or UART command line
• Triple-redundant power supply
