ART Pro Audio Dual 15 band EQ
EQ341
Payment plans from Affirm, learn more
- ART
- Shipping Calculated at checkout, most in stock products ship same day
ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.

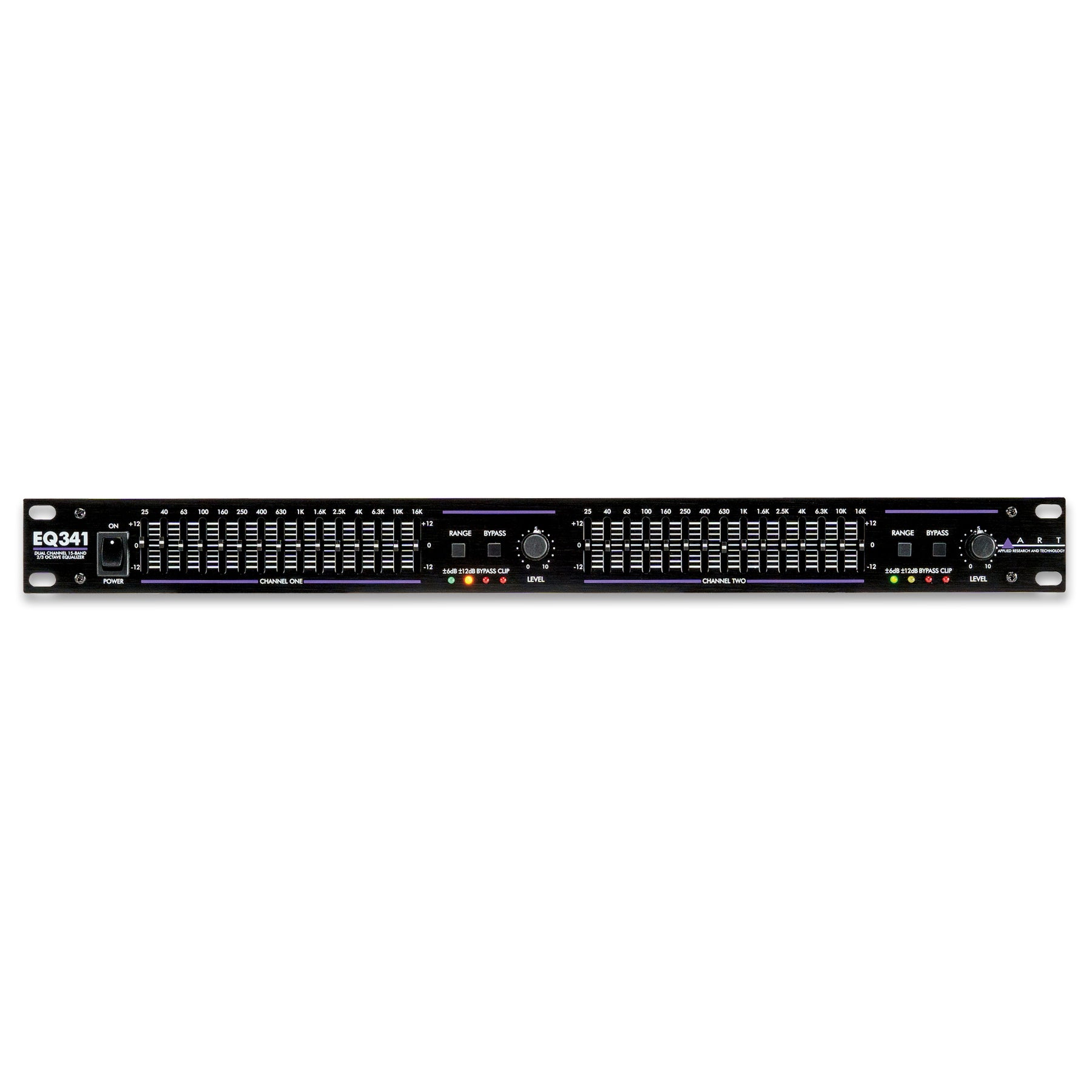

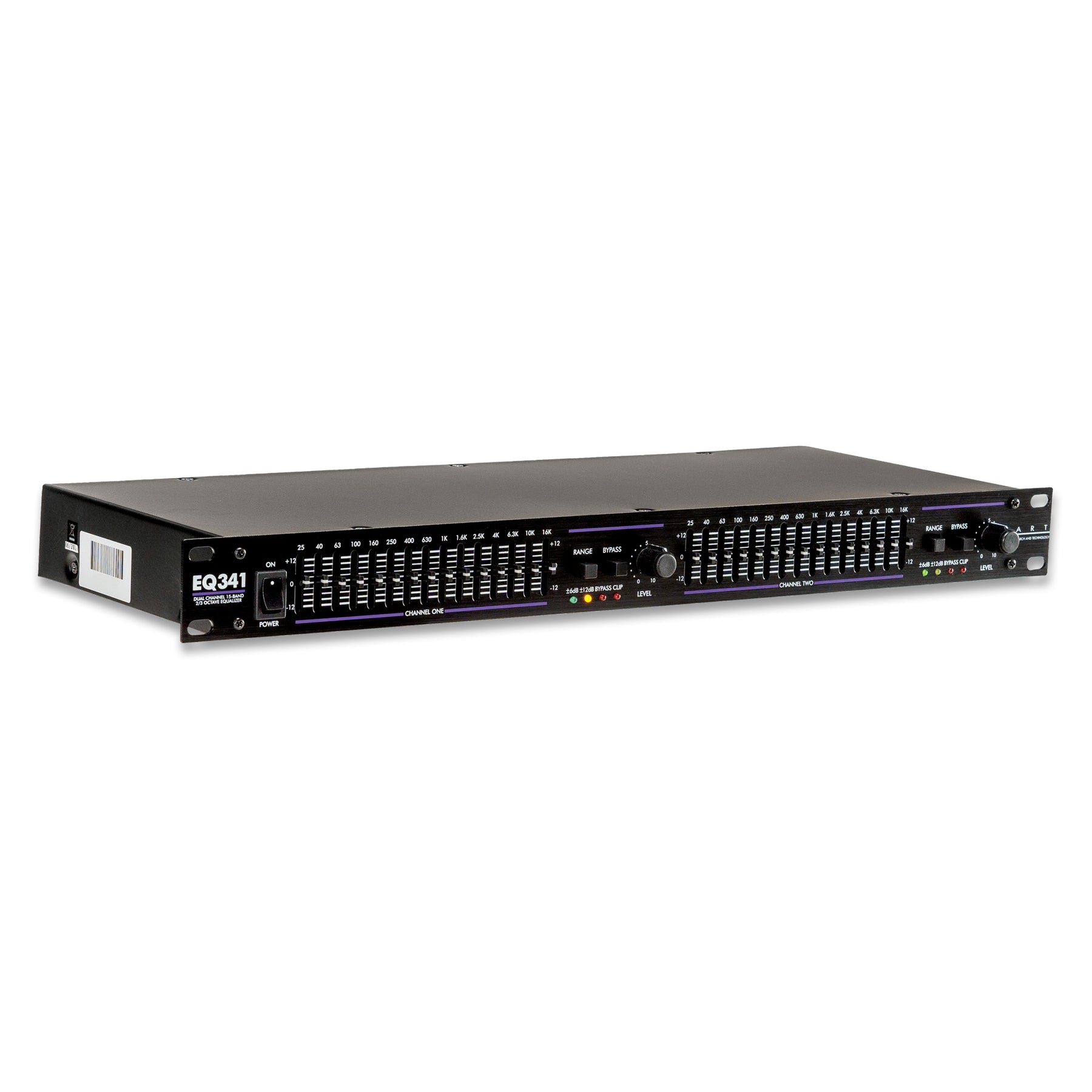

The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals.

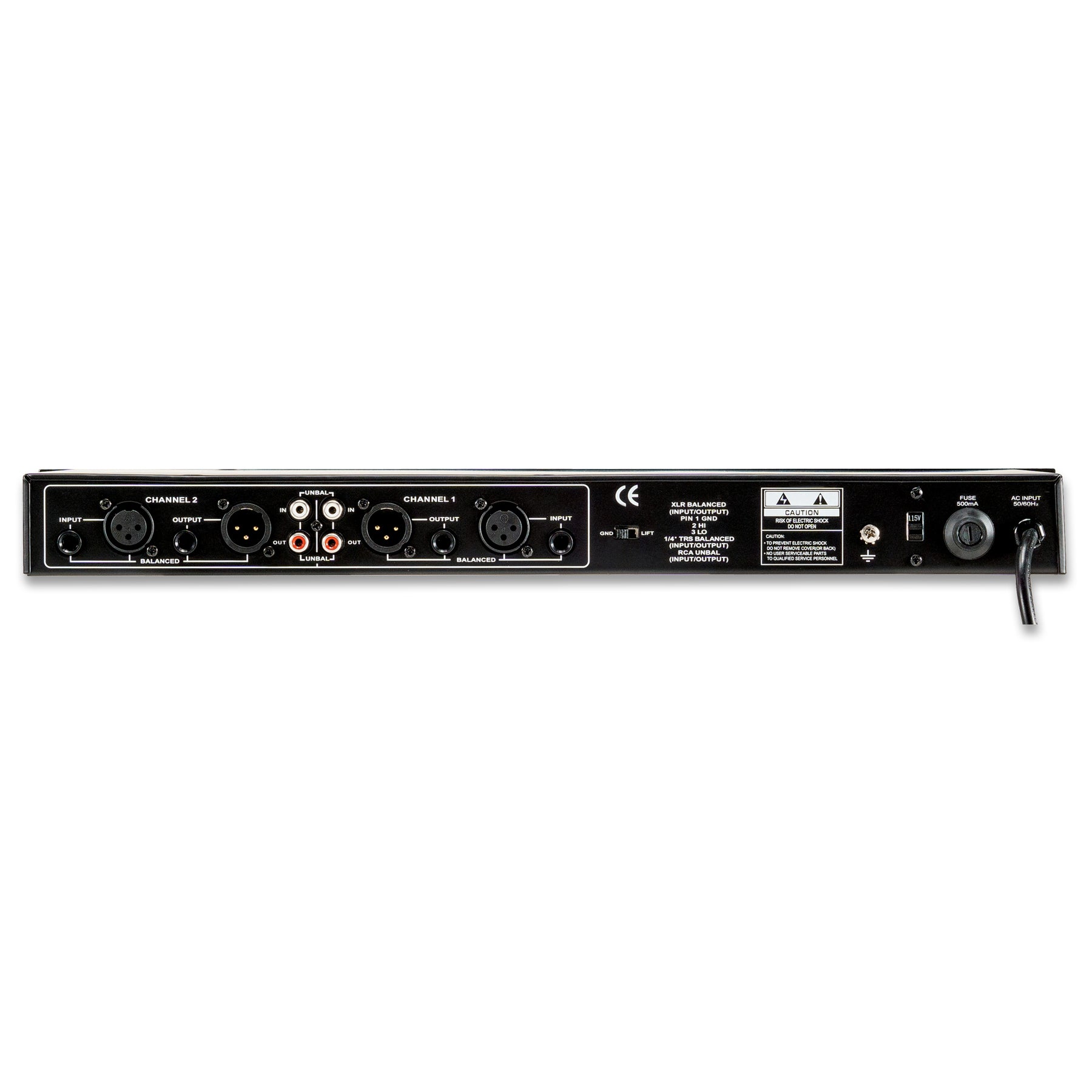

The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.
Specifications:
Channels: 2
Bands per Channel: 15 (2/3 Octave, ISO Spacing)
Accuracy: +/- 3% of Centre Frequency
Sliders: 20 mm with Centre Detent
Range: +/- 6 dB or +/- 12 dB
Inputs:
- 2x Balanced XLR and 1/4"
- 2x Unbalanced RCA
Input Impedance:
- 20 kΩ (Balanced)
- 15 kΩ (Unbalanced)
Maximum Input Level: +22 dBm (Level Control at Centre)
Outputs:
- 2x Balanced XLR and 1/4"
- 2x Unbalanced RCA
Output Impedance Level: <150Ω (Typical)
Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
Signal to Noise Ratio: -94 dB
Total Harmonic Distortion: 0.01%
Channel Separation: >50 dB
Overload LED Threshold: 6 dB below Clipping (All Filters Flat)
Dimensions (HxWxD): 1.75” x 19” x 5.5”
4.4cm x 48.3 x 14 cm
Weight: 4.85 lbs. / 2.2 kg
