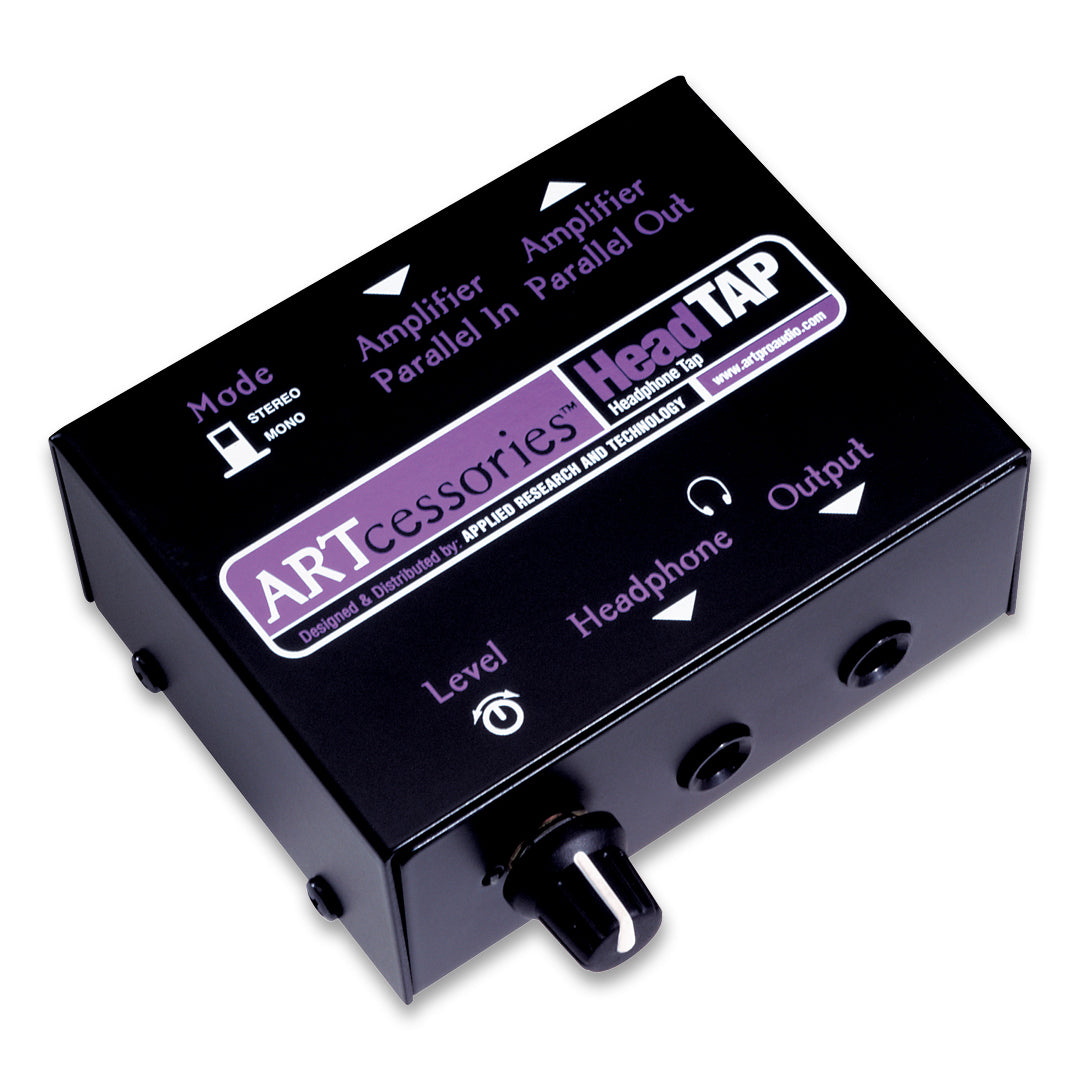

ART HEADPHONE TAP
HEADTAP
Payment plans from Affirm, learn more
- ART
- Shipping Calculated at checkout, most in stock products ship same day
Sometimes, floor monitors can be a problem. Perhaps there isnt enough room on stage, or somebody sits in and there isnt sufficient coverage. When it isnt easy to add another monitor, the HeadTap makes it easy to add headphones.
Its designed to connect between a power amp and speaker, tapping the signal to drive two headphone outputs. Internal resistors keep the impedance high enough to protect the headphones, and the amplifier is protected from encountering a load impedance that's too low when using one or more HeadTap units, with or without speakers connected.
The HeadTap will also work with a stereo headphone amplifier such as the ART HeadAmp 4, HeadAmp 6, or HeadAmp 6 Pro to power even more headsets.
Passive, compact, and convenient, the HeadTap is a simple solution that lets you hear what you need, where you need it.
Features:
- Creates a Headphone Tap between a Power Amp and Speaker
- Parallel 1/4" Inputs to Daisy-Chain Taps and Speakers
- Mono / Stereo Input Selector
- Dual 1/4" Headphone Jacks with Level Control
- Passive Design - No Power Required
Specifications:
Inputs: 1/4"
Outputs: 2 x 1/4”
Input Impedance: 100 Ω
Dimensions (LxWxH): 2.8″ x 3.7 x 1.7″, 7.0 cm x 9.3 cm, 4.3 cm
Weight: 1.0 lb (.46 kg)
