ART TRS 48 CH PATCH BAY - 2U
P48
Payment plans from Affirm, learn more
- ART
- Shipping Calculated at checkout, most in stock products ship same day

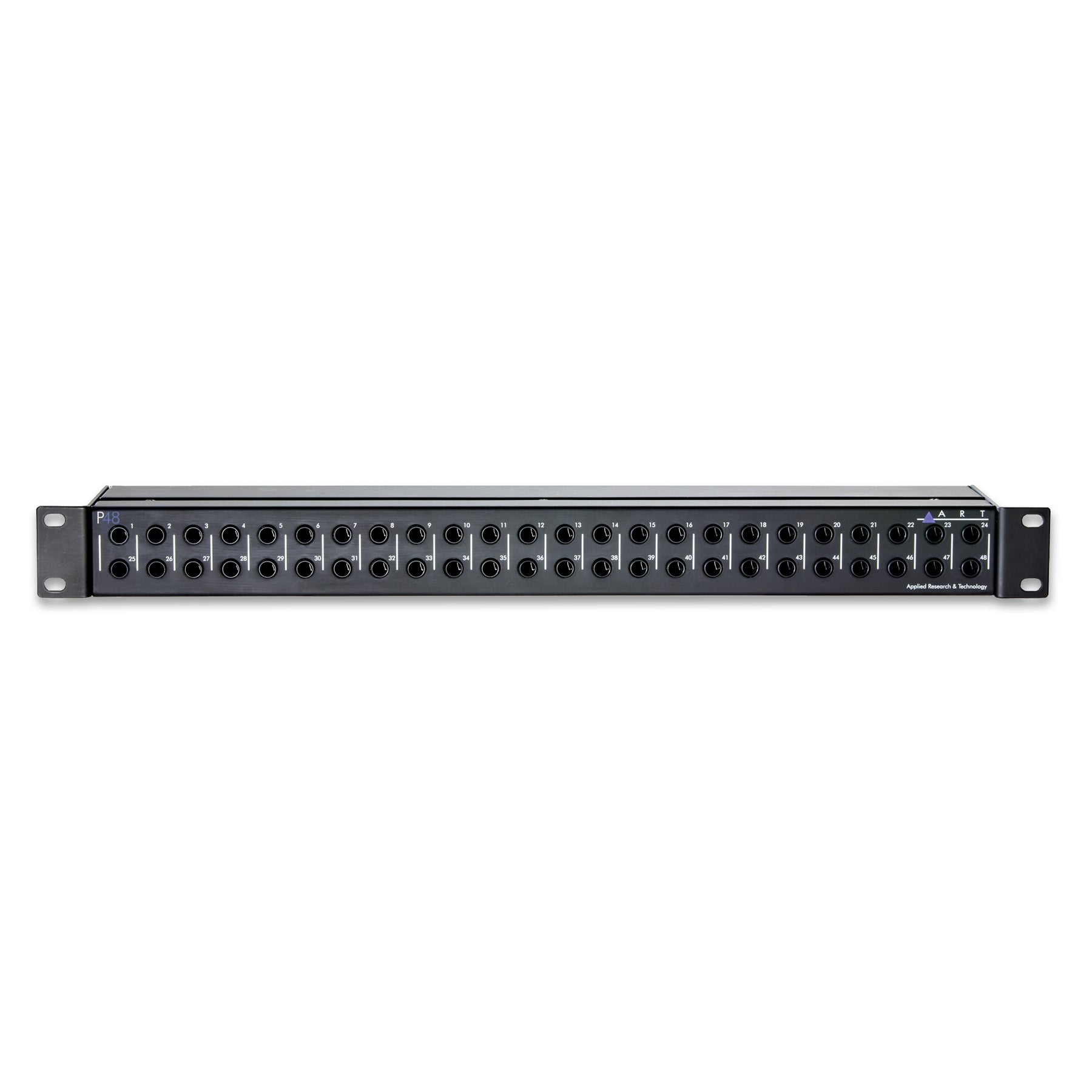

The P48 simplifies connecting and re-routing signals in your studio or live rack.

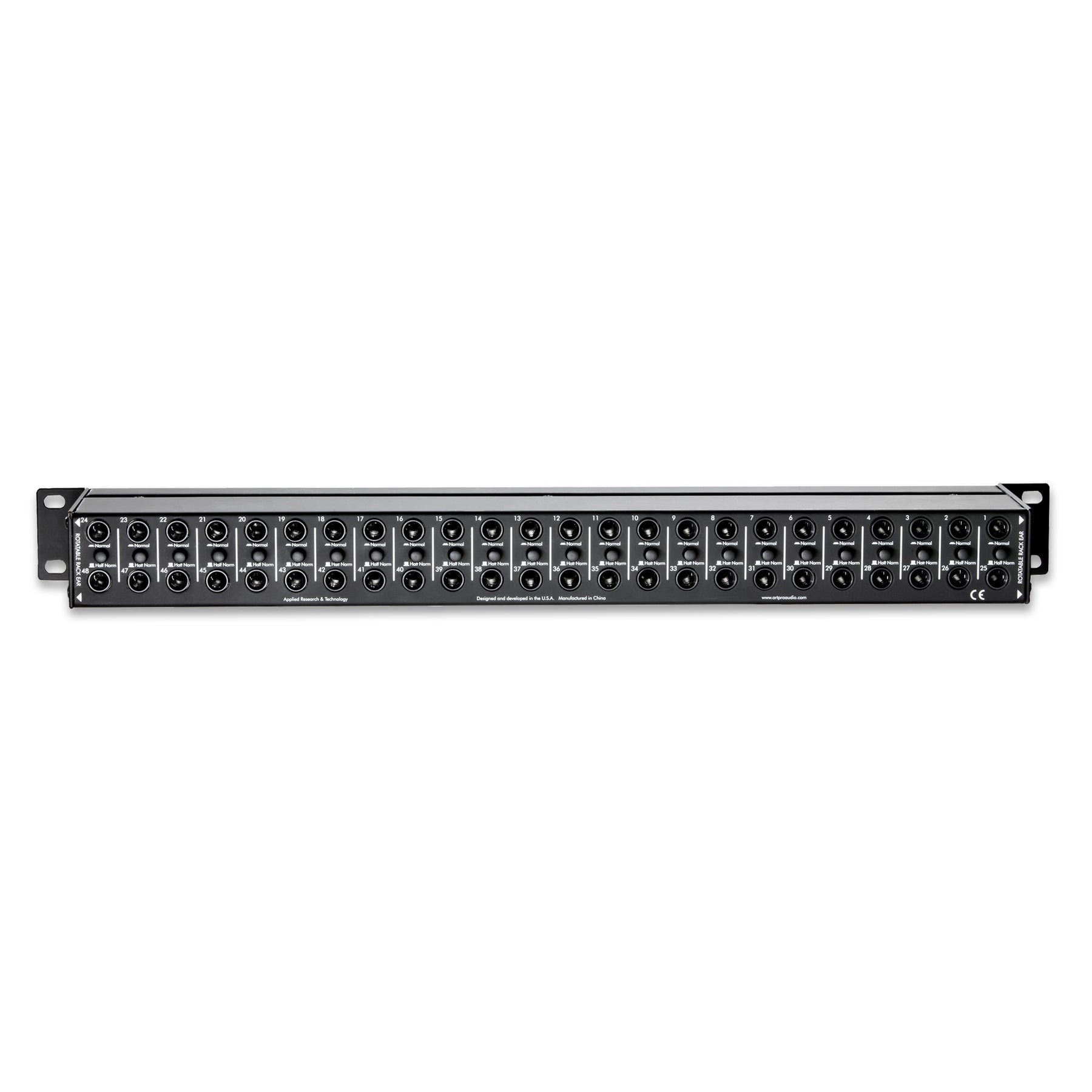

The 48-point patchbay gives you 24 channels of linked inputs and outputs, all with balanced 1/4” TRS connections.
Each channel can switch between normal and half-normal operation. In normal operation, connecting the front output will break the connection between the rear input and output. In half-normal operation, the rear connection remains unbroken so you can split the signal to a second destination.
It adapts quickly and easily to your workflow. Unlike some patchbays which require that you physically flip channel modules, the P48 has a button on each channel to change between normal and half-normal operation.
Features:
- 24 Channels of Linked Input / Output Pairs
- 1/4" TRS Connections
- Switchable between Normal and Half-Normal Operation per Channel
- Passive Design - No Power Required
- Fully Shielded Steel Enclosure
- 1U Rackmount
- Reversible Rack Ears
Specifications:
CMRR: Greater than -90 dB (-95 dB Typical)
Isolation: Greater than -90 dB (-95 dB Typical)
Dimensions (DWH): 3.5" x 19" x 1.75"
/ 89 mm x 483 mm x 44 mm
Weight: 4.5 lbs / 2 kg
