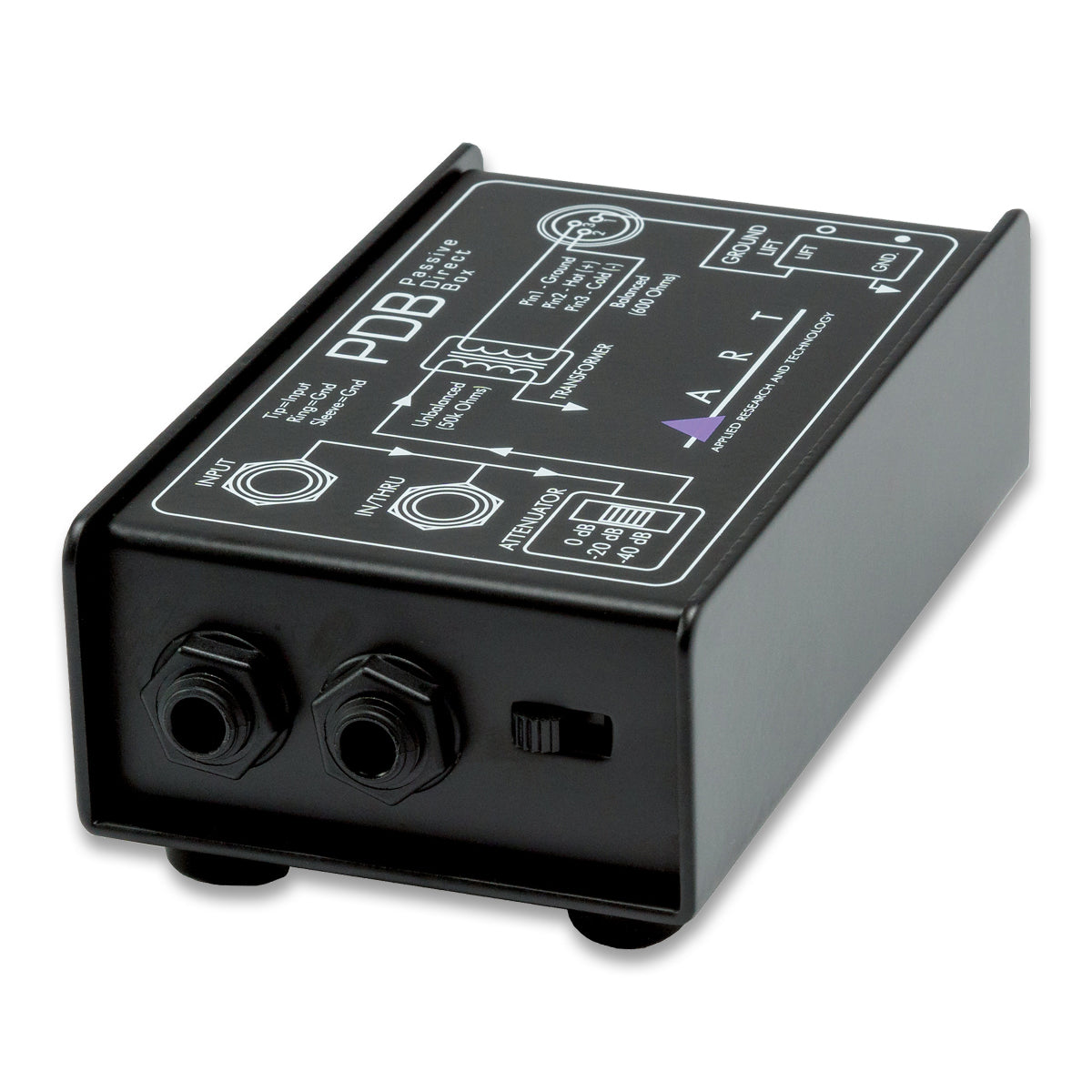

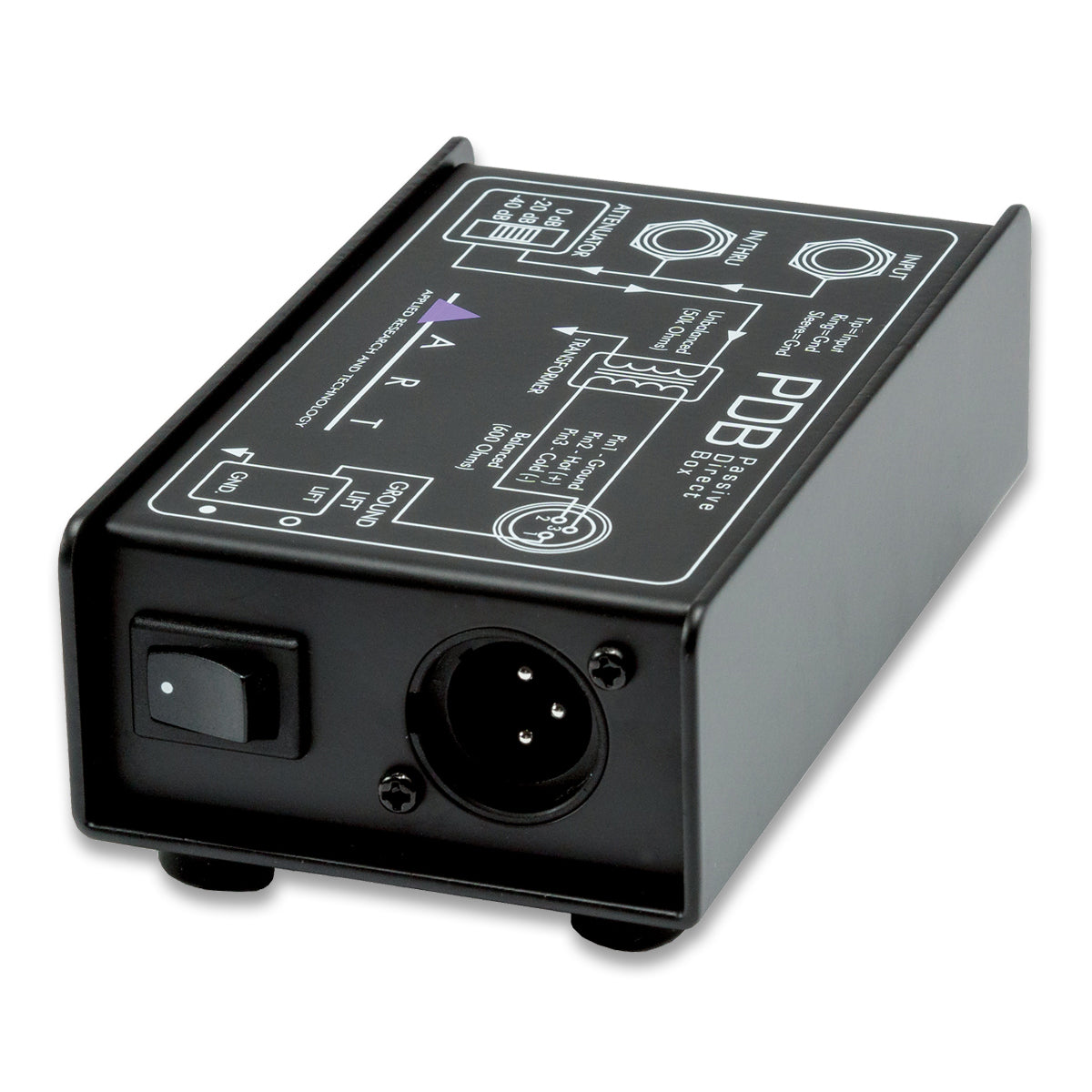

The PDB is a passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

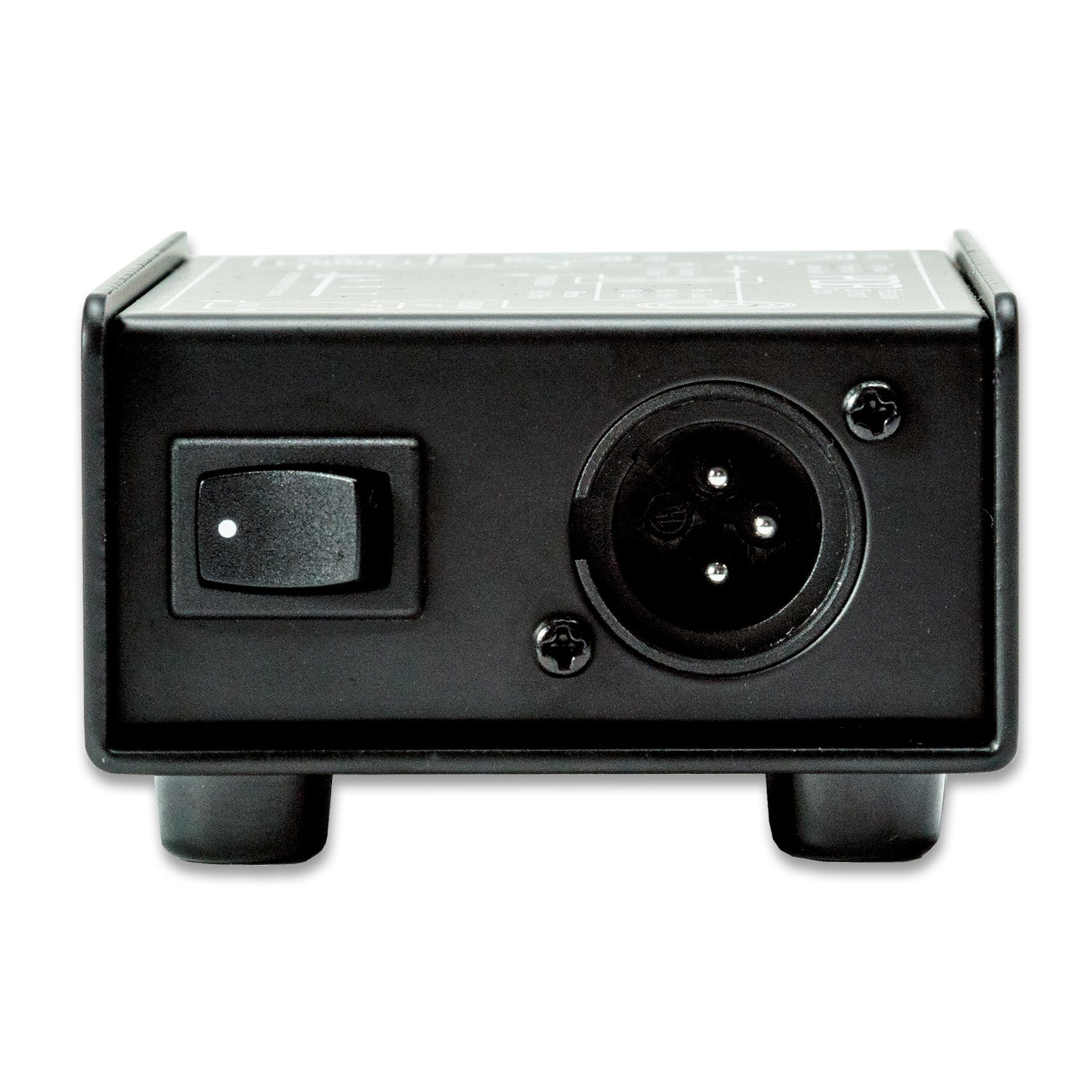

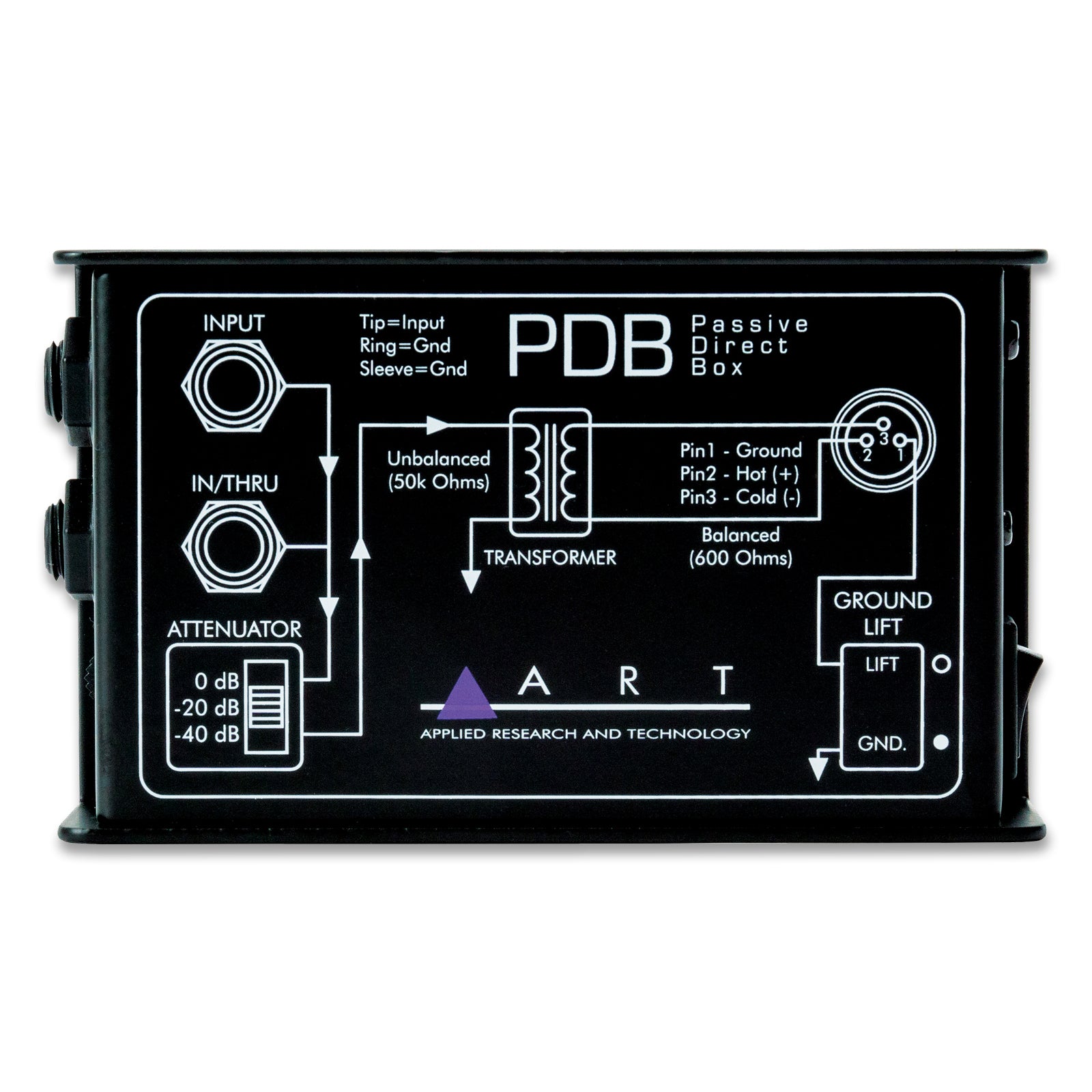

The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.
A switchable ground lift helps to eliminate hum, and switchable attenuation offers up to 40 dB of gain reduction.
As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.
Packed into a stage-proof steel enclosure, the PDB provides a high-fidelity connection to a mixer, PA system, or audio interface.
Specifications:
Active or Passive: Passive

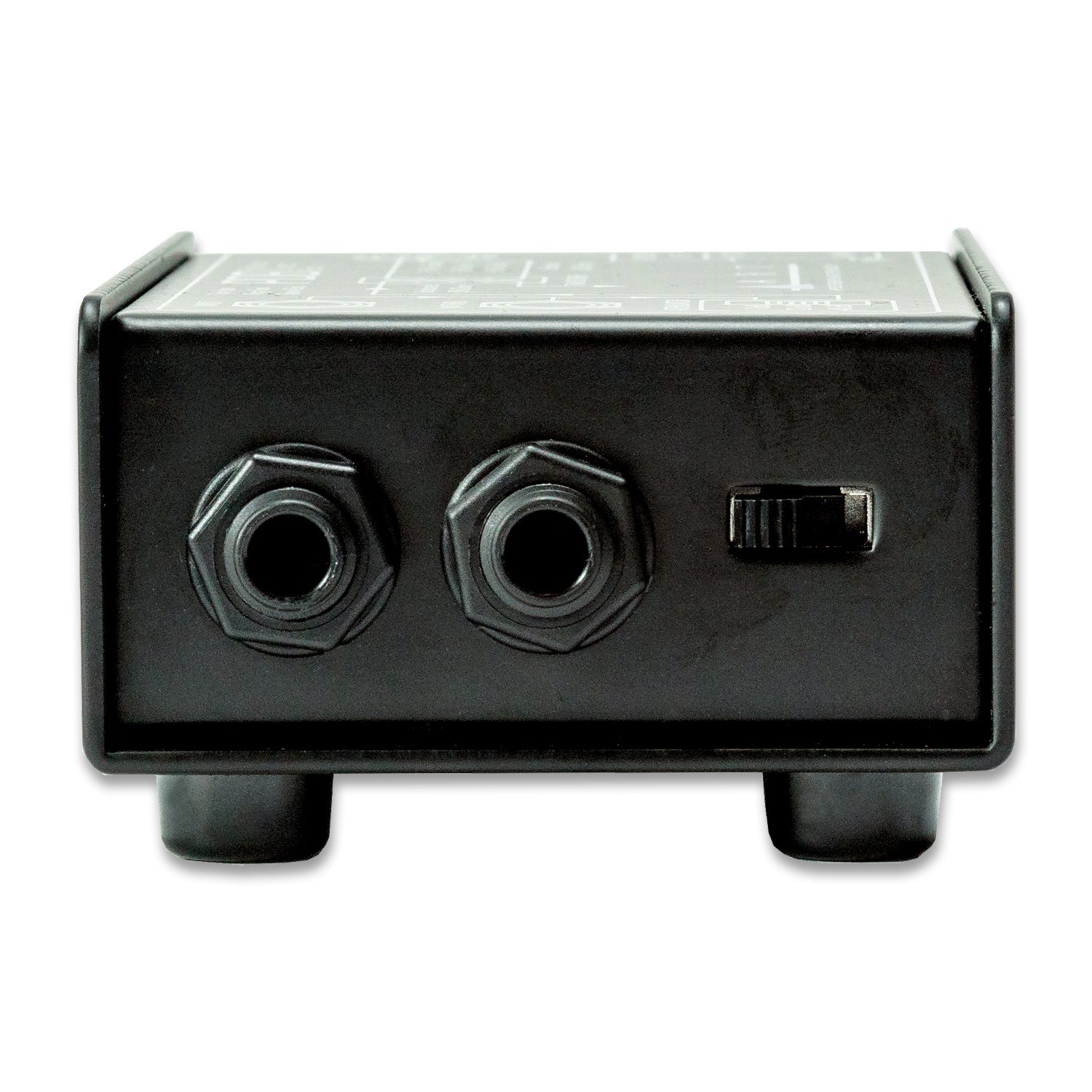

Inputs: 1x 1/4" TS
Outputs:
- 1x XLR
- 1x 1/4" TS Thru
Input Impedance: 50 kΩ
Output Impedance: 600Ω
Controls:
- Attenuator (0 dB, -20 dB, -40 dB)
- Ground Lift
Frequency Response: 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
Dimensions (HxWxD): 3" x 5" x 2"
7.6 cm x 12.7 cm x 5.1 cm
