ART 4 CHANNEL RACK MNT DIRECT BOX
PDB4
Payment plans from Affirm, learn more
- ART
- Shipping Calculated at checkout, most in stock products ship same day

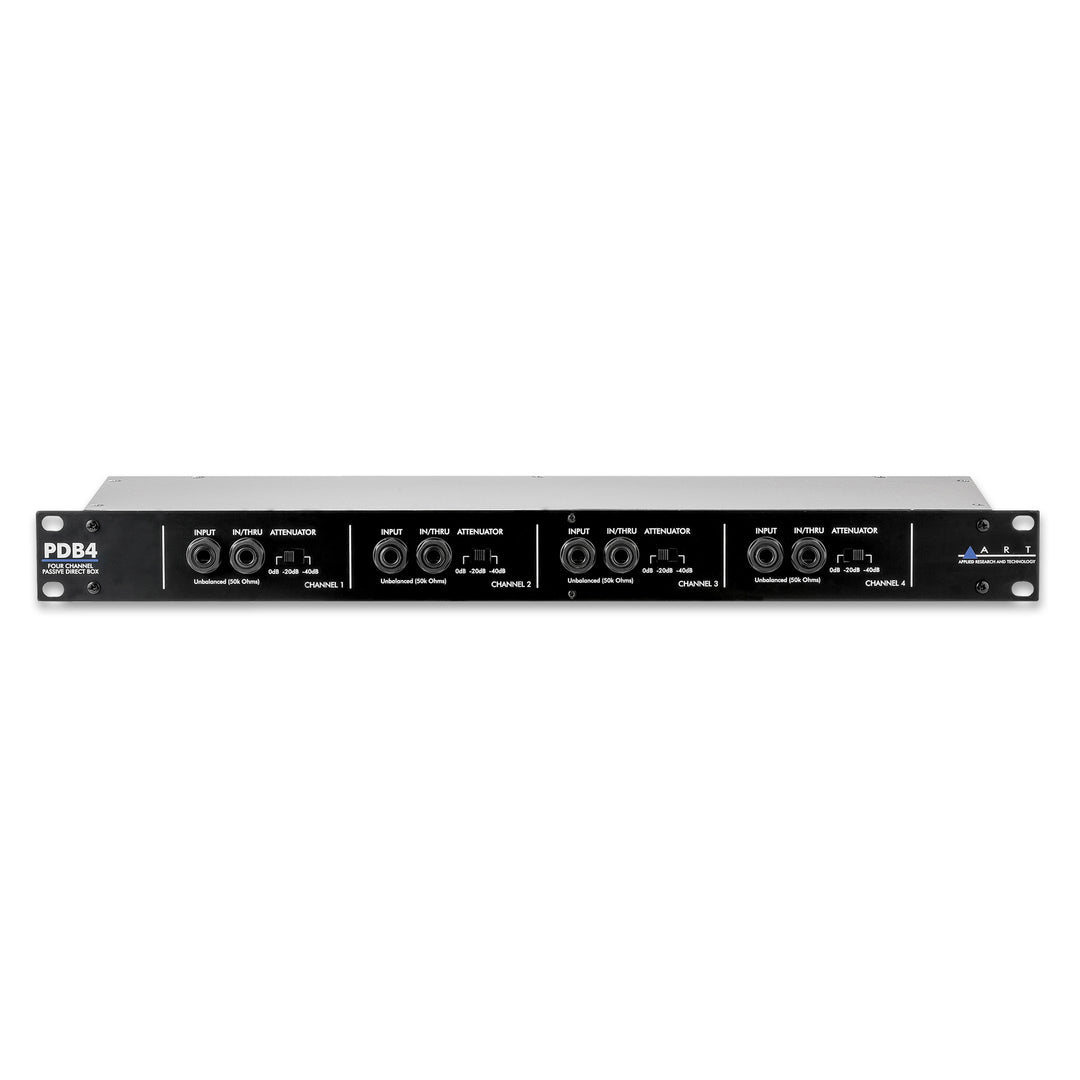

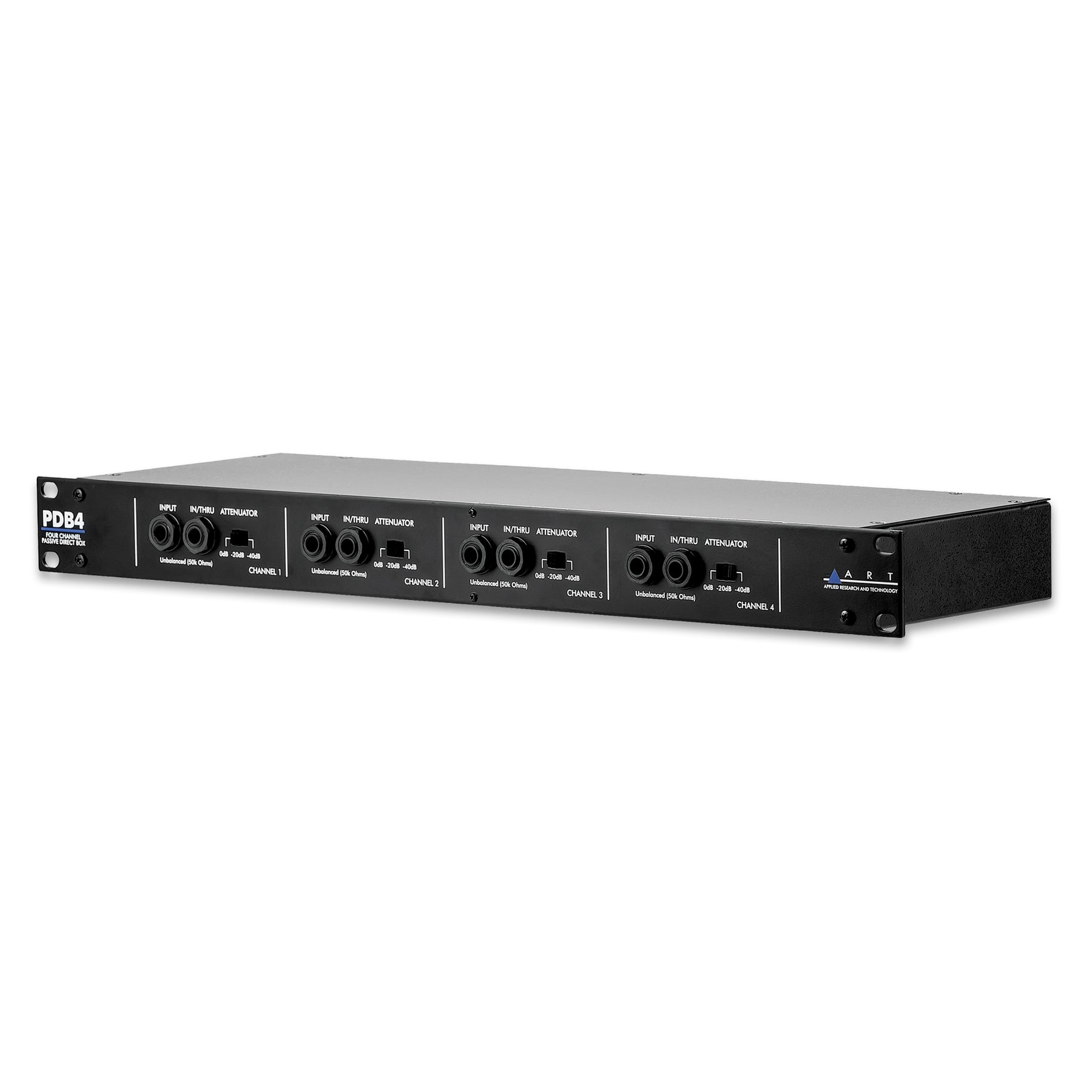

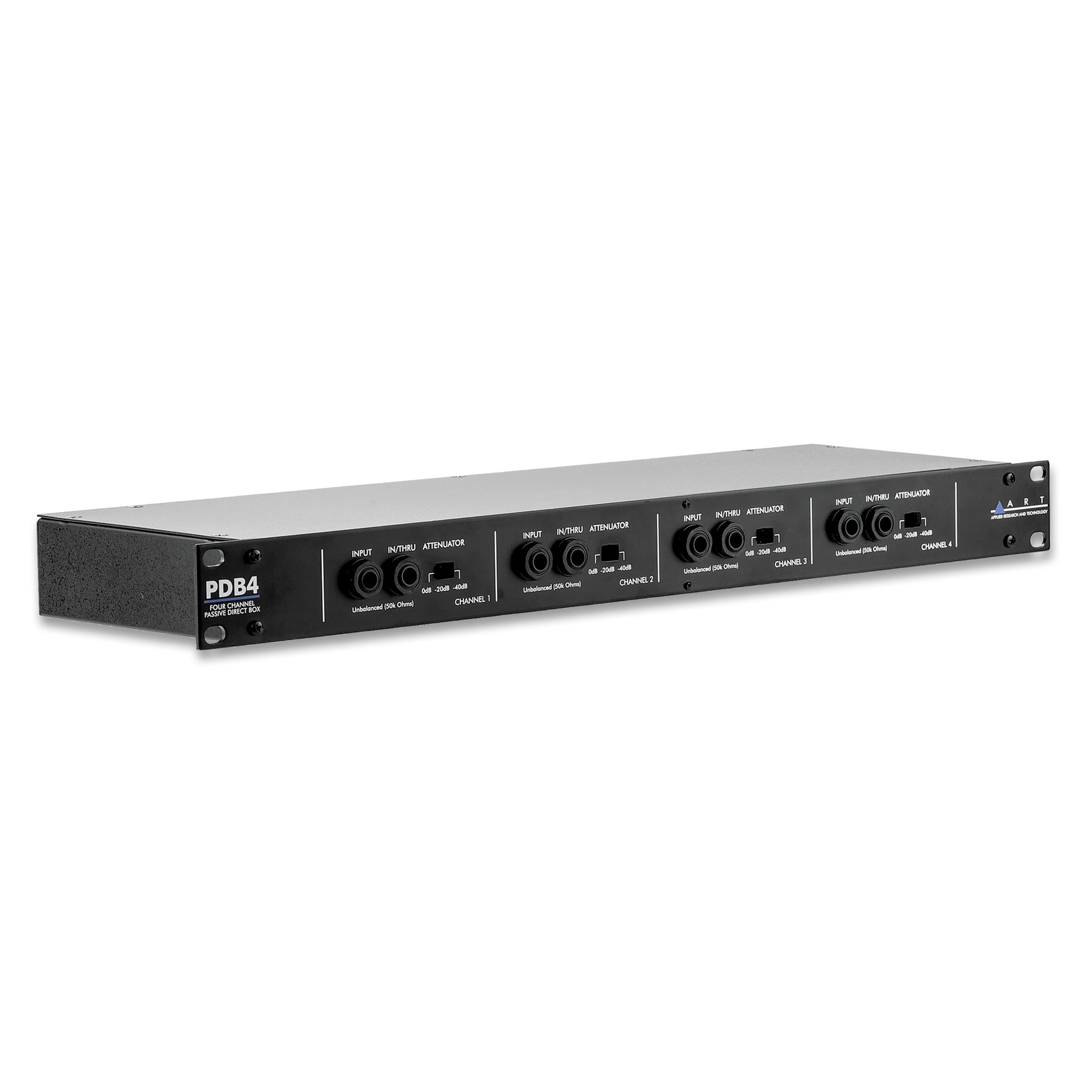

The PDB4 is a four-channel passive DI in a 1U rackmount format. It is ideal for connecting multiple unbalanced instrument, line, or speaker signals to balanced inputs.

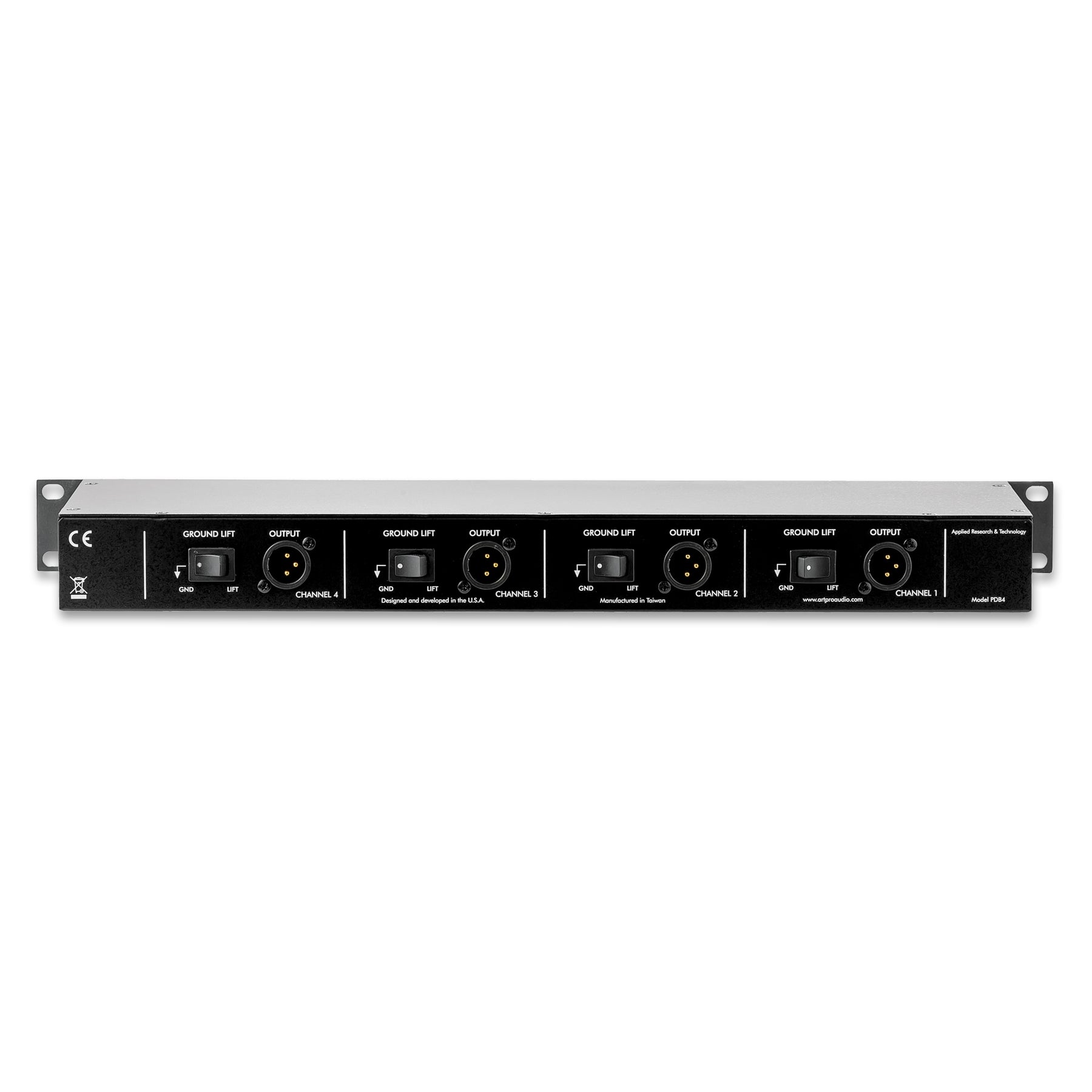

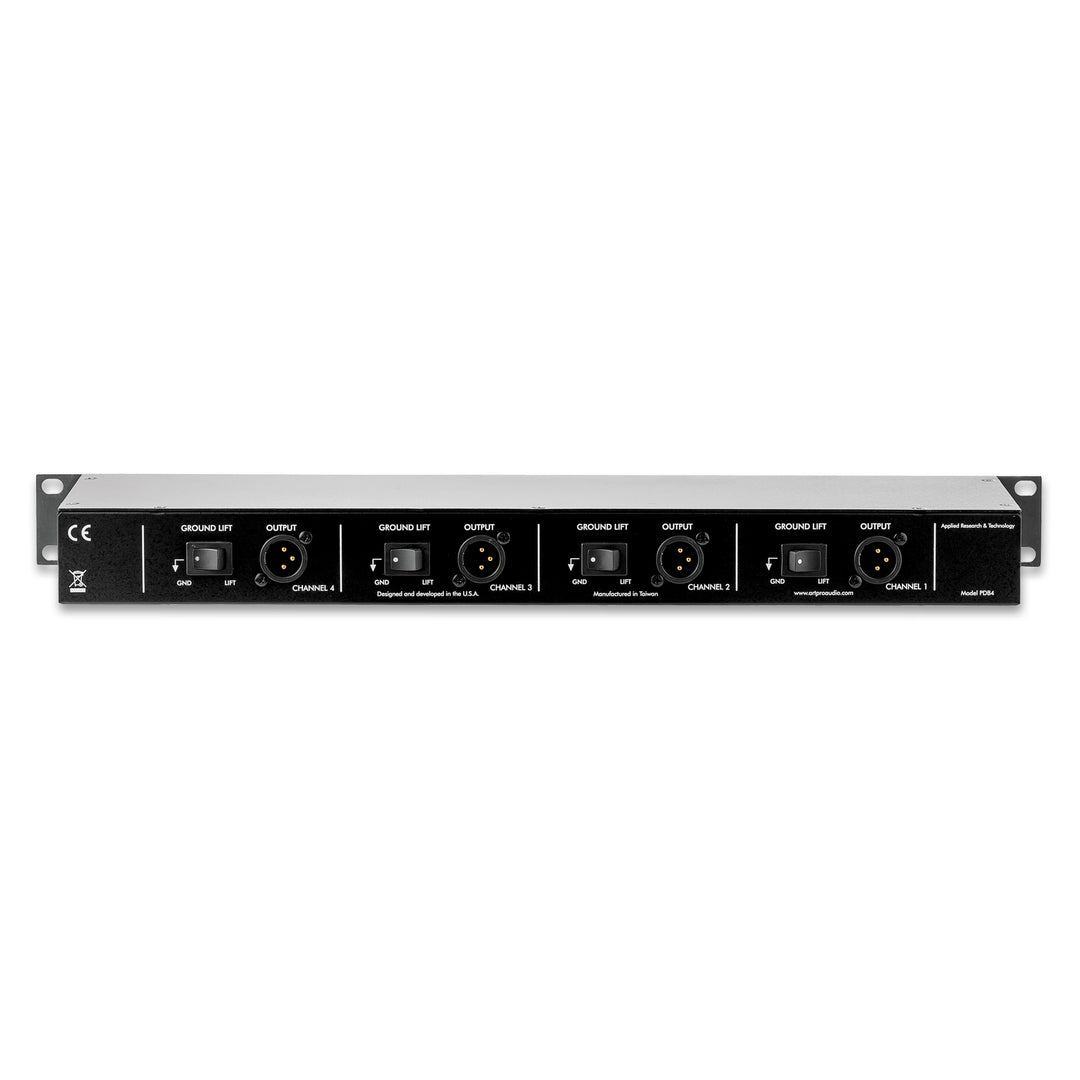

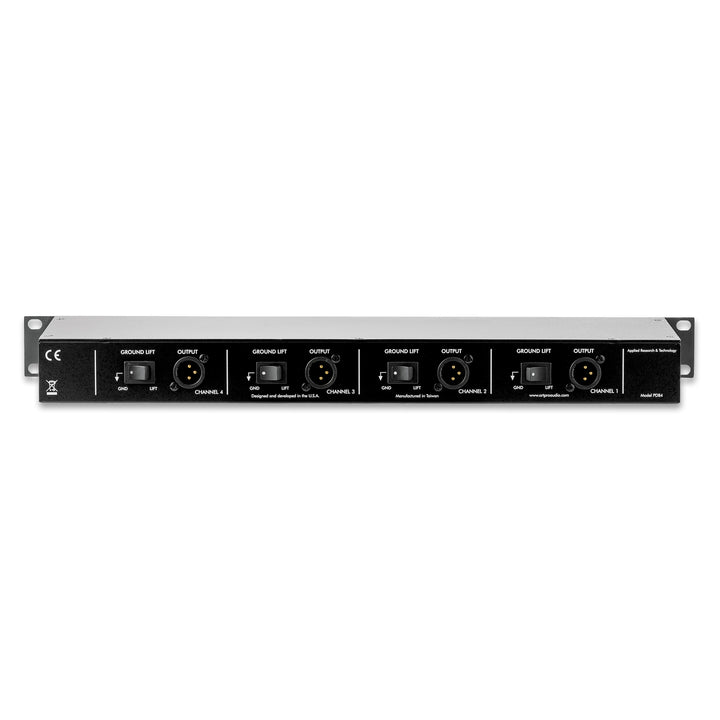

Each input signal is sent to a balanced, transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.
All channels feature a switchable ground lift to help eliminate hum, and switchable attenuation with up to 40 dB of gain reduction to handle high signal levels.
As a fully passive design, the PDB4 doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.
Features:
- 4 Independent Channels
- 1/4" TRS Inputs and Thru Connectors
- Transformer-Isolated Balanced XLR Outputs
- Switchable Ground Lift per Channel
- Switchable Attenuation (0 dB, -20 dB, -40 dB) per Channel
- Passive Design - No Power Required
- 1U Rackmount Enclosure
Specifications:
Inputs: 4x 1/4" TRS
Outputs:
- 4x XLR
- 4x 1/4" TRS Thru
Input Impedance: 50 kΩ
Output Impedance: 600Ω
Controls:
- Attenuator (0 dB, -20 dB, -40 dB)
- Ground Lift (All per Channel)
Frequency Response: 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
Power Requirements: N/A
Dimensions (HxWxD): 1.75 x 19 x 6
4.4 cm x 48.3 cm x 15.2 cm
Weight: 6.5 lbs / 2.95 kg
