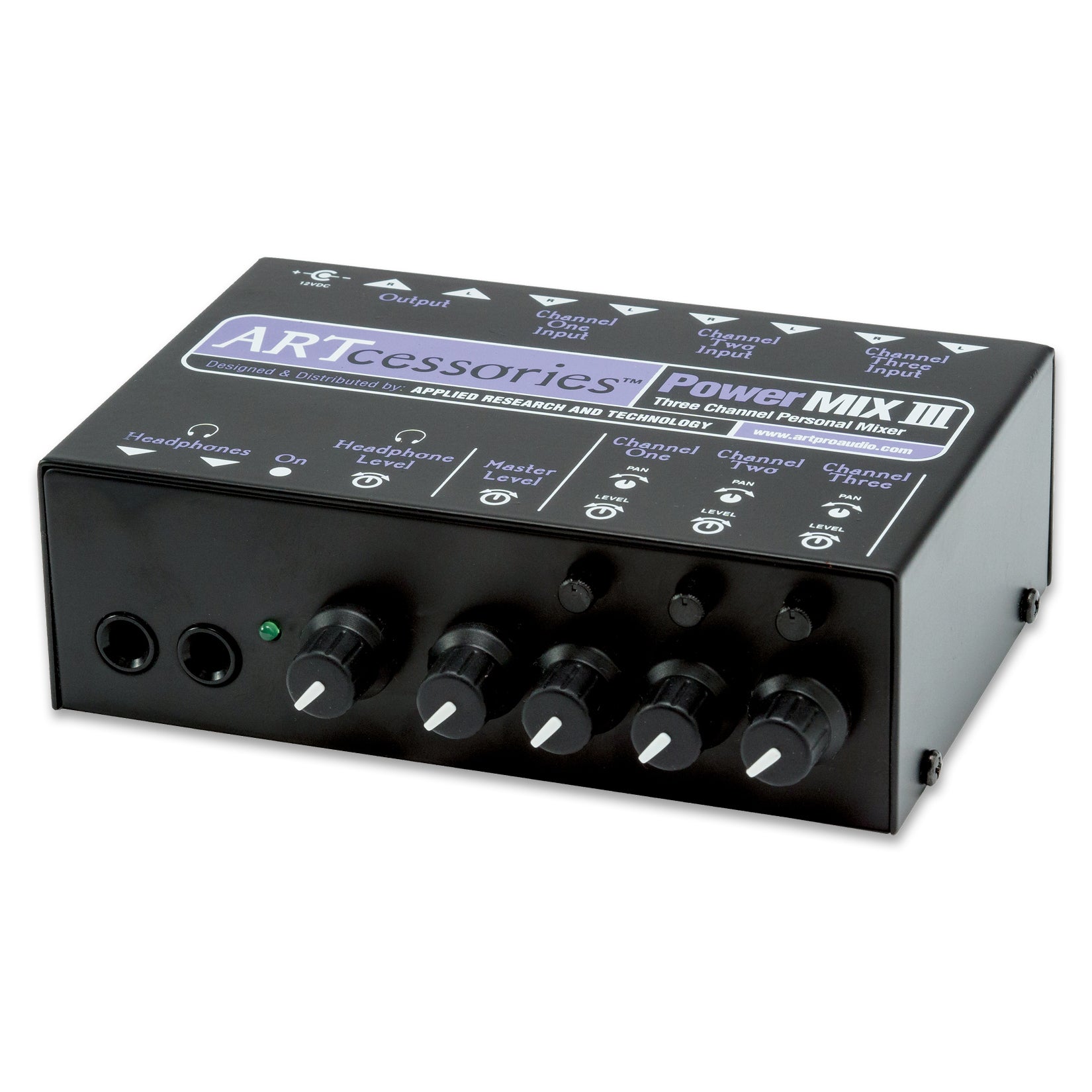

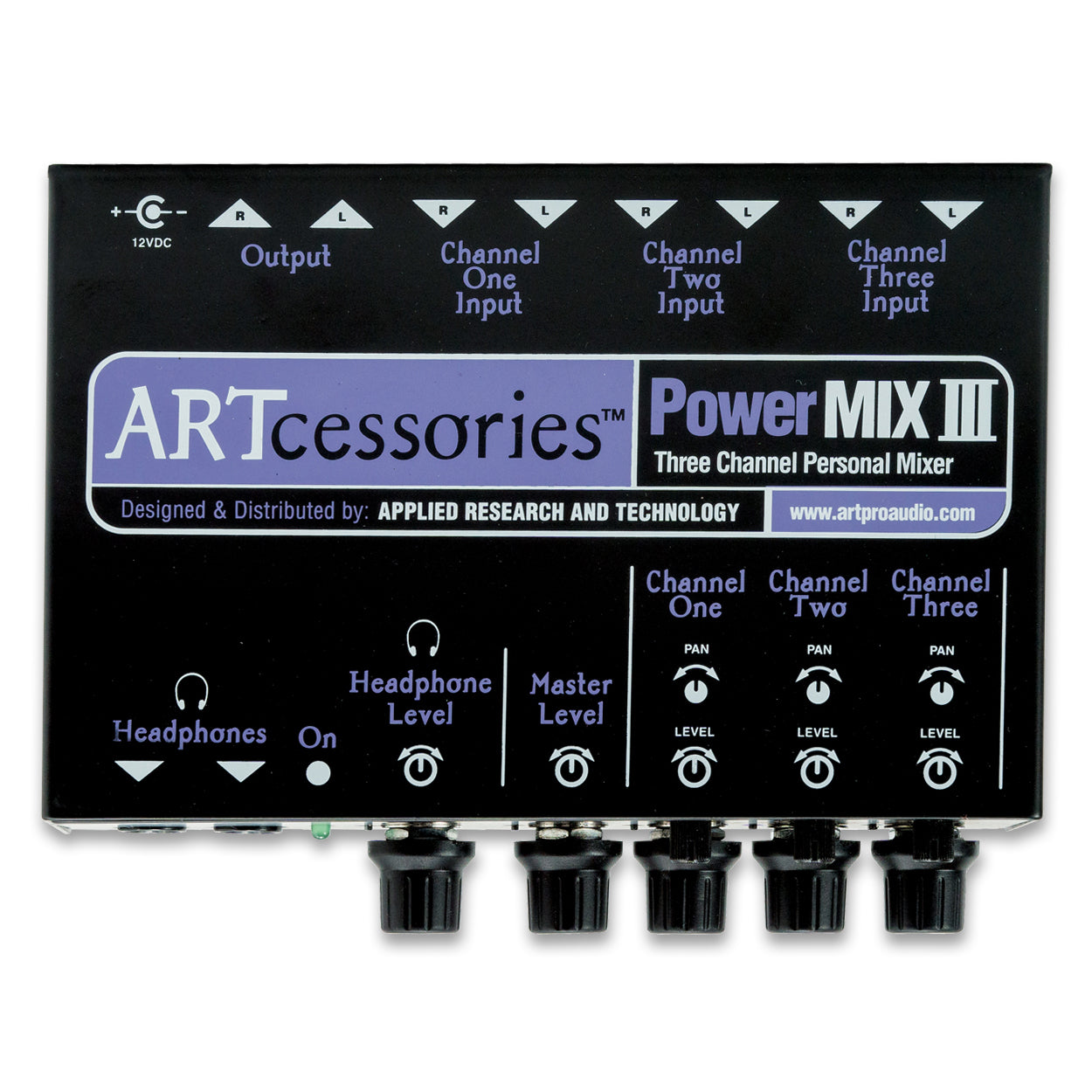

ART PowerMIX III 3-Channel Personal Stereo Mixer

The PowerMix III is a three-channel line mixer.

Each channel has dual 1/4” inputs that can accept mono or stereo sources, and controls for level and panning. There’s a master level control for the main outputs, and a shared level control for the two headphone jacks.

It’s a compact mixing and submixing solution for synths, sound modules, media players, and other line sources.

Features:

• Three input channels each with their own pan and level controls

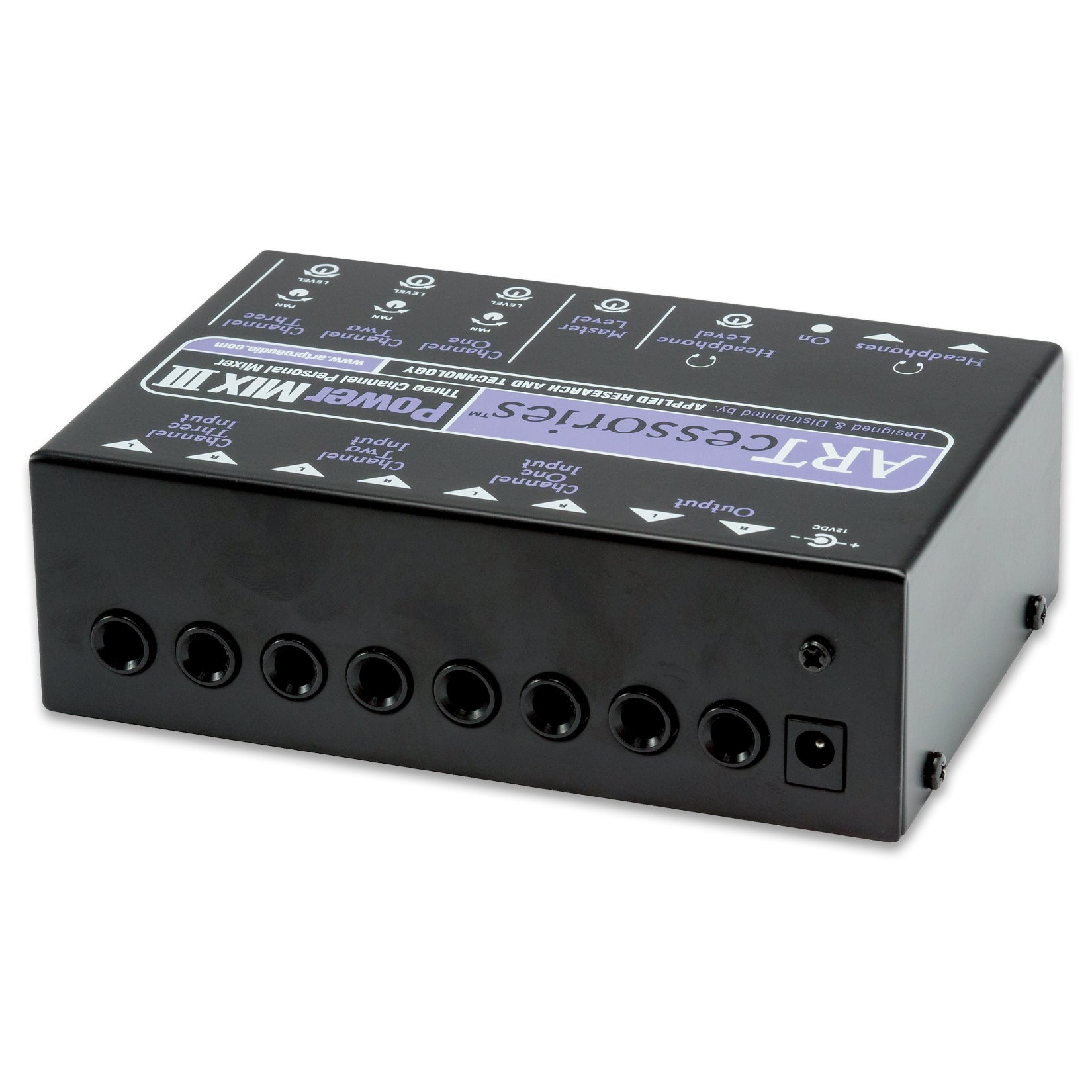

• Three sets of 1/4” left and right unbalanced inputs
• The Right inputs may be used for mono signals
• A Master Level control regulates all 3 channels
• Left and Right unbalanced 1/4” Outputs
• The Headphone channel features dual, stereo 1/4” outputs so that two headsets can be connected at once
• The Headphone Level control regulates both outputs

Specifications:

Inputs: 1/4"

Outputs: 1/4"

Input Impedance: 10K Ω

Output Impedance: 100 Ω

Maximum Input Level: +30 dB

Maximum Output Level: +13 dB

Maximum Gain: +27 dB

Total Harmonic Distortion: <0.005%

Power Requirements: 12 V DC

Dimensions (HWD): 5.75" × 4.4" × 1.75" (14.6 cm x 11.2 cm x 4.4 cm)

Weight: 2 lbs (0.9 kg)
