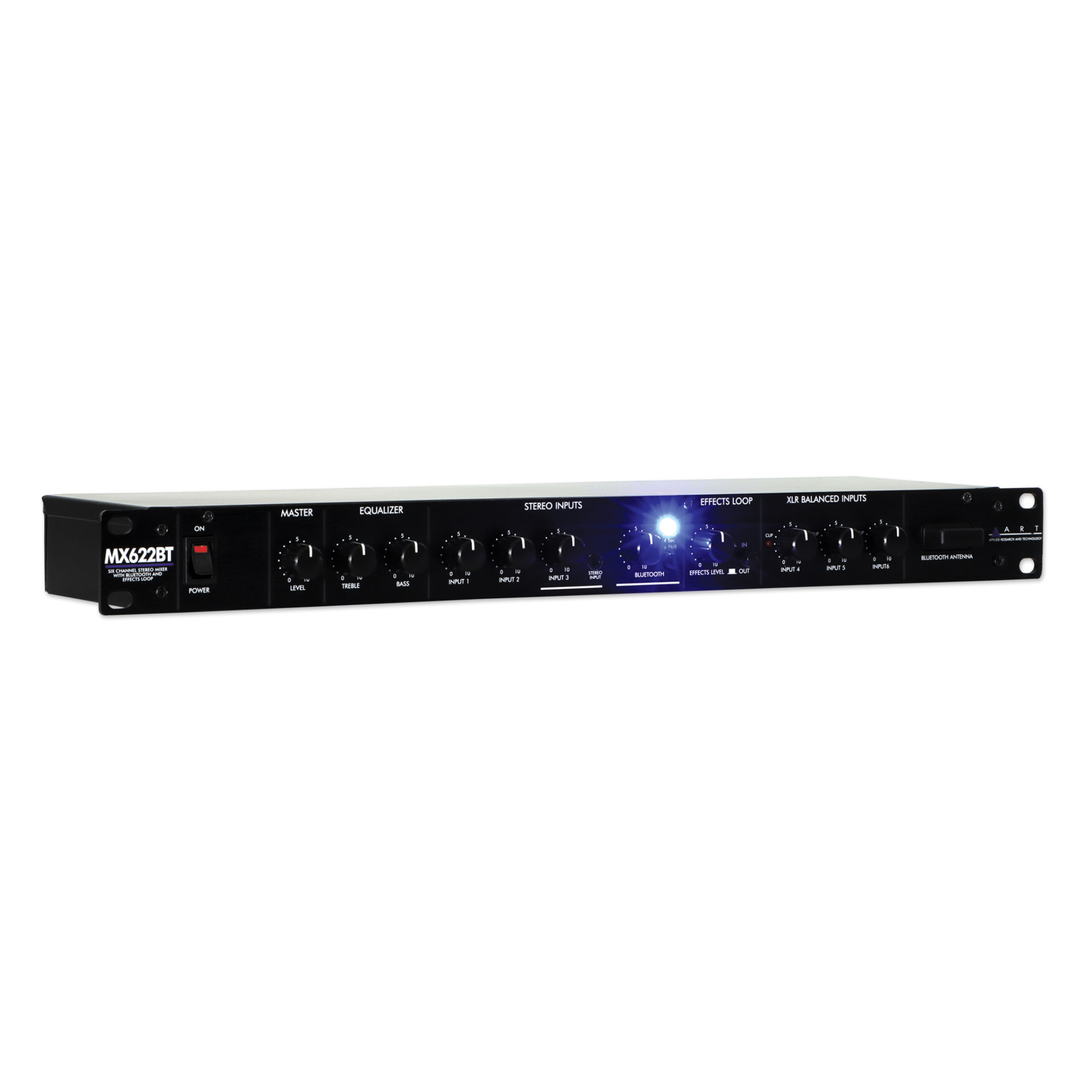

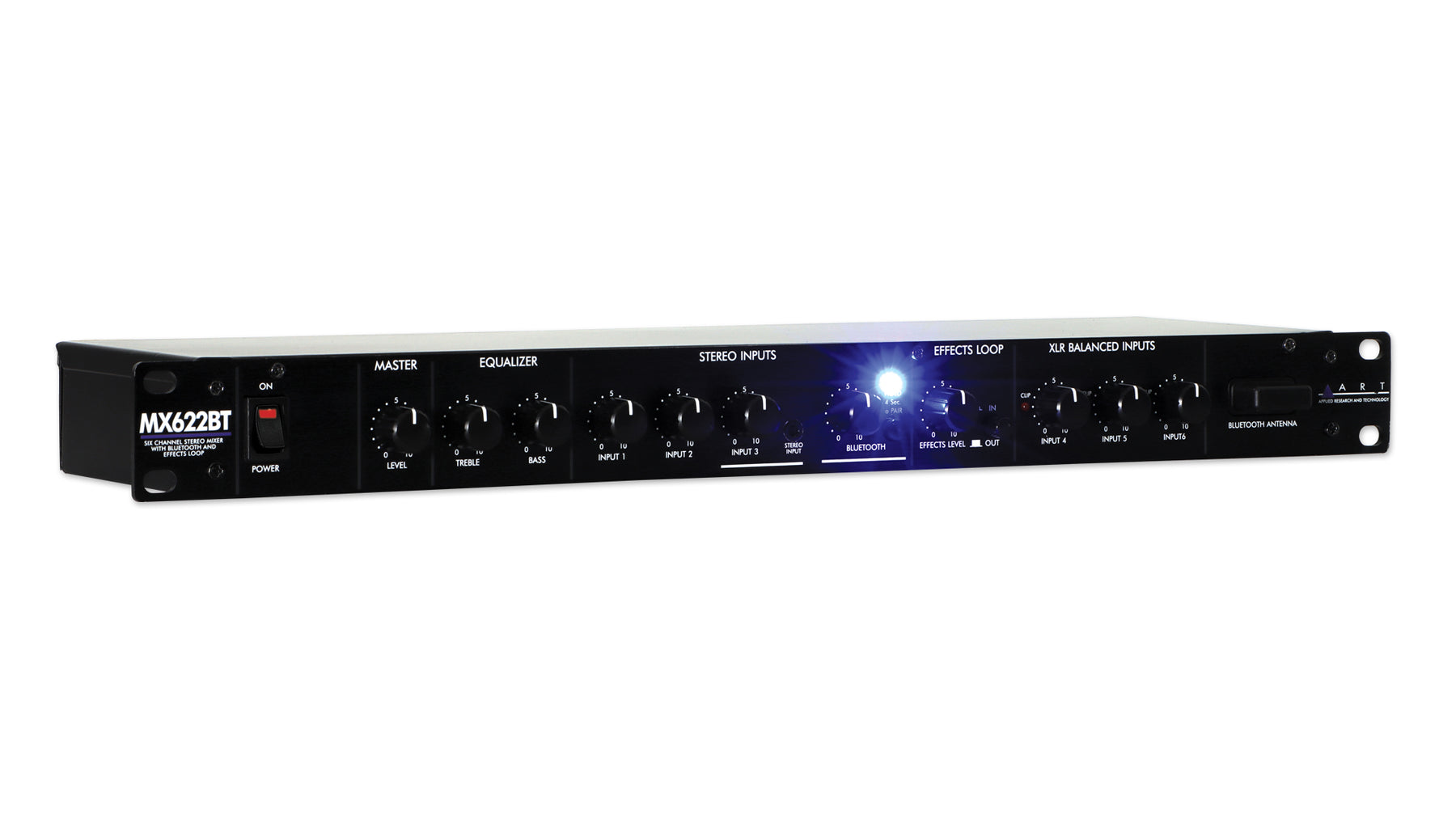

ART 6 IN 2 OUT BLUETOOTH MIXER

The MX622BT is a versatile mixer that combines three balanced mic/line-level inputs with three stereo line inputs into a single stereo line-level mix. Key features include Bluetooth connectivity, an external effects loop (mono send with stereo return), independent stereo recording outputs, 1/4" TRS stereo balanced outputs, and a two-band master EQ. Internal power supply and a single-unit 19-inch rack-mount design allow for easy installation and operation.

Features

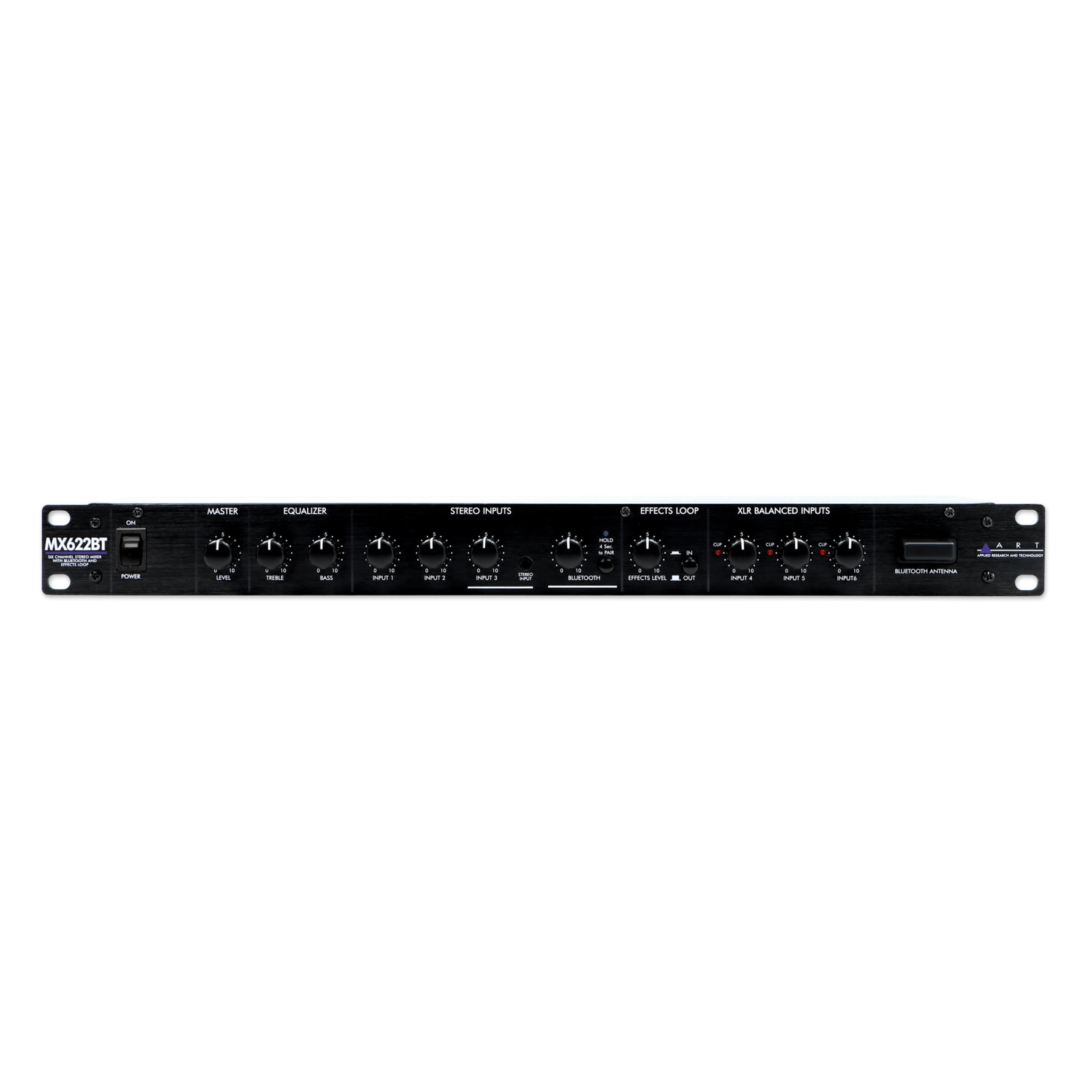

• Three switchable balanced XLR mic/line level inputs
• Three stereo RCA inputs with separate volume controls
• Bluetooth functionality
• Volume control and clipping indicators
• Selectable 15-volt phantom power for microphone channels
• Balanced 1/4" TRS main output jacks with master level control
• Versatile two-band master EQ
• Separate stereo recording outputs
• Effects loop with independent level control

Specifications

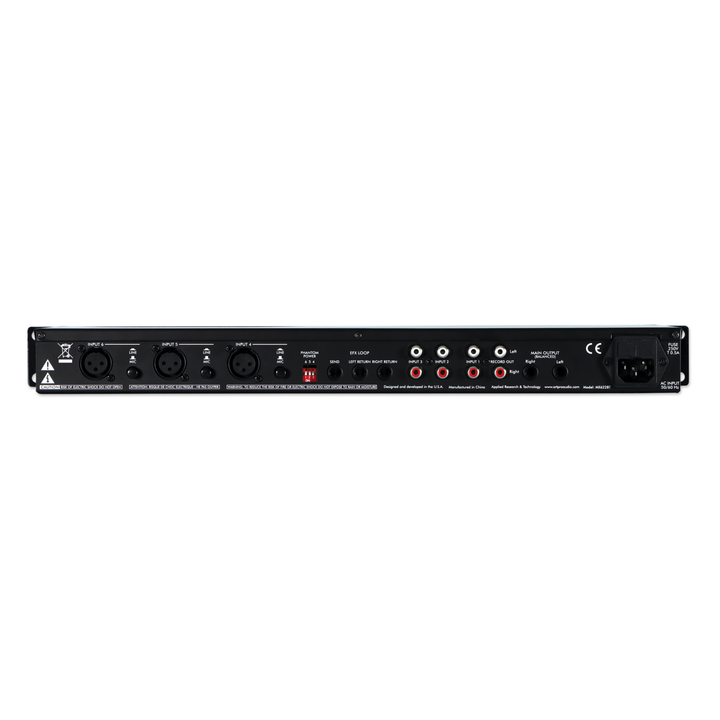

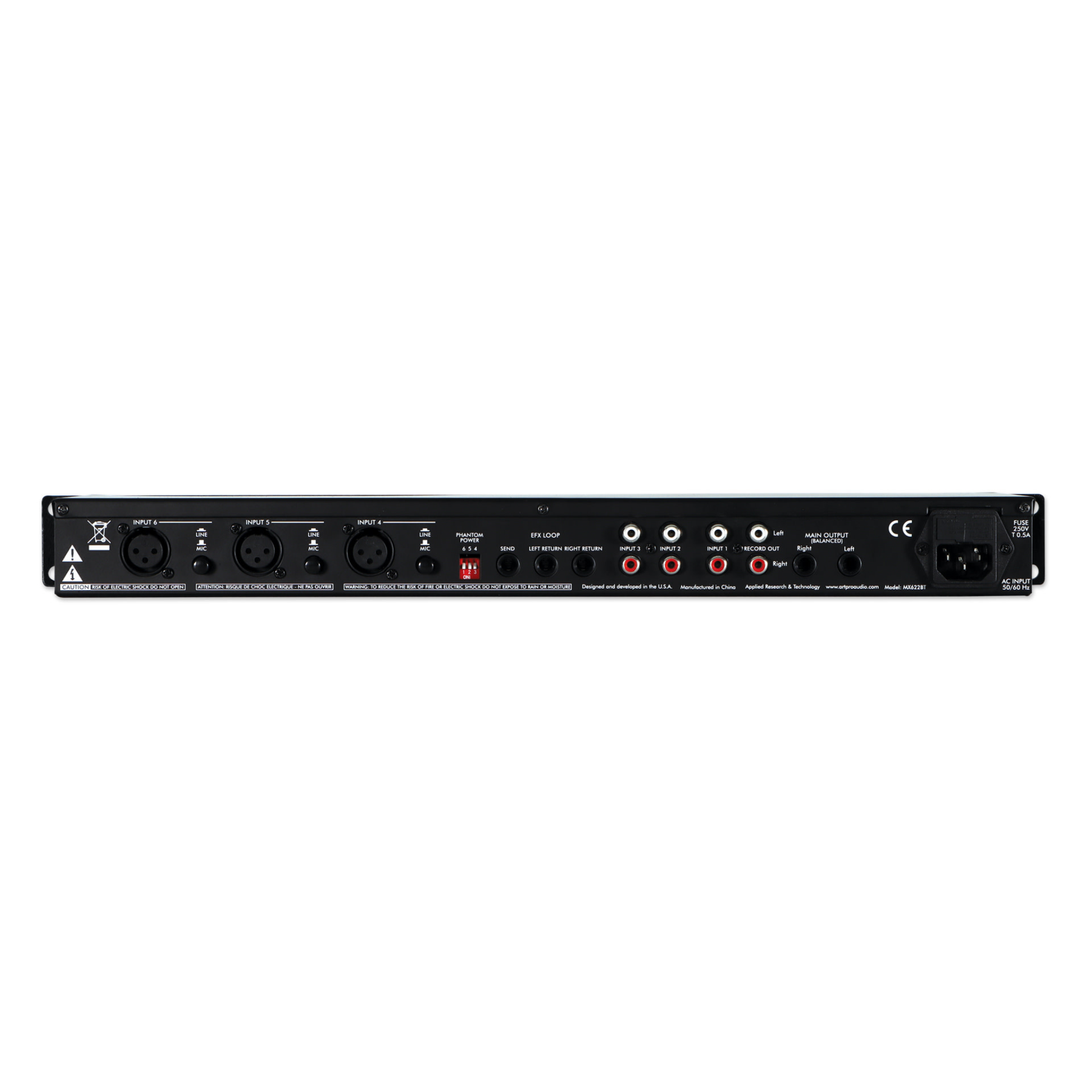

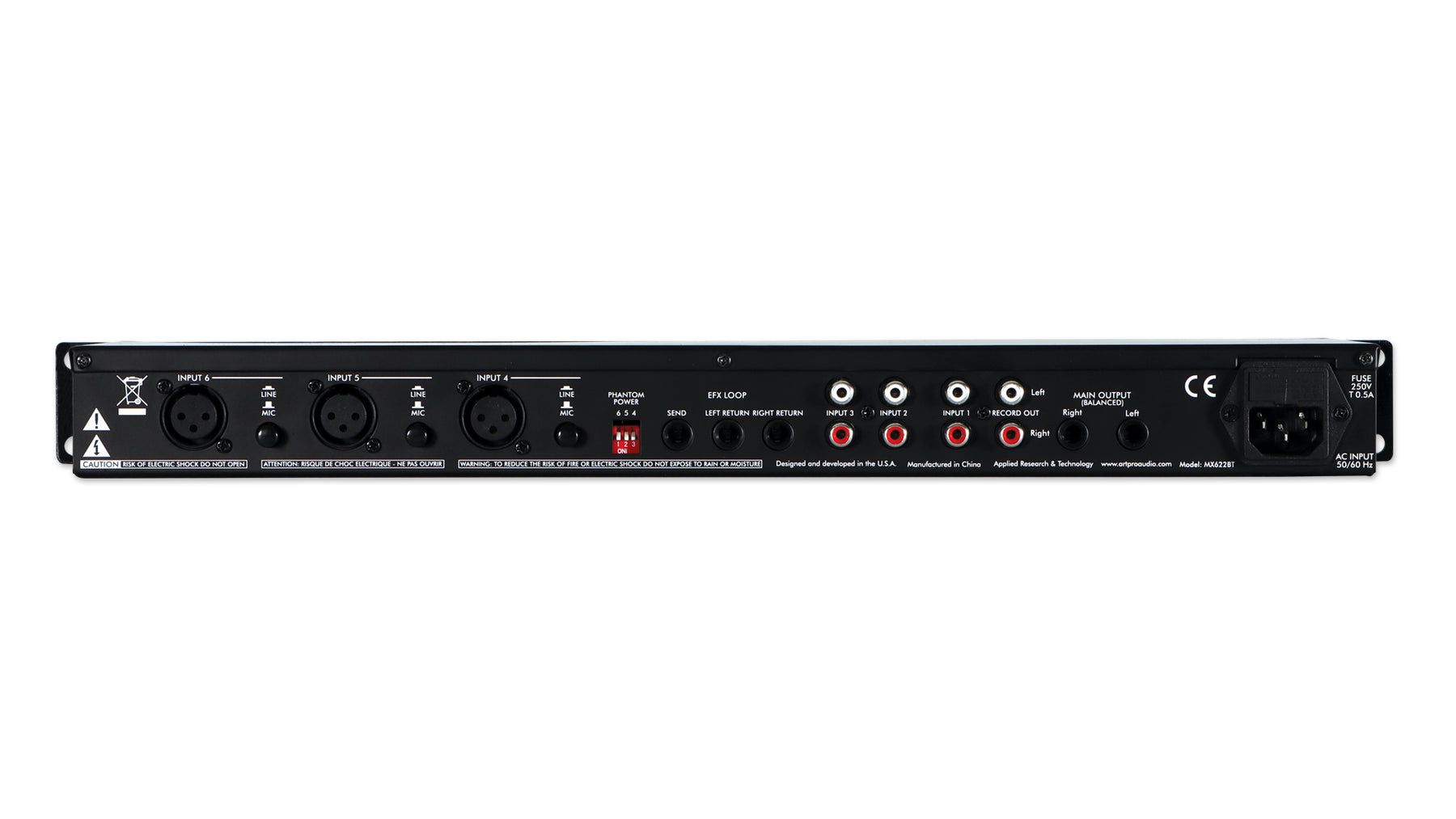

Input connectors: Balanced XLR-F (x3), Unbalanced 1/4" (x2), 3 pairs of stereo RCA (6 total)

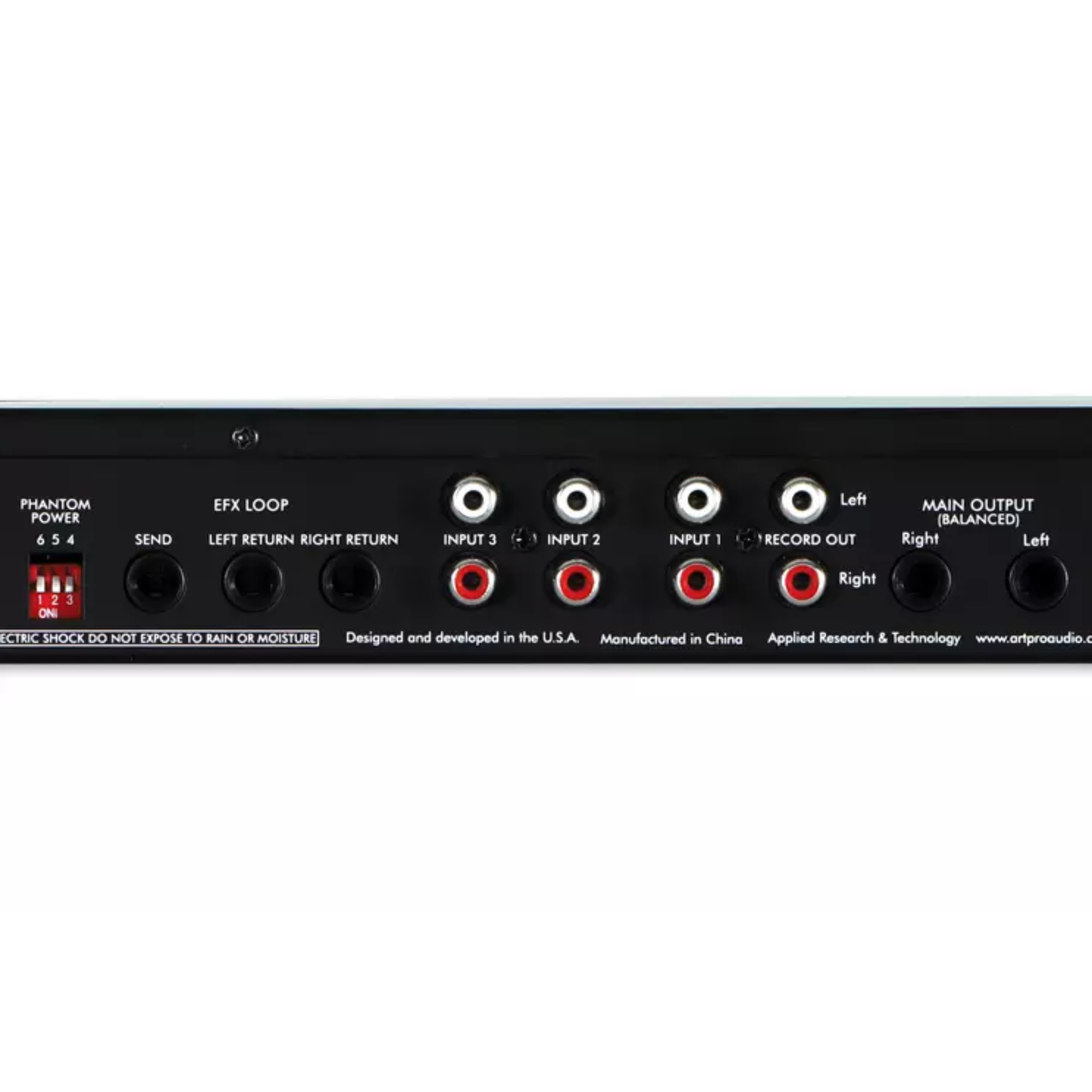

Outputs: Balanced 1/4" TRS (x2), Unbalanced 1/4" (x1), RCA (x2)
Input impedance: 600 ohms to 22 kilohms (XLR mic or line); 10 kilohms (RCA), 22 kilohms (1/4" effects returns)
Output impedance: 50 ohms (1/4" main), 1 kilohm (RCA recording), 100 ohms (effects)
Nominal input level: -10 dBu to +20 dBu (XLR mic/line), +20 dBu (RCA line), +20 dBu (effects)
Maximum output level: +24 dBu (balanced main), +20 dBu (RCA recording), +20 dBu (effects)
Phantom power: +15 volts DC (regulated, low noise)
Maximum volume: 56 dB or 26 dB (mic or line inputs), 26 dB (RCA)
Signal-to-noise ratio: > 90 dB typical
Total harmonic distortion: 0.01% typical
Equalizer range: +/-12 dB at 100 Hz and 10 kHz
Power supply: USA 105 to 125 VAC (50-60 Hz, 15 watts typical)
Dimensions (H x W x D): 44.5 mm x 483 mm x 152 mm (1.75 x 19 x 6 in)
Weight: 2.8 kg (6.2 lb)
