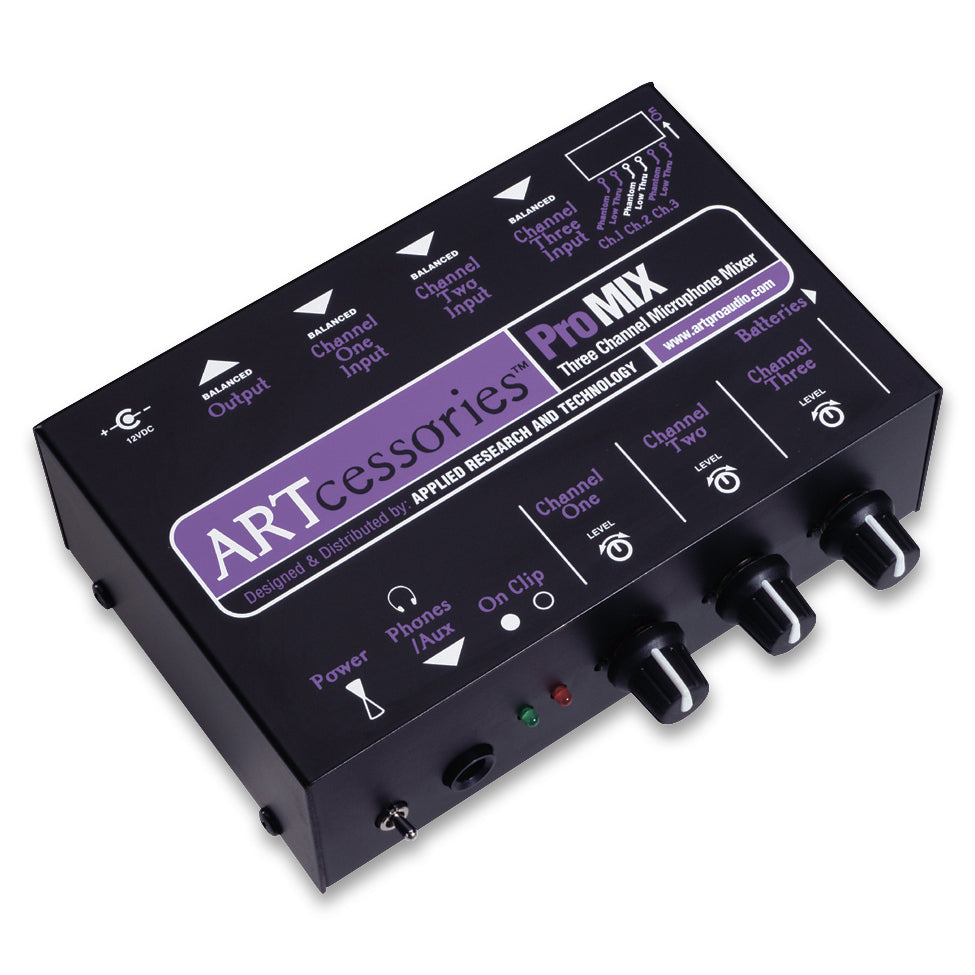

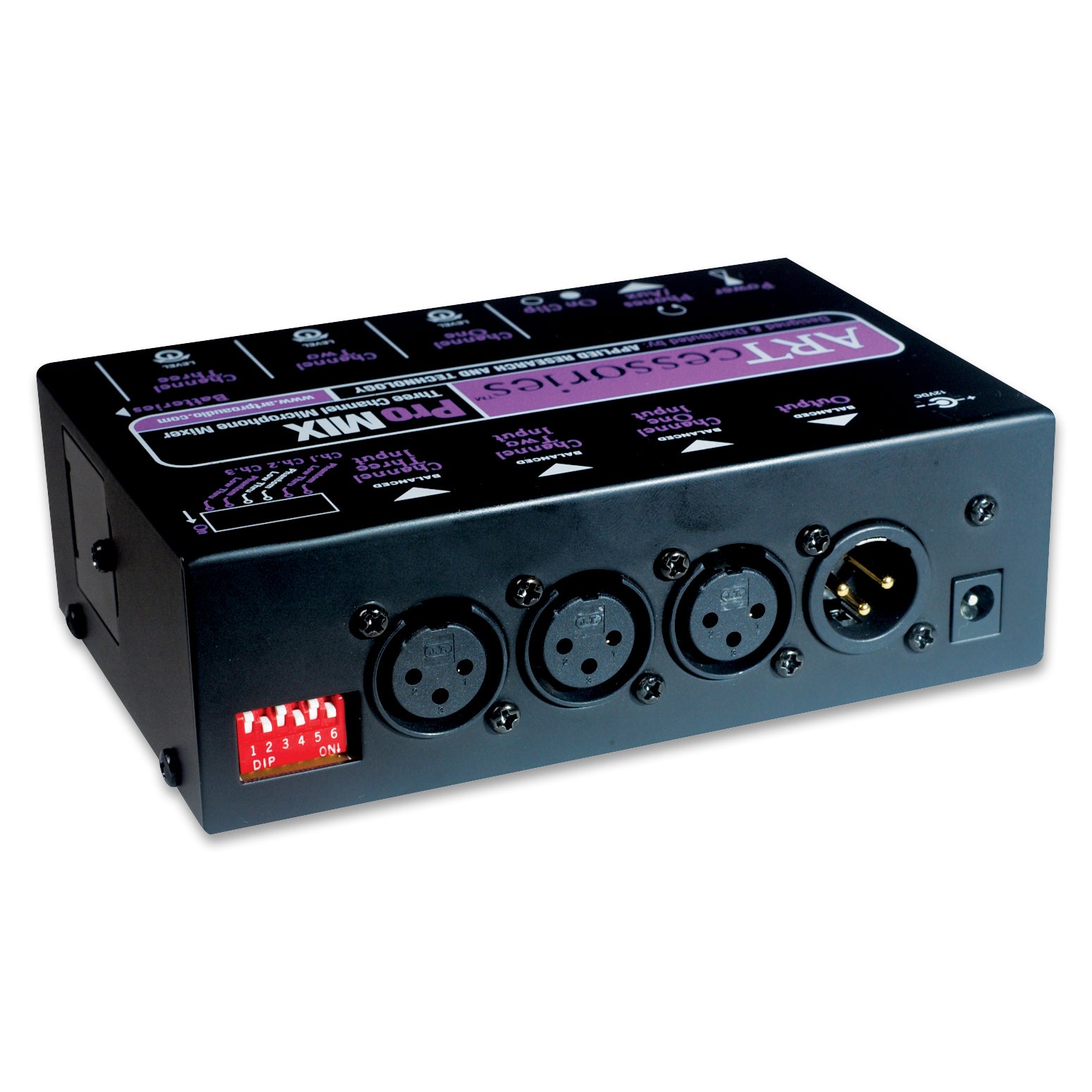

ART - 3 CH MINI MIXER

The ProMix is a three-channel microphone mixer designed for connecting multiple mics to a larger mixer that only has a single input available.

Each channel has an independent level control and switches to activate phantom power and a high-pass filter. The mixed signal is sent to a 1/4” headphone / auxiliary output and a balanced XLR line output.

For additional flexibility, it can be powered by the included adapter or two 9-volt batteries for mobile applications.

The ProMix is a compact, convenient solution that can be used on its own in smaller setups, or to extend the connectivity of a larger system.

Features:

• 3x low-impedance XLR mic channels
• 3x level controls
• 3x phantom power on/off DIP switches
• 3x low-frequency cut on/off DIP switches
• A low-impedance balanced XLR line output
• Mono 1/4” Phones/Aux. output
• Clip LED (fires 3 dB below the onset of clipping)
• On/off Power switch,with LED
• Power:12 V DC (Adapter included)
• Output Phantom Power:12V (Using the 12V DC supply)
• Optional 2 x 9V Battery Power (Yields 18V Phantom Power)
• Low Cut:-3dB @ 100Hz

Specifications:

Input Impedance: 600 Ω

Output Impedance: 600 Ω

Maximum Input Level: -14 dB

Maximum Output Level: +14 dB

Maximum Gain: +60 dB

Total Harmonic Distortion: 0.0002

Phantom Power: 12V DC

Power Requirements: 12 V DC (adapter) / 2x 9V (batteries)

Dimensions (HxWxD): 5.63" x 3.75" x 1.75" (14.3 cm x 9.2 cm x 4.5 cm)

Weight: 1.5lb / 6.8 kg
