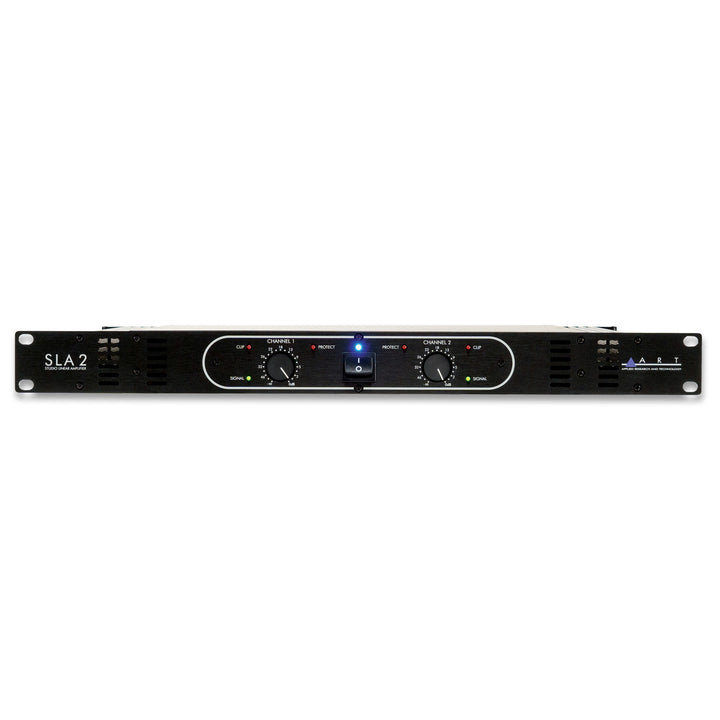

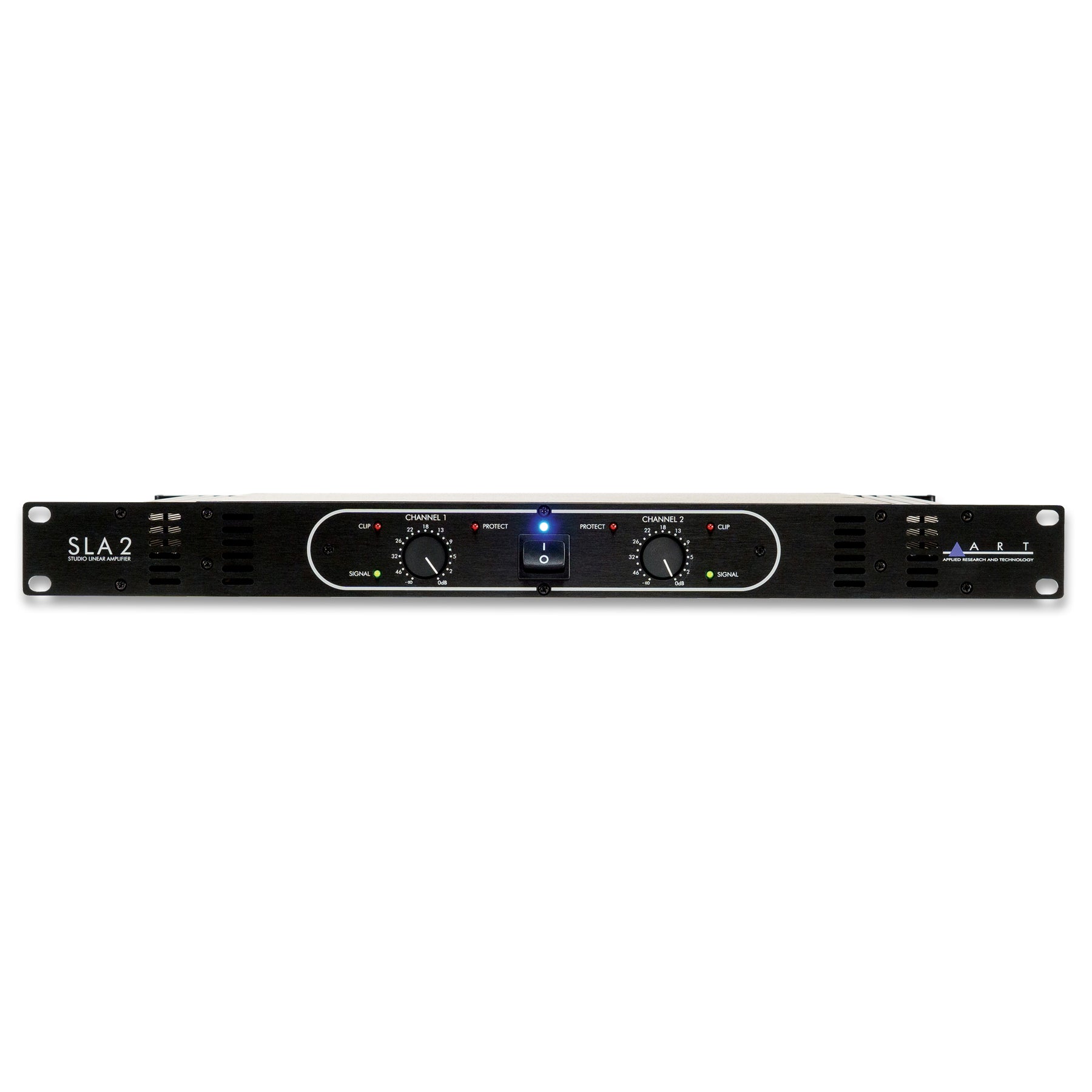

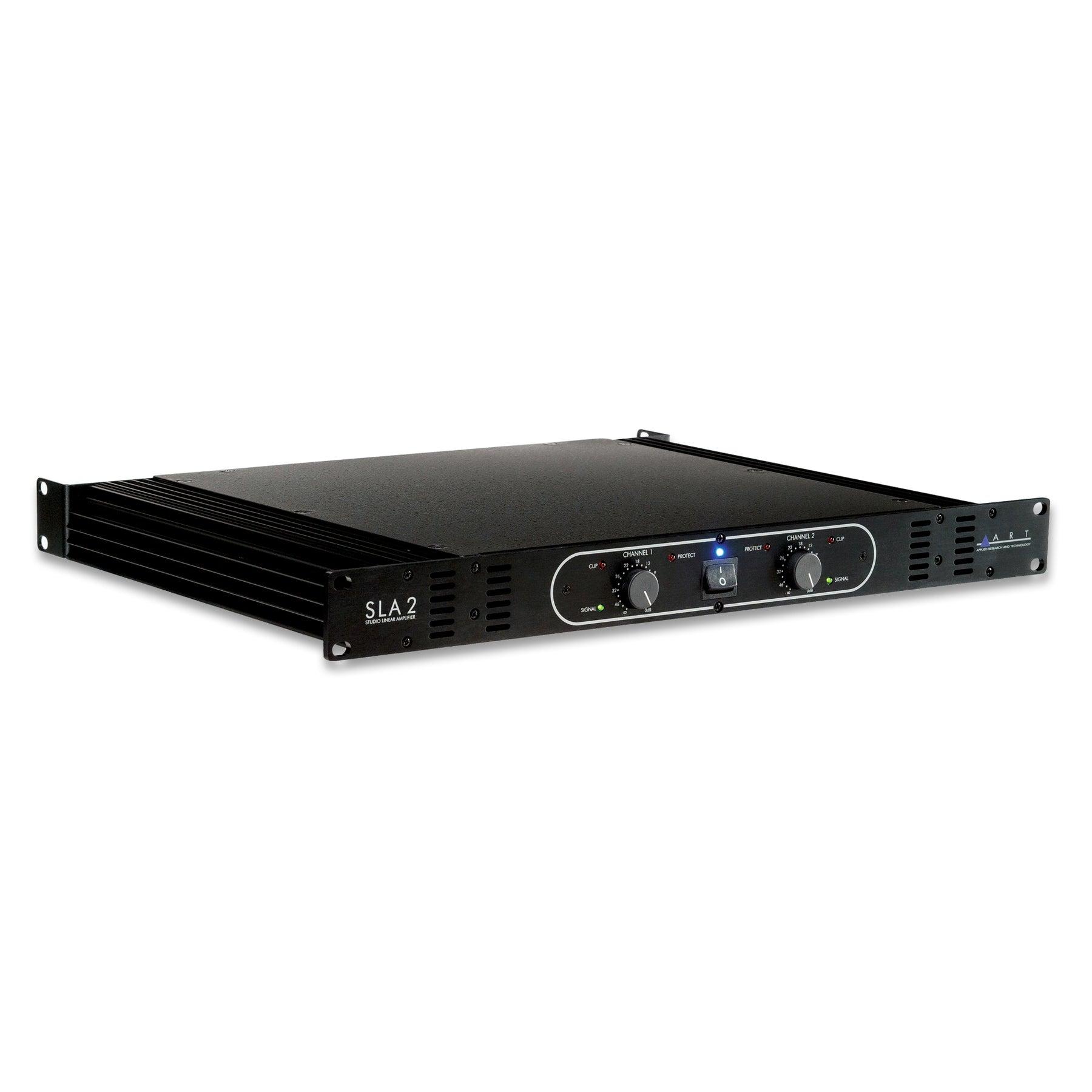

ART 2X200W POWER AMP 8 OHM/1U

The SLA2 is the most powerful amplifier from ART: a two-channel linear power amp designed for passive studio monitors, with the versatility and volume for live and commercial applications.

It delivers 200 watts per channel at 8 ohms and 280 watts per channel at 4 ohms. It can also be bridged for up to 560 watts into a single 8 ohm load. The SLA2 offers a wide frequency response of 10 Hz - 40 kHz (+/- 0.5 dB) with ultra-low noise and distortion to deliver the full fidelity of your source material.

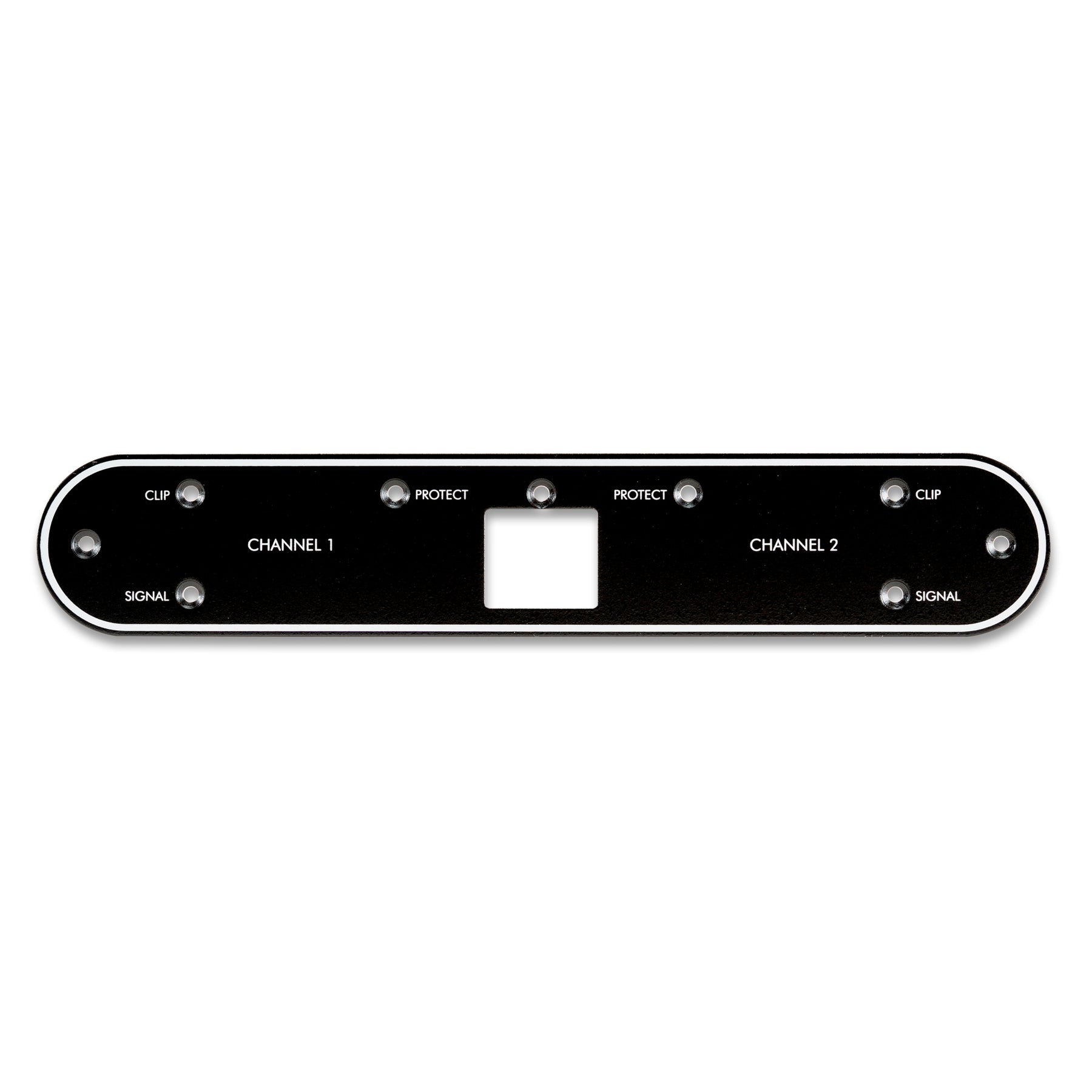

Each channel has an independent volume control and status LEDs to indicate signal activity, clipping, and thermal protection. The rear panel has balanced XLR and 1/4 TRS inputs, Euroblock inputs, and binding post outputs for bare wire, banana plug, or spade connectors.

The SLA2 also incorporates ART's SmartFan system that adjusts the fan speed based on the internal ambient temperature for advanced cooling and quiet operation.

Specifications:

Stereo Output Power:

• 4 Ω: 280 W RMS per channel
• 8 Ω: 200 W RMS per channel

Input/Output Connections:

• XLR, Euroblock (bal)
• 1/4″ TRS (bal/unbal)

Frequency Response (Hz CM +/- 1dB): 10 Hz to 40 kHz, +/- .5dB

Hum and Noise (un / Aweighted -dB): > 100 dB below clipping

THD -1kHz- 4 OHMS: > 0.05% (typical)

Input Impedance - Bal/Unbal (Ohms): 44k Ω (bal), 22k Ω (unbal)

Input Sensitivity (Vrms) For Full Power Out: 1 V

CMRR AT 60Hz (min/typ): > 60 dB (typical @ 1 kHz)

Stereo / Mono / Bridge (S/M/B):

• Bridged Output Power, 8 Ω: 560 W MONO
• Transformer Type: Toroidal
• Dimensions: 1.75″ x 19″ x 13.5″ (4.45 cm x 48.26 cm x 34.29 cm)
  • 1U Rackmount
• Weight (lbs / kg): 19.8 lbs / 9 kg
