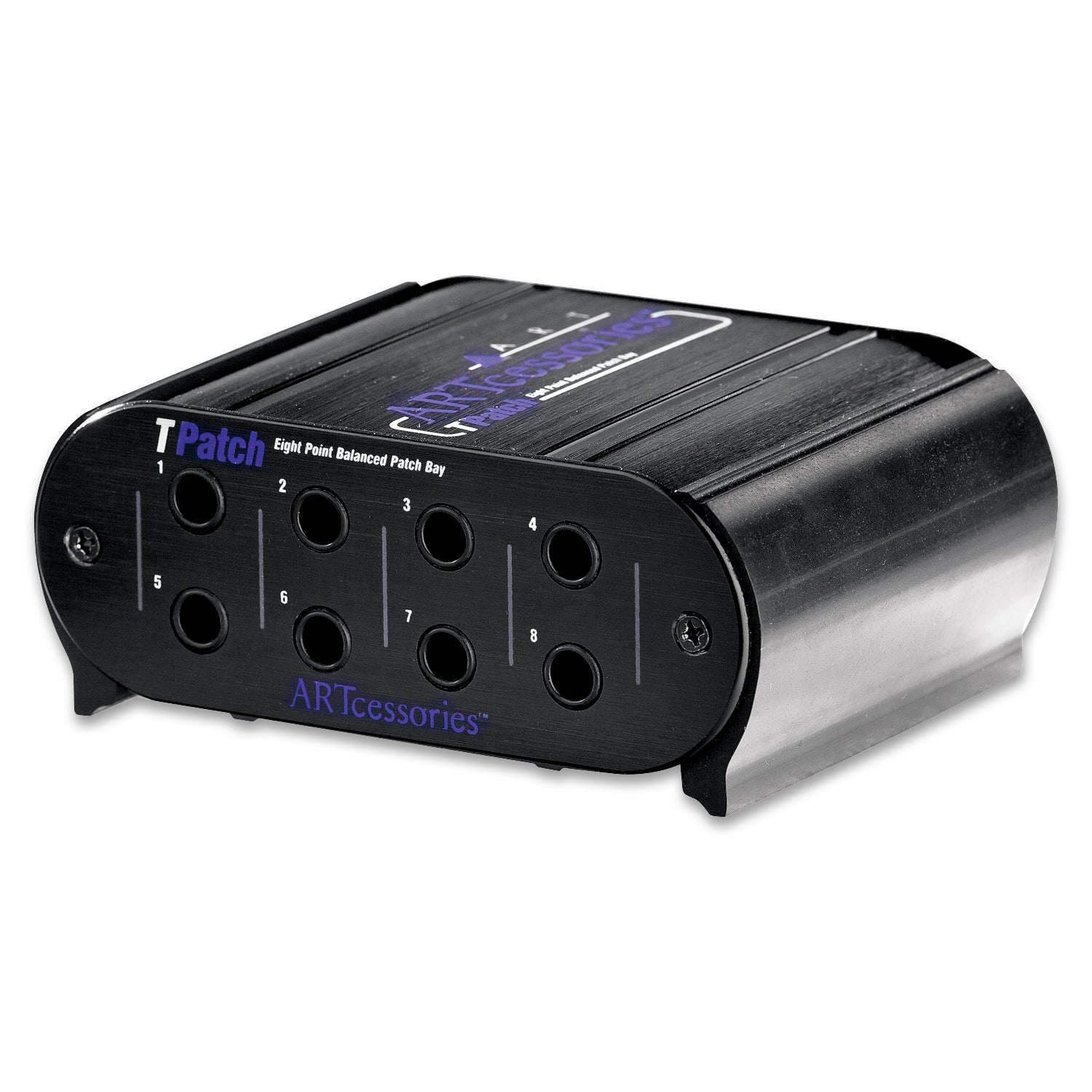

The TPatch is a compact desktop solution to simplify connecting and re-routing signals in your studio or live setup.

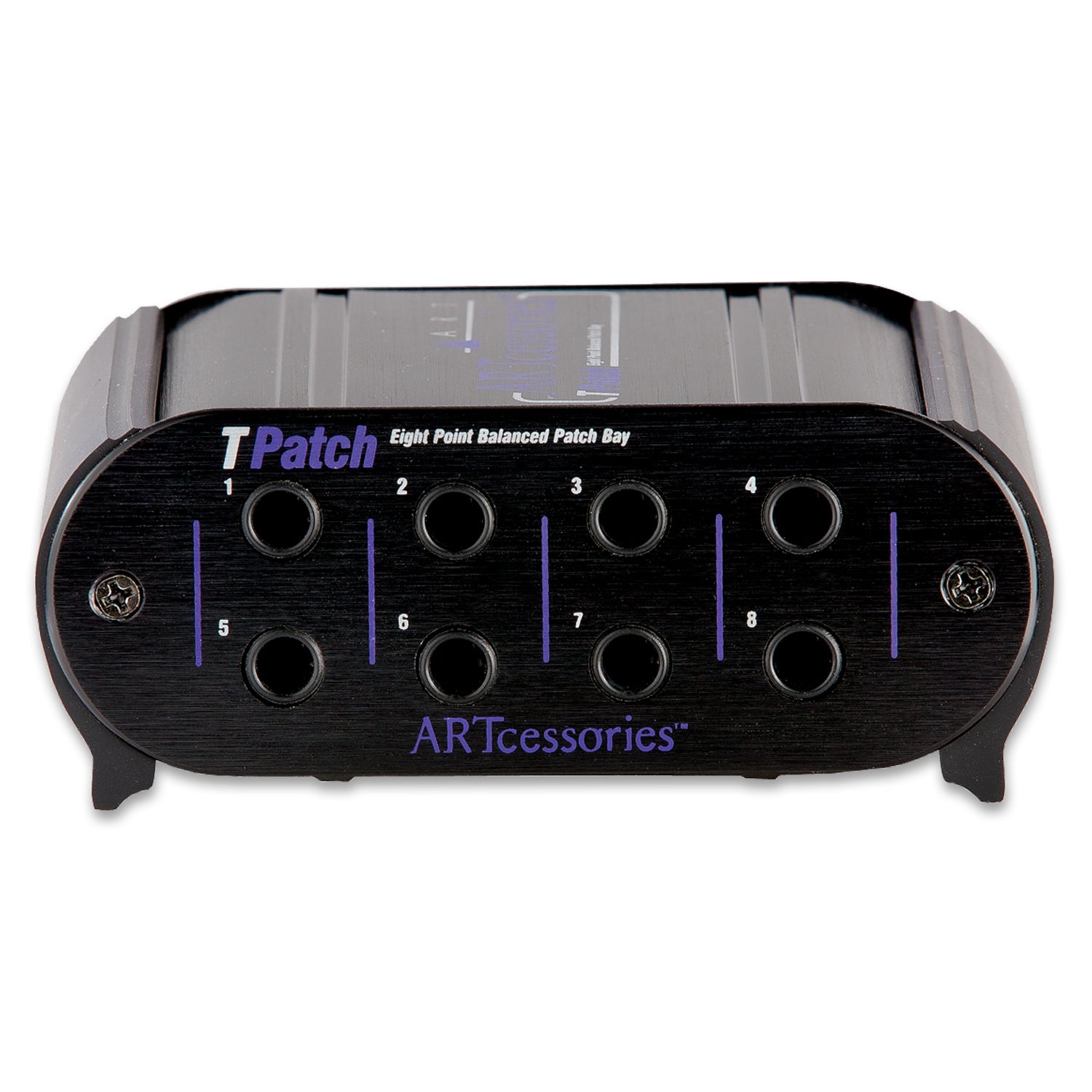

Its an 8-point patchbay, which means there are 4 channels of linked inputs and outputs, all with balanced 1/4" TRS connections.
Each channel can switch between normal and half-normal operation. In normal operation, connecting the front output will break the connection between the rear input and output. In half-normal operation, the rear connection remains unbroken so you can split the signal to a second destination.

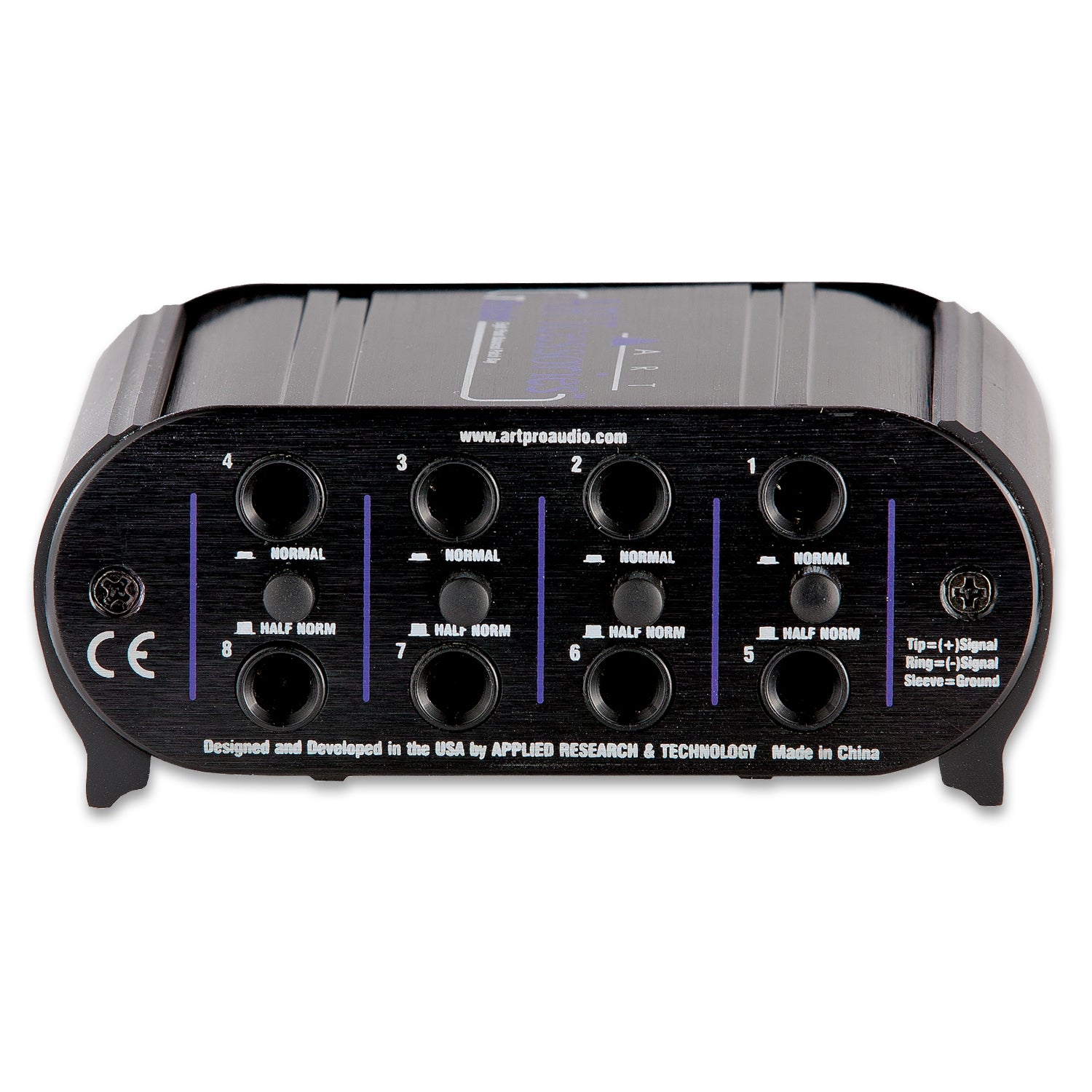

It adapts quickly and easily to your workflow. Unlike some patchbays which require that you physically flip channel modules, the TPatch has a button on each channel to change between normal and half-normal operation.
The TPatch features a rugged aluminum chassis, a passive design so no power is required, and high-quality connectors for long-term reliability.
Features:
- 4 Channels of Linked Input / Output Pairs
- 1/4" TRS Connections
- Switchable between Normal and Half-Normal Operation per Channel
- Passive Design - No Power Required
Specifications:
THD: >-90 dB (Typical)
Isolation: >-80 dB (Typical)
Dimensions (DxWxH): 3.9" x 4.6" x 1.85"
99 mm x 117 mm x 47 mm
Weight: 0.84 lbs / 381 g
