ART DUAL PREAMP W/USB-PROJCT SERIES

The USB Dual Pre is a two-channel preamp and audio interface thats ready to record anywhere you find inspiration.

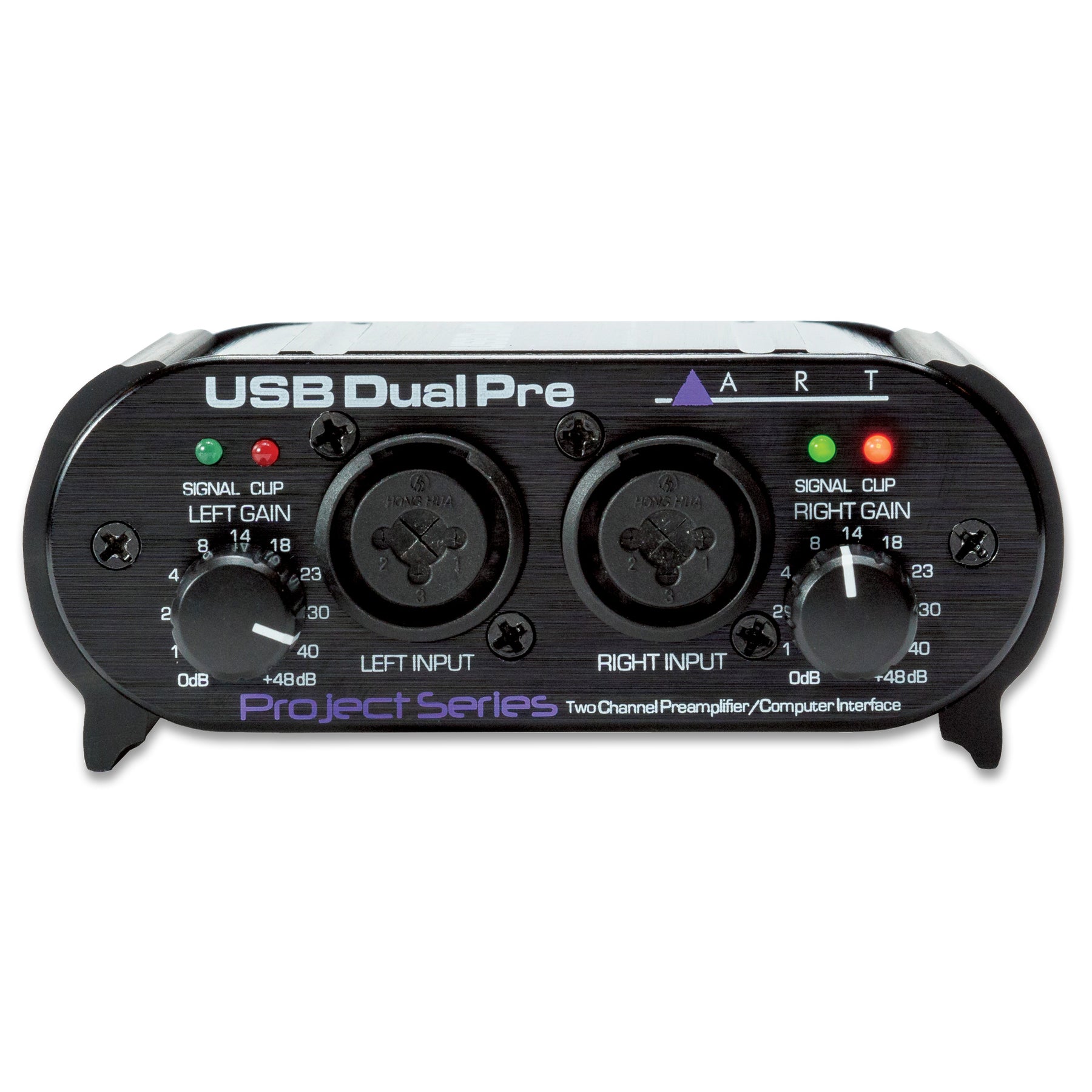

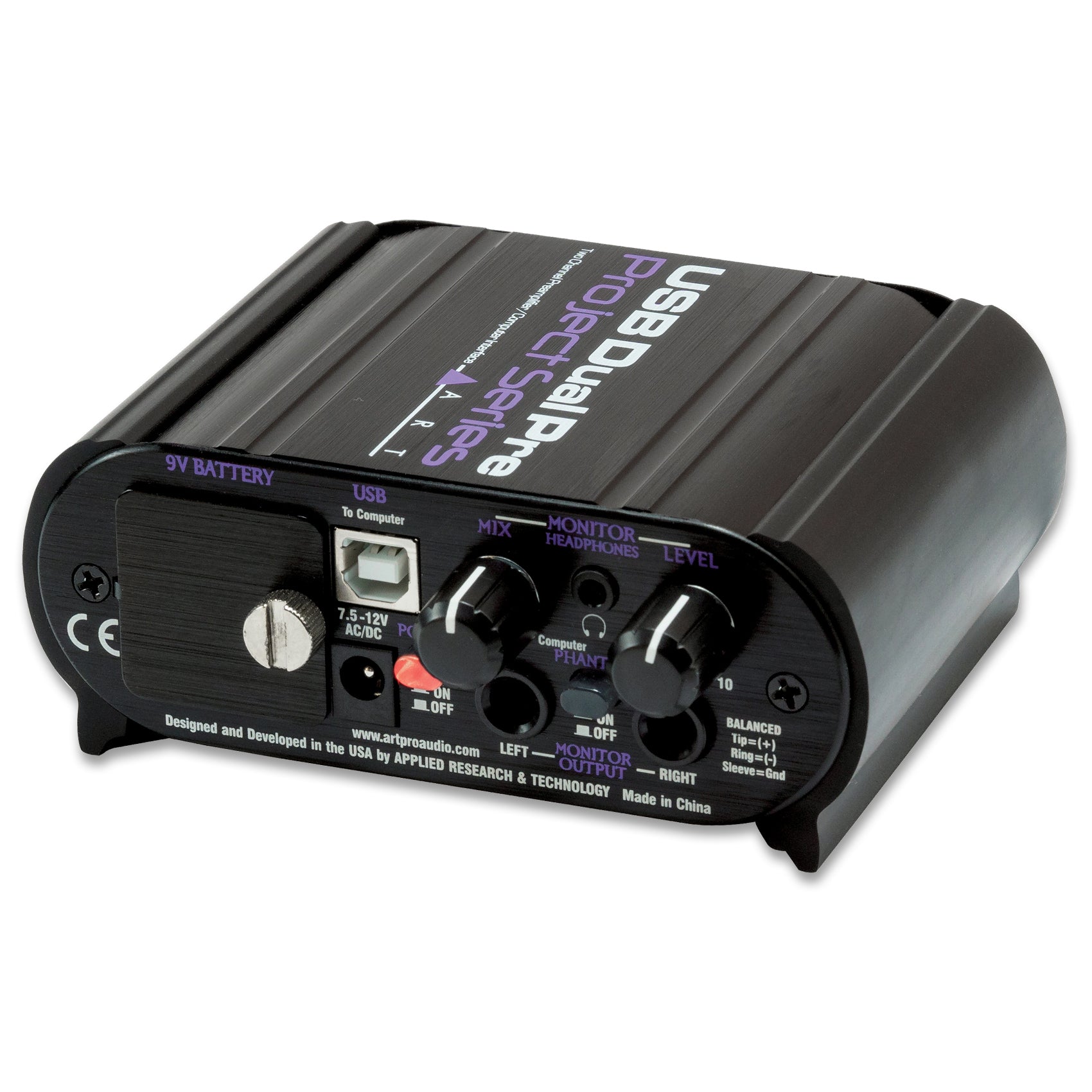

Each channel has a combo jack for XLR and 1/4" connections, and up to 48 dB of input gain to boost mic, line, and instrument-level signals. The rear panel has a phantom power switch, a level control for the 1/4" outputs and headphones, and a blend control to mix the input signals and USB playback for true zero-latency monitoring.

It can be powered by USB, a 9-volt battery, or an optional external adapter. The expected battery life is approximately 20 hours with phantom power, and over 50 hours without. Using a battery or adapter will reduce the power draw on the host device for extended recording time when tracking remotely.

Its class compliant, so no driver software is required, and the metal enclosure is compact and rugged, so the interface is portable and protected. Whether in your home studio or a mobile setup, the USB Dual Pre will capture great sound wherever you record.

Features:

• USB Connectivity to Desktop and Laptop Computers
• Low Noise Fully Balanced XLR and 1/4-inch TRS Combi Inputs
• Up to 48 dB of Clean Gain
• Built-in Low Noise Phantom Power Supply
• Latency Free Monitoring Mix and Level Controls
• Independent Channel Gain Controls
• 1/4-inch TRS Balanced Monitor and 1/8-inch Headphone Monitor Outputs
• Includes Audacity Recording & Production Software
• Flexible 3-way Power from USB, External Supply, or 9 Volt Battery
• Includes USB Cable – Everything Needed To Start Recording Today!

Specifications:

Inputs: XLR / 1/4" TRS Combo Jack Balanced or Unbalanced

Outputs:

• 1/4" TRS Balanced
• 1/8" TRS Headphone Mini Jack

Input Impedance:

• >300kΩ 1/4" Input
• >4kΩ XLR Input

Output Impedance:

• 600Ω (Balanced 1/4")
• 50Ω (Headphone 1/8")

Maximum Gain: +48 dB (Balanced I/O)

Frequency Response: 20 Hz – 20 kHz (+0, -1 dB)

Total Harmonic Distortion: <0.01% @ 1 kHz

Equivalent Input Noise: -120 dBu Typical (XLR Balanced, Gain @ Maximum)

Signal to Noise Ratio: >90 dB (Ref 0 dBu)

CMRR: >60 dB

Channel Separation: >75 dB

Phantom Power: Switch selectable, +48V DC

Connectivity: USB class compliant plug-and play Mac and PC interface

Resolution: 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer 0.4 ms A/D latency @ 44.1 kHz

Power Requirements:

• USB Bus Powered
• Optional 7.5 12V AC
• DC @ <50mA (External)
• 9V Battery @ 20mA Typical
• 50mA Max. (Phantom Power)

Dimensions (HxWxD): 1.75" x 4.6" x 4.7" (4.5 cm x 11.7 cm x 11.9 cm)

Weight: 1.3 lbs. / 0.59 kg
