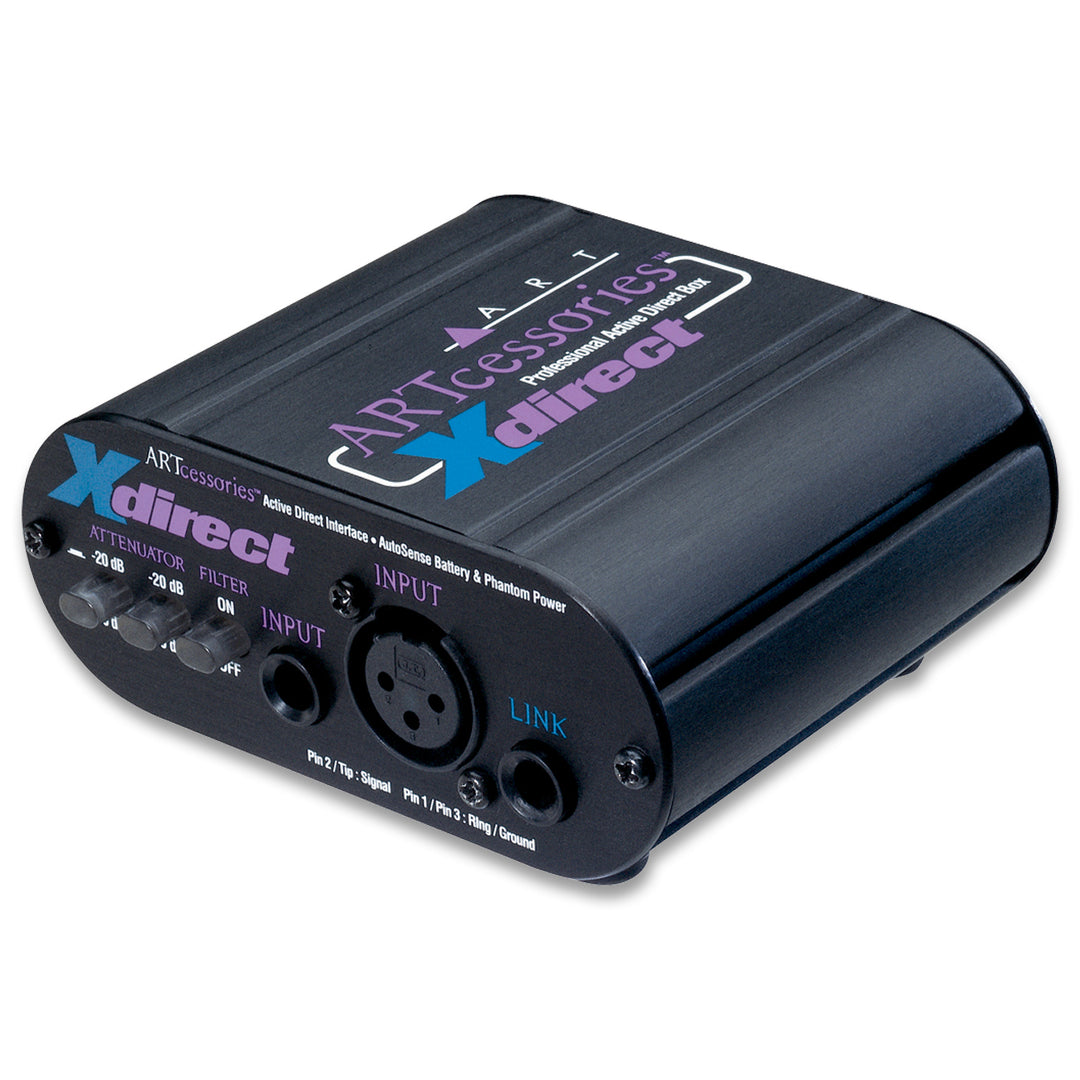

ART XDirect Professional Active Direct Box

The XDirect is an active direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

The input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Unique among ART DI boxes, XDirect models feature both 1/4" TRS and XLR inputs for expanded connectivity.

Simple and durable, the XDirect is a compact DI in a rugged aluminum enclosure with a versatile feature set. Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum, and invert the signal polarity to resolve phase issues such as those which can occur when combining DI and mic sources.

The active circuitry can operate on phantom power or for over 250 hours on a new 9-volt battery. Active DIs are often a great match for sources like guitars and basses with passive pickups, or acoustic guitars with piezo pickups and no preamp.

Specifications:

Active or Passive: Active

Inputs:

• 1x XLR
• 1x 1/4" TRS

Outputs:

• 1x XLR
• 1x 1/4" TRS Thru

Input Impedance: 470 kΩ

Output Impedance: <600Ω

Maximum Input Level: +4 dBu above Attenuation Setting

Maximum Output Level: +6 dBu (Battery)
+14 dBu (Phantom)

Controls:

• Attenuator (0 dB, -20 dB, -40 dB)
• Filter
• Ground Lift
• Phase Invert

Filter: 30 kHz Low-Pass

Frequency Response: 10 Hz - 100 kHz +/- 5dB @ 0dBu

Dynamic Range: >100 dB (Typical)

Total Harmonic Distortion: <0.05% (Typical)

Power Requirements: 9V, 3.5 mA (Battery)
18V - 48V (Phantom)

Battery Life: 250+ Hours

Dimensions (HxWxD): 1.75" x 4.2" x 3.5"
4.45 cm x 10.7 cm x 8.9 cm

Weight: 0.75 lbs / 340 g
