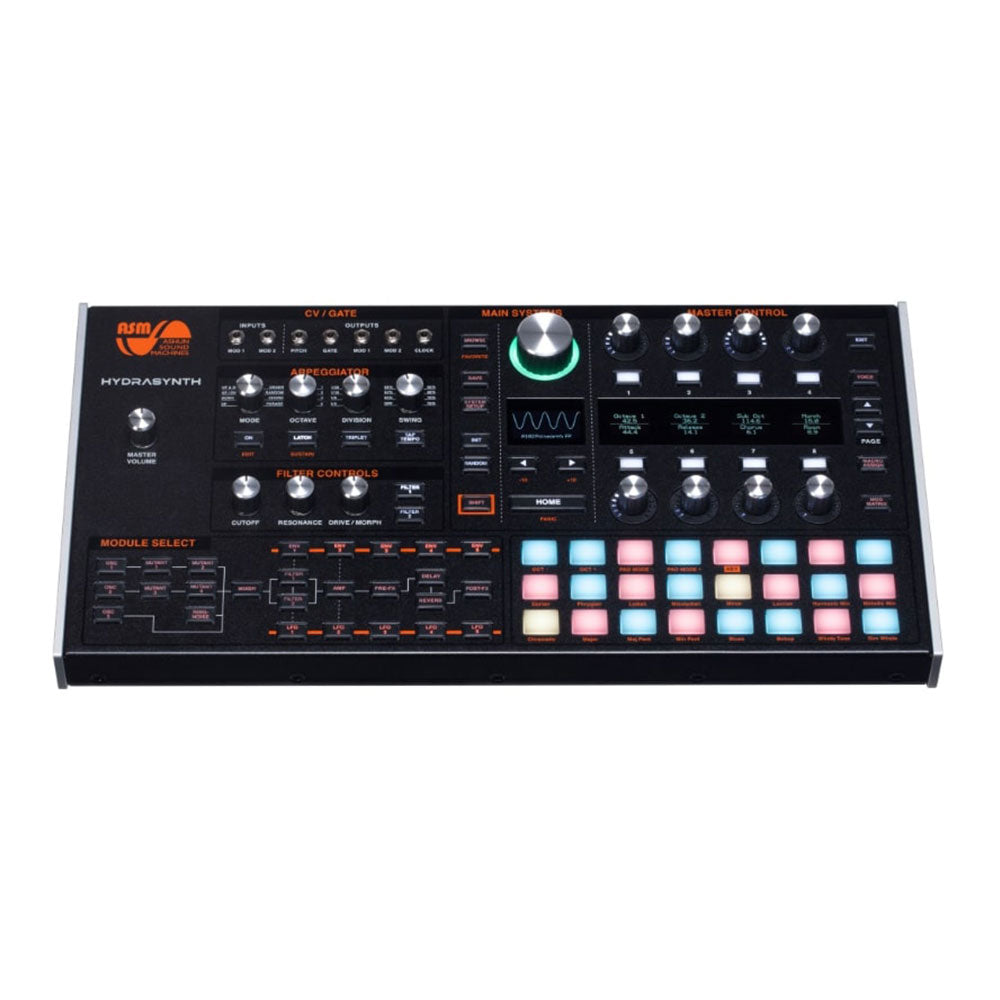

ASM HSDR 8-voice Synthesizer Module

The HYDRASYNTH Desktop / Rack has the same great sound engine as the HYDRASYNTH Keyboard. The sound engine is a sound designers dream synth as well as a performing musician's ideal. The sound engine is designed for maximum flexibility. At the same time, we designed the user interface in a way to allow you to edit the patch quickly with a minimal amount of paging and many workflow shortcuts. Utilizing an advanced wavetable synthesis engine, 3 Oscillators, dual Wave Mutators and 2 filters that can be configured in series or parallel, the tone-generating capabilities are unmatched. As for the performance capabilities, The Hydrasynth Desktop / Rack has 24 polyphonic pressure touch pads so that you can play the unit without needing to connect a keyboard or other controller. Using multiple pad layout modes as well as quick-to-access scale modes, the Hydrasynth Desktop / Rack is easy to make music on. The Hydrasynth Desktop / Rack comes with rack ears so that you can mount it in a standard 19" rack.

Features:

• 24 RGB pads with polyphonic aftertouch, which also offer quick access to secondary functions via "SHIFT + Pad"
• Combines multiple synthesis methods like wavetables, linear FM, WavePWM, subtractive, and more
• 8-voice polyphony, with 3 x oscillators per voice and 4 x Mutator waveshapers total
• 7 types of Mutator waveshapers - FM-Lin, WaveStack, PW-Orig, PW-Squeeze, PW-ASM, Harmonic Sweep, and Hard sync
• WaveScan oscillators offer a total of 219 waveforms
• Dual filters - 1 x multimode (11 types) and 1 x variable LPF-BPF-HPF, with series/parallel routing options
• 5 envelope generators (ADSR) per voice with delay, hold, and looping abilities
• Envelopes can be locked to BPM (MIDI Clock) for tempo-synced modulation
• 5 LFOs per voice, with 11 waveforms - Sine, Triangle, Saw Up, Saw Down, Square, Pulse27%, Pulse13%, S&H, Noise, Random, and Step
• Powerful arpeggiator with 8 modes, including chord and phrase modes
• 32-slot Mod Matrix provides ample options for manipulating your sounds
• CV/Gate connectivity for integrating with modular/semi-modular synthesizers
• 8 insert effects, with Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor, Delay (5 types), and Reverb (4 types)
• 8 Macro controls allow you to tweak multiple parameters simultaneously

Specs:

• Type: Desktop Synthesizer
• Analog/Digital: Digital, Wave Morphing Synthesis
• Pads: 24 x Velocity-sensitive Pads, Aftertouch
• Polyphony: 8 Notes
• Presets: 640 Program Locations (5 banks x 128 Patch Memories)
• Oscillators: 3 x Wavescan Oscillators
• Waveforms: 219 waveforms (wave morphing), 4 x Mutators Wave Shapers
• Envelope Generator: 5 x ADSR ; Delay, Hold, Looping
• LFO: 5 x LFO, Tempo syncable
• Filter: 1 x Multimode Filter (11 types), 1 x Variable Filter (lowpass, bandpass, highpass)
• Effects Types: 4 x Reverbs, 5 x Delay, Chorus, Flanger, Rotary, Phaser, Lo-Fi, Tremolo, EQ, Compressor
• Arpeggiator: 8 x Arpeggiators
• Analog Outputs: 2 x 1/4" (L/mono, R)
• Headphones: 1 x 1/4"
• MIDI I/O: In/Out/Thru/USB
• Other I/O: 2 x Mod in, Pitch out, Gate out, 2 x Mod out, Clock out
• Pedal Inputs: 1 x 1/4" (sustain), 1 x 1/4" (expression)
• USB: 1 x Type B
• Power Supply: 12V DC power supply (included)
• Height: 3.39"
• Width: 17.4"
• Depth: 8.78"
• Weight: 8.1 lbs.
