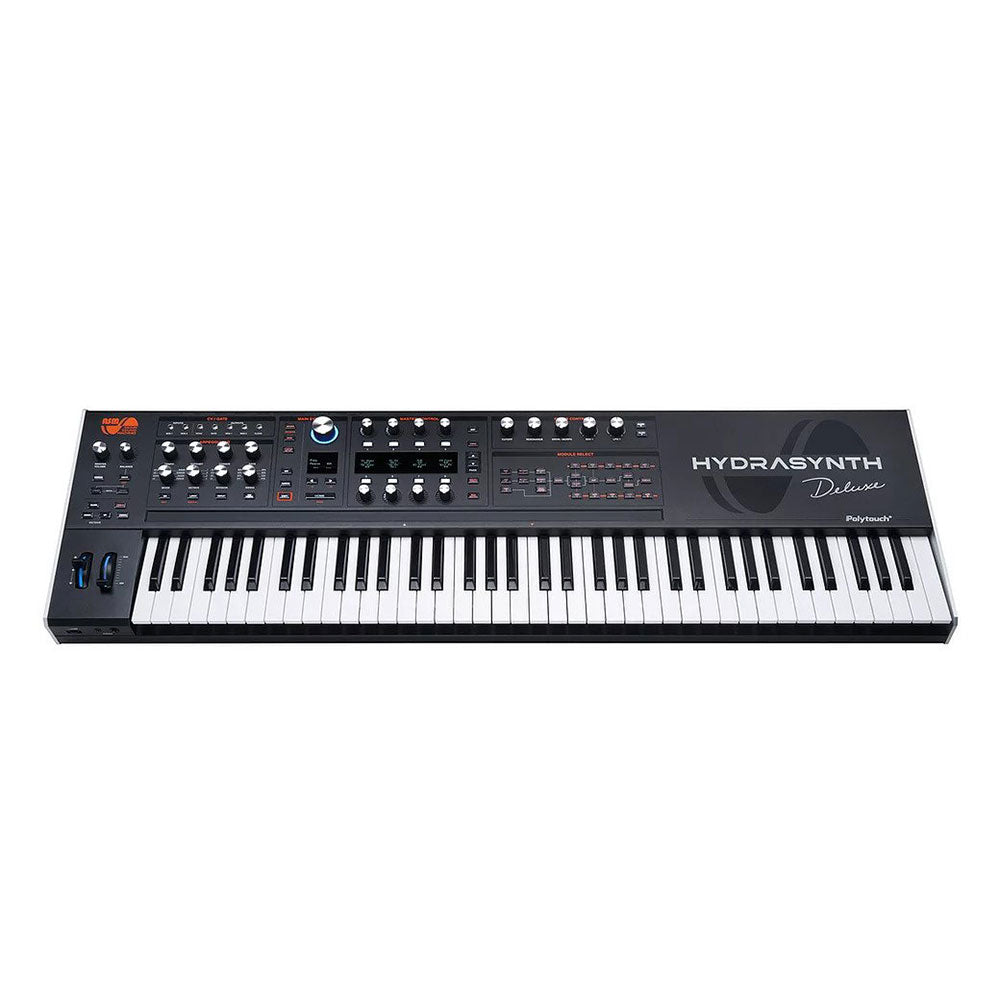

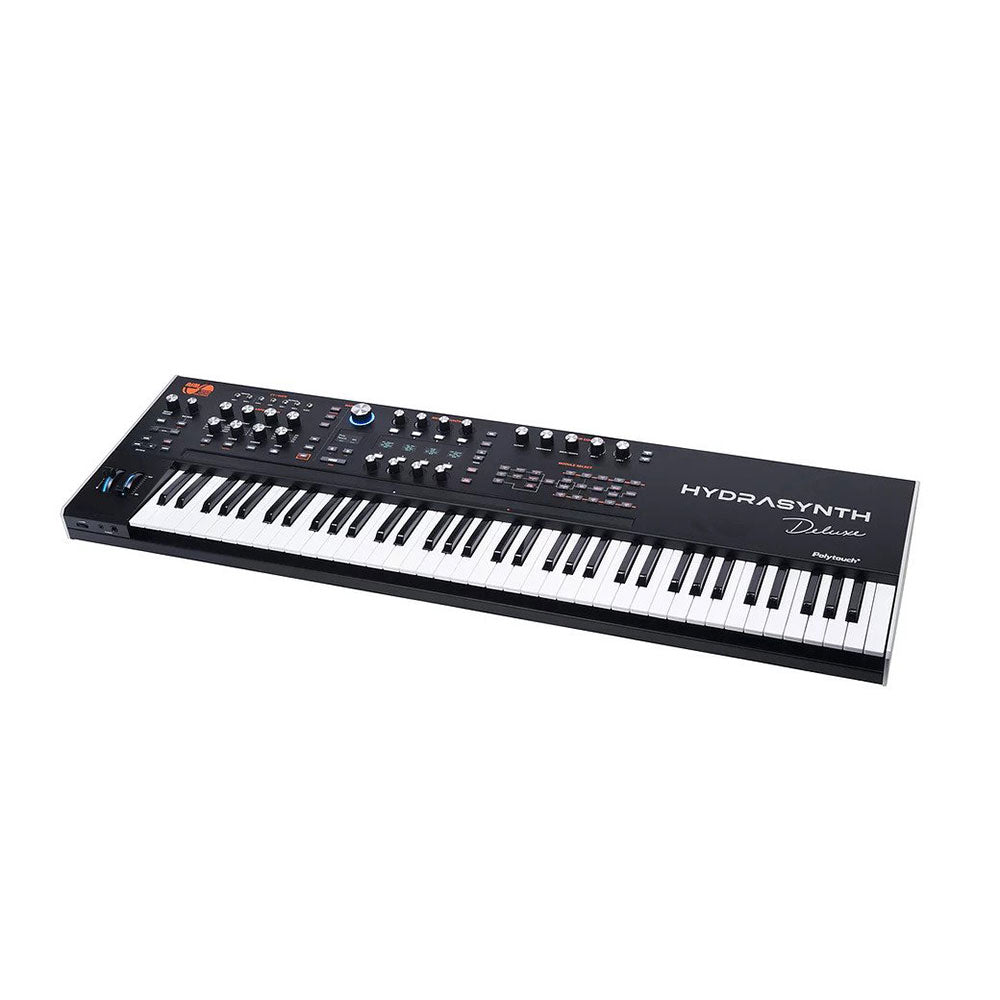

ASM HSLX Hydrasynth Deluxe Synthesizer

The HYDRASYNTH DELUXE is the flagship Hydrasynth, offering a dual sound engine setup and the largest ASM PolyTouch® polyphonic aftertouch keybed to date. The user interface is designed with the utmost attention to detail and offers a rapid workflow Each of the two sound engines features 3 Oscillators, dual Wave Mutators and 2 filters, that can be configured in series or parallel. Both of the sound engines has its own separate balanced analog audio outputs. The tone generating capabilities are simply unmatched. As for the performance capabilities, The HYDRASYNTH DELUXE has our proprietary 73-note Polytouch™ keybed that offers polyphonic aftertouch over each note, giving you the type of expressive control found only in certain vintage synths. Add to this a 4 octave ribbon controller and ergonomically designed pitch and mod wheels and you have expression and control that is not equaled in any other hardware synthesizer on the market… Today or ever.

• Metal Chassis
• Steel top and bottom
• Aluminum side panels
• PolyTouch© Keybed
• Semi-weighted
• Polyphonic aftertouch
• Note On and Note Off Velocity
• 4 octave (67 cm, 26.4”) Ribbon controller
• Pitch bend mode
• CC control mode – modulation source
• Theremin mode - triggers envelopes and plays pitch
• Continuous pitch or choose from multiple scales
• 8 banks of 128 patches in SINGLE mode
• 5 banks of 128 MULTI mode patches
• 5 banks of 128 patches for the LOWER part in MULTI mode
• 5 banks of 128 patches for the UPPER part in MULTI mode

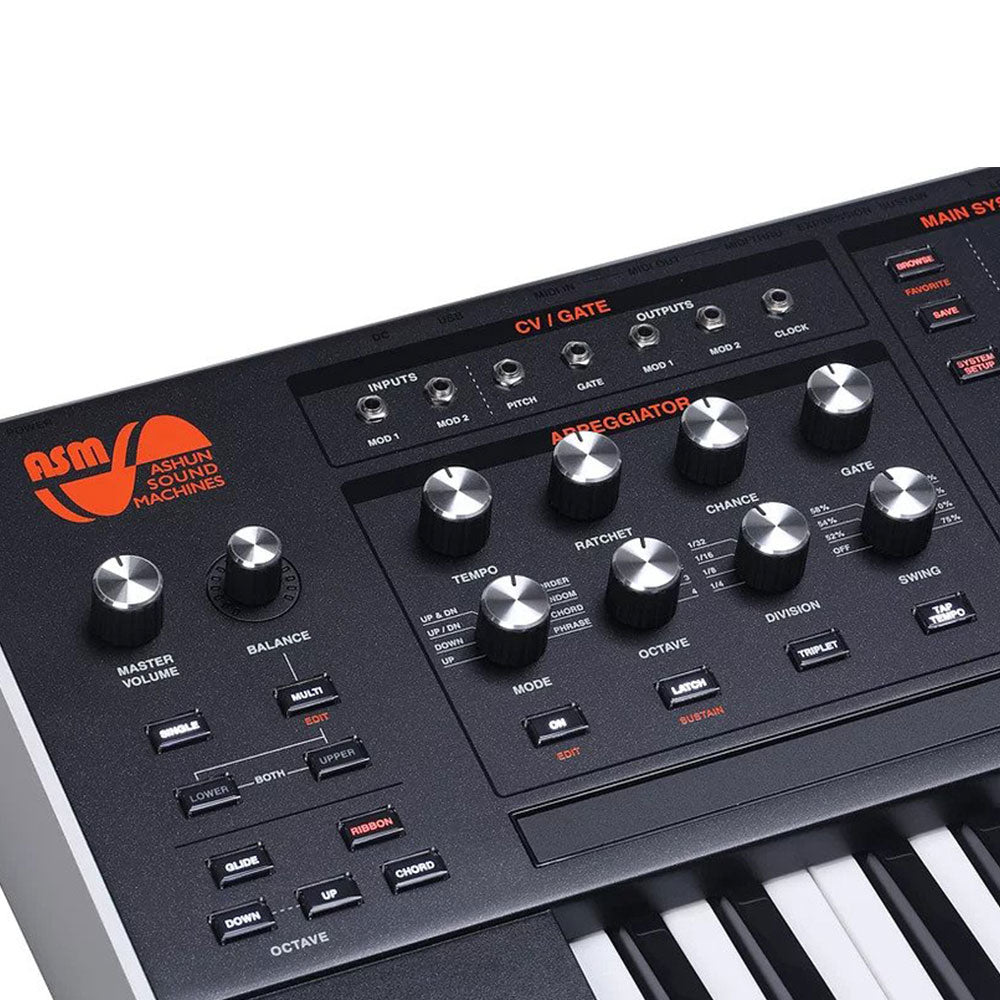

• CV gate input and outputs
• Support multiple CV/GATE standards
• CV
• 1v per octave +/-5V
• 1V per octave 0-10V
• Hz to Volts +/-5V
• Hz to Volts 0-10V
• 1.2V per octave
• Gates
• V-trig, S-trig
• 3V, 5V, 10V
• Mod In/Out range
• +/5V, 0-10V, 0-5V, 0-1V
• Clock in and out
• 1PPS, 2PPQ, 24PPQ, 48 PPQ
• Clock Voltage - 3v, 5V, 10V
• MIDI IN/OUT/THRU
• Voice overflow mode for expanding voices with another Hydrasynth
• Expression pedal input
• Sustain pedal input
• Polarity sensing input
• DC input jack
• USB port
• Supports USB MIDI In/Out

Dimensions

• 1131 x 359 x 119 mm
• 44.5” x 14.1” x 4.7” (inch)

Weight

• 13.5 kg (29.8 lbs)
