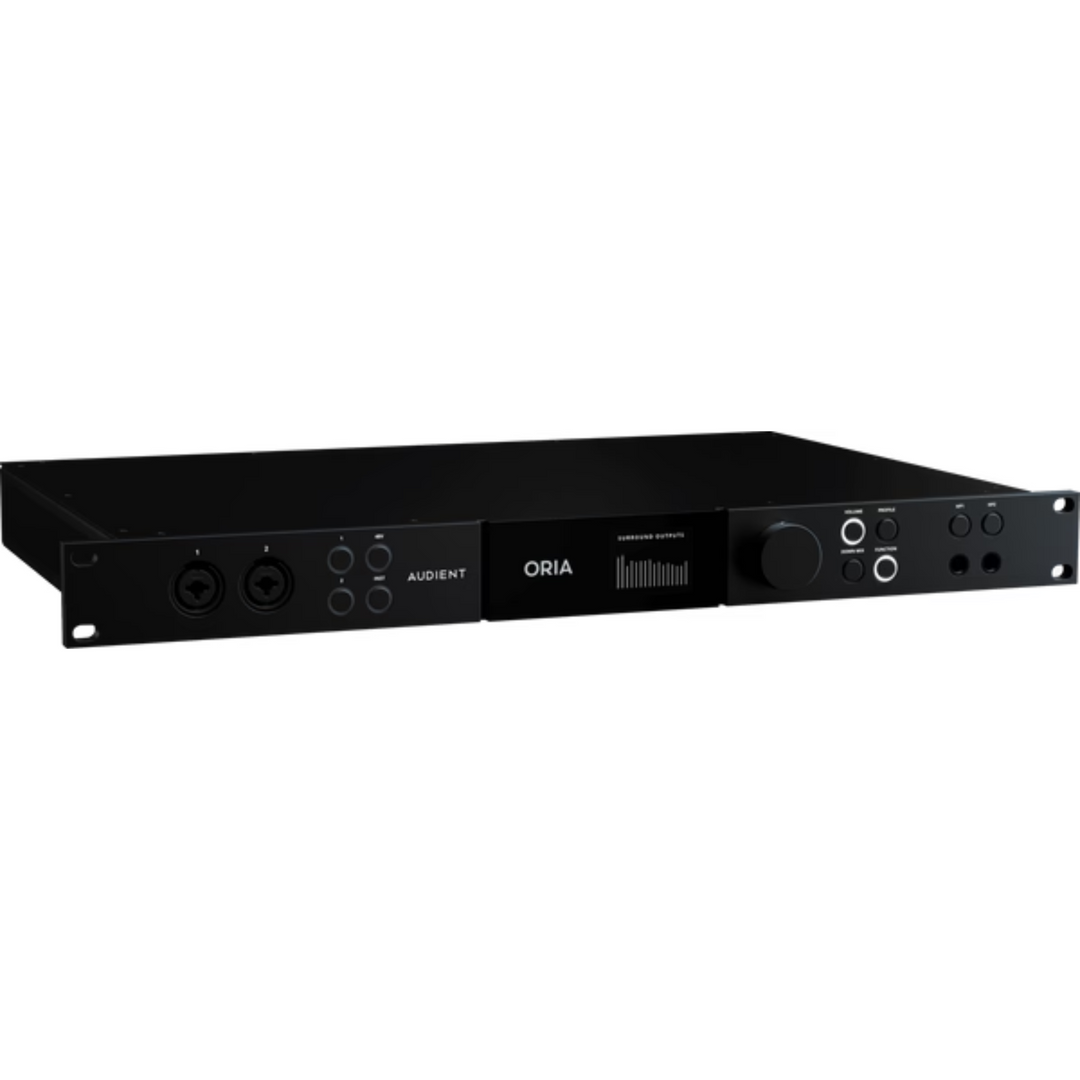

Audient Oria Immersive Audio Interface and Monitor Controller
Oria
Regular price$3,999.00
Available to Order
Available from supplier Audient — usually arrives to us within
an estimated number of
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Audient
- Shipping Calculated at checkout, most in stock products ship same day
Meet ORIA, the world’s first audio interface and monitor controller designed specifically with immersive audio in mind. Built for creating immersive audio mixes for formats such as Dolby Atmos, ORIA lets you calibrate, control and monitor multi-channel speaker arrays from stereo up to 9.1.6 and everything in between. Perfect for music, film, TV, game and VR production.
Features
- Supports up to 9.1.6 Speaker Setups
- 2 x 16 Channel Surround Outputs (Analogue & AES)
- 2 x Stereo Line Outputs (Relay Switched)
- 2 x Independent Stereo Headphone Outputs
- 2 x Audient Mic Preamps (Mic / D.I / Line)
- 2 x ADAT Inputs
- Word Clock Input
- Word Clock Output
- ORIA Motion UI
- 24 bit / 96kHz
- USB 2.0 / USB Type-C
- Sonarworks SoundID Reference Measurement Microphone Included
- Optional AoIP Card (Dante) for 16 Input channels
Specifications
- Gain: 60dB
- Max Input Level: +18dBu
- Crosstalk: <105dB
- THD+N: 0.0015% / -96dB
- EIN: -129dB
- CMRR: -85dB
- SNR: 100dB
- Frequency Response: ±0.5dB 20Hz to 40kHz
- Input Impedance: 1.5kΩ Balanced
- Gain: -10dB to +50dB
- Max Input Level: +18dBu
- THD+N: 0.0015% / -96dB
- Input Impedance: 4.7kΩ Balanced
- Gain: 60dB
- Max Input Level: +18dBu
- THD+N: 0.16%
- SNR: 100dB
- Frequency Response: ±0.5dB 20Hz to 40kHz
- Input Impedance: 370kΩ Unbalanced
- Lineup Level: +18dBu
- THD+N: 0.0006%, -105dB
- Dynamic Range: 126.5dB
- Crosstalk: -123dB
- Frequency Response: ±0.3dB 10Hz to 40kHz
- Output Impedance: <100Ω Balanced
- Lineup Level: +18dBu
- THD+N: 0.0007% (-103dB)
- Dynamic Range: 124dB
- Crosstalk: -115dB
- Frequency Response: ±0.25dB 10Hz to 40kHz
- Output Impedance: <50 Ω Unbalanced
- Max Level @ 30R: 5.47V Peak, 3.87Vrms, 997mW
- Max Level @ 60R: 7.4V Peak, 5.29Vrms, 912mW
- Max Level @ 600R: 8.6V Peak, 6.09Vrms, 123mW
- Connector: USB Type C
- Included Cable: USB Type-C to Type-C
- Number of Input Channels: 34 (2x Analogue, 16 Digital, 16 AOIP*)
- Number of Output Channels: 38 (20 Line Outs, 2x Stereo Headphone Outs, 16x AES)
- *With AOIP card fitted
- ADAT 16 Channels: 44.1kHz to 48kHz
- ADAT 8 Channels (SMUX): 88.2kHz to 96kHz
- AES Outputs: 16 Audio Channels (8x AES Data Streams)
- Word Clock: 44.1kHz to 96kHz
- Round Trip: TBC
- AOIP (Optional Dante Expansion Card)
- AOIP Inputs: 16 (44.1kHz to 96kHz)
- Input Voltage: 85 – 264 VAC
- Input Frequency: 47 – 63Hz
