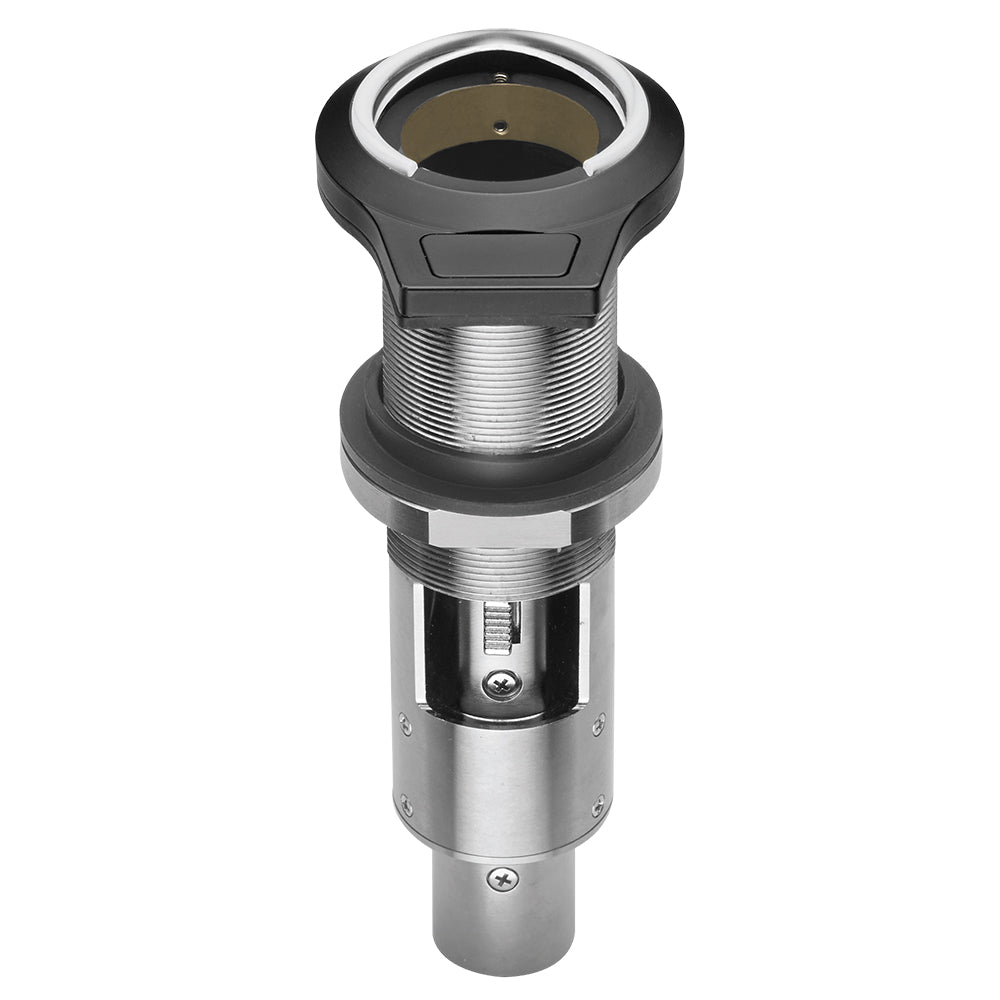

Audio-Technica AT8657/LED Flush-Mount Microphone Socket with Logic I/O

Featuring a flush, tabletop-mount design, the AT8657/LED microphone socket allows for the easy use of any 21 mm gooseneck or button-style boundary microphone with a 3-pin XLRM-type output – including Audio-Technica's ES945 and ES947 – in a variety of presentation environments.

The socket’s logic out capability permits control of remote devices from a programmable capacitance switch, so users can easily trigger an external device (e.g., a camera or light) with the touch of a button – an extremely useful feature in conference and boardroom installations. The socket also features a lock switch that automatically locks the microphone in place upon insertion, holding it securely until switch is manually released by user.

Additionally, an integral Red/Green LED ring is controllable from a logic-enabled device and is powered by the microphone’s phantom power, eliminating the need for an additional power source.

Each socket comes with a pair of rubber isolation rings and a metal retainer ring (for use with gooseneck mics only) to dampen surface vibrations.

Specifications:

Phantom Power Requirements: 24-48V DC, 4 mA typical

Switches: Touch-sensitive control: momentary

Weight: 165 g (5.8 oz)

Dimensions: 130.6 mm (5.14") long, 55.0 mm (2.17") maximum width

Output Connector: 5-pin XLRM-type
