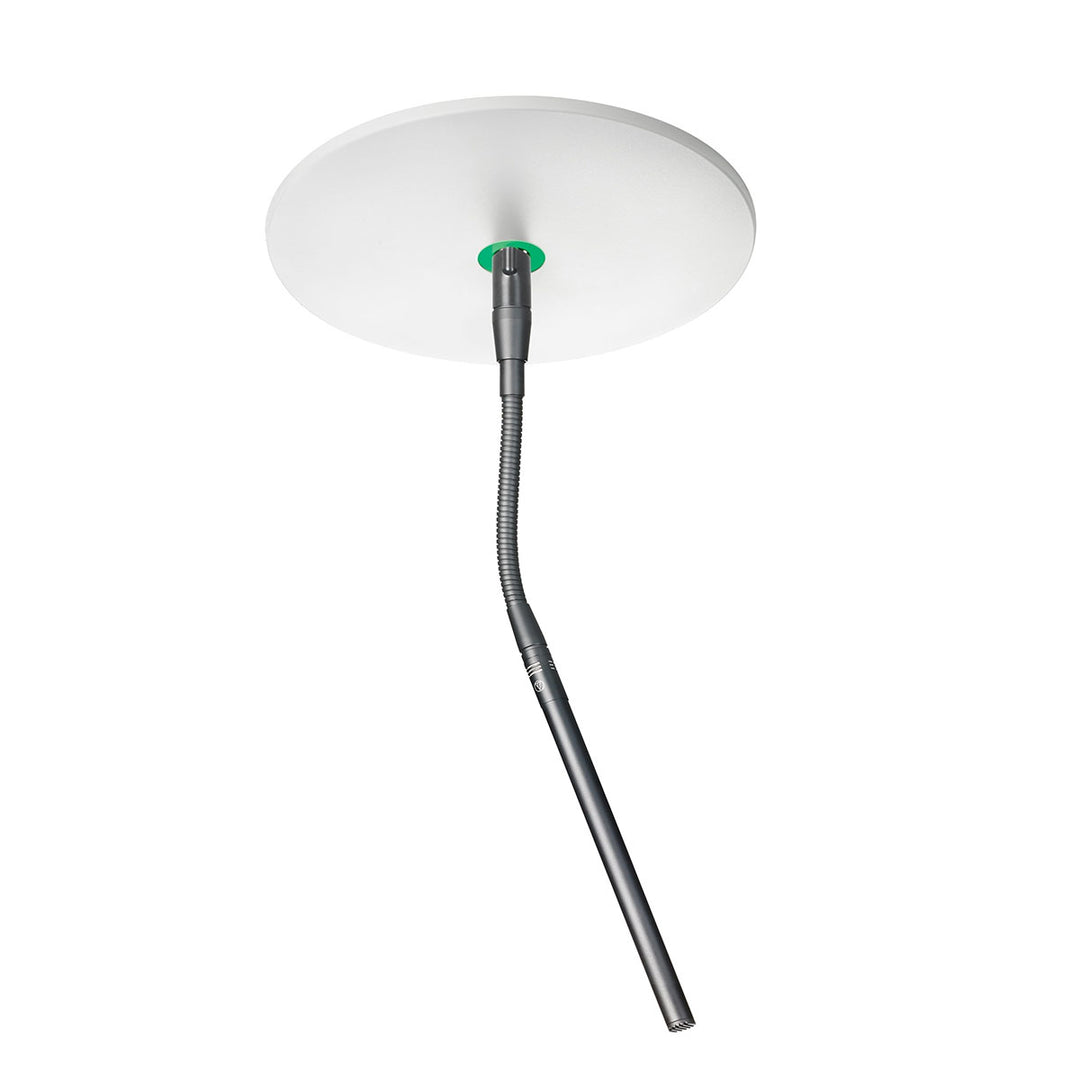

Audio-Technica ATND931AML MicroLine® Condenser Gooseneck Microphone with Dante™ Network Output

The ATND931aML is a wide-range miniature condenser microphone with a MicroLine® (line cardioid) polar pattern. It is designed for quality sound reinforcement. The small-diameter gooseneck design permits highly flexible positioning while maintaining a smooth, well-contoured appearance. The combination of small size and excellent response makes the microphone ideal for
boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications.

The microphone is equipped with UniGuard® RFI-shielding technology, which offers outstanding rejection of radio frequency interference (RFI).
The microphone’s MicroLine® (line cardioid) polar pattern provides a 90° angle of acceptance. Additional interchangeable elements with omnidirectional (360°), cardioid (120°) and hypercardioid (100°) pickup patterns are available. The microphone’s free end connects to the provided ATND8734a Dante-enabled wall/ceiling plate power module via a special TA3F-type connector designed to optimize RFI immunity. The power module features a removable, circular cover plate that can be painted with commercially available spray paint. The power module includes an RJ-45 output jack for easy connection to the network via CAT5e (or better) cable. Additionally, logic input screw terminals accept an external switch for connection to the Dante™ network.

Features
• Wall/ceiling plate power module with Dante™ network output permits permanent installation in standard, 2-gang electrical box and direct connection to the network via Ethernet cable
• MicroLine® polar pattern provides narrow 90º acceptance angle
• Low-profile design with low-reflectance finish for minimum visibility
• Superior off-axis rejection for maximum gain before feedback
• Logic input accepts external switch for connection to the Dante™ network
• UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
• UniSteep® filter provides a steep low-frequency attenuation to minimize pickup of undesired ambient noise
• Easy-to-adjust, rugged, small-diameter gooseneck with virtually no “memory” permits quick positioning into the desired shape
• Available interchangeable elements permit angle of acceptance from 90° to 360°
• Ideal for boardrooms, school and government settings, teleconferencing, houses of worship and other installed applications
• Available in two colors: black (ATND931aML) and white (ATND931aWML)
