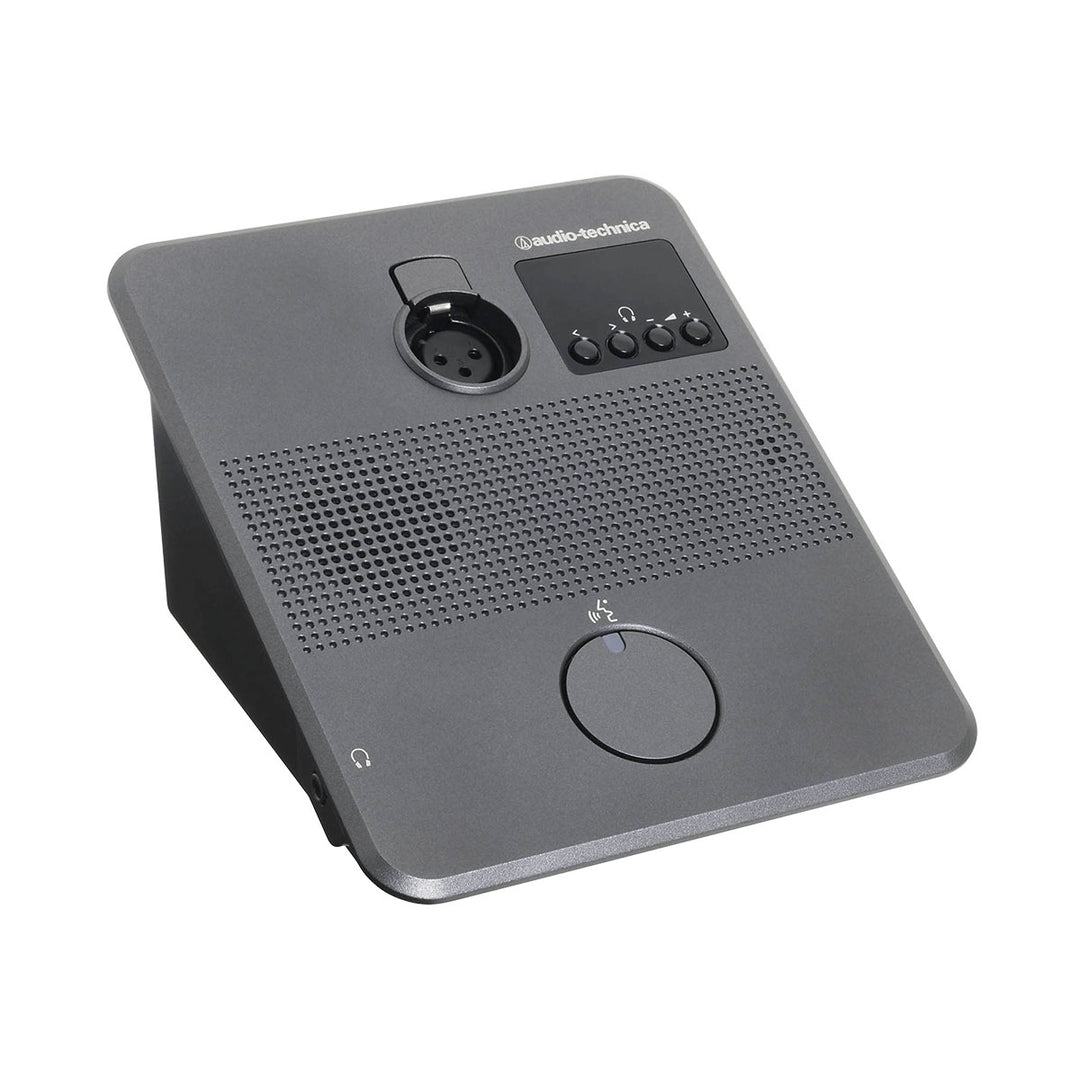

Overview of Audio-Technica ATUC-50DUA Discussion Unit
ATUC-50DUa Discussion Unit with high-quality audio. Individual Automated Gain Control (AGC), Mic gain and Mic EQ, Compatibility with standard XLR3 pin gooseneck and High quality speaker for enhanced intelligibility.
Specifications:
Dynamic Range: 107dB A-Weighted
Frequency response: +1.0, -2.0dB 20Hz - 20kHz, refer to +4dBu output @1kH
zSampling Frequency: 24bit /48kHz
Signal-to-Noise Ratio: 87dB A-Weighted
Connections:
- Inputs: Mic x 1
- Outputs: Headphones x 1
- CHAIN: DU / CU terminals
Headroom: 20dB
Equivalent Input Noise: Less than -121dBu Rs=150ohm
Total Harmonic Distortion: Less than 0.07% @1kHz unity
Phantom Power: DC +24V
Power Supply: DC +48V
Power Consumption: 2.2W
Operating Temperature Range: 0-40℃
Operating Humidity: 25-85%
Dimensions: 135mm x 148.3mm x 84.2mm
Weight: 570g
