Audio-Technica ATUC Control Unit with 24-Bit/48 Khz Digital Signal Processing

The 19" rack-mountable ATUC-50CU provides 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. Offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings. Can record WAV and MP3 files onto a connected USB mass storage device. Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs. For wired systems only.

Features:

Crystal-clear, 24-bit digital audio processing with 12-band feedback suppressor

Easy plug-and-play operation

Each ATUC-50CU wired control unit supports a total of 100 ATUC-50DU discussion units, ATUC-50IU integration units, and ATUC-50INT interpretation units*

3 ATUC-50CUs can be linked via Cat5e (or better) cable, providing a wired system with up to 300 DU/IU/INTs

Systems can be configured in either daisy chain or ring topology

Built-in WAV and MP3 recorder lets you record to a USB mass storage device

Control available through Web Remote interface and third-party IP Control Systems

Specifications:

Dynamic range: 110 dB A-weighted

Frequency response: + 1.0, – 2.0dB, 20Hz-20kHz, refer to +4dBu output @ 1kHz

Recording: Via USB storage device:

• 1/2/3/4 track (WAV) (BWF standard)
• 1/2 track (MP3) (Original format)


• MP3 bit rate:
  64kbps/128kbps/192kbps/256kbps/320kbps

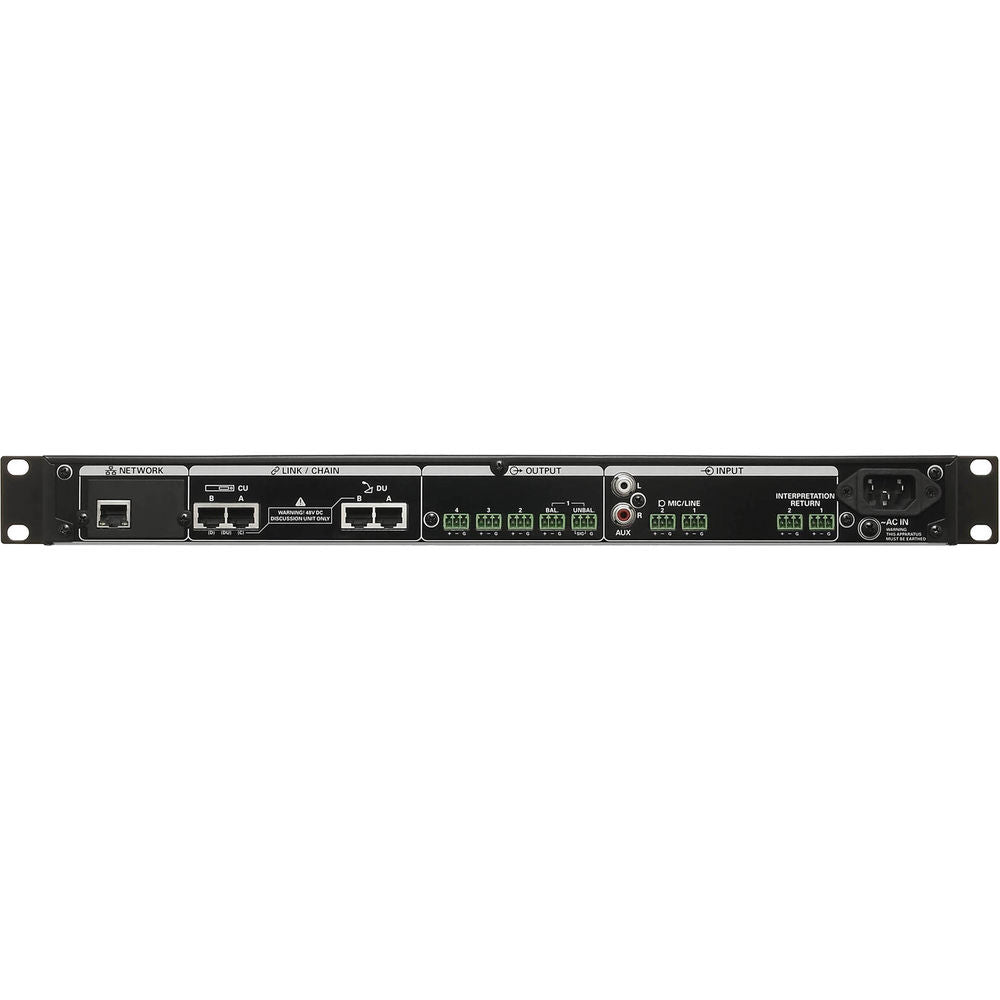

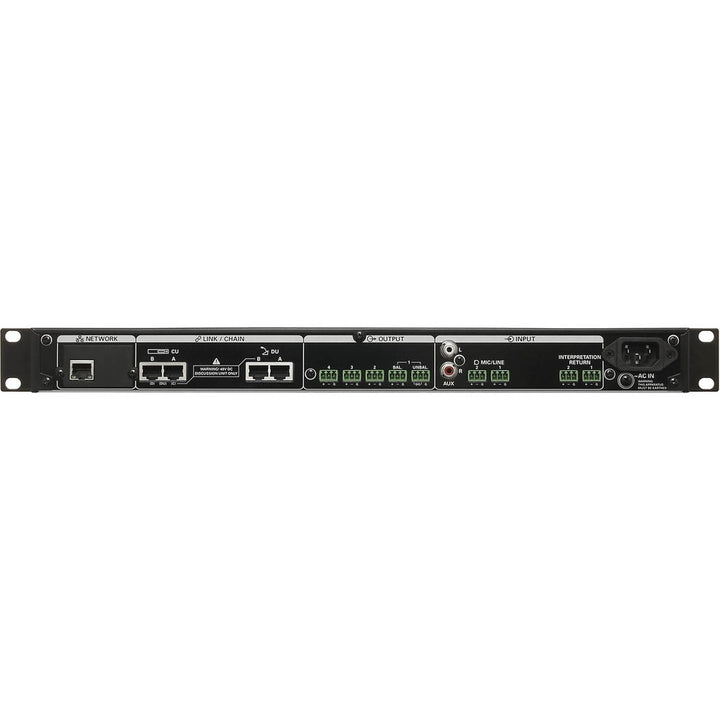

Connections:

• Mic/Line ×2
• AUX (ST) ×1
• INTERPRETATION RETURN ×2
• Outputs:
  • Balanced ×4
  • Unbalanced ×1
• LINK /CHAIN : DU A/B Terminals, CU A/B Terminals (DU C/D Terminals)

Signal-to-noise Ratio: 90 dB, A-weighted

Signal delays:

• MIC Input to Output: 1ms
• DU to CU: 1.2ms

Headroom: 20 dB

Equivalent Input Noise: Mic/Line 1-2, less than -126dBu, Rs=150 ohm

Total harmonic distortion: Less than 0.03% @1kHz unity

Crosstalk at 1 kHz: Less than –80dB

Power Supply: AC 100V~240V 50/60Hz

Phantom Power: DC +48V

Power Consumption: 20W ~ 175W (max.)

Operating Temperature Range: 0-40° C

Operating Humidity: 25-85%

Dimensions: 482.6mm x 331.6mm x 44mm

Weight: 3.4kg

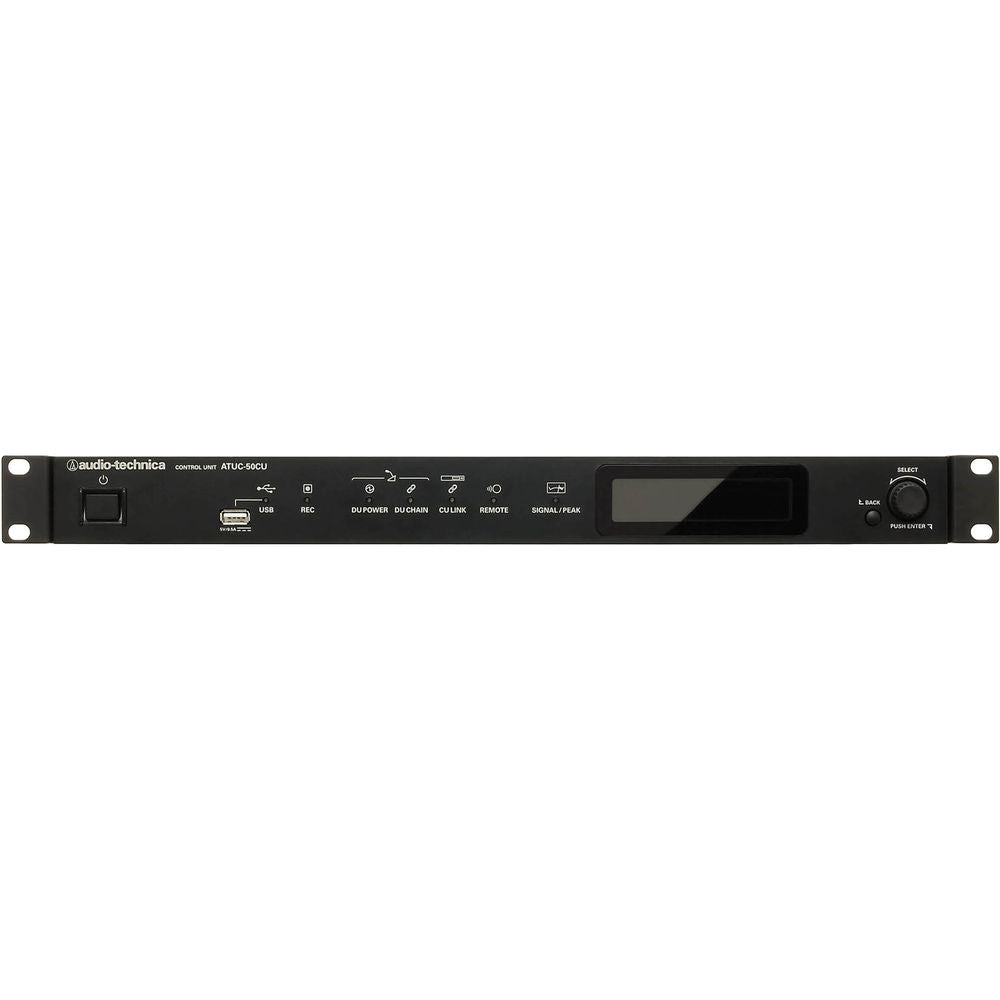

OLED Display:

• 20x2 Character type
• Color: Yellow
• Operating life time: 100,000 hours
