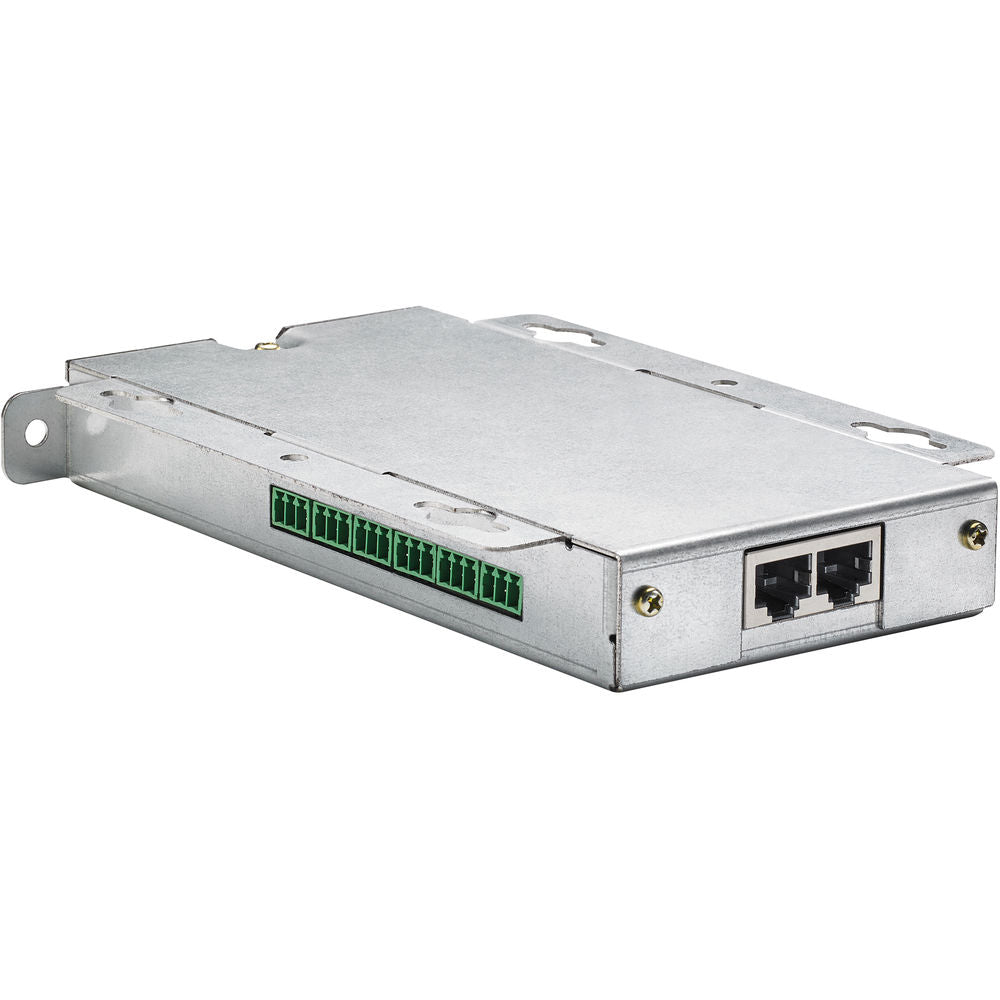

Audio-Technica ATUC Integration Unit for the ATUC-50 Conference System
ATUC-50IU
Payment plans from Affirm, learn more
- Audio-Technica
- Shipping Calculated at checkout, most in stock products ship same day
Integration unit for the ATUC-50 conference system.
The ATUC-50IU has two RJ-45 ports, seven Euroblock connectors for audio and control options, and six Euroblock connectors for LED power and general-purpose input/output (GPIO). Mic input is compatible with ATUC-M43H, ATUC-M58H, ATUC-M32L, AT8657/LED, U891RCx and other microphones. Includes mic input, speaker output, headphone output, control input (Talk On, Vol. Up, Vol. Down, Channel Select – Open/Closed contact), LED status output, GPIO. Designed for discreet installation (e.g., under a table). ATUC-50CU firmware version 1.6.0 or higher is required. For wired or wireless systems.
Specifications:
Dynamic Range: 106dB A-Weighted
Frequency response:
- +1dB/ -2dB 20Hz – 20kHz
- +4dBu input @ 1kHz
Sampling Frequency: 24bit / 48kHz
Signal-to-Noise Ratio: 86dB A-Weighted
Connections: 2x RJ45, 39 pin on EuroBlock
Headroom: 20dB
Phantom Power: DC + 48V
Power Supply: DC + 48V
Power Consumption: 3.4W
Operating Temperature Range: 0 – 400°C
Dimensions: 116 x 173 x 25mm
Weight: 460g
