Overview of Audio-Technica ATW-A410P UHF Powered Wideband Antenna (470 to 990 MHz)

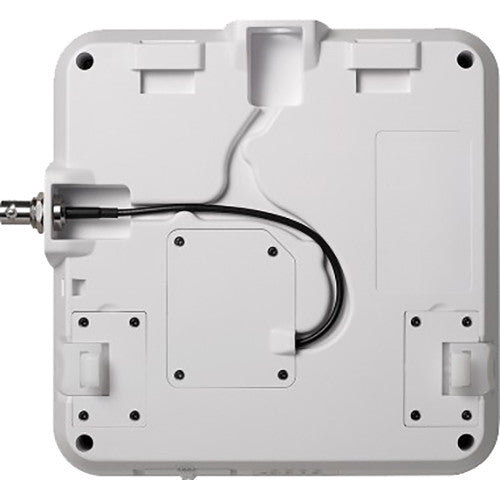

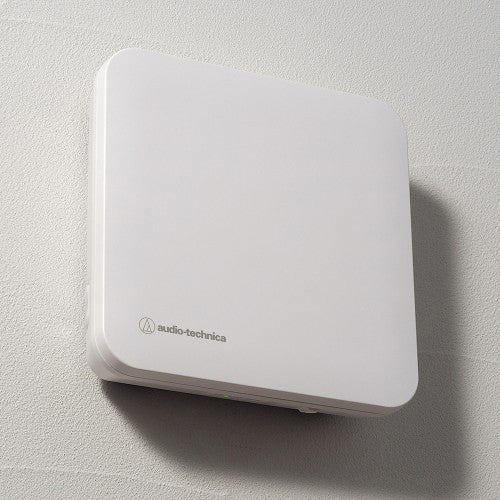

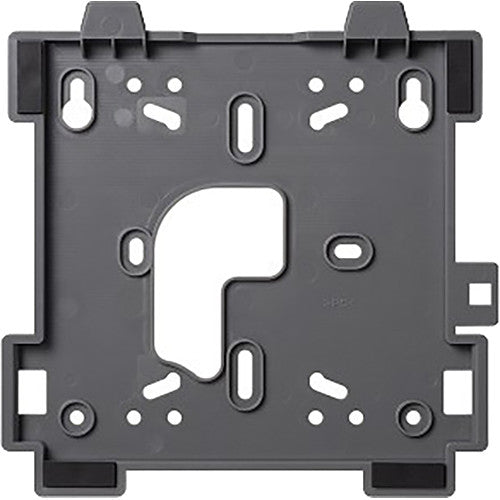

The ATW-A410P is a low-profile UHF (470-990 MHz) antenna that mounts to a wall or ceiling. It features a 4-position switchable amplifier (-10 dB/0 dB/+6 dB/+12 dB) to compensate for cable loss, along with an LED indicator to display the current gain setting. To accommodate various installation environments, the antenna’s BNC cable can be configured to exit from the top, side or rear of the antenna. Includes mounting bracket and screws.
Specifications:
Frequency range: 470 to 990 MHz
Connector: BNC-J
Impedance: 50 ohms
Power requirement: +12V DC, 60 mA or less
OIP3: >30 dBm typical (within specified bandwidth)
Gain: -10 dB/0 dB/+6 dB/+12 dB
Operating temperature range: -10° C to 50° C (14° F to 122° F)
Dimensions: 175 mm (6.9") W × 175 mm (6.9") D × 50 mm (2.0") H (without bracket)
Weight: 390 g (13.8 oz) (without bracket)
Music City Canada is an authorized reseller for Audio-Technica products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
