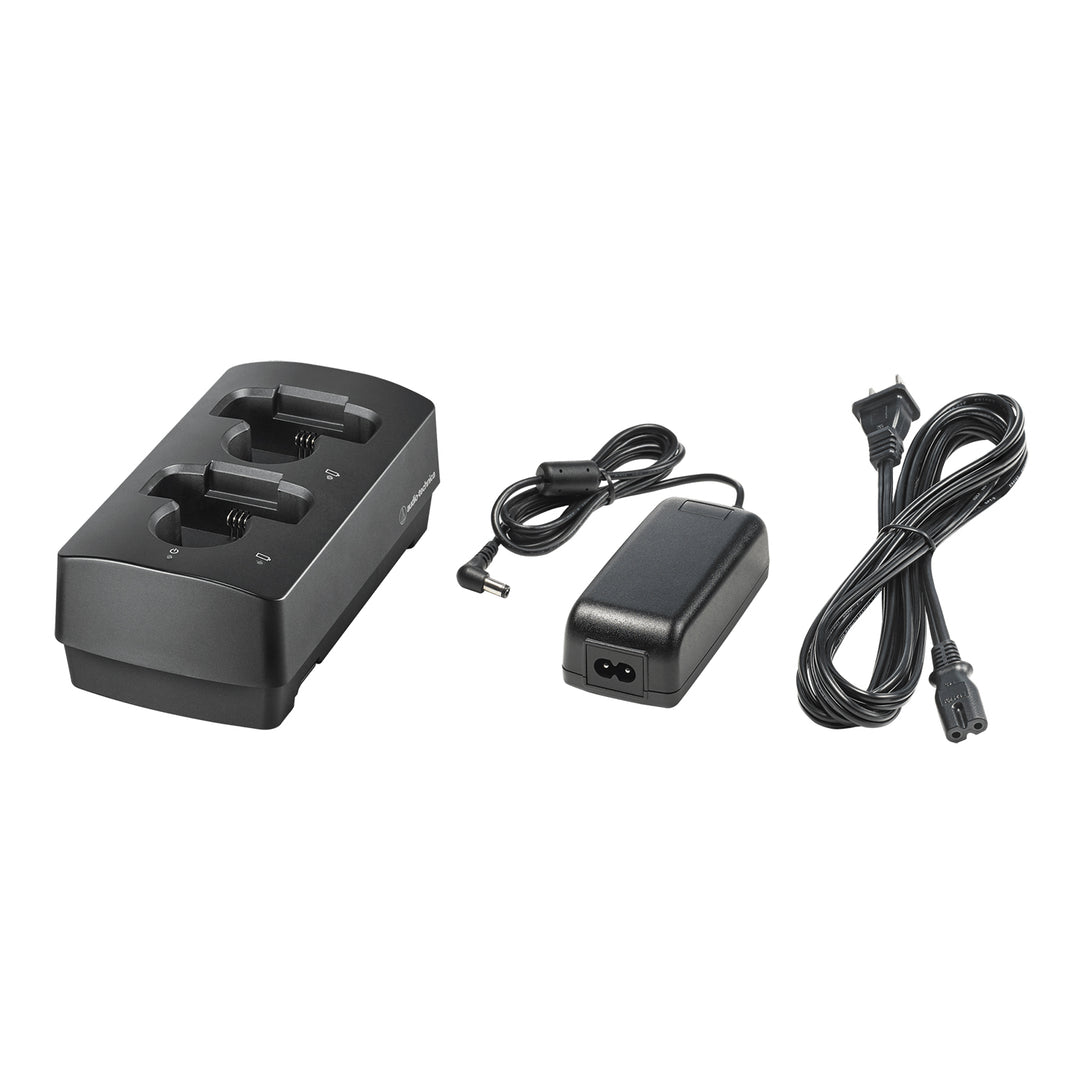

Audio-Technica ATW-CHG3AD Two-Bay Charging Station with AC Adapter (3000 Series)

The ATW-CHG3AD bundles the ATW-CHG3 two-bay charging station with the AD-SA1230XA AC adapter.

The charging station works with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters, charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3 is equipped with power and charging status indicator LEDs for easy monitoring.

Specifications:

Power Requirements: 12V DC 3.0 A

Charging Output: 3.6V DC 500 mA (x2)

Power Consumption: 4.9 W (when 2 transmitters are charging)

Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery)
Depending on battery type and use pattern

Operating Temperature Range: 0° C to 40° C (32° F to 104° F)

Dimensions (charger only): 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)

Net Weight (charger only): 400 g (14.1 oz)
