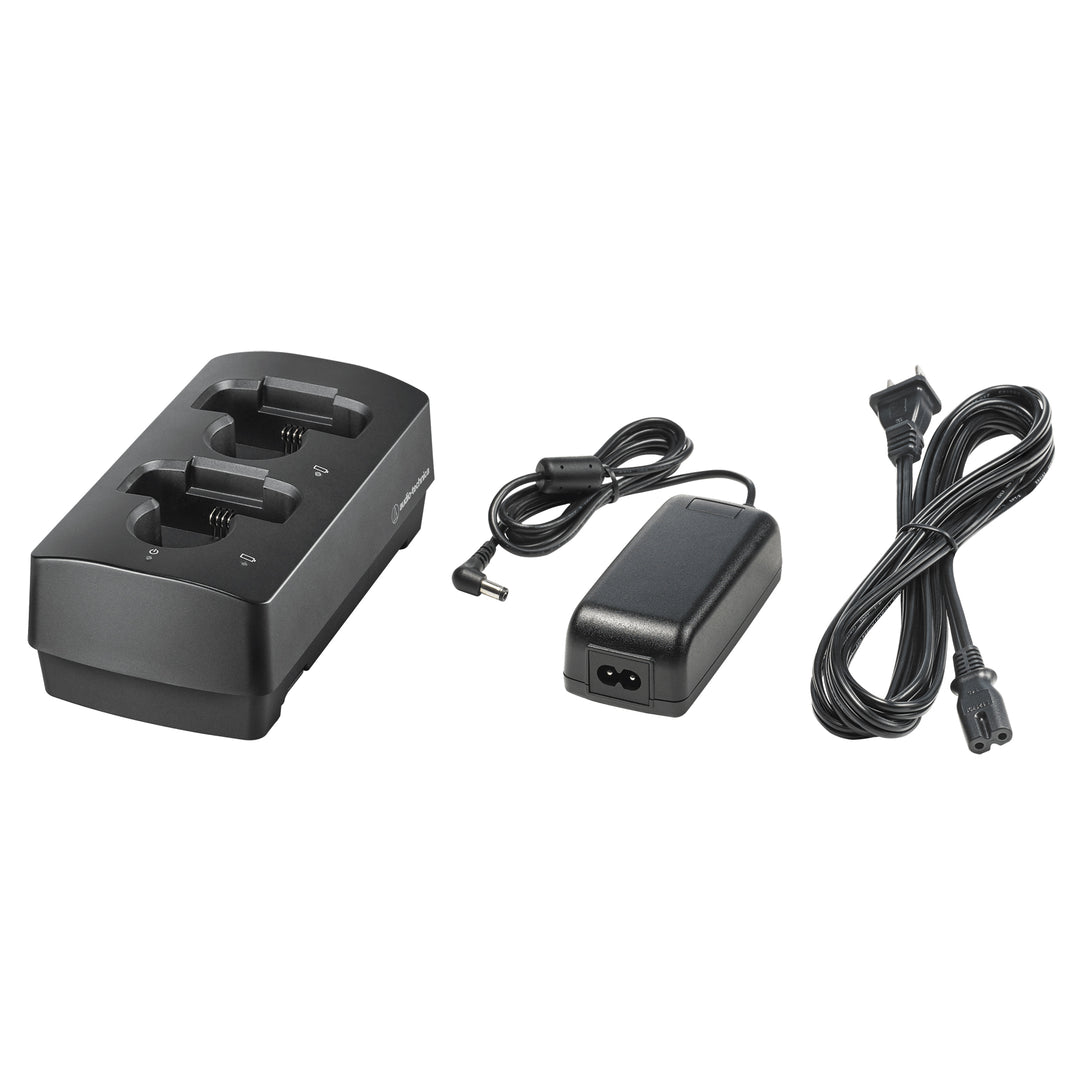

Audio-Technica ATW-CHG3NAD Networked Two-Bay Charging Station with AC Adapter (3000 Series)
ATW-CHG3NAD
Payment plans from Affirm, learn more
- Audio-Technica
- Shipping Calculated at checkout, most in stock products ship same day
The ATW-CHG3NAD bundles the ATW-CHG3N networked two-bay charging station with the AD-SA1230XA AC adapter.
The charging station works with 3000 Series (fourth generation) handheld (ATW-T3202) and body-pack (ATW-T3201) transmitters, charging NiMH batteries (not included) while they are housed within the transmitters. The station will automatically shut off if alkaline or damaged batteries are detected. Once fully charged, a maintenance charging function ensures that batteries retain their full power for as long as the transmitter remains in the charging station. The ATW-CHG3N is equipped with power and charging status indicator LEDs for easy monitoring.
Specifications:
Power Requirements: 12V DC 3.0 A
Charging Output: 3.6V DC 500 mA (x2)
Power Consumption:
- 5.3 W (when 2 transmitters are charging)
- 27.8 W (when CHG3N and four CHG3 units are connected and 10 transmitters are charging)
Charging Time: Approx. 6.5 hours (1,900 mAh rechargeable battery)
Depending on battery type and use pattern
Operating Temperature Range: 0° C to 40° C (32° F to 104° F)
Dimensions (charger only): 185 mm (7.28") x 99 mm (3.90") x 68.5 mm (2.70") (W x D x H)
Net Weight (charger only): 410 g (14.5 oz)
