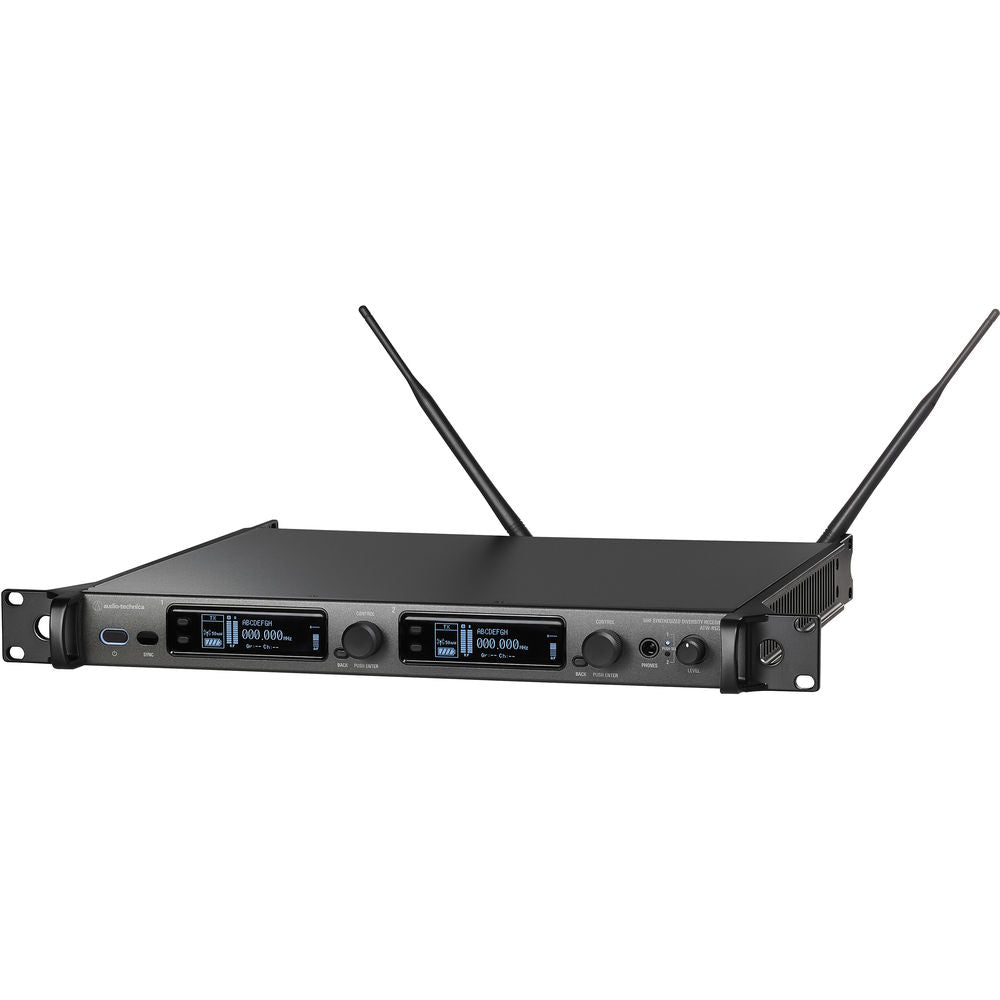

Audio-Technica ATW-R5220DF1 5000 Series 3rd Gen Dual Wireless Receiver (DF1: 470 to 608 MHz & 653 to 663 MHz)

Diversity dual receiver with Ethernet connection for 5000 Series (third generation) systems.

Specifications:

Overall System

• Operating Frequencies:  Band DF1: 470.125 to 607.875 MHz, 657.100 to 662.900 MHz (5511+233 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation:
  • ATW-T5201: ±40 kHz (THD:10%)
  • ATW-T5202: ±40 kHz (THD:10%)
• Frequency Response:
  • ATW-T5201: 23 Hz to 16,300 Hz
  • ATW-T5202: 33 Hz to 16,300 Hz
  • Frequency response depends on attached microphone element
• Operating Range: 100 m (328')
  Open range environment with no interfering signals.
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)

Handheld Transmitter

• RF Power Output:
  • High: 50 mW
  • Mid: 10 mW
  • Low: 2mW (switchable)
  • at 50 ohms (country dependent)
• Spurious Emissions: Following Federal and National Regulations
• Microphone Capsule: Interchangable industry standard thread
• Battery Type: Two 1.5V AA, not included
• Battery Life:
  • High: 6.5 hours
  • Med: 8 hours
  • Low: 9.5 hours (alkaline)
    Depending on battery type, usage and environmental conditions.
• Operating Temperature Range: -5º C to +40º C (23º F to 104º F)
• Dimensions:
  • ATW-T5202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
  • ATW-T5202/C510: 265mm (10.43") long, 54 mm (2.13") maximum diameter
  • ATW-T5202/C710: 271mm (10.67") long, 50 mm (1.97") maximum diameter
• Net Weight:
  • ATW-T5202 (without capsule): 200g (7.1oz)
  • ATW-T5202/C510: 330g (11.6oz)
  • ATW-T5202/C710: 314g (11.1oz) (without batteries)
• Accessories Included:
  • AT8456a Quiet-Flex™ stand clamp (5/8""-27 male to 3/8""-16 female threaded screw adapter)
  • AT-BG3 Protective Carrying Case

Body Pack

• RF Power Output:
  • High: 50 mW
  • Med: 10 mW
  • Low: 2mW (switchable)
  • at 50 ohms (country dependent)
• Battery Life:
  • High: 7 hours
  • Med: 9 hours
  • Low: 10.5 hours (alkaline)
  • Depending on battery type, usage and environmental conditions.
• Battery Type: Two 1.5V AA, not included
• Dimensions:
  • 62 mm x 70 mm x 17 mm (W x D x H)
  • 2.44" x 2.75" x 0.67" (W x D x H)
• Input Connections: Four Pin Locking Connector
  • Pin 1: GND
  • Pin 2: INST INPUT
  • Pin 3: MIC INPUT
  • Pin 4: DC BIAS +5V
• Net Weight: 92 g (3.2 oz), without batteries
• Spurious Emissions: Following Federal and National Regulations
• High-pass (low-freq. roll-off): 80Hz, 12dB/octave
• Operating Temperature Range: -5º C to +45º C (23º F to 113º F)
• Accessory Included: AT-BG3 Protective Carrying Case

Receiver

• Receiving System: True Diversity
• Image Rejection: 80 dB nominal
• RF Sensitivity: 18 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Maximum Output Level: XLR, balanced: +18 dBV
• Headphone Output:
  • Headphone Output Connector: 6.3 mm (1/4") TRS Stereo
  • Headphone Output Power: 180 mW, typical
• Antenna Input: BNC-type, 50 ohms
• Antenna Power: 12 V DC, 150 mA x 2
• Power Supply: 100-240VAC 50/60Hz
• Operating Temperature Range: -5º C to +45º C (23º F to 113º F)
• Dimensions:
  • 482.0 mm x 361.0 mm x 43.0 mm (W x D x H)
    18.98" x 14.21" x 1.69" (W x D x H)
• Weight: 4800 g (169.3 oz), without accessories
• Accessories Included:
  • Two Flexible UHF antennas
  • Power Cable (country dependent)
  • Legs x4 (4 mounting screws)
