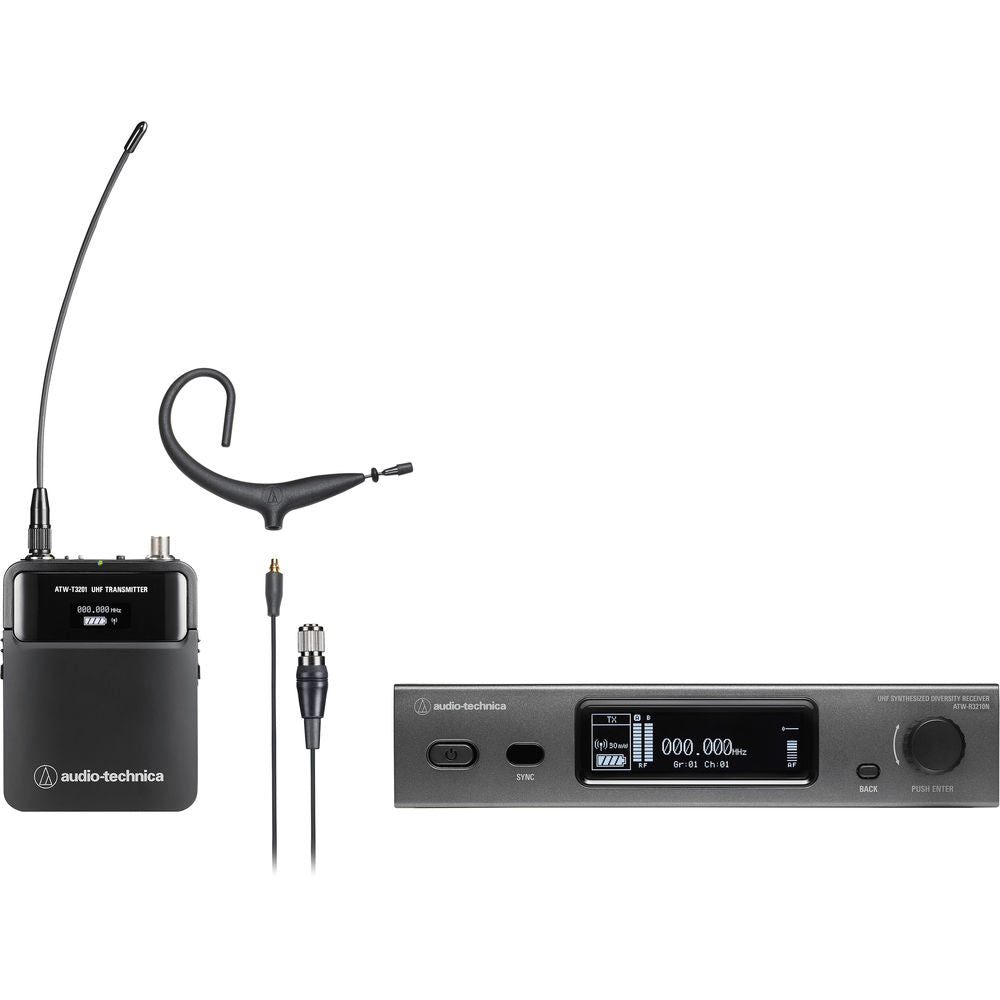

Audio-Technica ATW3211N 3000 Series Network Wireless System 530-590 MHz - BP893xcH Headworn Microphone (Black)

ATW-R3210N network-enabled receiver and ATW-T3201 body-pack transmitter with BP893xcH MicroEarset omnidirectional condenser headworn microphone. Includes element covers, windscreens, clothing clip, and dual-ear adapter kit.

Specifications:

Overall System

• Operating Frequencies: Band EE1: 530.000 to 589.975 MHz (2400 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation
  • ATW-T3201: ±38 kHz (THD:10%)
  • ATW-T3202: ±36 kHz (THD:10%)
• Frequency Response:
  • ATW-T3201: 31 Hz to 15,500 Hz
  • ATW-T3202: 25 Hz to 16,700 Hz
  • Frequency response depends on attached microphone element
• Operating Range: 100 m (328')
  Open range environment with no interfering signals.
• Total Harmonic Distortion: <1.0% (at 1 kHz, ±17.5 kHz deviation)
• Operating Temperature Range: -5° C to +45° C (23° F to 113° F)
• Simultaneous Use: 40 Channels per band

Handheld Transmitter

• RF Power Output:
  • High: 30 mW
  • Low: 10 mW (switchable)
  • at 50 ohms
• Spurious Emissions: Following Federal and National Regulations
• Microphone Capsule: Interchangable industry standard thread
• Battery Type: Two 1.5V AA, not included
• Battery Life:
  • High: 8.0 hours (alkaline)
  • Low: 9.0 hours (alkaline)
  • High: 9.0 hours (Ni-MH 1900mAh)
  • Low: 9.5 hours (Ni-MH 1900mAh)
  • Depending on battery type, usage, and environmental conditions.
• Dimensions:
  • ATW-T3202 (without capsule): 193 mm (7.60") long, 37 mm (1.46") maximum diameter
  • ATW-T3202/C510: 265 mm (10.43") long, 54 mm (2.13") maximum diameter
  • ATW-T3202/C710: 271 mm (10.67") long, 50 mm (1.97") maximum diameter
• Net Weight:
  • ATW-T3202 (without capsule): 200 g (7.1 oz), without batteries
  • ATW-T3202/C510: 330 g (11.6 oz), without batteries
  • ATW-T3202/C710: 314 g (11.1 oz), without batteries

Body Pack

• RF Power Output:
  • High: 30 mW
  • Low: 10 mW (switchable)
  • at 50 ohms
• Battery Life:
  • High: 8.0 hours (alkaline)
  • Low: 9.0 hours (alkaline)
  • High: 9.0 hours (Ni-MH 1900mAh)
  • Low: 9.5 hours (Ni-MH 1900mAh)
  • Depending on battery type, usage, and environmental conditions.
• Battery Type: Two 1.5V AA, not included
• Dimensions: 64 mm x 82 mm x 23 mm (W x D x H) 2.52" x 3.22" x 0.91" (W x D x H)
• Input Connections: cH-style screw-down 4-pin connector
  • Pin 1: GND
  • Pin 2: INST INPUT
  • Pin 3: MIC INPUT
  • Pin 4: DC BIAS +5V
• Net Weight: 102 g (3.6 oz), without batteries
• Spurious Emissions: Following Federal and National Regulations
• High-pass (low-freq. roll-off): 125Hz, 12dB/octave

Receiver

• Receiving System: True Diversity
• Image Rejection: 60 dB nominal
• RF Sensitivity: 20 dBuV at 60 dBA S/N ratio (50 ohms termination)
• Maximum Output Level:
  • XLR, balanced: +14 dBV
    6.3 mm (1/4")
  • unbalanced: +8 dBV
• Antenna Input: BNC-type, 50 ohms
• Antenna Power: 12 V DC, 160 mA (combined)
• Power Supply: 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
• Dimensions: 210.0 mm x 191.0 mm x 43.4 mm (W x D x H) 8.27" x 7.52" x 1.71" (W x D x H)
• Weight: 1100 g (38.8 oz), without accessories
