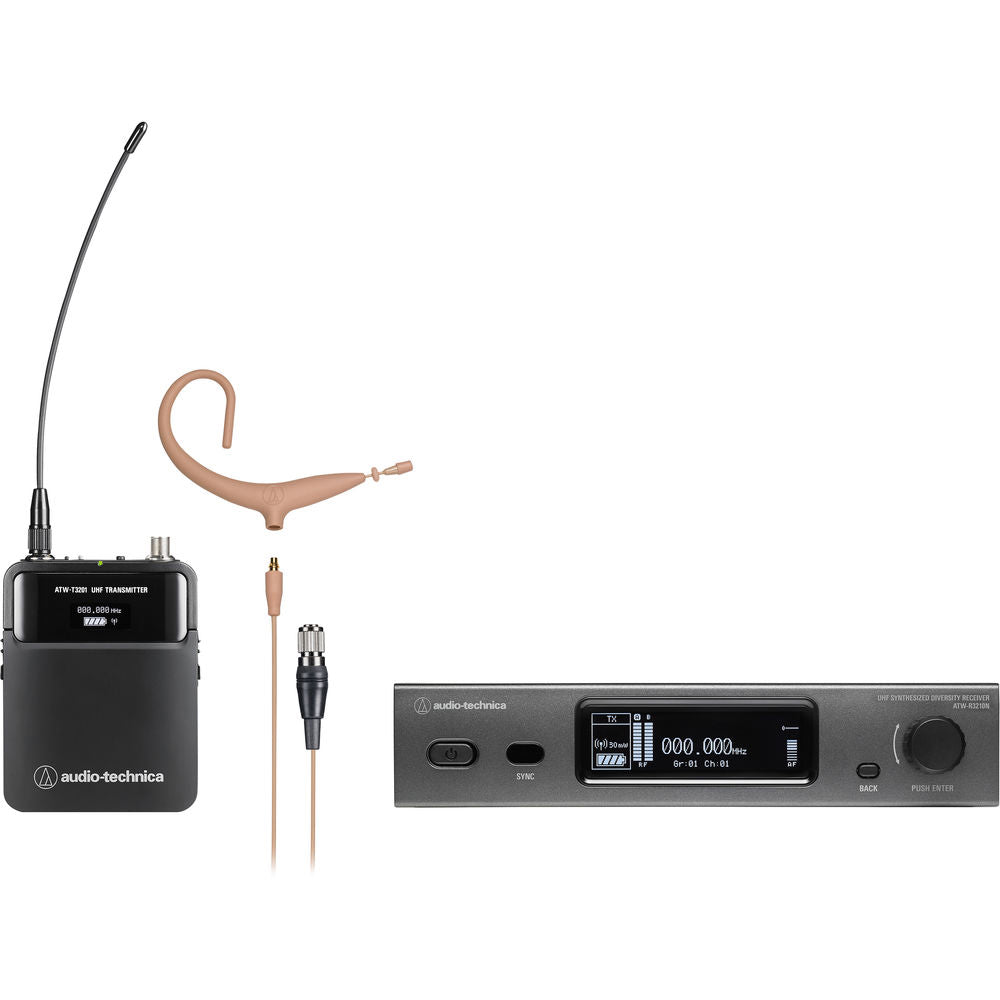

Audio-Technica ATW3211N 3000 Series Network Wireless System 470-530 MHz - BP893xcH Headworn Microphone (Beige)

The Audio-Technica ATW-3211N/893xTH is a 3000 Series (4th generation) network-enabled rackmount wireless earset microphone system with professional-level features for enhanced reliability and control. It offers Ethernet networking for quick multichannel setups and an intuitive interface with a dual-mode OLED display for easy operation. With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, theaters, or on musical stages.

The ATW-3211N/893xTH includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, great for rackmounting in portable flight cases or permanent installations. The receiver's auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter's multifunction button in the event of unexpected interference.

This system comes with a beige BP893xcH-TH omnidirectional MicroEarset mic that's lightweight and comfortable to wear. Featuring a miniature boom that extends just beyond the bottom of your ear, the microphone is discreet, stable, and easy to place over either ear. The 55" detachable cable is field-replaceable. The bodypack transmitter is equipped with a rugged metal housing and a proprietary Hirose 4-pin cH-style screw-down connector for secure connection. The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330'.

The Ethernet connection on the receiver allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Audio-Technica's Wireless Manager Software (WMS). Up to 40 mic channels can operate simultaneously in each frequency band.

Specifications:

Wireless Technology: Analog UHF

Included Transmitters: 1x Bodypack

Diversity: Yes, True Diversity

Max Operating Range: 328.1' / 100m

Reciever Type: Table Top

Microphone Type: Earset

Polar Pattern: Omnidirectional

Number of RF Channel Frequencies: 2395

RF Frequency Band: DE2 470 to 529.975 MHz

RF Bandwidth: 60MHz

Frequency Step Size: 25 kHz

RF Channel Scanning: Auto-Scan

Max Operating Range: 328.1' / 100m

Max Transmitters per Band: 40

Dynamic Range:

• Mic Input: 115dB
• Instrument Input: 112dB

Deviation: +/- 38kHz

Modulation: FM

Reciever

• Type: Table Top
• Mounting: Rackmount (with Included Hardware)
• Rack mount Size: 1U (1/2 Rack)
• Antenna: 2x Detachable BNC External (Rear-Mount)
• Number of AUdio Channels: 1
• Audio I/O: 1x XLR 3-Pin Male Balanced Output
• Gain Range: -60dB to 0db (2dB steps)
• Audio (XLR) Output Level: 14dBV
• Frequency Response: 31Hz to 15.5kHz Dependant on Mic)
• Network I/O: 1x RJ-45
• Power Requirements: AC/DC Power Adaptor, 12 VDC at 1A, Canter-Positive (Included)
• Input Power: 100 to 240 VAC, 50 / 60 Hz
• Display and Indiccators: 1x Backlit OLED (AF Level, Channel, Mute, RF Level, Transmitter Battery)
• Dimensions: 8.3 x 1.7 x 7.5" / 210 x 43.4 x 191 mm
• Weight: 38.8 oz / 1100 g

Transmitter

• Type: Bodypack
• RF Output Power: 10 / 30 mW (Selectable)
• Audio I/O: 1x Hirose sH-Style 4-Pin Male Input (Locking)
• Muting: Mute Switch
• Gain Range: -10 to +20 dB (2dB Steps)
• Sync Method: IR
• Antenna: 1x Detachable Flexible Whip (Beltpack)
• Power Requeirements: 2x AA batteries (Not Included)
• Transmitter Battery Life:
  • Low: 9 hours (Alkaline)
  • High: 8 hours (Alkaline)
  • Low: 9.5 hours (NiMH Rachargeable)
  • High: 9 hours (NiMH Rechargeable)
• Display and Indicators: 1x Backlit OLED (Battery Status, High-Pass Filter, Mute, RF Output Power)
• Housing: Metal
• Dimensions: 2.5 x 0.9 x 3.2" / 64 x 23 x 82 mm
• Weight: 3.6 oz / 102 g (without Batteries)

Microphone

• Type: Earset
• Colour: Beige
• Soud Field: Mono
• Capsule: Electret Condenser
• Polar Pattern: Omnidirectional
• Frequency Range: 20Hz to 20kHz
• SNR: 63dB
• Maximum SPL: 131 dB SPL
• Dynamic Range: 100dB
• Output Connector: 1x Hirose cH-Style 4-Pin Female (Locking)
• Cable Length: 55.2" / 1.4m
• Operating Voltage: 2.5 to 10 V
• Dimensions (LxW): 0.37" x 0.10" / 9.5mm x 2.6mm
• Weight: 00.7oz / 2g
