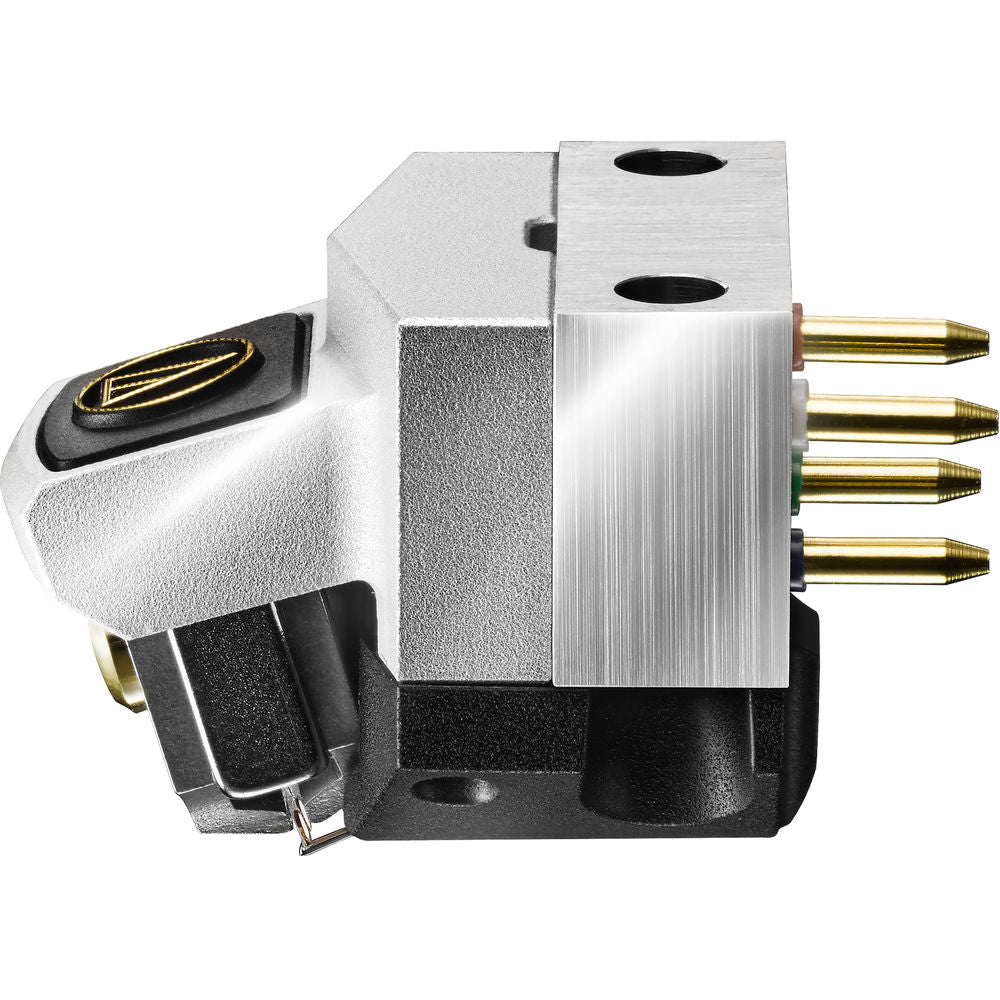

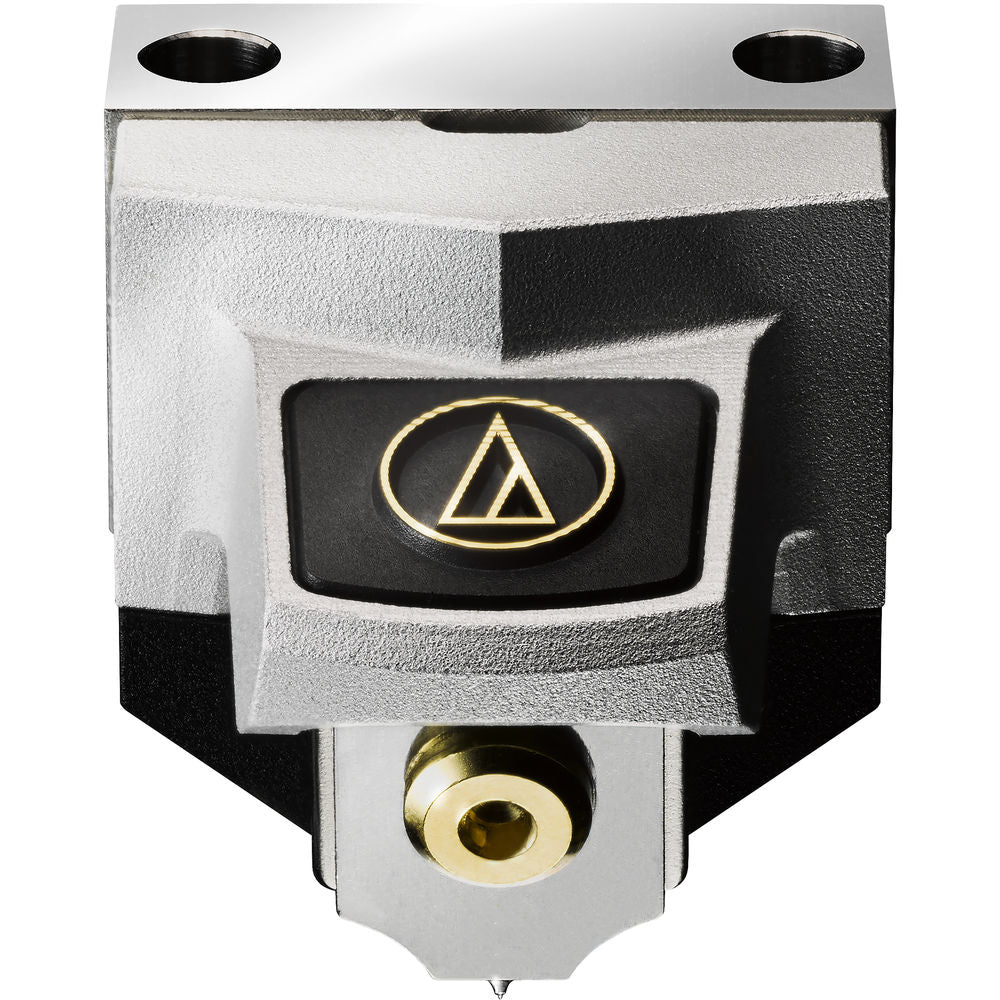

Overview of Audio-Technica Consumer AT-ART1000 Direct Power Stereo MC Cartridge
The AT-ART1000 (“ART” for Audio-Technica Reference Transducer) is Audio-Technica’s new flagship phono cartridge, handmade in Japan. Born of the pursuit of audio excellence that has driven A-T for more than 50 years, the AT-ART1000 introduces an innovative, audiophile design heretofore unseen in mass-produced cartridges.
Features
Innovative direct power system delivers unsurpassed transient response, resulting in reproduction of even the most subtle sonic details
Special line contact stylus and solid boron cantilever with a 0.26 mm diameter ensure an extremely accurate reading of the record groove
Non-magnetic core coils provide exquisite, full-dimensional audio reproduction
Powerful neodymium magnet and exclusive magnetic circuit with a miniscule 0.6 mm magnetic gap provide remarkably efficient power generation
Magnetic circuit’s titanium base works in combination with the cartridge’s hard plastic cover and aluminum housing to disperse unwanted resonance
PCOCC (Pure Copper by Ohno Continuous Casting) coil enables pure signal transfer
Specifications:
Frequency Response: 15-30,000 Hz
Channel Separation: 30 dB (1 kHz)
Vertical Tracking Angle: 21 degrees
Vertical Tracking Force: Specified for each individual cartridge (refer to “Tracking force information” included with the cartridge)

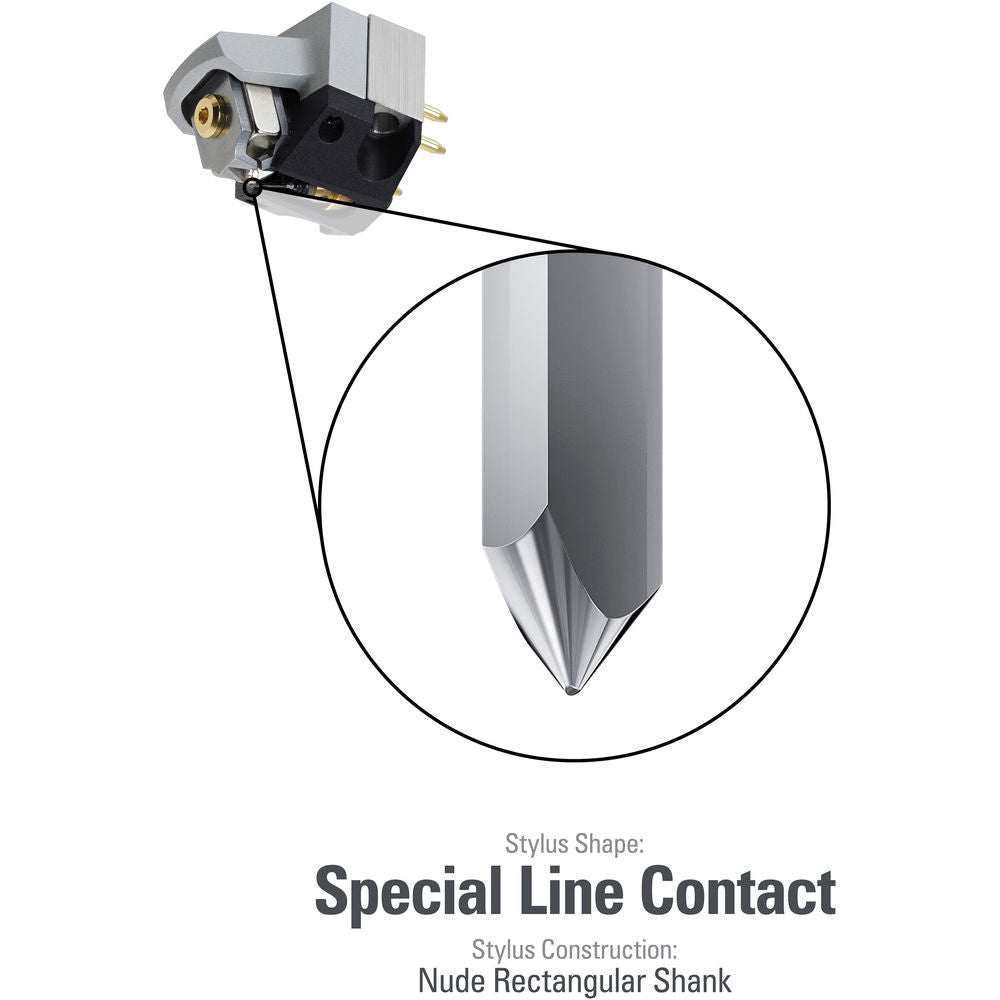

Stylus Construction: Nude Rectangular Shank
Recommended Load Impedance: Min. 30 ohms (when head amplifier is connected)
Coil Impedance: 3 ohms (1 kHz)
DC Resistance: 3 ohms
Coil Inductance: 1 μH (1 kHz)
Output Voltage: 0.2 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance: 0.5 dB (1 kHz)
Stylus Shape: Special Line contact
Cantilever: 0.26 mm diameter solid boron
Static Compliance: 30 x 10 – 6 cm / dyne
Dynamic Compliance: 12 x 10 – 6 cm / dyne (100 Hz)
Mounting: Half-inch
Dimensions: 17.3 (H) x 17 (W) x 25.5 (L) mm

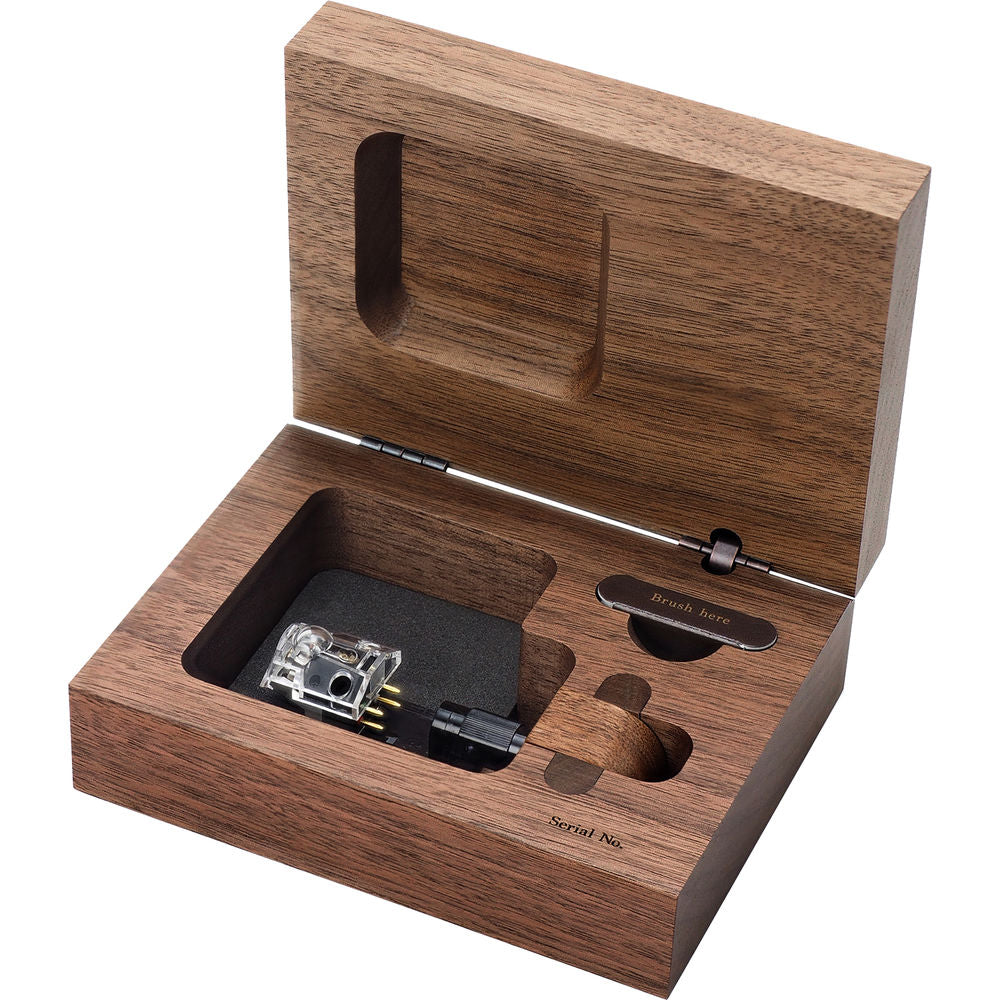

Accessories Included:
- Non-magnetic screwdriver
- washer (× 2)
- protector
- nut (× 2)
- cartridge installation screws (12 mm × 2, 18 mm × 2)
- brush
- PCOCC lead wire set
Body Material: Aluminum/Titanium
Mounting Feature: Half-inch mount
Stylus Curvature Radius: 1.5 x 0.28 mil
Terminal Pins: Brass
Type: Direct Power System
Weight: 11 g
Wire Used for Coil: 20 μm Ø PCOCC
