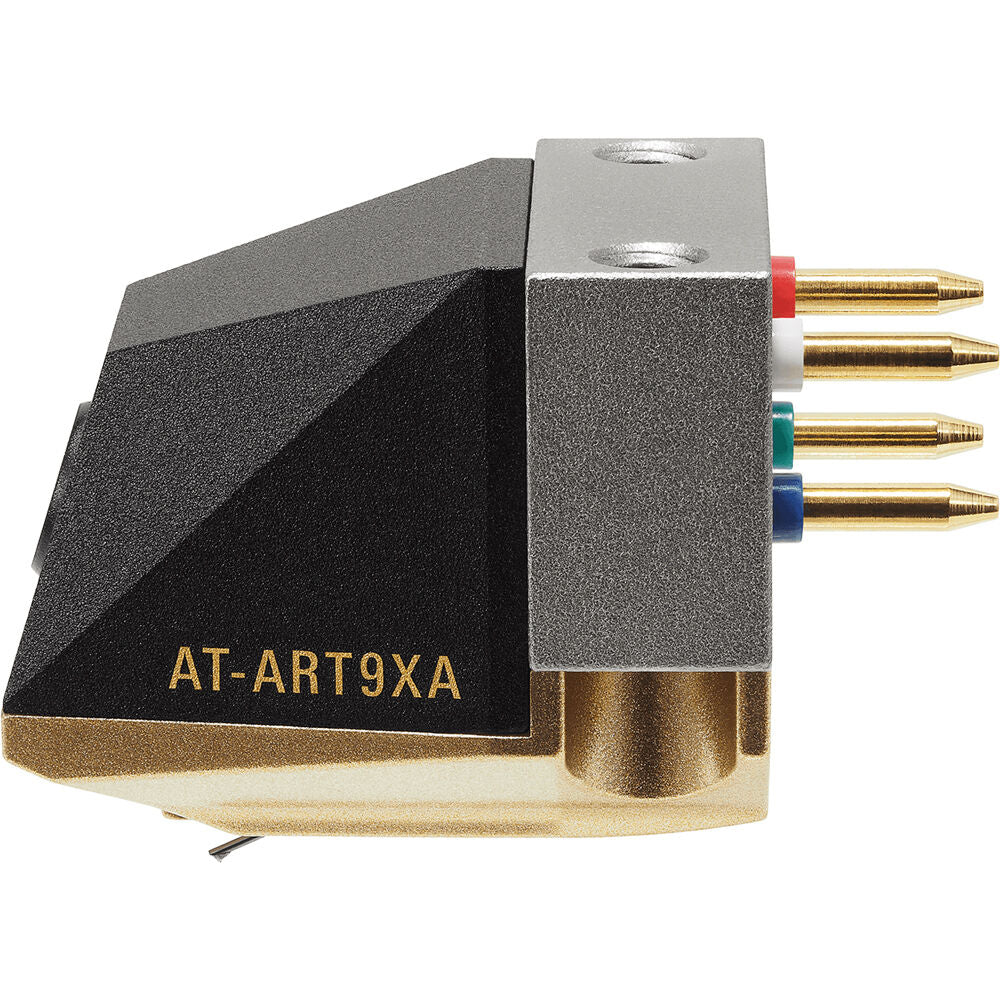

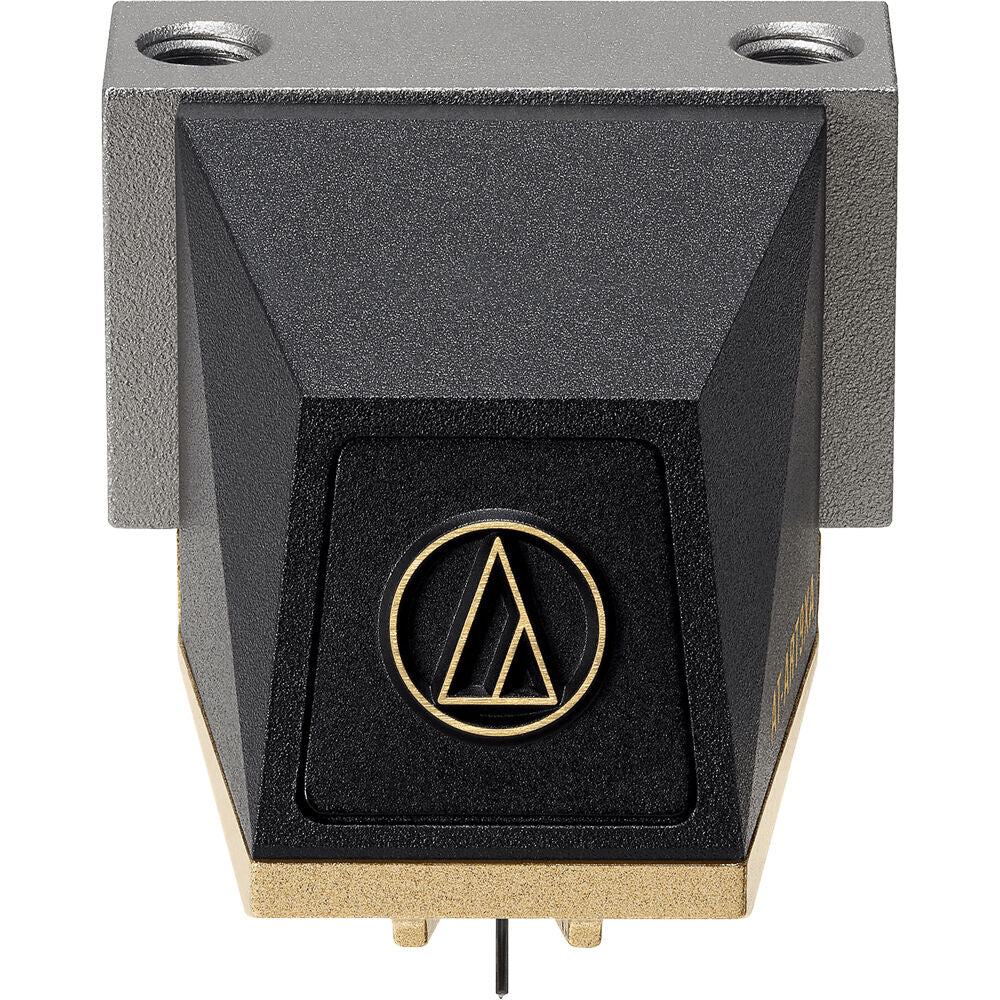

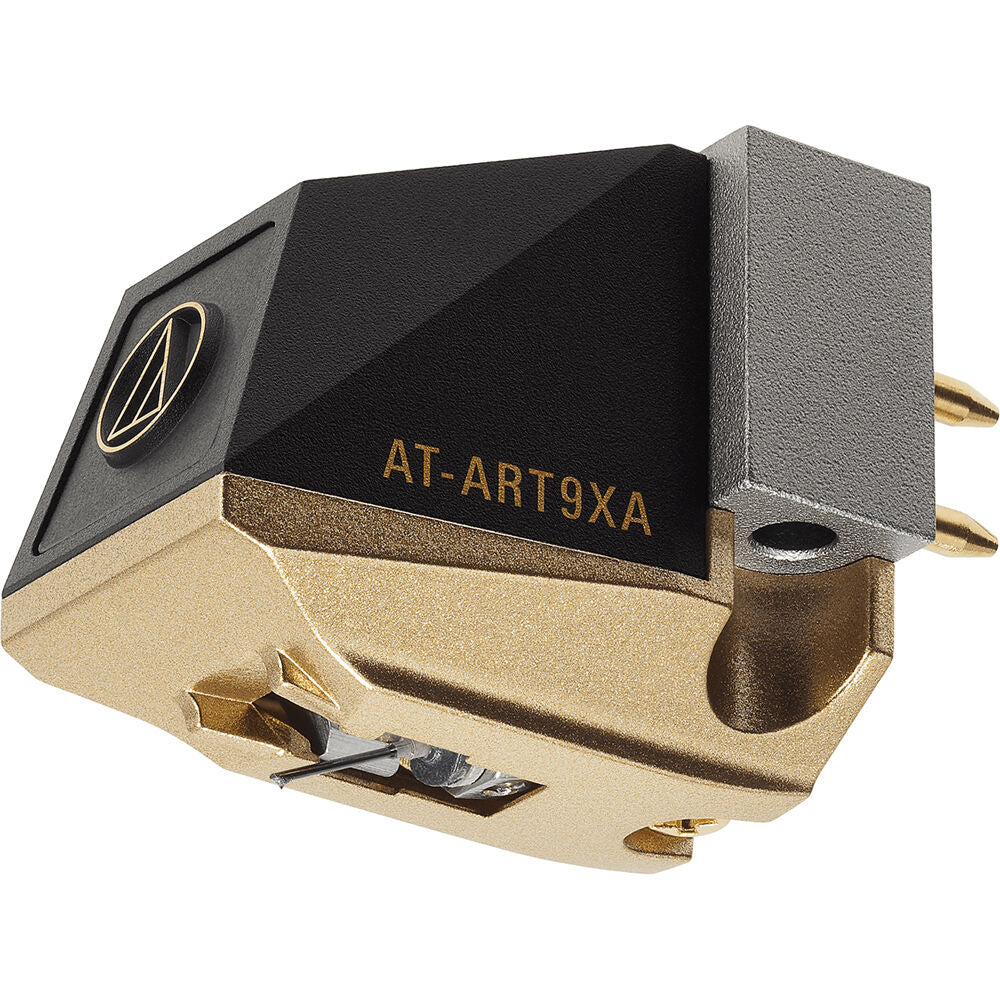

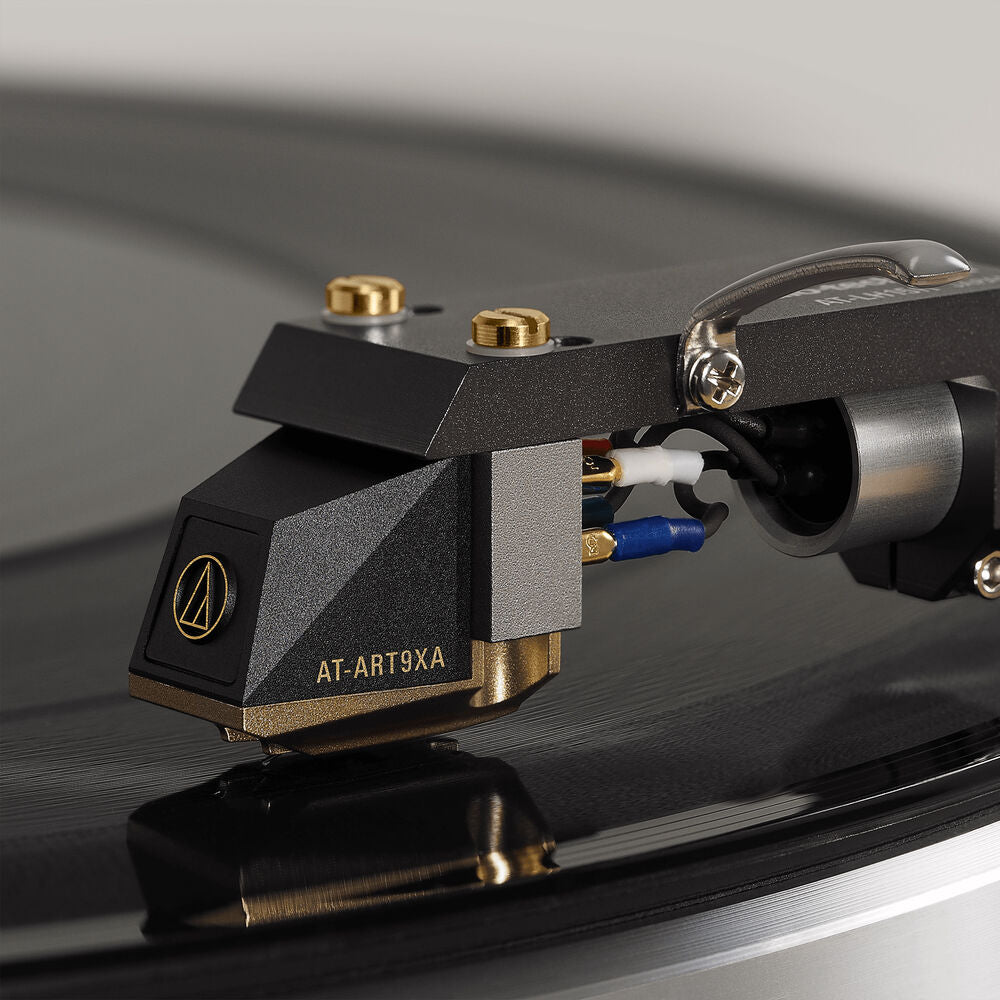

Audio-Technica Consumer AT-ART9XA Nonmagnetic-Core Dual-Moving-Coil Cartridge
AT-ART9XA
Payment plans from Affirm, learn more
- Audio-Technica
- Shipping Calculated at checkout, most in stock products ship same day
An update of the AT-ART7, the AT-ART9XA non-magnetic core MC cartridge features a Shibata stylus on a 0.28 mm diameter solid boron cantilever.
The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. Compared with the magnetic core used in most MC cartridges, non-magnetic core cartridges are free from magnetic distortion, allowing for natural timbre and a precise sound field.
Designated as an Audio-Technica Excellence Product, a recognition that identifies products that meet the highest standards of high-fidelity performance.
Although conventional non-magnetic cores struggle with output voltage, the AT-ART9XA features a newly designed coil armature with an improved output voltage of 0.2 mV (1 kHz, 5 cm/sec). The dual moving coils (fashioned from high-performance PCOCC wire) are aligned in an inverted V shape to provide high separation and wide response. Threaded cartridge mounting holes make installation to a headshell or integrated tonearm incredibly easy.
Specifications:
Frequency Response: 20 - 50,000 Hz
Channel Seperation: 30 (dB at 1kHz)
Vertical Tracking Angle: 20°
Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)
Stylus Construction: Nude
