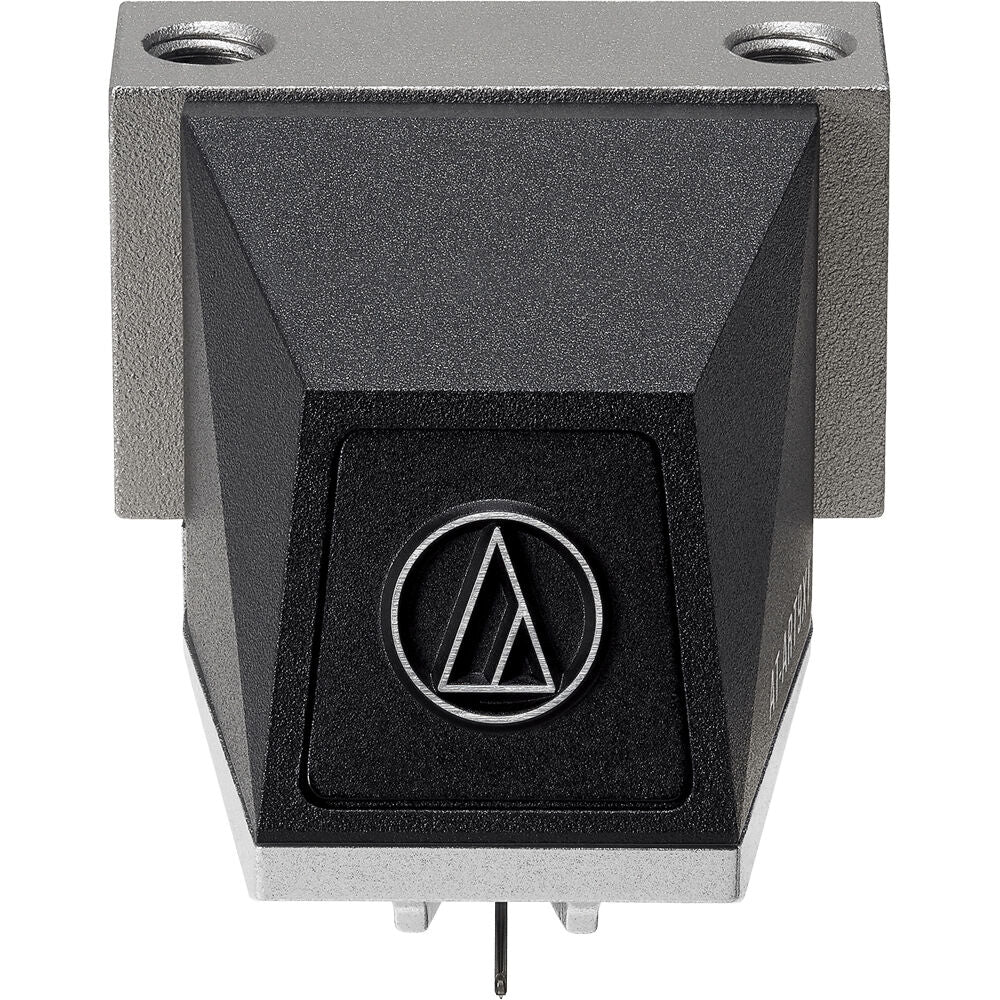

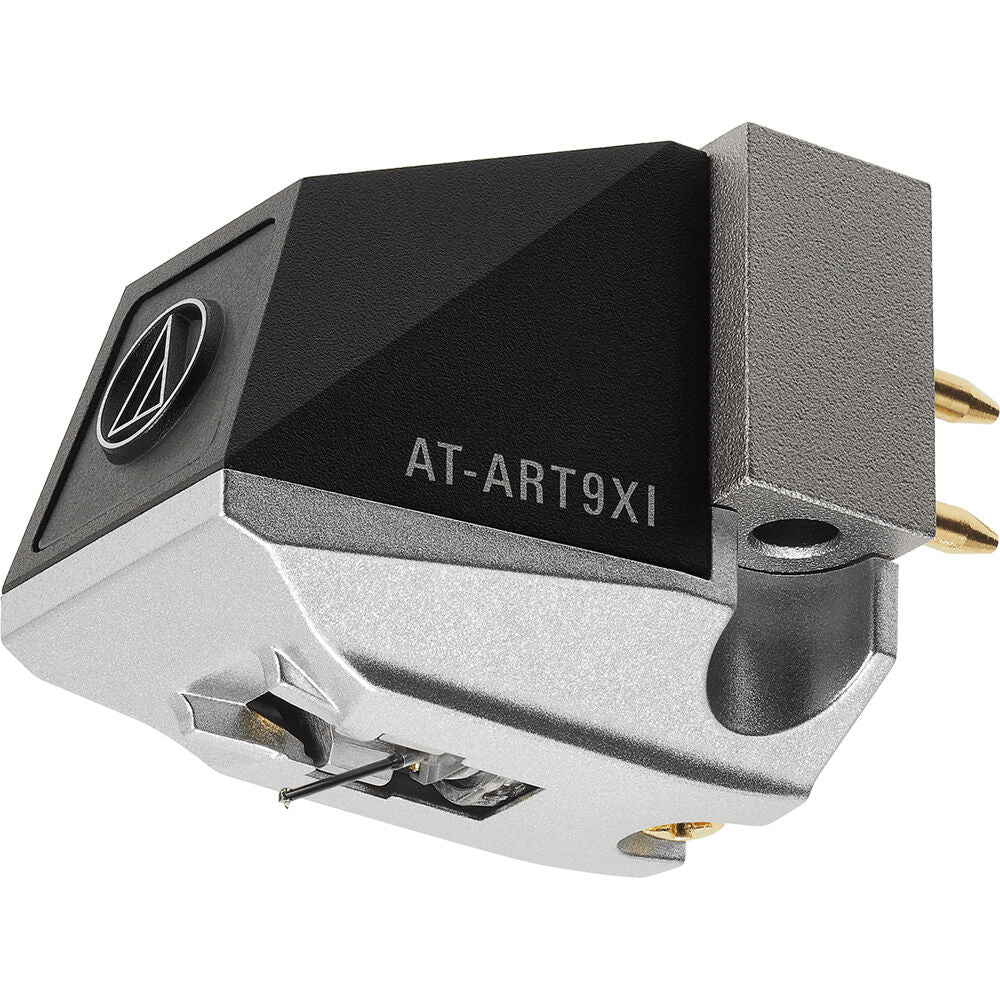

Audio-Technica Consumer AT-ART9XI Magnetic-Core Dual-Moving-Coil Cartridge

Featuring a special line contact stylus on a 0.28 mm diameter solid boron cantilever, the AT-ART9XI replaces the AT-ART9 as Audio-Technica’s flagship magnetic core MC cartridge.

The “ART” in the model number stands for Audio-Technica Reference Transducer, a designation that we give only to our flagship phono cartridges. The specially designed magnetic circuit boasts an output voltage of 0.5 mV (1 kHz, 5 cm/sec), making the cartridge easy to use and capable of reproducing even the most delicate expressions, while also ensuring dynamic playback.

Features:

• Audio-Technica’s flagship magnetic core moving coil cartridge


• Dual moving coils are aligned in an inverted V shape, providing high separation and wide response for clear sound localization and minimal distortion


• Special line contact stylus ensures faithful reproduction of the music signal, and the 0.28 mm diameter solid boron cantilever provides excellent response characteristics


• Neodymium magnet and permendur yoke significantly increase magnetic energy


• Specially designed magnetic circuit provides an output voltage of 0.5 mV (1 kHz, 5 cm/sec)


• PCOCC coils ensure high-fidelity transmission


• Machined aluminum base supports both the magnetic circuit and the vibration system, ensuring excellent playback stability


• Hybrid body of machined aluminum and high-rigidity plastic reduces undesirable parasitic resonance

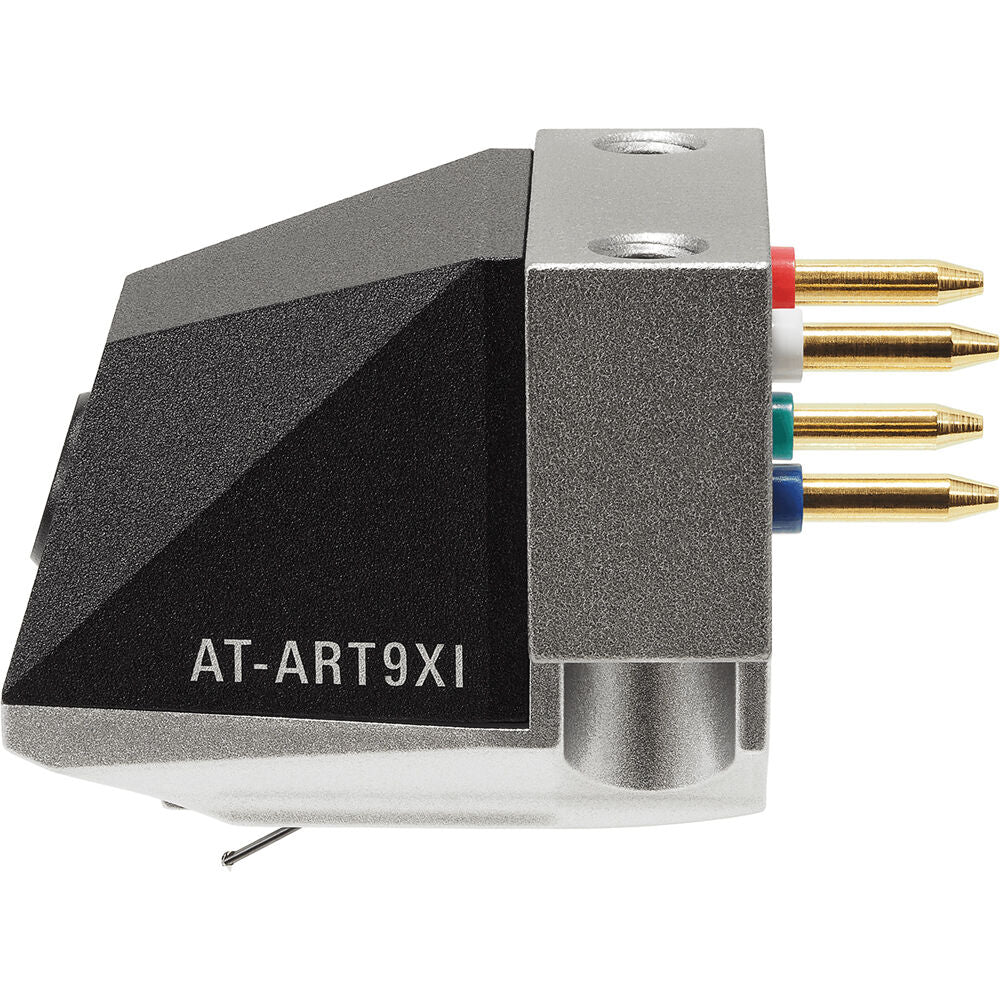

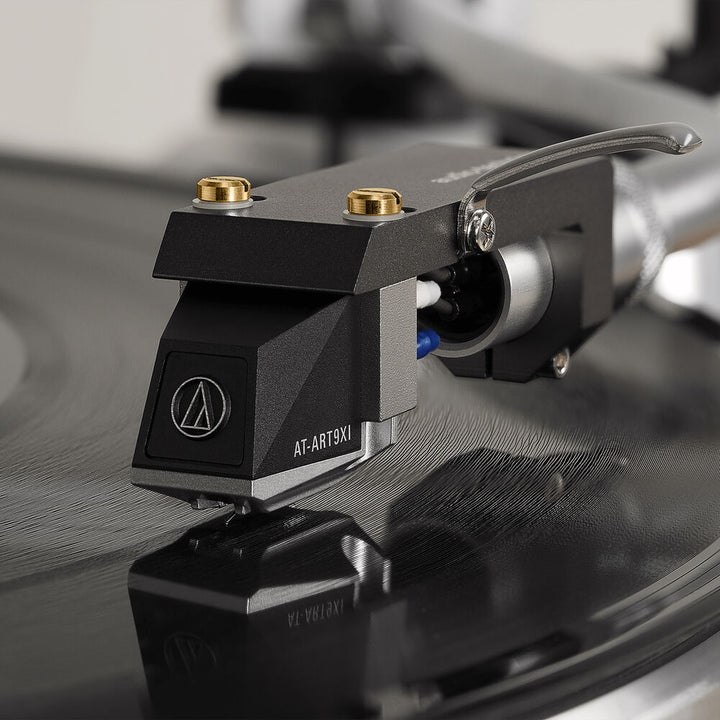

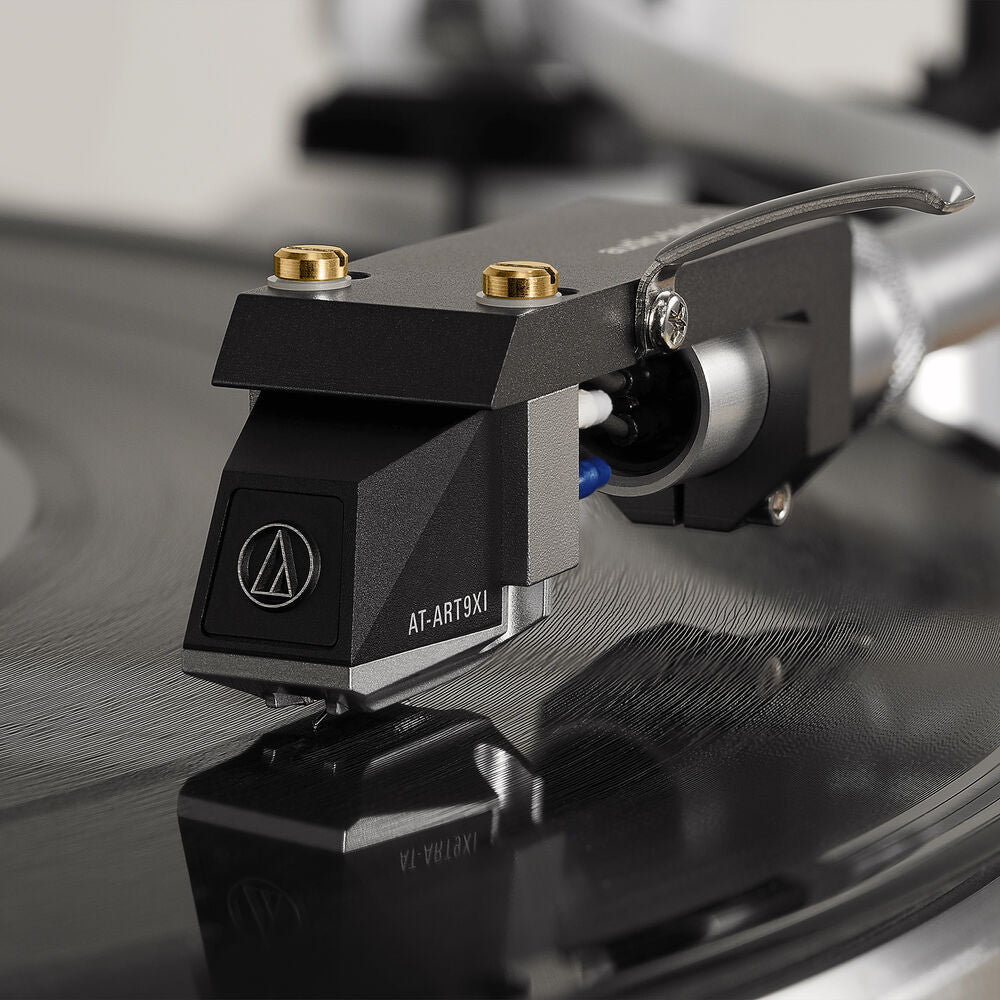

• Threaded cartridge mounting holes allow easy installation to a headshell or integrated tonearm

Specifications:

Frequency Response: 20-50,000 Hz

Channel Seperation: 30 (dB at 1kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 1.6-2.0 g (1.8 g standard)

Stylus Construction: Nude

Recomended Load Impedance: Min. 100 ohms (when head amplifier connected)

Coil Impedance: 12 ohms (1kHz)

DC Resistance: 12 ohms

Coil Inductance: 25 µH (1 kHz)

Output Voltage: 0.5 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 0.5 dB (1kHz)

Stylus Shape: Special line contact

Cantilever: 0.28mm diameter solid boron

Static Compliance: 25 x 10-6 cm/dyne

Dynamic Compliance: 15 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Cartridge Weight 8.5g (0.30 oz)

Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.0 mm (0.98") D

Threaded Hole: M2.6 x 2
