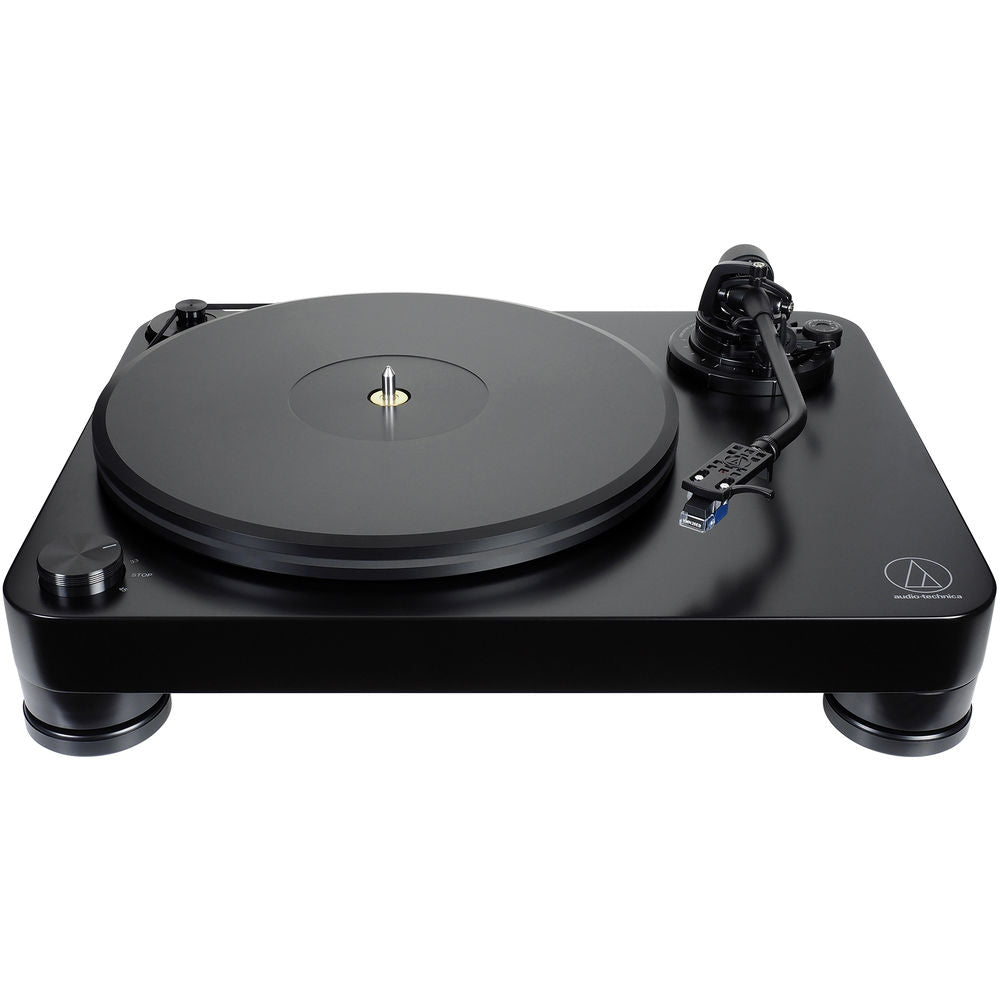

Audio-Technica Consumer AT-LP7 Stereo Turntable

Audio-Technica began in 1962 as a designer and manufacturer of high-end phonograph cartridges, bringing to the audio world the innovative Dual Moving Magnet stereo cartridge with its outstanding channel separation, extended frequency response and superb tracking.

The AT-LP7 builds on this heritage.

Features:

Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM

Motor features a speed-sensor system to maintain accurate platter rotation speed

VM520EB Dual Moving Magnet Cartridge provides outstanding channel separation and extended frequency response, and allows for easy replacement with any VM stylus

J-shaped tone arm features a metallic gimbal suspension system and precision bearings for excellent tracking

Built-in switchable phono pre-amplifier with selectable modes for moving magnet or moving coil cartridges

20 mm-thick, anti-resonance, polyoxymethylene platter

40 mm-thick MDF (medium density fiberboard) chassis

Lightweight AT-HS10 headshell

Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, and dust cover

Specifications:

Type: 2-speed, fully manual operation

Motor: DC motor

Drive Method: Belt drive

Speeds: 33-1/3 RPM, 45 RPM

Turntable Platter: Polyoxymethylene

Wow and Flutter: <0.08% WRMS (33 RPM) at 3 kHz

Signal-to-Noise Ratio: >60 dB

Output Level:

• Pre-amp “PHONO”: 4.5 mV nominal at 1 kHz, 5 cm/sec
• Pre-amp “LINE (MM)”: 280 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain:

• MM: 36 dB nominal
• RIAA equalized MC: 56 dB nominal
• RIAA equalized

Power Supply Requirements: 100 to 240 V AC, 50/60 Hz, 0.6 A max.

Dimensions(WxDxH): 450 x 352 x 157 mm / 17.72 x 13.86 x 6.18 inches

Weight: 8.3 kg (18.30 lbs.), without dust cover

Accessories Included:

• VM520EB Dual Moving Magnet stereo cartridge with replaceable stylus
• AT-HS10 lightweight headshell
• power cord
• dual RCA (male) to dual RCA (male) stereo cable
• 45 RPM adapter

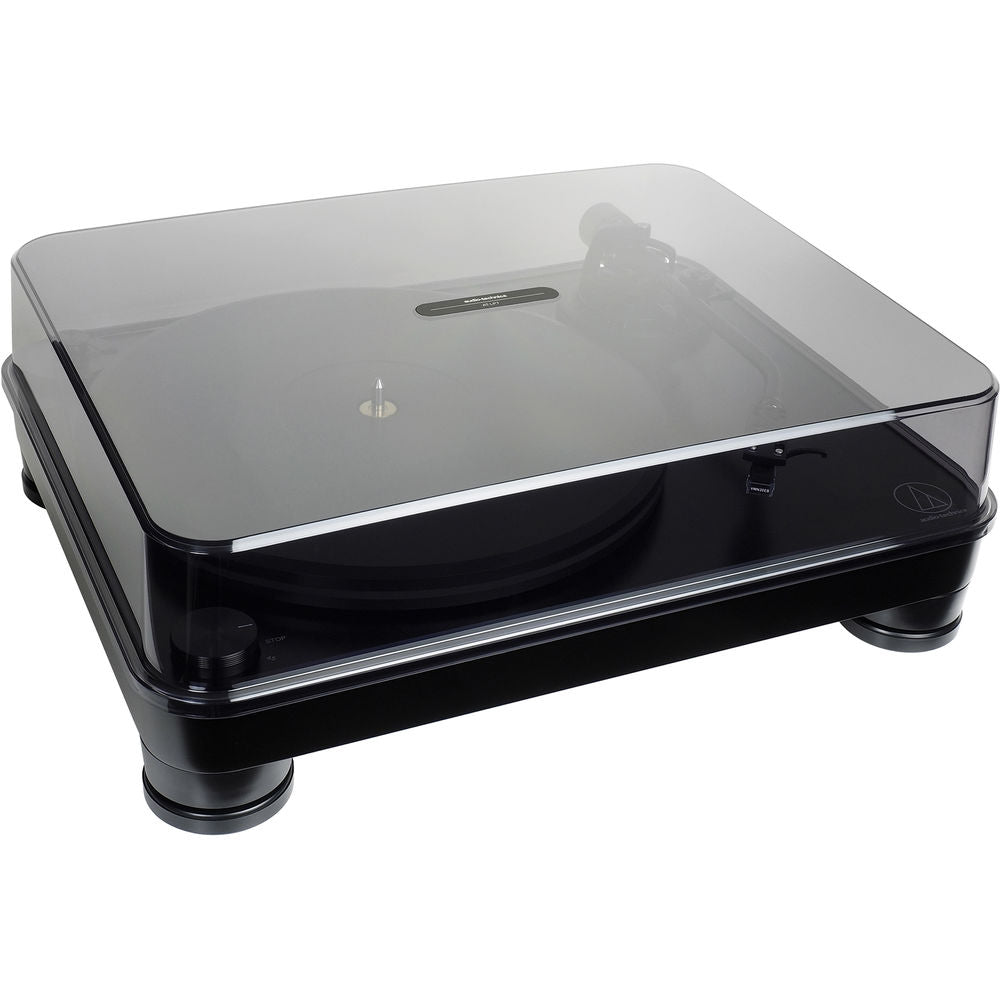

• dust cover

Replacement Cartridge: VM520EB
