Audio-Technica Consumer AT-OC9XEN Dual Moving Coil Cartridge - Elliptical Nude Stylus

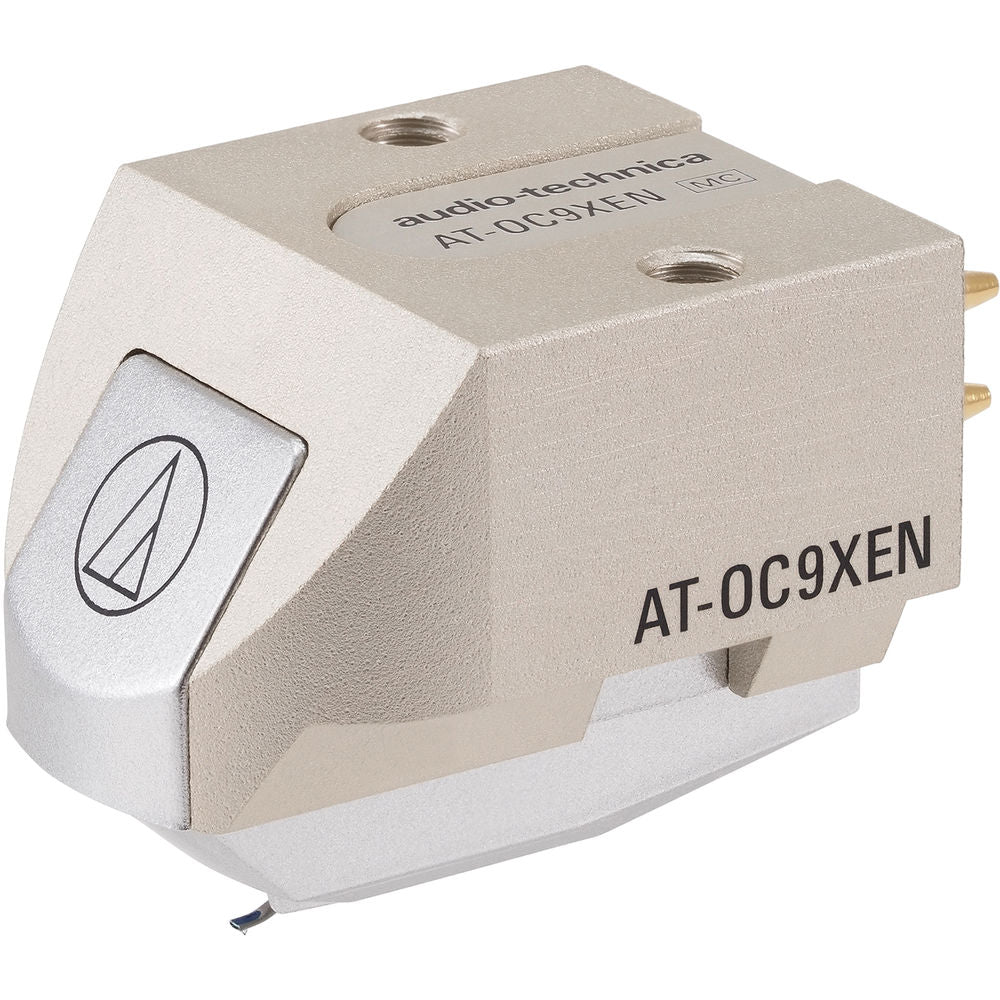

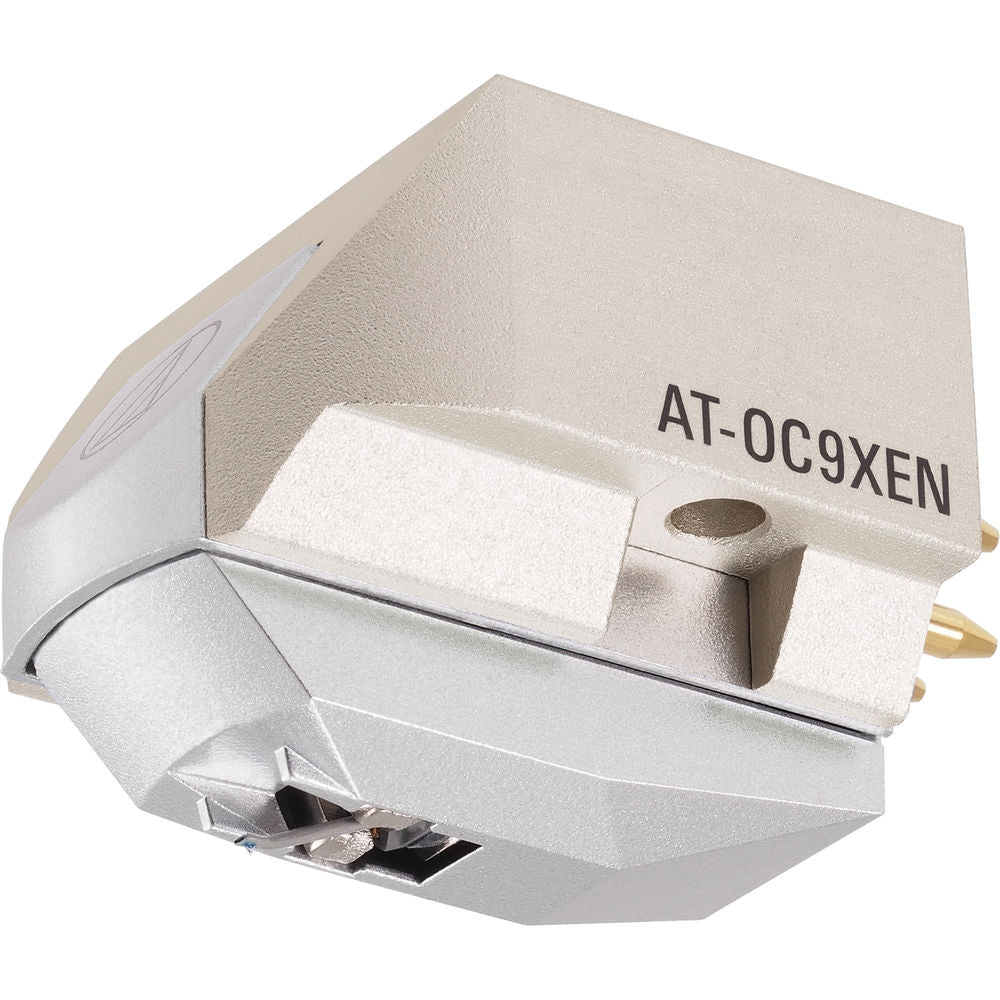

The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications:

Frequency Response: 20-30,000 Hz

Channel Separation: 25 dB (1 kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

Stylus Construction: Nude square shank

Recommended Load Impedance: Min. 100 ohms (when head amplifier is connected)

Coil Impedance: 12 ohms (1 kHz)

DC Resistance: 12 ohms

Coil Inductance: 25 mH (1 kHz)

Output Voltage: 0.35 mV (at 1 kHz, 5 cm/sec)

Output Channel Balance: 1.5 dB (1 kHz)

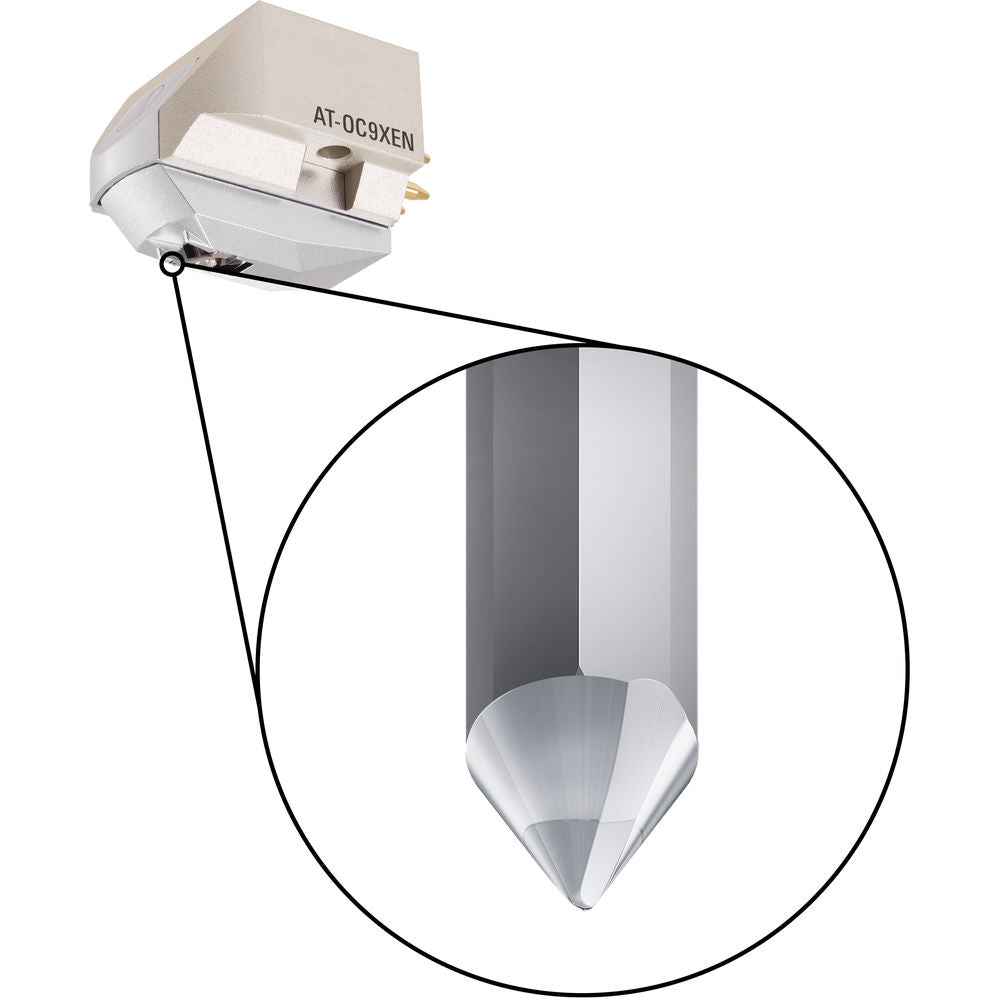

Stylus Shape: Elliptical nude

Cantilever: Aluminum pipe

Static Compliance: 20 x 10-6 cm/dyne

Dynamic Compliance: 9 x 10-6 cm/dyne (100 Hz)

Mounting: Half-inch

Cartridge Weight: 7.6 g

Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D

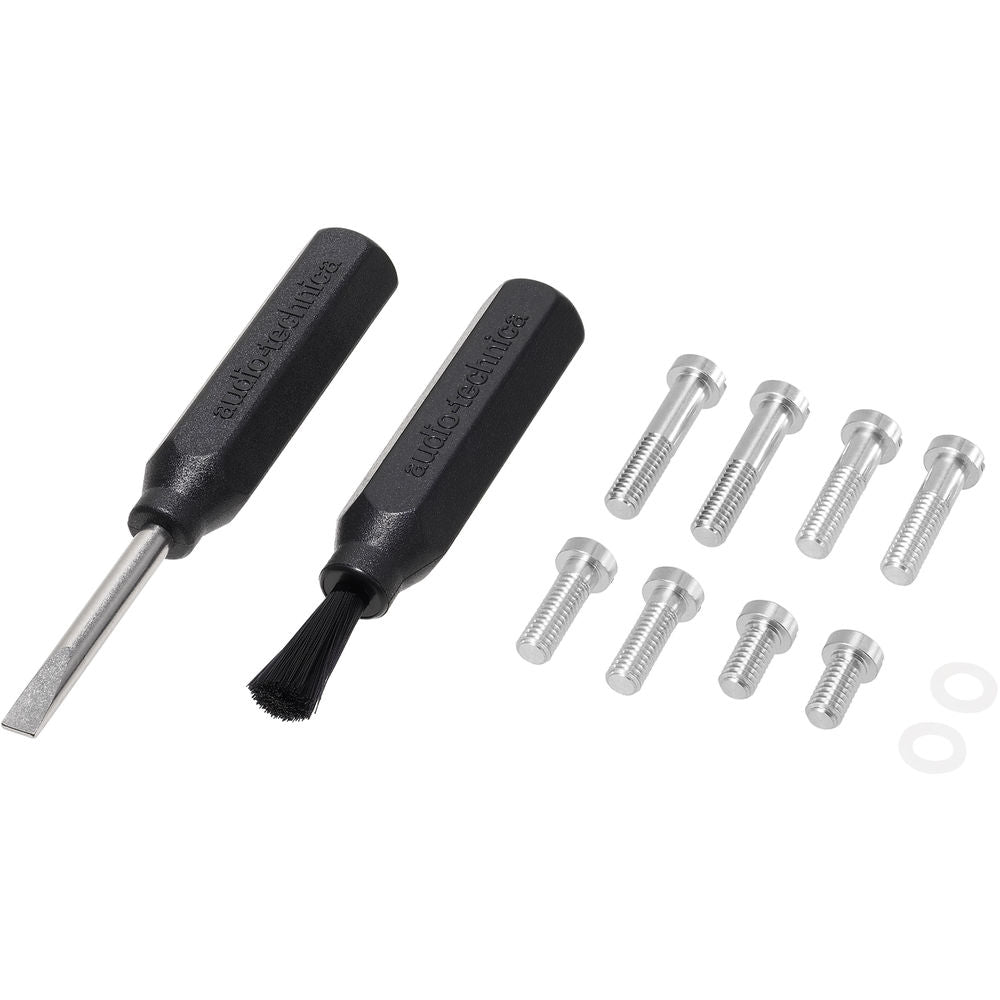

Accessories Included:

• Non-magnetic screwdriver
• 2 washers
• cartridge installation screws
  • 5 mm × 2
  • 8 mm × 2
  • 10 mm x 2
  • 12 mm x 2
• plastic protector
• brush

Body Material: Aluminum

Model: AT-OC9XEN

Mounting Feature: Half-inch mount

Stylus Curvature Radius: 0.3 x 0.7 mil

Stylus Size: Nude square shank

Terminal Pins: Brass

Type: Dual Moving Coil

Weight: 7.6 g (0.3 oz)

Wire Used for Coil: PCOCCNotes

Mounting Feature: Threaded body
