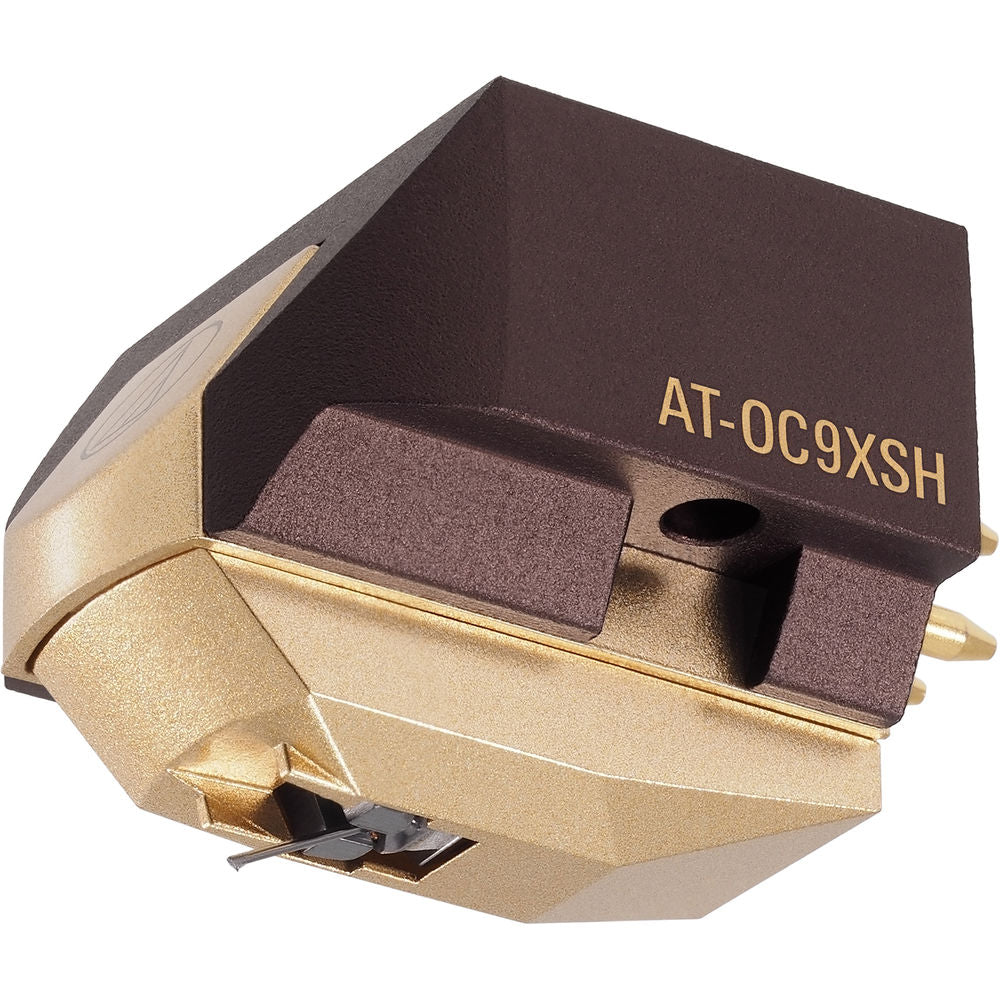

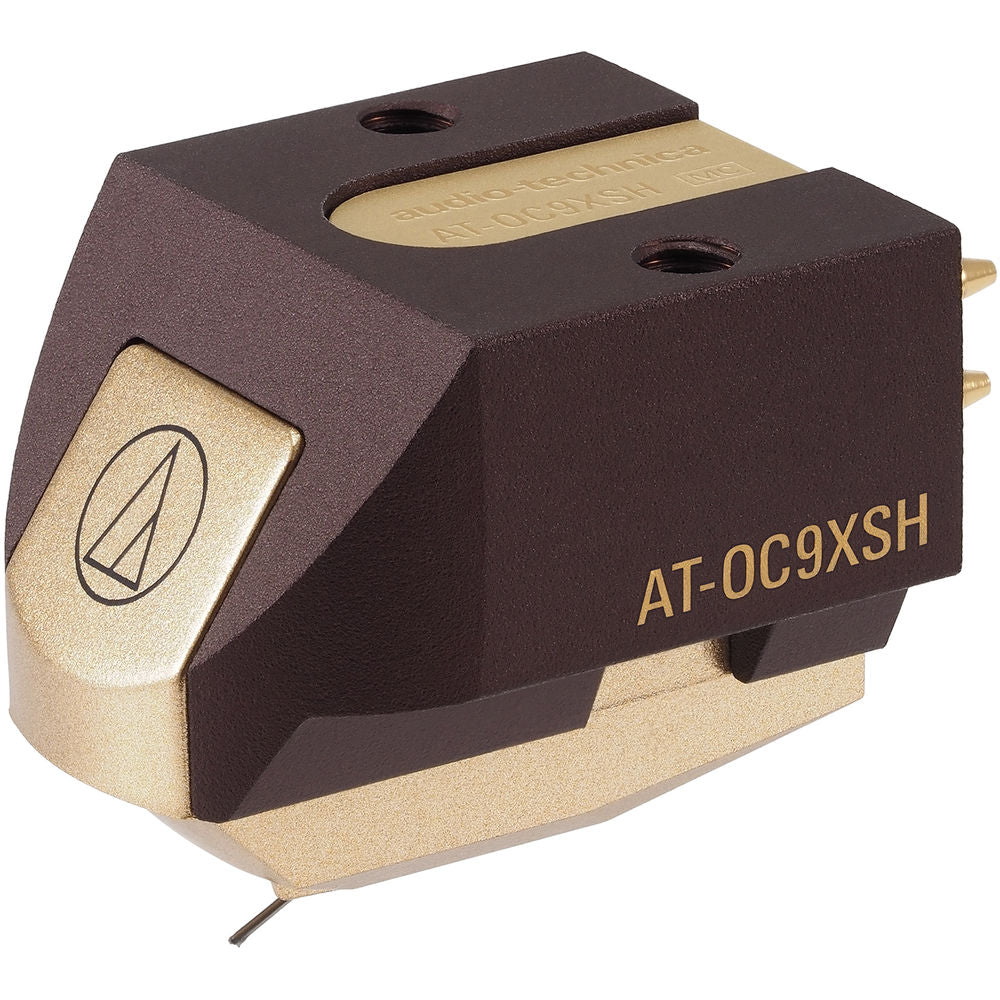

Audio-Technica Consumer AT-OC9XSH Dual Moving Coil Cartridge - Shibata Stylus

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Specifications:

Frequency Response: 20 - 47,000 Hz

Channel Seperation: 27dB (1kHz)

Vertical Tracking Angle: 20°

Vertical Tracking Force: 1.8 - 2.2 g (2.0g standard)

Stylus Construction: Nude square shank

Recomeneded Load Impedance: Min. 100 ohms (when head amplifier is connected)

Coil Impedance: 12ohms

DC Resistance: 12ohms

Coil Inductance: 25mH (1kHz)

Output Voltage: 0.4mV (at 1kHz, 5cm/sec)

Output Channel Balance: 1.0dB (1kHz)

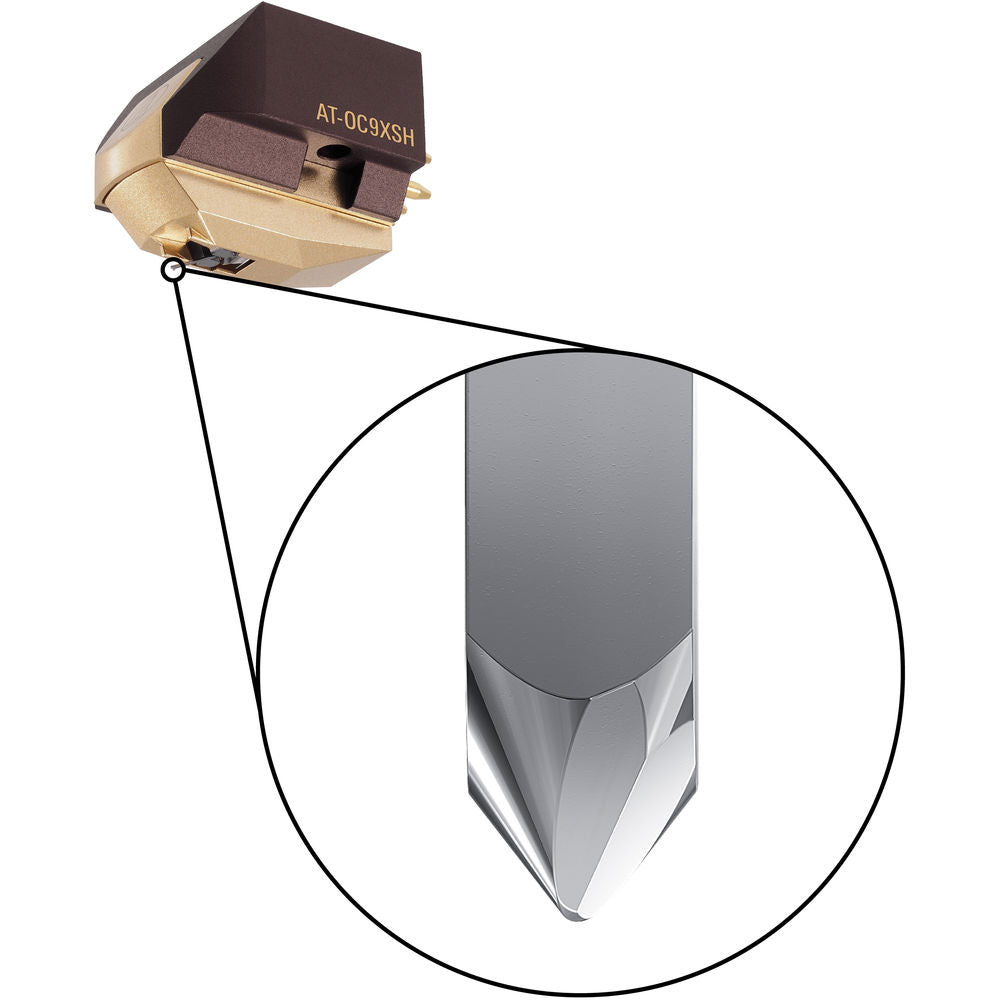

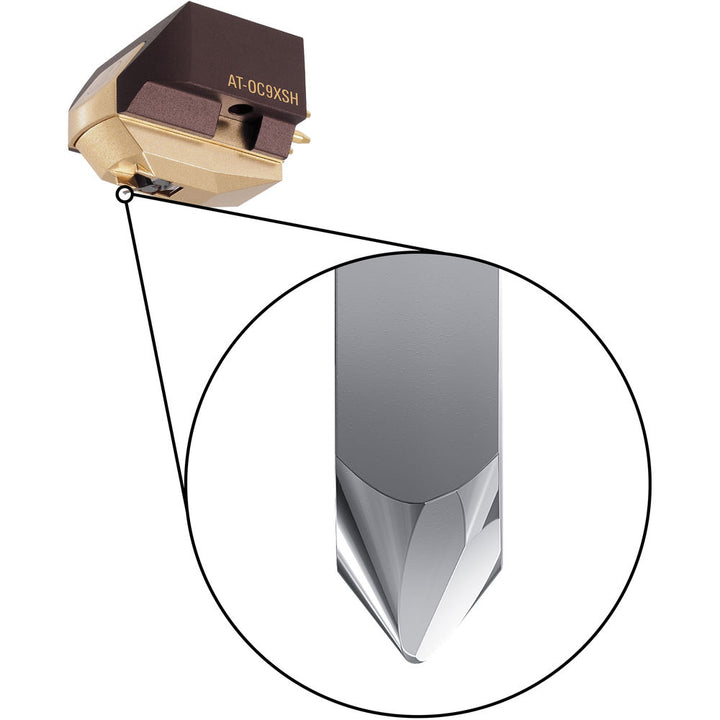

Stylus Shape: Shibata

Cantilever: 0.28mm diameter nude boron

Static Compliance: 20 x 10-6cm/dyne (100Hz)

Mounting: Half-inch

Cartridge Weight: 7.6g

Dimensions: 17.3 mm (0.68") H × 16.8 mm (0.66") W × 25.7 mm (1.01") D

Accessories Included:

• Non-magnetic screwdriver
• 2 washers
• cartridge installation screws
  • 5mm x 2
  • 8mm x 2
  • 10mm x 2
  • 12mm x 2
• plastic protector
• brush

Body Material: Aluminum

Mounting Feature:

• Half-inch mount
• Threaded body

Stylus Curvature Radius: 2.7 x 0.26 mil

Stylus Size: Nude square shank

Terminal Pins: Brass

Type: Dual Moving Coil

Weight: 7.6g (0.3oz)

Wire Used for Coil: PCOCC
