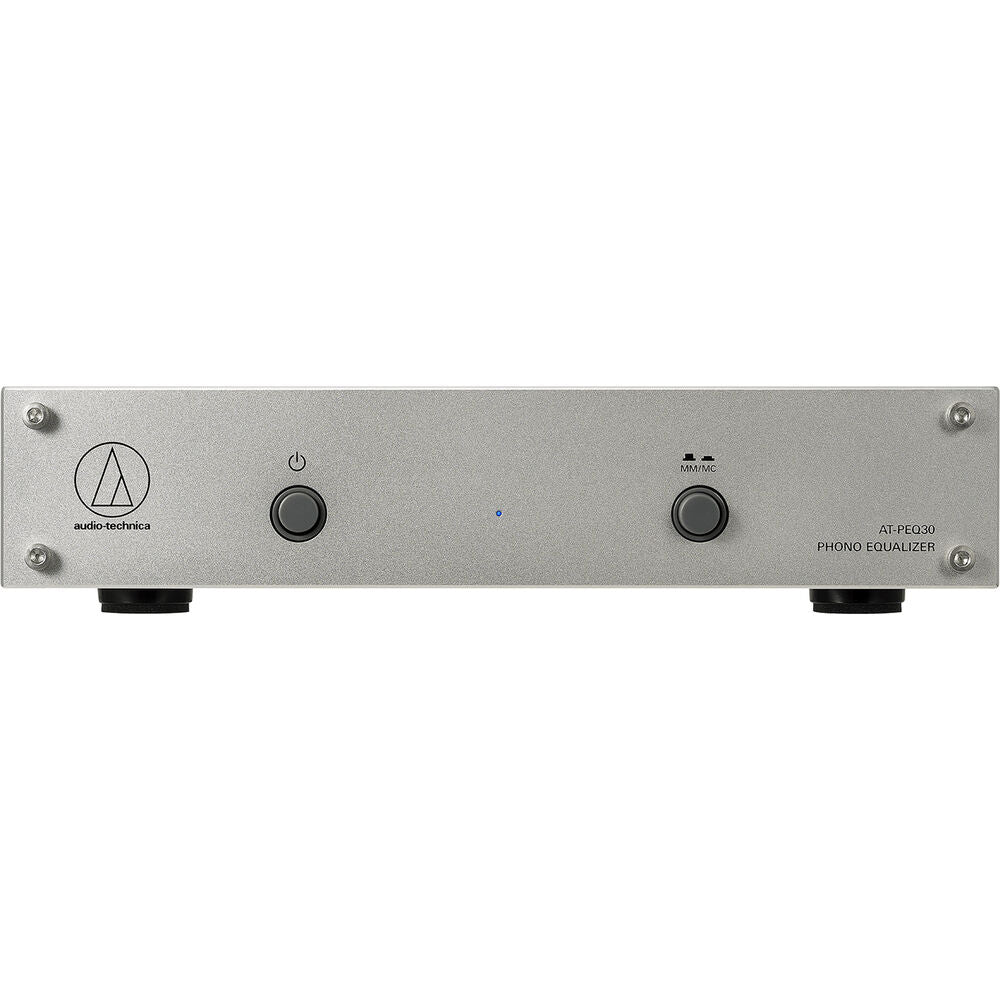

Audio-Technica Consumer AT-PEQ30 Phono Preamp/Equalizer
AT-PEQ30
Payment plans from Affirm, learn more
- Audio-Technica
- Shipping Calculated at checkout, most in stock products ship same day
The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntable’s built-in phono preamplifier.
It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technica’s years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.
Features:
Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges
High-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit
Precision components provide an excellent RIAA response for best-in-class performance
The all metal construction enclosure provides superior isolation from radio and electronic noise interference

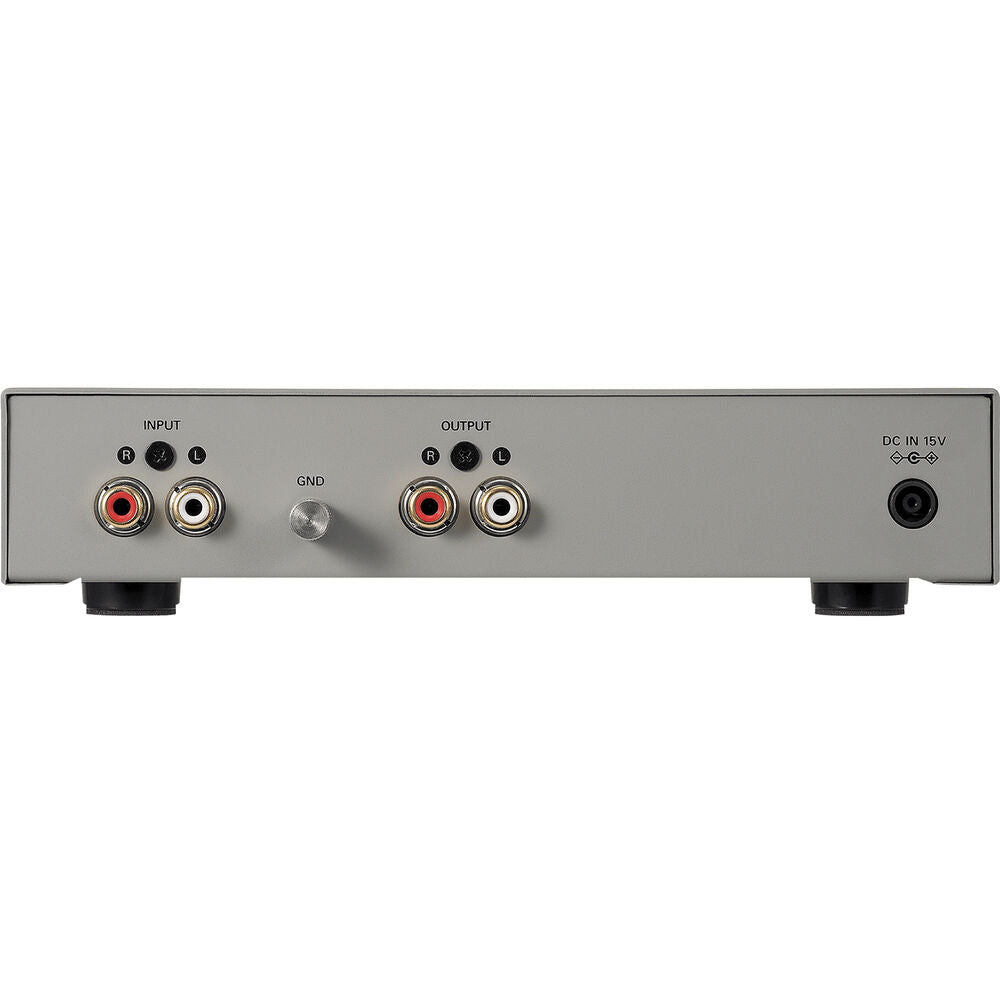

The machined aluminum front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout
Specifications:
Input Impedance:
- MM type: 47 kiloohms
- MC type: 120 ohms
Input Sensitivity:
- MM type: 4.5 mV
- MC type: 0.28 mV
Rated output:
- MM type: 250 mV
- MC type: 250 mV
Gain:
- MM type: 35 dB
- MC type: 59 dB
Signal-to-Noise Ratio:
- MM type: 100 dB
- MC type: 74 dB
RIAA Deviation (20 to 20,000 Hz): ±0.5 dB
Power Supply: DC 15 V, 1.2 A
Power Consumption: 2.5 W
Dimensions: 47 mm (1.85") H x 197.5 mm (7.78") W x 125.5 mm (4.94") D (excluding protrusions)
Weight: 890 g (31.4 oz)
