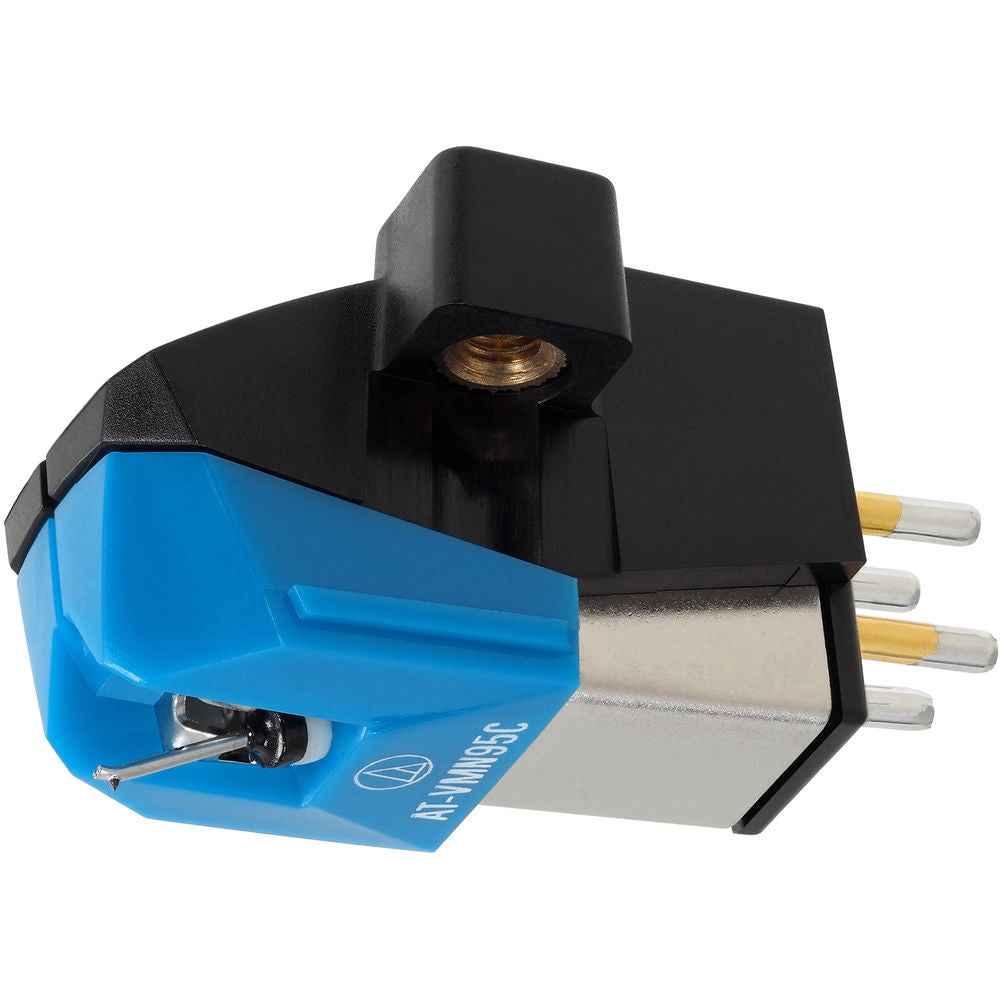

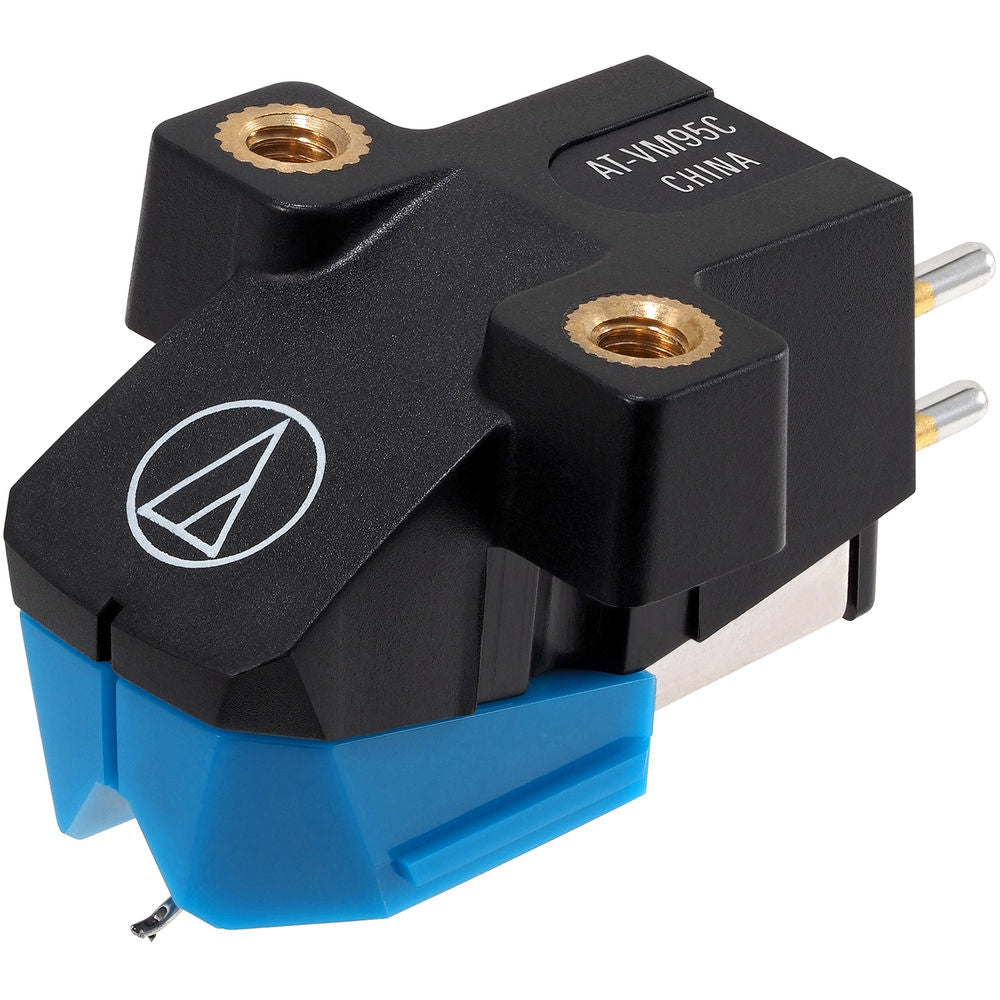

Audio-Technica Consumer AT-VM95C Dual Moving Magnet Cartridge

This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications:

Frequency Response: 20-20,000 Hz

Channel Separation: 18 (dB at 1 kHz)

Vertical Tracking Angle: 23°

Vertical Tracking Force: 1.8-2.2 g (2.0 g standard)

Stylus Construction: Bonded round shank

Recommended Load Impedance: 47,000 ohms

Coil Impedance: 3.3 k ohms (1 kHz)

DC Resistance: 485 ohms

Coil Inductance: 550 mH (1 kHz)

Output Voltage: 4.0 mV (1 kHz, 5 cm/sec.)

Output Channel Balance: 2.5 dB (1 kHz)

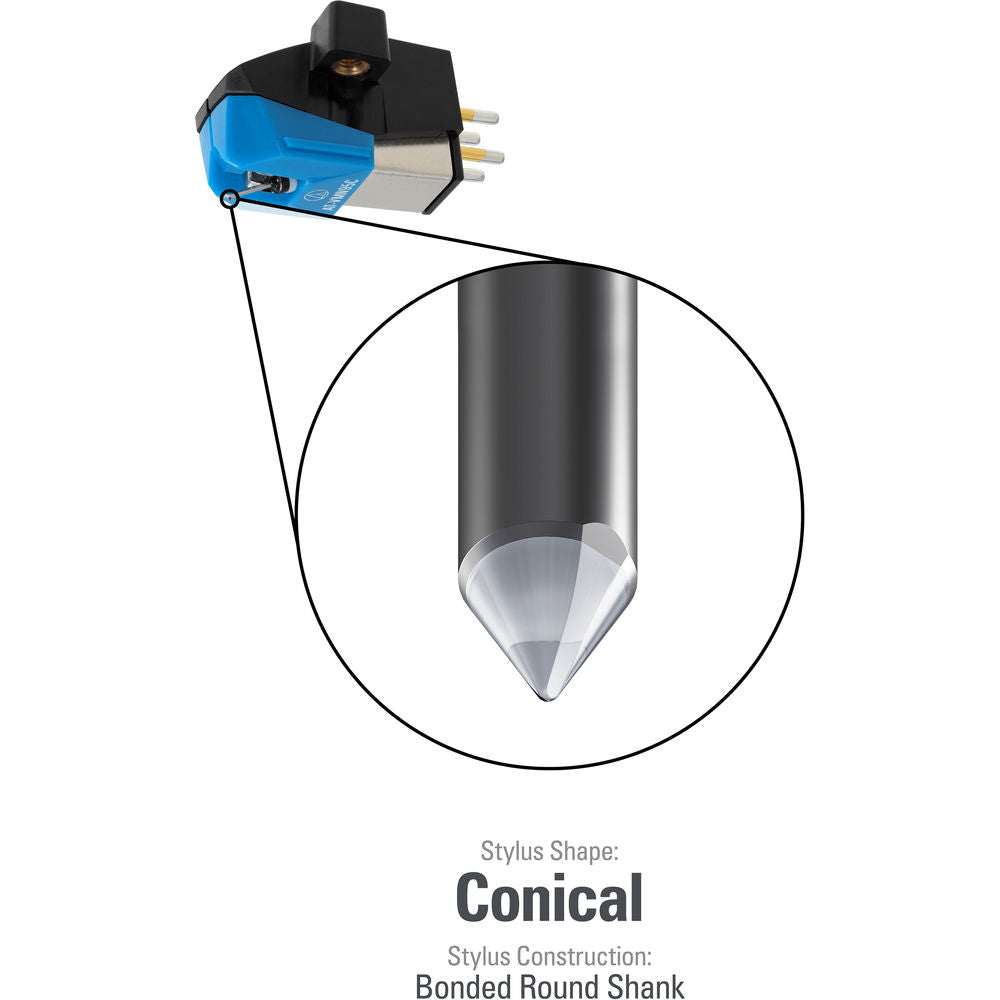

Stylus Shape: 0.6 mil conical

Cantilever: Aluminum pipe

Static Compliance: 17 x 10 – 6 cm / dyne

Dynamic Compliance: 6.5 x 10 – 6 cm / dyne (100 Hz)

Mounting: Half-inch

Cartridge Weight: 6.1g

Dimensions: 17.2 mm (0.68") H × 18.9 mm (0.74") W × 28.3 mm (1.20") D

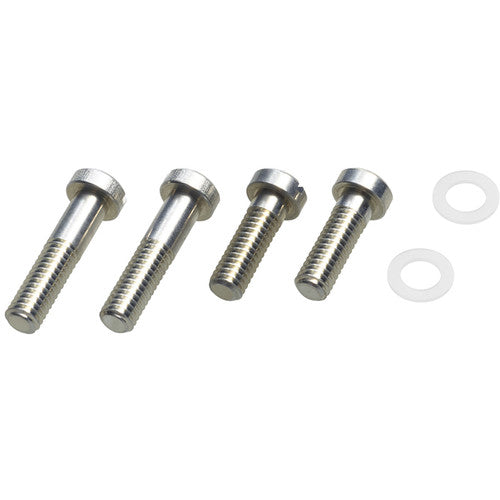

Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers

Model: AT-VM95C

Mounting Feature: Half-inch mount

Recommended Load Capacitance: 100 to 200 pF

Replacement Stylus: AT-VMN95C

Stylus Size: 0.6 mil

Type: VM Stereo Dual Magnet

Weight: 6.1 g (0.22 oz)

Wire Used for Coil: T.P. Copper
